54F550FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F550FMQB

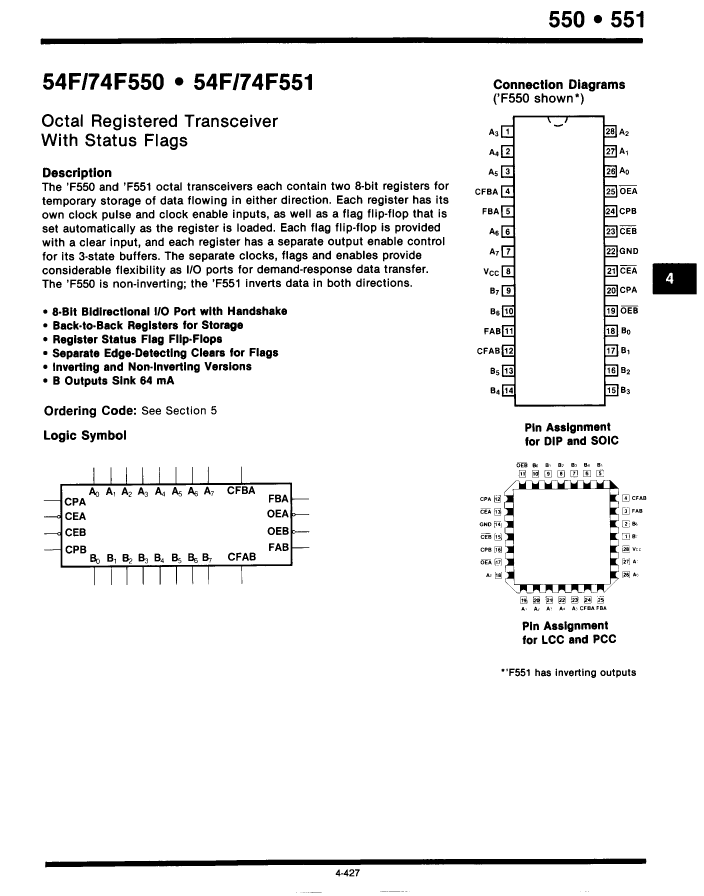

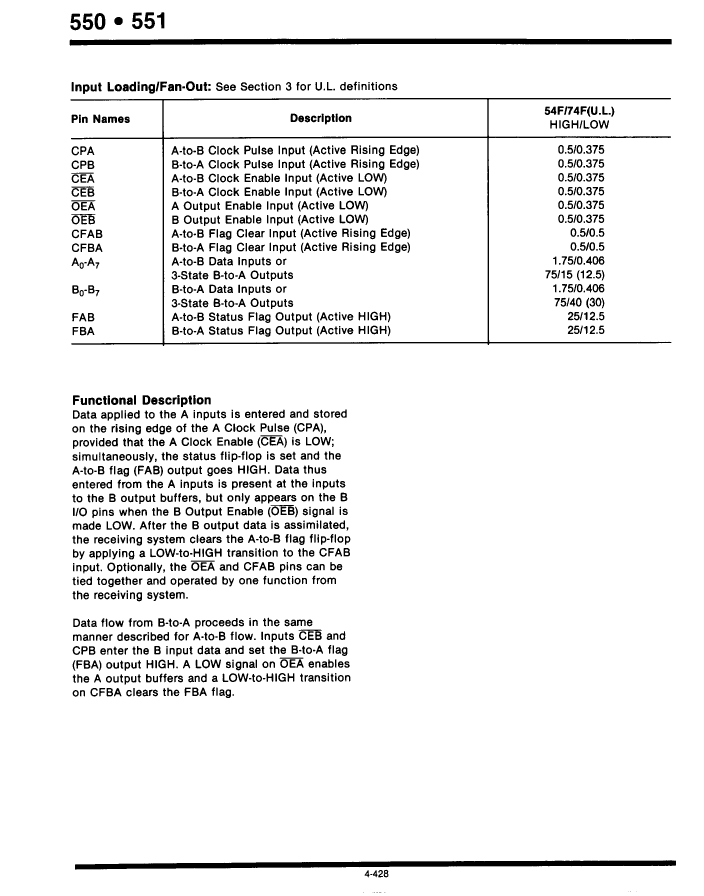

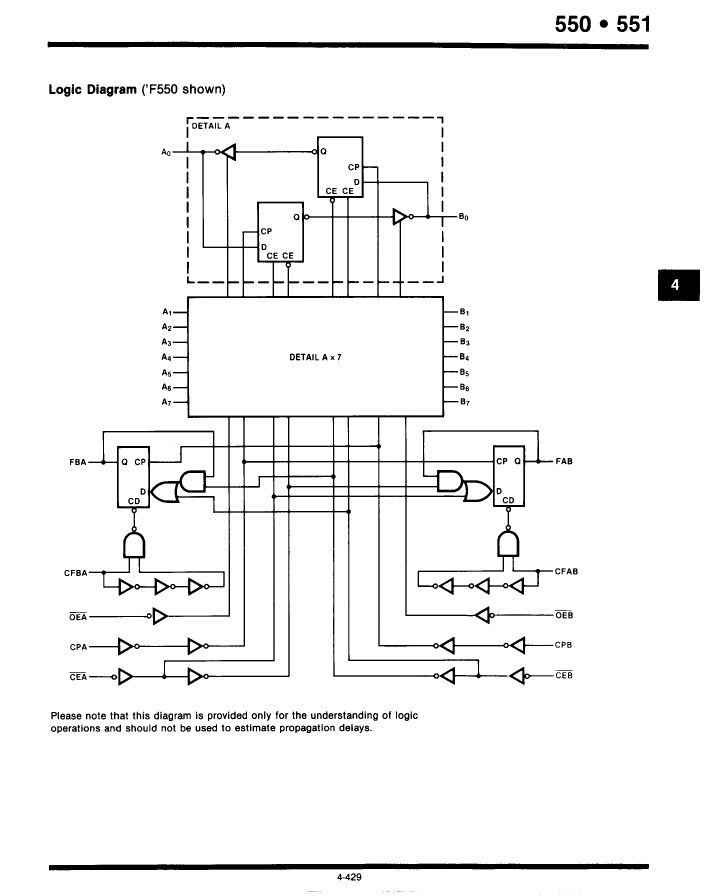

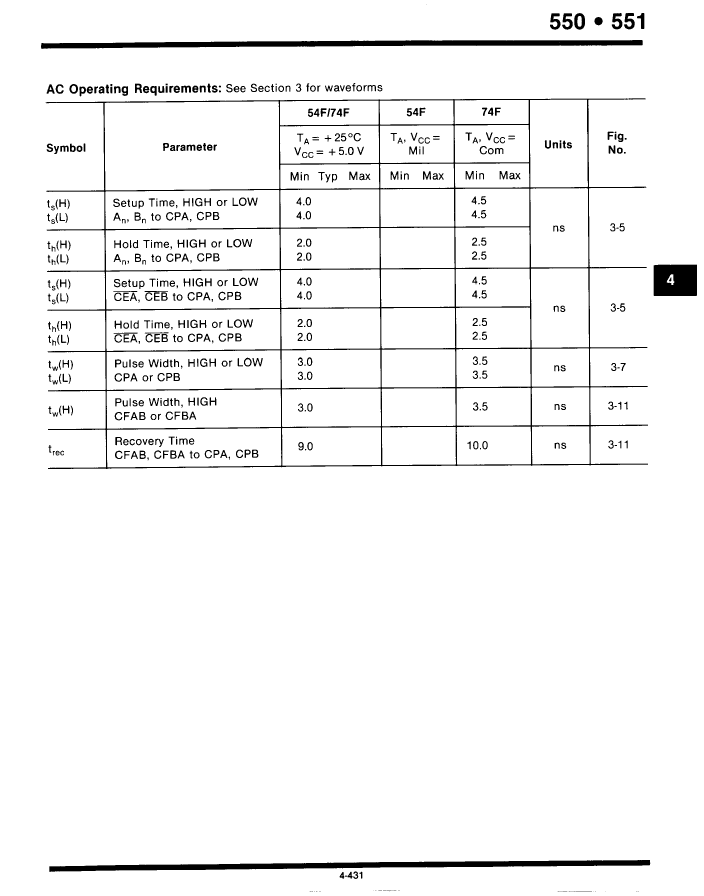

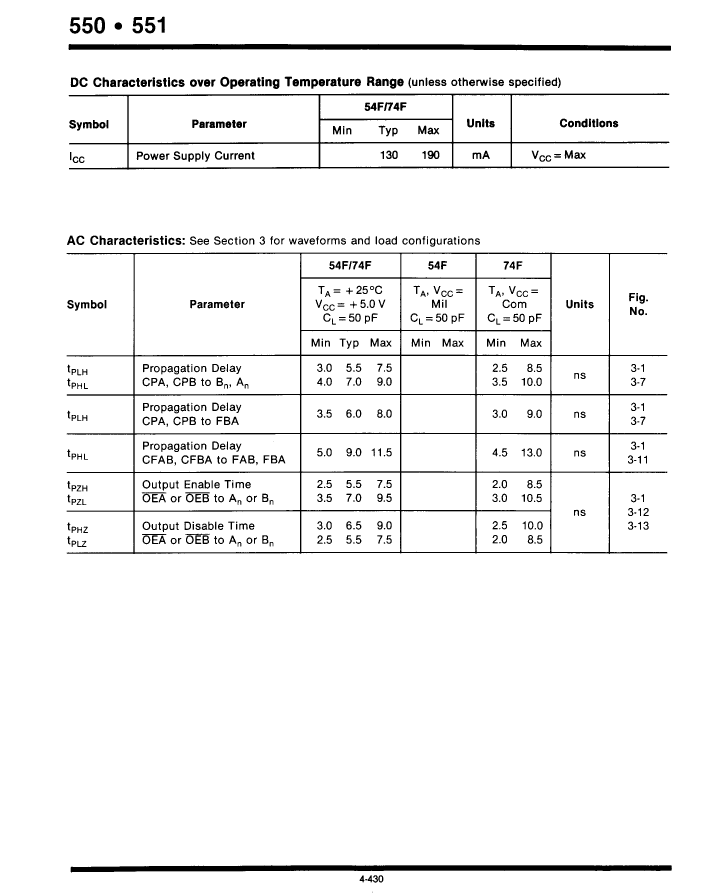

54F550FMQB: DescriptionRegistered Bus Transceiver, 1-Func, 8-Bit, True Output, TTL, CDFP28,; Categorylogic logic; File Size188KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54F550FMQB Overview

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, TTL, CDFP28,

54F550FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDFP-F28
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL28,.4
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

Preview

Download Datasheet

View All

54F550FMQB Related Products

	54F550FMQB	54F551FM	54F550FM	74F550DCQM	74F551PCQM	74F551DCQM	74F550PCQM
Description	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, TTL, CDFP28,	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, CDFP28,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, TTL, CDFP28,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, TTL, CDIP28,	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, PDIP28,	Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, TTL, CDIP28,	Registered Bus Transceiver, 1-Func, 8-Bit, True Output, TTL, PDIP28,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	compliant
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-XDFP-F28	R-XDFP-F28	R-XDFP-F28	R-XDIP-T28	R-PDIP-T28	R-XDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	TRUE	TRUE	INVERTED	INVERTED	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY
encapsulated code	DFP	DFP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL28,.4	FL28,.4	FL28,.4	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1	1	1	1	-
Is it lead-free?	-	-	-	Contains lead	Contains lead	Contains lead	Contains lead
Maker	-	-	-	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	-	-	-	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6
Humidity sensitivity level	-	-	-	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	-	-	-	250	250	250	250
Maximum time at peak reflow temperature	-	-	-	30	30	30	30
translate	-	-	-	N/A	N/A	N/A	N/A
