VJ HIFREQ HT Series
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer

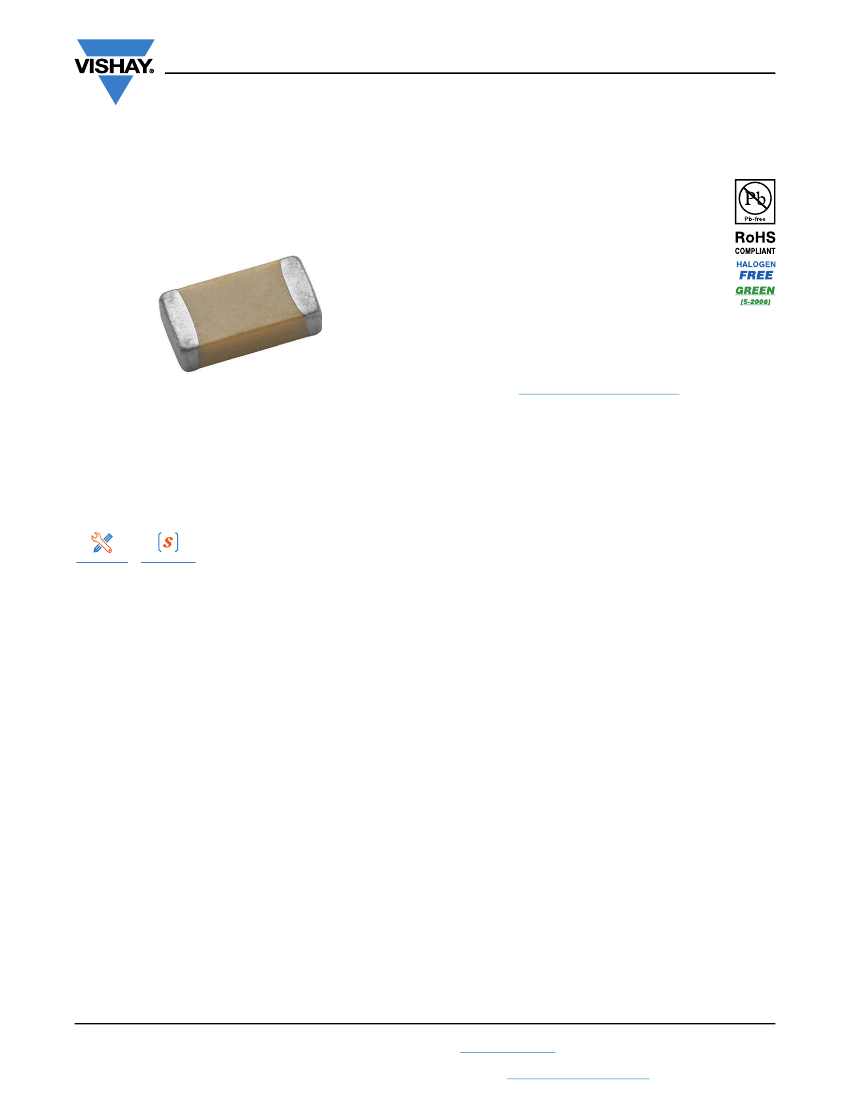

Ceramic Chip Capacitors for High Temperatures 175 °C / 200 °C
FEATURES
• Case size 0402, 0505, 0603, 0805, 1111
• High frequency / high temperature 175 °C /
200 °C
• Ultra-stable dielectric material
• Lead (Pb)-free terminations code “X”
• Surface mount, wet build process
• Reliable Noble Metal Electrode (NME) system
• Made with a combination of design, materials and tight
process control to achieve very high field reliability
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• RF and microwave
• Broadband communication
• Satellite communication
• Base stations
ADDITIONAL RESOURCES
Design Tools
S-Parameters
• Medical instrumentation and test
• Military devices (radar, communication, etc.)
• Wireless devices
ELECTRICAL SPECIFICATIONS
Note
• Electrical characteristics at 25 °C unless otherwise specified
Operating Temperature:
-55 °C to +200 °C
Capacitance Range:
0402: 0.1 pF to 47 pF
0505: 0.1 pF to 330 pF
0603: 0.1 pF to 270 pF
0805: 0.1 pF to 1000 pF
1111: 0.2 pF to 3300 pF
Voltage Rating:
25 V
DC
to 500 V
DC
Temperature Coefficient of Capacitance (TCC):
C0G (D): 0 ppm/°C ± 30 ppm/°C from -55 °C to +200 °C
Dissipation Factor (DF):
C0G (D): 0.05 % max. at 1.0 V
RMS
and 1 MHz
for values
1000 pF
C0G (D): 0.05 % max. at 1.0 V
RMS
and 1 kHz
for values > 1000 pF
Aging Rate:
0 % maximum per decade
Insulation Resistance (IR):
at +25 °C and rated voltage 100 000 M minimum or
1000
F,
whichever is less
at +200 °C and rated voltage 10 000 M minimum or
100
F,
whichever is less
Dielectric Strength Test:
performed per method 103 of EIA-198-2-E.
Applied test voltages:
100 V
DC
-rated: min. 250 % of rated voltage
Revision: 13-Jan-2020
Document Number: 45239
1
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ HIFREQ HT Series
www.vishay.com
Vishay Vitramon
CAPACITANCE
MINIMUM
0.1 pF
0.1 pF
0.1 pF
0.1 pF
0.2 pF
MAXIMUM
47 pF
470 pF
270 pF
1.0 nF
3.3 nF
QUICK REFERENCE DATA
DIELECTRIC
CASE
0402
0505
D = HIFREQ
0603
0805
1111
MAXIMUM VOLTAGE
(V)
100
250
200
250
500
ORDERING INFORMATION
VJ0805
D
2R2
V
X
TERMINATION
A
DC VOLTAGE
RATING
(1)
X = Ni barrier
100 % tin plate
matte finish
J = 16 V
X = 25 V
A = 50 V
B = 100 V
K = 150 V
C = 200 V
P = 250 V
D = 300 V
E = 500 V
A = unmarked
(2)
Q = marked
T = 7" reel / plastic tape
C = 7" reel / paper tape
J = 7" reel (low quantity)
R = 11 1/4 / 13" reel /
plastic tape
P = 11 1/4 / 13" reel /
paper tape
A
MARKING
C
HT
CASE DIELECTRIC CAPACITANCE CAPACITANCE
CODE
NOMINAL CODE TOLERANCE
0402
0505
0603
0805
1111
D = HIFREQ
Expressed in
picofarads (pF).
The first two
digits are
significant,
the third is
a multiplier.
An “R” indicates
a decimal point.
Examples:
1R0 = 1.0 pF
V = ± 0.05 pF
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.50 pF
F=±1%
G=±2%
J=±5%
K = ± 10 %
M = ± 20 %
Note:
for details
see “Selection
Chart”
PACKAGING PROCESS
CODE
Notes
(1)
DC voltage rating should not be exceeded in application
(2)
Case size 0402 only available with A
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
CASE
CODE
0402
0505
0603
0805
1111
STYLE
VJ0402
VJ0505
VJ0603
VJ0805
VJ1111
LENGTH
(L)
0.040 ± 0.004
(1.02 ± 0.10)
0.055 + 0.015 / - 0.010
(1.40 + 0.382 / - 0.254)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.117 + 0.015 / - 0.010
(2.98 + 0.382 / - 0.254)
WIDTH
(W)
0.020 ± 0.004
(0.51 ± 0.10)
0.055 ± 0.015
(1.40 ± 0.38)
0.031 ± 0.005
(0.80 ± 0.12)
0.049 ± 0.008
(1.25 ± 0.20)
0.110 + 0.015 / - 0.020
(2.79 + 0.382 / - 0.509)
MAXIMUM
THICKNESS (T)
0.021
(0.61)
0.057
(1.45)
0.037
(0.94)
0.057
(1.45)
0.102
(2.59)
TERMINATIONS PAD (P)
MINIMUM
0.004
(0.10)
0.004
(0.10)
0.010
(0.25)
0.010
(0.25)
0.012
(0.30)
MAXIMUM
0.016
(0.41)
0.016
(0.41)
0.022
(0.55)
0.030
(0.76)
0.018
(0.46)
Revision: 13-Jan-2020
Document Number: 45239
2
For technical questions, contact:
mlccrf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
