Agilent Black Surface
Seven Segment Displays
Data Sheet
HDSP-AX11/-AX13 Series, HDSP-FX11/-FX13 Series
HDSP-GX11/-GX13 Series, HDSP-HX11/-HX13 Series
HDSP-KX11/-KX13 Series
Description
These devices use industry
standard size package and
pinout. Available with black
surface finish. All devices are
available as either common
anode or common cathode.
Typical applications include
appliances, channel indicators
of TV, CATV converters, game
machines, and point of sale
terminals.
Features
• Black surface and color tinted
epoxy
• Industry standard size
• Industry standard pinout
• Choice of character size
7.6 mm (0.30 in.), 10 mm (0.40 in.),
14.2 mm (0.56 in.)
• Choice of colors
AlGaAs Red, High Efficiency Red
(HER), Green, Orange
• Excellent appearance
Evenly lighted segments
±
50° Viewing angle
• Design flexibility
Common anode or common
cathode
Single and two digit
• Categorized for luminous intensity
Categorized for color: Green
Use of like categories yields a
uniform display
• Excellent for long digit string
multiplexing
Devices
Orange
HDSP-
A411
A413
F411
F413
G411
G413
H411
H413
K411
K413
AlGaAs
Red
HDSP-
A111
A113
F111
F113
G111
G113
H111
H113
K111
K113
HER
HDSP-
A211
A213
F211
F213
G211
G213
H211
H213
K211
K213
Green
HDSP-
A511
A513
F511
F513
G511
G513
H511
H513
K511
K513

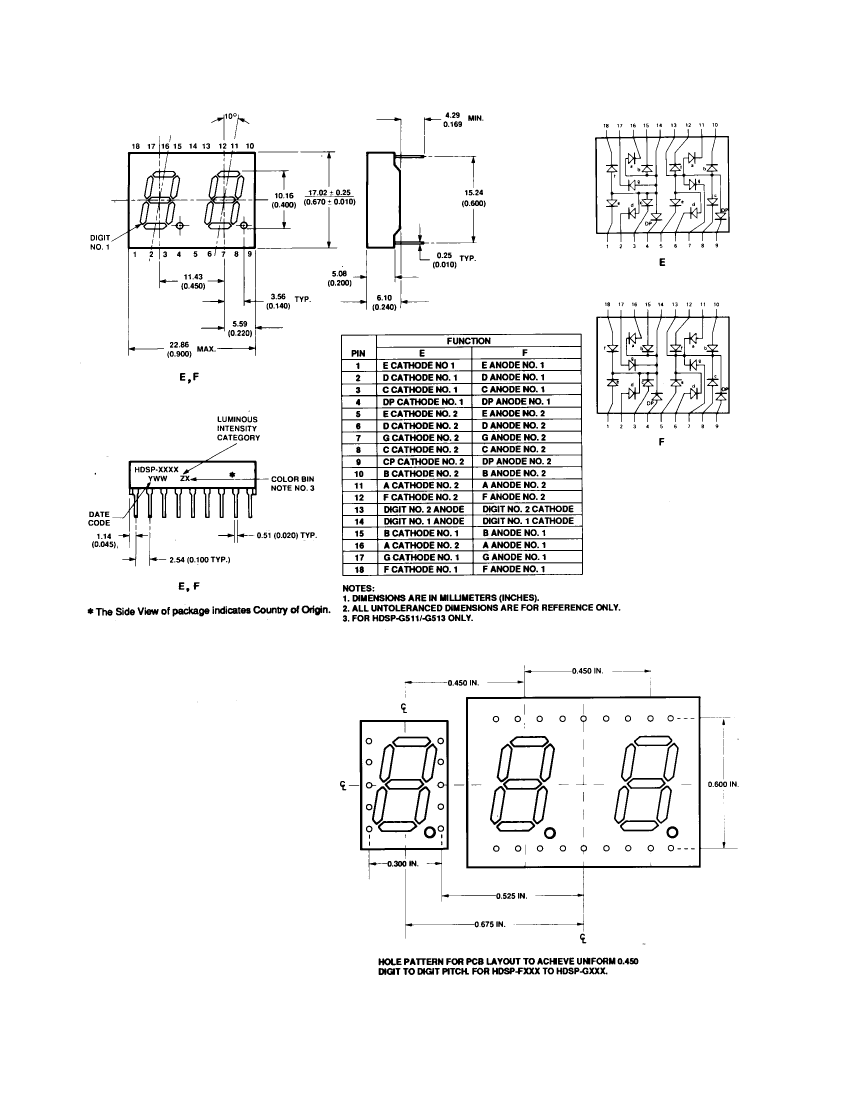

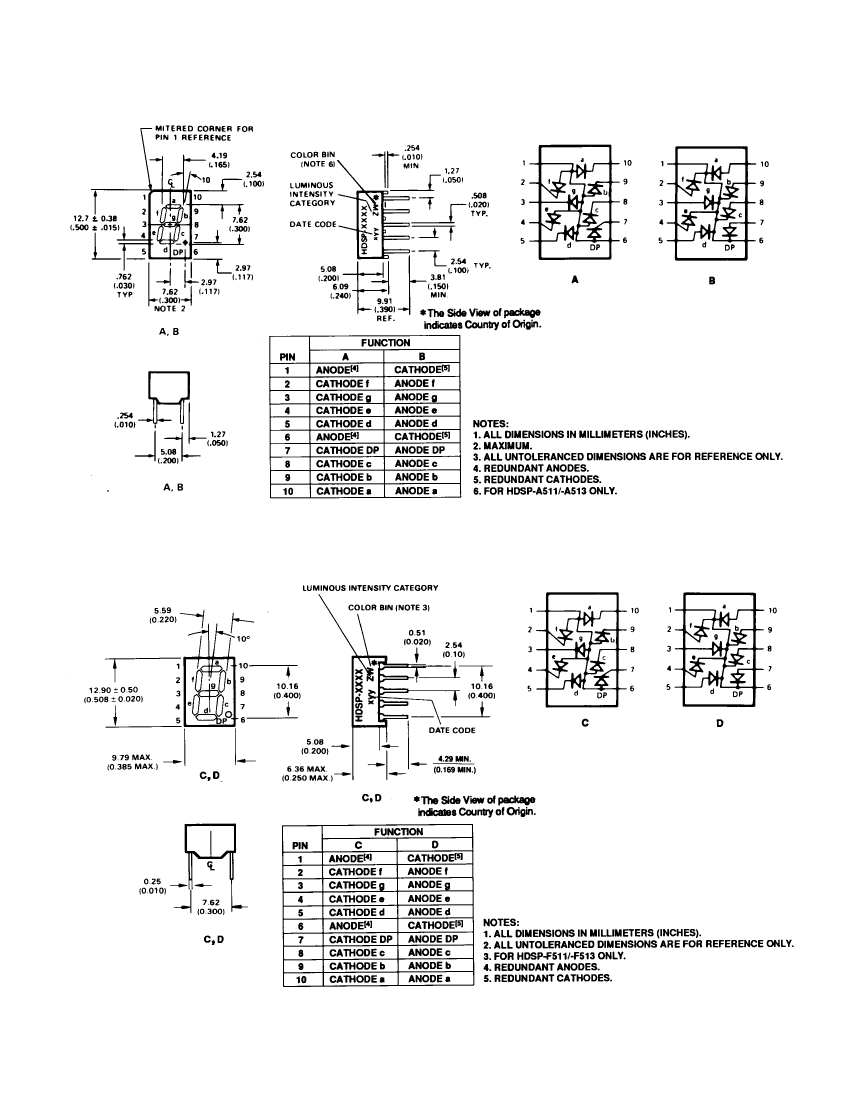

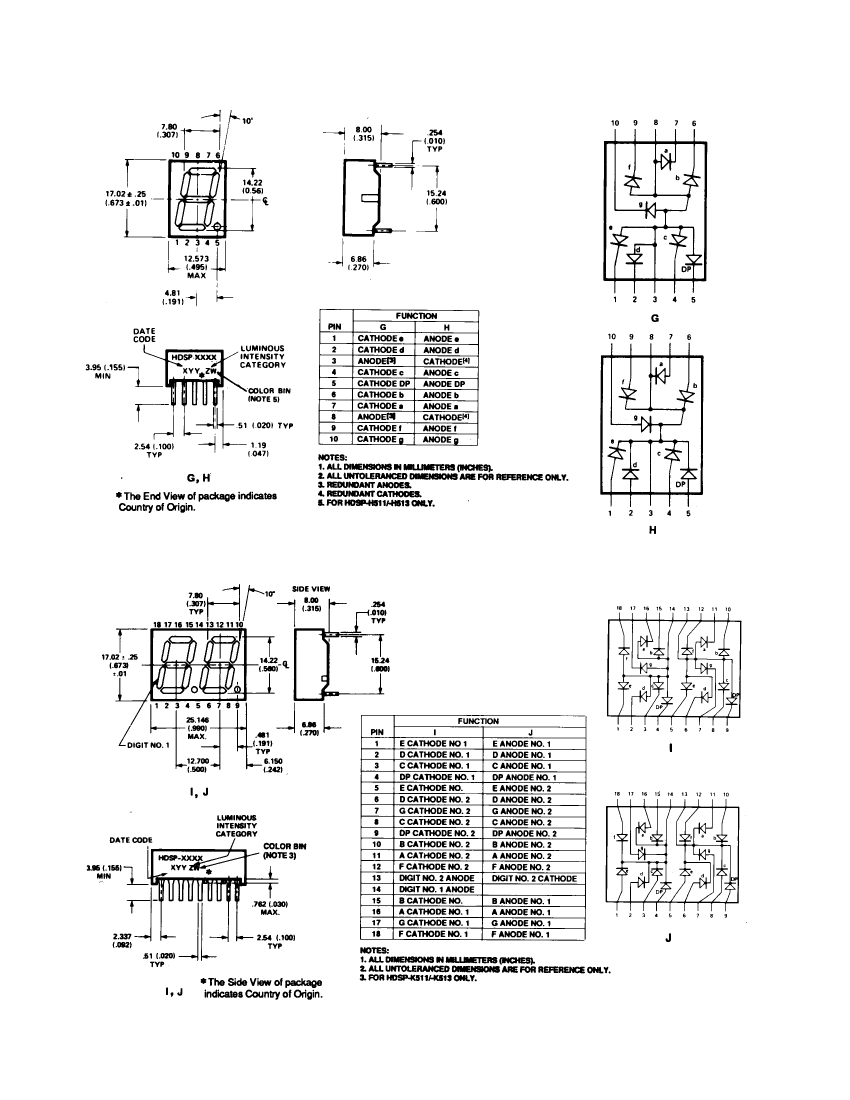

Package
Drawing
A
B
C
D
E
F
G
H
I
J
Description
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
10 mm Common Anode Right Hand Decimal
10 mm Common Cathode Right Hand Decimal
10 mm Two Digit Common Anode Right Hand Decimal
10 mm Two Digit Common Cathode Right Hand Decimal
14.2 mm Common Anode Right Hand Decimal
14.2 mm Common Cathode Right Hand Decimal
14.2 mm Two Digit Common Anode Right Hand Decimal
14.2 mm Two Digit Common Cathode Right Hand Decimal
Part Numbering System
5082 - X X X X-X X X X X
HDSP-X X X X-X X X X X
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
1: Common Anode
3: Common Cathode
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
A: 7.6 mm (0.3 inch) Single Digit Seven Segment Display
F: 10 mm (0.4 inch) Single Digit Seven Segment Display
G: 10 mm (0.4 inch) Dual Digit Seven Segment Display
H: 14.2 mm (0.56 inch) Single Digit Seven Segment Display
K: 14.2 mm (0.56 inch) Dual Digit Seven Segment Display
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Agilent
representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per tube
(exceptions may apply). Please refer to respective datasheet for specific bin limit information.
2
