Features
■
JA version available to 100K ohms
■
10 pin with 8 resistors in bussed type for
■
■
■
■
■
Suitable for all types of soldering processes
■
Paper tape on plastic reel for automatic
*R
oH
S
pull up/down circuit
RoHS compliant*
Convex termination style
Resistance tolerance ±5 %
E24 Series from 10 ohms to 43K ohms
placement

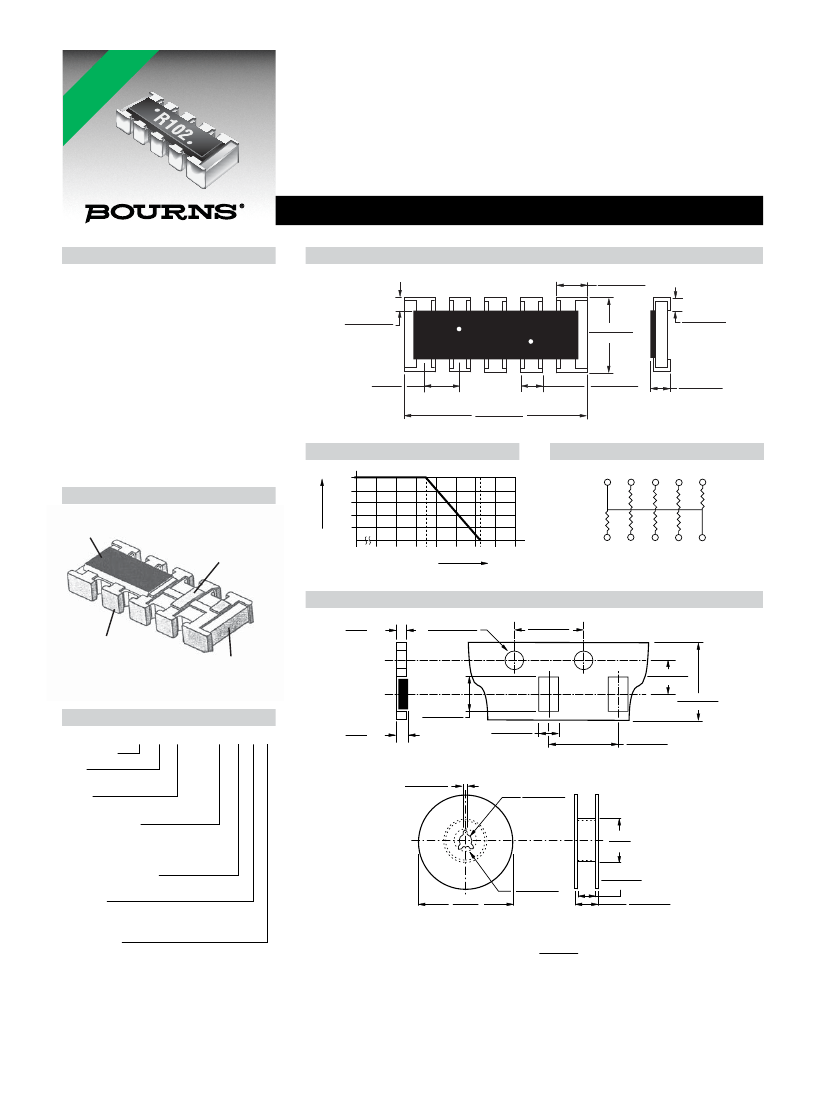

Model CAY17 - Bussed Resistor Array
Characteristics
Number of Resistors .. 8 (bussed circuit)
Power Rating per Resistor @ 70 °C
................................................ 31 mW
Package Power Rating @ 70 °C
.............................................. 250 mW
Operating Temperature Range
............................... -55 °C to +155 °C
Derated to 0 Load @..................+125 °C
Max. Working Voltage......................25 V
Max. Overload Voltage ....................50 V
Resistance Tolerance .................... ±5 %
Resistance Range/E24 Series
JA version ..... 10 ohms to 100K ohms
JB version ....... 10 ohms to 43K ohms
T.C.R. ................................ ±250 ppm/°C
Construction
Protective
Glass Overcoat
Thick Film
Resistive Element
Product Dimensions
0.55
±
0.1
(.022
±
.004)
0.3
±
0.2
(.012
±
.008)
0.2
±
0.15
(.008
±
.006)
R102
1.6
±
0.2
(.063
±
.008)
0.64
(.025)
3.2
±
0.2
(.126
±
.008)
0.34
±
0.15
(.013
±
.006)
0.5
±
0.1
(.020
±
.004)
Derating Curve
100
Rated Load (%)
80
60
40
20
0
-55
40 60 80
Ambient Temp. (˚C)
100 120 140 160
70
°C
125
°C
Bussed Circuits - Option A
10
9
R
R
1
2
R
3
8
R
R
4
7
R
R
5
6
R
Packaging Dimensions
1.0
MAX.
(.039)
1.5 + 0.1 - 0
(.059 + .004 - 0)
4.0
±
0.1
(.158
±
.004)
Termination
High Purity
Alumina
Substrate
3.5
±
0.05
(.138
±
.002)
8.0
±
0.2
(.315
±
.008)
2.0
±
0.2
(.079
±
.008)
How To Order
CA Y 17 - 103 J A LF
Chip Arrays
Type
• Y = Convex
Model
• 17 = 1206 Package Size
Resistance Code
• 103 = 10K ohms
(JA range: 10 ohms to 100K ohms;
JB range: 10 ohms to 43K ohms)
Resistance Tolerance
• J = ±5 %
Resistors
• A = Common from terminal 5 to 10
• B = Common from terminal 1 to 6
Terminations
• LF = Tin-plated (RoHS compliant)
1.4
MAX.
(.055)
3.6
±
0.2
(.142
±
.008)
4.0
±
0.1
(.157
±
.004)
2.0
±
0.5
(.079
±
.020)
13.0
±
0.2
(.511
±
.008)
60
(2.362)
180
(7.087)
21.0
±
0.8
(.827
±
.031)
9.0
±
0.3
(.354
±
.012)
11.4
±
1.0
(.449
±
.040)
DIMENSIONS:
MM
(INCHES)
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications
