3610S-1-104LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 3610S-1-104LF

3610S-1-104LF: Descriptionprecision potentiometers 100k 10turn snap In; CategoryPassive components; File Size168KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

3610S-1-104LF Overview

precision potentiometers 100k 10turn snap In

3610S-1-104LF Parametric

Parameter Name	Attribute value
Manufacture	Bourns
Product Category	Precision Potentiometers
RoHS	Yes
Produc	Digital Precision Potentiomete
Mounting Style	Snap I
Number of Turns	10
Element Type	Wirewound
Termination Style	J-Hook
Packaging	Bulk

Preview

Download Datasheet

View All

Features

■

Snap-in or bushing mount options

■

Standard resistance values available

■

Digital dial provides excellent readability

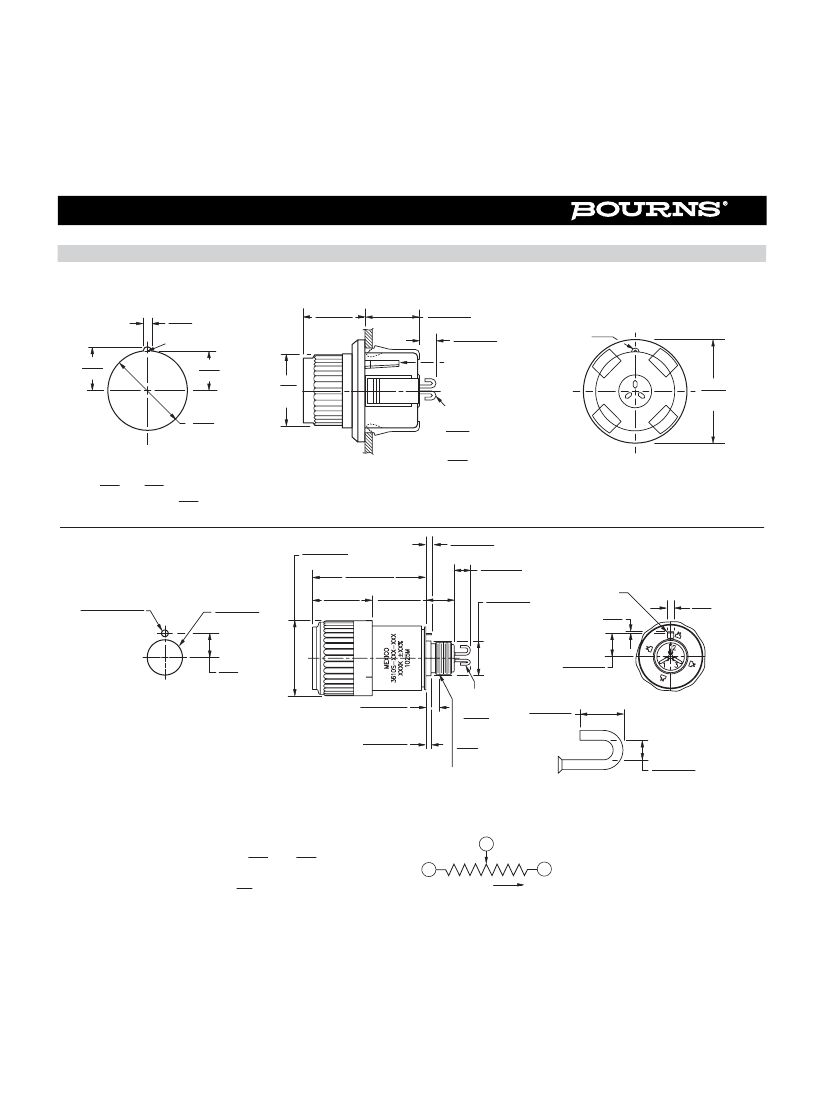

3610 - 10-Turn Precision Knobpot

Electrical Characteristics

Standard Resistance Range........................................................................................................................................................................ 100 to 100 K ohms

Total Resistance Tolerance................................................................................................................................................................................................ ±5 %

Effective Electrical Angle ................................................................................................................................................................................... 3600 ° nominal

Absolute Minimum Resistance ......................................................................................................................1 ohm or 0.1 % maximum (whichever is greater)

Noise ............................................................................................................................................................................................. 100 ohms ENR maximum

Dielectric Withstanding Voltage (MIL-STD-202, Method 301)

Sea Level ...............................................................................................................................................................................................1,000 VAC minimum

70,000 Feet ..............................................................................................................................................................................................400 VAC minimum

Power Rating (Voltage Limited By Power Dissipation or 385 VAC, Whichever is Less)

+25 °C......................................................................................................................................................................................................................1.5 watts

+85 °C...........................................................................................................................................................................................................................0 watt

Insulation Resistance (500 VDC) ..................................................................................................................................................... 1,000 megohms minimum

Resolution .............................................................................................................................................................................See recommended part numbers

Accuracy (Correlation of Dial Readout to Voltage Ratio Output) ................................................................................................................±0.5 % voltage ratio

Repeatability of Dial Readout .....................................................................................................................................................................±0.1 % voltage ratio

Environmental Characteristics

Operating Temperature Range ......................................................................................................................................................................... +1 °C to +85 °C

Storage Temperature Range ........................................................................................................................................................................... -25 °C to +85 °C

Temperature Coefﬁcient Over Storage Temperature Range2 ........................................................................................................ ±50 ppm/°C maximum/wire

Vibration .............................................................................................................................................................................................................................10 G

Wiper Bounce ................................................................................................................................................................................0.1 millisecond maximum

Total Resistance Shift ....................................................................................................................................................................................±2 % maximum

Voltage Ratio Shift ......................................................................................................................................................................................±0.2 % maximum

Shock ...............................................................................................................................................................................................................................50 G

Load Life .................................................................................................................................................................................................1,000 hours, 1.5 watts

Rotational Life (No Load) .................................................................................................................................................................... 50,000 shaft revolutions

Moisture Resistance (MIL-STD-202, Method 103, Condition B)

IP Rating ............................................................................................................................................................................................................................ IP 60

Mechanical Characteristics

Stop Strength.............................................................................................................................................................................. 14 N-cm (20 oz.-in.) minimum

Mechanical Angle ...........................................................................................................................................................................................3600 ° +20 °, -0 °

Torque (Starting) .............................................................................................................................................. 0.71 to 4.94 N-cm (1.0 to 7.0 oz.-in.) maximum

Torque (Running) ................................................................................................................................................................... 4.94 N-cm (7.0 oz.-in.) maximum

Variation ............................................................................................................................................................................. 0.71 N-cm (1.0 oz.-in.) maximum

Backlash ............................................................................................................................................................................................................ 1.0 ° maximum

Weight .....................................................................................................................................................................................................Approximately 20 gm

Terminals ...................................................................................................................................................................................................Gold-plated J-Hooks

Soldering Condition

Manual Soldering........................................................... 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire; 370 °C (700 °F) max. for 3 seconds

Wave Soldering ...................................................................................96.5Sn/3.0Ag/0.5Cu solder with no-clean ﬂux; 260 °C (500 °F) max. for 5 seconds

Wash processes .......................................................................................................................................................................................Not recommended

Markings .................................................................. Manufacturer’s name and part number, resistance value and tolerance, wiring diagram, and date code

1At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.

Recommended Part Numbers

Part Number

Resistance (Ω)

Resolution (%)

Part Number

Resistance (Ω)

Resolution (%)

3610S-1-102

3610S-1-502

3610S-1-103

1,000

5,000

10,000

.035

.027

.022

3610S-2-102

3610S-2-502

3610S-2-103

1,000

5,000

10,000

.035

.027

.022

BOLDFACE

LISTINGS ARE IN STOCK AND READILY

AVAILABLE THROUGH DISTRIBUTION.

FOR OTHER OPTIONS AND RESISTANCE VALUES,

PLEASE CONSULT THE FACTORY.

“Knobpot” is a registered trademark of Bourns, Inc.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
