3191EB273U016MRR1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 3191EB273U016MRR1

3191EB273U016MRR1: DescriptionCAP,AL2O3,27MF,16VDC,10% -TOL,75% +TOL; CategoryPassive components capacitor; File Size141KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

3191EB273U016MRR1 Overview

CAP,AL2O3,27MF,16VDC,10% -TOL,75% +TOL

3191EB273U016MRR1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1224003071
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	27000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	51.308 mm
dielectric materials	ALUMINUM (WET)
ESR	8.4 mΩ
length	67.513 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	16 V
ripple current	16800 mA
Terminal pitch	22.2 mm

Preview

Download Datasheet

View All

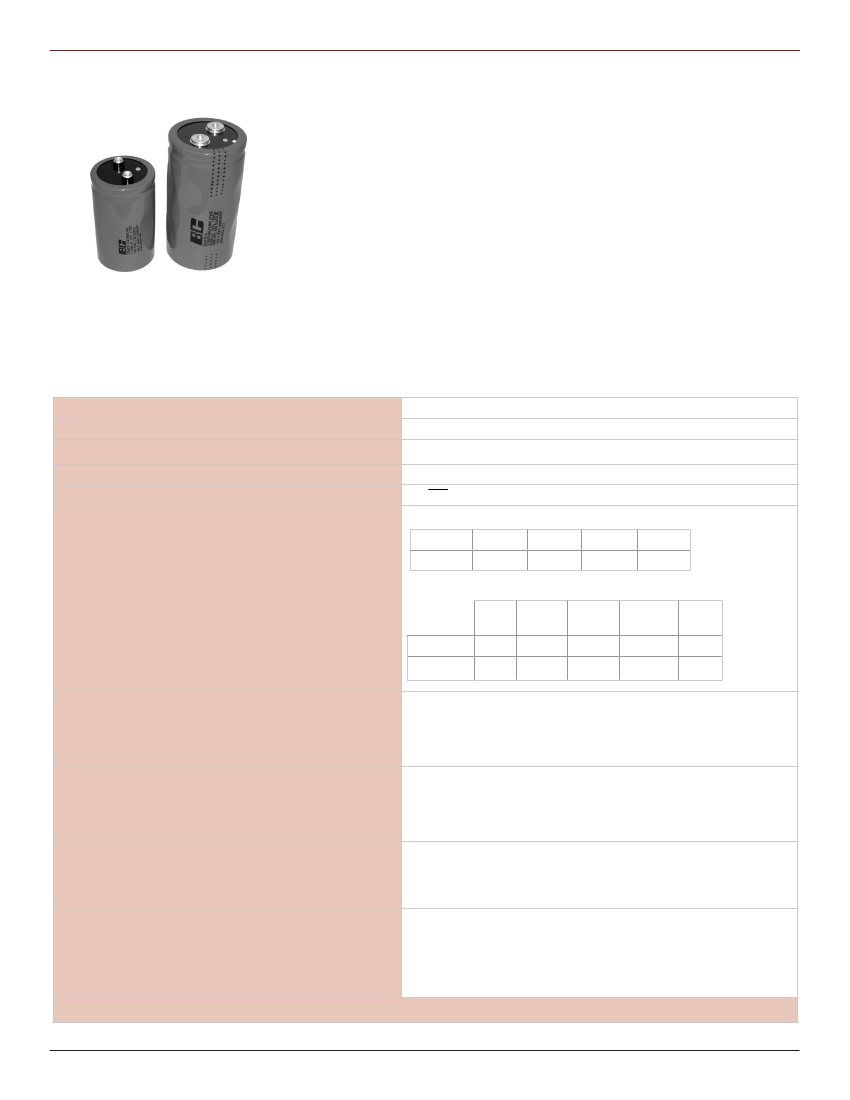

Type 3191, Aluminum Electrolytic Screw Terminal

Screw Terminal Capacitors for Power Output Filtering

The low ESR of Type 3191 capacitors makes them a great choice

for output voltage filtering in switching and audio power supplies.

Standard encasement is with the capacitor element compressed onto

an aluminum peg in the can bottom and a phenolic peg in the top.

Optional Rilled construction is available. With rilled construction the

element is secured by rills, spoon shaped dimples in the side of the

can. Rilled construction offers the industry’s highest vibration and

shock withstanding capability and excellent heat transfer.

Highlights

- Stud mount available

- High current application

- Industrial applications

- Smoothing and filtering

- Audio power supplies

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

–40 ºC to +85 ºC

7.5 Vdc to 55 Vdc

2700 µF to 150000 µF

–10 to + 30%; –10 to +50%; ±20%

≤6√CV µA (6 mA max.) at 5 minutes

Ambient Temperature

45 °C

2.24

Frequency

60 Hz 120 Hz

16 – 100 V

0.90

1.00

200 – 500 V

0.90

300 Hz

1.15

1.25

1000 Hz

1.25

1.40

≥10

kHz

1.30

1.50

55 °C

2.00

65 °C

1.73

75 °C

1.41

85 °C

1.00

Low Temperature Characteristics

Impedance ratio: Z

–20 ⁰C

∕ Z

+25 ⁰C

≤ 8 (16–50 Vdc)

≤ 4 (63–100 Vdc)

≤ 3 (150–500 Vdc)

1,500 h @ full load at 85 °C

∆Capacitance ±10%

ESR 200% of limit

DCL 100% of limit

500 h @ 85 °C

∆Capacitance ±10%

ESR 175% of limit

DCL 100% of limit

10 to 500 Hz, 0.75 mm or 10 g* if less,

3 directions, 2 h ea

Δ Capacitance: ±5%

no visible damage or leakage

*15 g if rilled construction

RoHS Compliant

Endurance Life Test

Shelf Life Test

Vibration
