2537-2-13-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2537-2-13-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking

2537-2-13-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307761891
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.193 inch
subject depth	0.311 inch
body length	1.374 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	2537
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

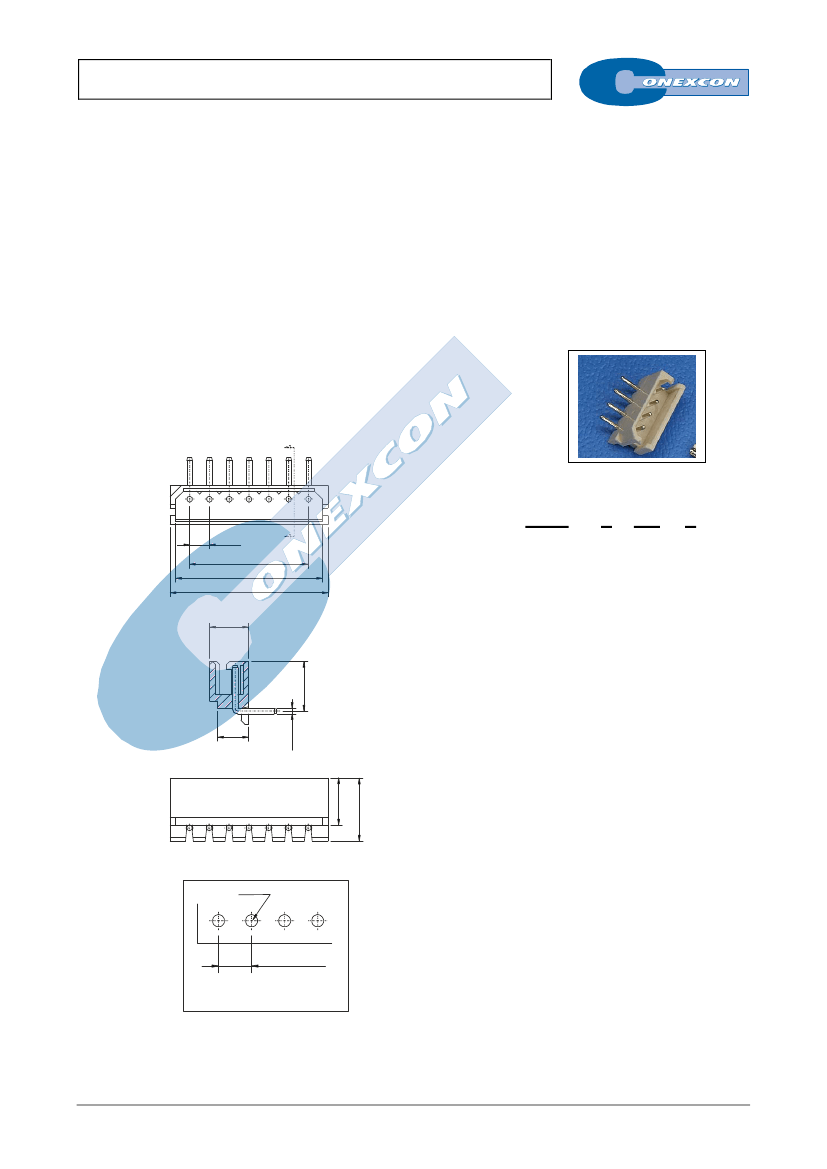

SINGLE ROW SIDE ENTRY HEADER

2537 SERIES.

2.50 mm. (0.098”) Pitch.

General Features

Electrical Features



Available in 2 through 20 circuits

Mates with 2.50 mm. pitch crimp housing 2535 series

Tin plated 0.70 mm. round pin

Fully shrouded with polarized slot



Voltage Rating: < 250 V

Current Rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 1.00 Kgf

Durability: 25 cycles



Insulator: Nylon 6/6 UL 94 V-0

Terminal: Tin plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimensional Information

F

2537 -

2.50

.098

A

B

C

2- XX- 1

2

3

F

1

1. Connector Serie

3. (XX) Number of circuits

SEC. : F-F

4.9

.193





Available in 2 through 20 circuits

3.9

.154

0.70

.028

6.6

.260

Dimensions:

(in mm.)

A

= 2.50 x (XX*-1)

B

= 2.50 x (XX*)+1.00

C

= 2.50 x (XX*)+2.40

*XX (Number of circuits)

0.90

.035

2.500

± 0.05

.098 ± 002

RECOMMENDED HOLE PATTERN

D-XX

5.9

.232

7.9

.311
