338RPFB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 338RPFB

338RPFB: DescriptionMultiplexer, 338 Series, 1-Func, 8 Line Input, 1 Line Output, True Output, DFP-16; Categorylogic logic; File Size436KB，14 Pages; ManufacturerMaxwell Technologies Inc.

Download Datasheet Parametric Compare View All

338RPFB Overview

Multiplexer, 338 Series, 1-Func, 8 Line Input, 1 Line Output, True Output, DFP-16

338RPFB Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	compli
Other features	ALSO OPERATES AT 4.5V TO 30V SINGLE SUPPLY
series	338
JESD-30 code	R-XDFP-F16
length	10.541 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	3.6322 mm
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.112 mm
Base Number Matches	1

Preview

Download Datasheet

View All

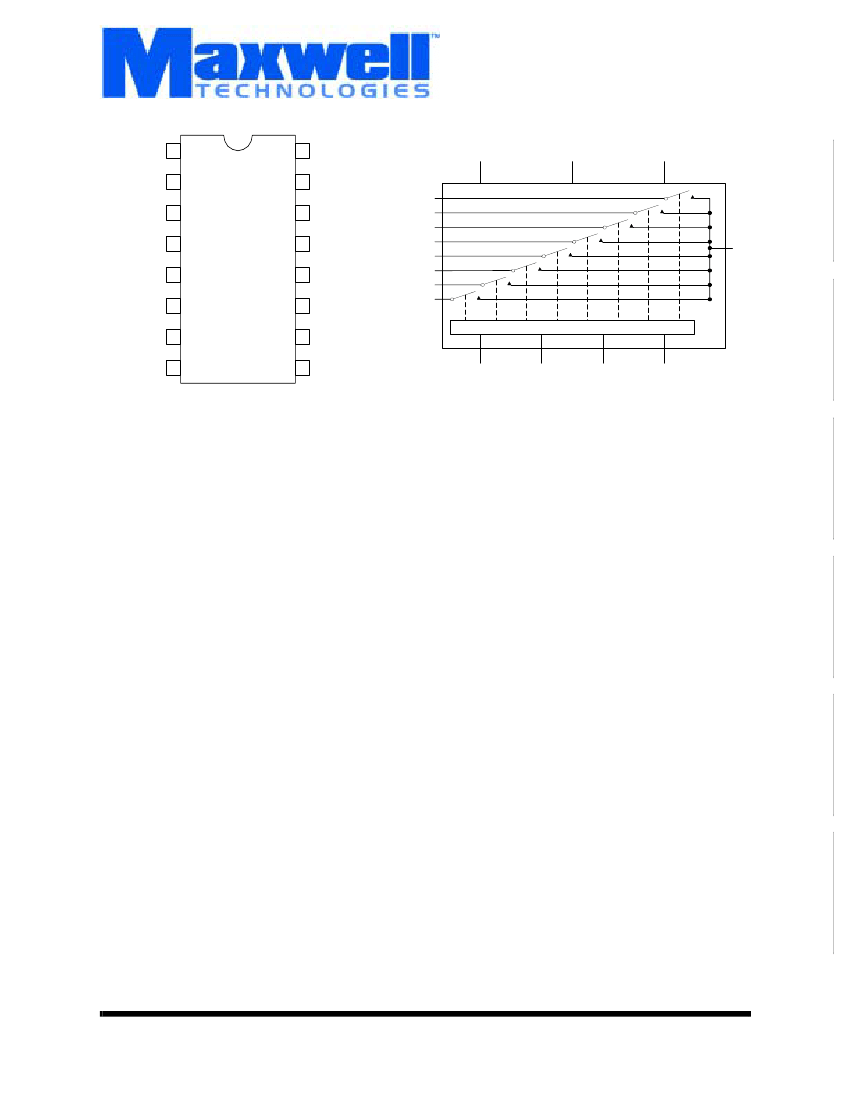

338

8-C

HANNEL

ULTIPLEXER

V-

NO1

NO2

NO3

NO4

COM

GND

NO1

NO2

NO3

NO4

NO5

NO6

NO7

NO8

CMOS DECODE LOGIC

COM

V+

V-

GND

SEi

Maxwell

338

338RP

V+

NO5

NO6

NO7

NO8

EATURES

• R

-P

® Technology hardened against

natural space radiation

• Total dose hardness >100 Krads (Si),

dependent upon orbit

• Package:

-16 Pin R

AID

-P

® flat pack

• On-resistance, <400 Ohms max

• Transition time, <500ns

• On-resistance match, <10 Ohms

• NO-Off leakage current, <20pA at 25

• 1.5pC charge injection

• Single-supply operation (4.5V to 30V)

bipolar-supply operation (±4.5V to

±20V)

• Plug-in upgrade for industry-standard

DG508A/DG509A

• Rail-to-rail signal handling

• TTL/CMOS-logic compatible

ESCRIPTION

Memory

Maxwell Technologies’ 338 monolithic, CMOS

analog multiplexer features the 338 is

designed to connect one of eight inputs to a

common output by control of a 3-bit binary

address, and may be used as either a mux or

a demux. On-resistance is 400 ohms max,

and the it conducts current equally well in both

directions. These muxes feature extremely

low off leakages (less than 20pA at 25°C), and

extremely low on-channel leakages (less than

50pA at 25°C). The new design offers guaran-

teed low charge injection (1.5pC typ) and elec-

trostatic discharge (ESD) protection greater

than 2000V, per method 3015.7. The 338

operates from a single 4.5V to 30V supply or

from dual supplies of ±4.5V to ±20V. All control

inputs (whether address or enable) are TTL

compatible (0.8V to 2.4V) over the full speci-

fied temperature range and over the ±4.5V to

±18V supply range. Capable of surviving

space environments, the 338 is ideal for satel-

lite, spacecraft, and space probe missions.

The patented radiation-hardened

-P

technology incorporates radiation shielding in

the microcircuit package. It eliminates box

shielding while providing required lifetime in

orbit. This product is available up to Class S

packaging and screening.

09.12.02 Rev 3

All data sheets are subject to change without notice

(858)503- 3000 Fax: (858) 503-3100 - www.maxwell.com

338RPFB Related Products

	338RPFB	338RPFS	338RPFI
Description	Multiplexer, 338 Series, 1-Func, 8 Line Input, 1 Line Output, True Output, DFP-16	Multiplexer, 338 Series, 1-Func, 8 Line Input, 1 Line Output, True Output, DFP-16	Multiplexer, 338 Series, 1-Func, 8 Line Input, 1 Line Output, True Output, DFP-16
Parts packaging code	DFP	DFP	DFP
package instruction	DFP,	DFP,	DFP,
Contacts	16	16	16
Reach Compliance Code	compli	compliant	compliant
Other features	ALSO OPERATES AT 4.5V TO 30V SINGLE SUPPLY	ALSO OPERATES AT 4.5V TO 30V SINGLE SUPPLY	ALSO OPERATES AT 4.5V TO 30V SINGLE SUPPLY
series	338	338	338
JESD-30 code	R-XDFP-F16	R-XDFP-F16	R-XDFP-F16
length	10.541 mm	10.541 mm	10.541 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1	1
Number of entries	8	8	8
Output times	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DFP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.6322 mm	3.6322 mm	3.6322 mm
Maximum supply voltage (Vsup)	20 V	20 V	20 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	YES	YES	YES
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.112 mm	7.112 mm	7.112 mm
Base Number Matches	1	1	1
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class S	-
total dose	100k Rad(Si) V	100k Rad(Si) V	-
