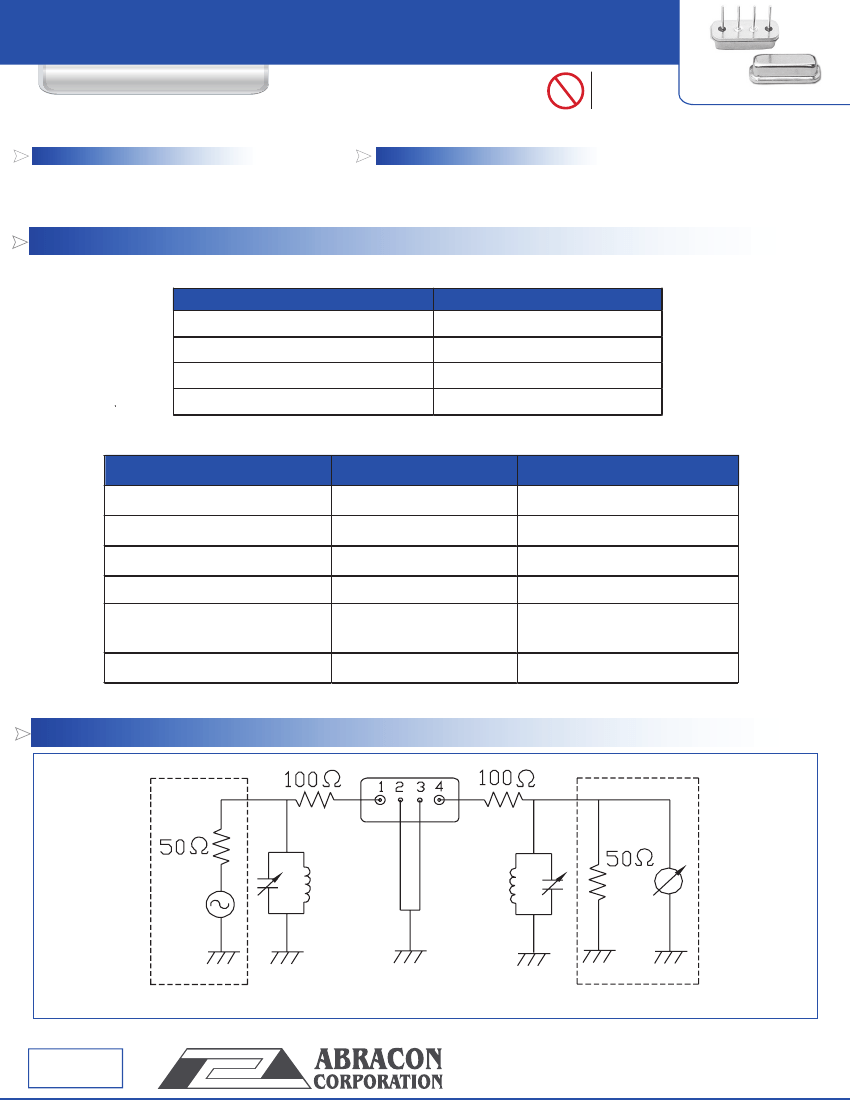

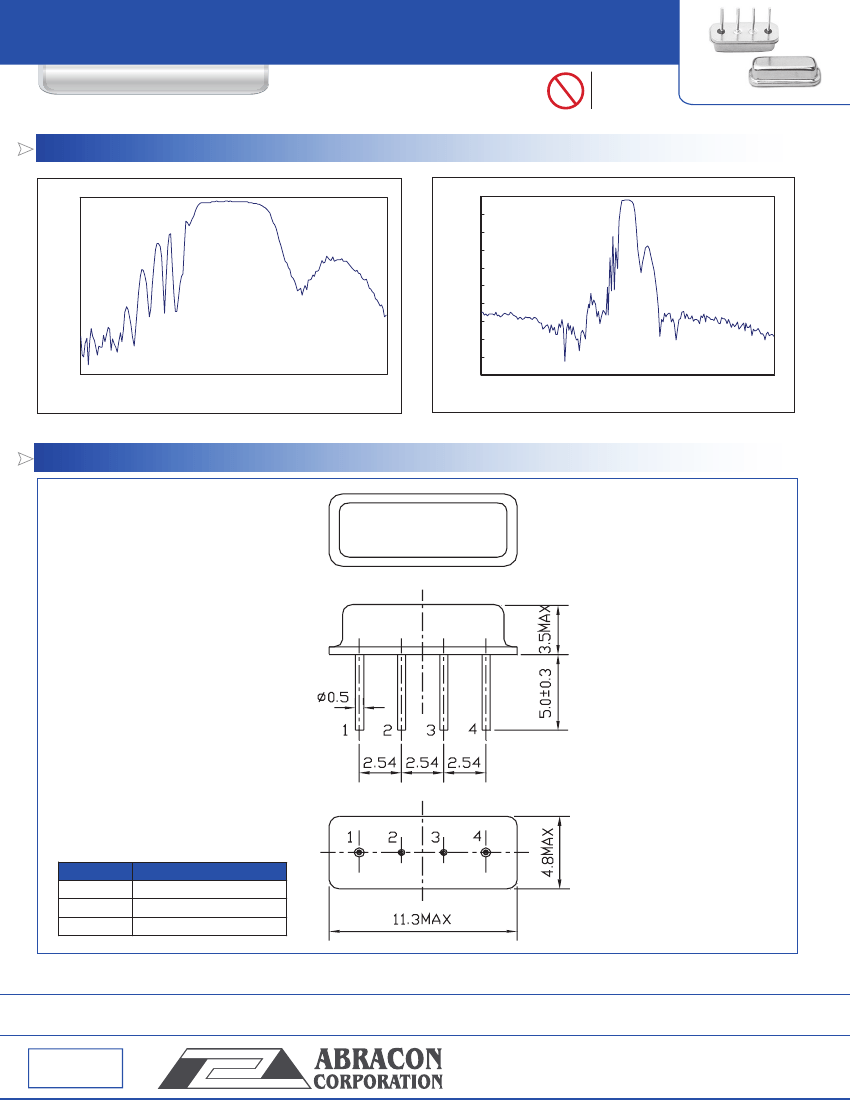

430MHz THROUGH-HOLE SAW FILTER

AFS430.0W01-TD01

FEATURES:

• Compact size resistance weld sealed package

• No polarity

APPLICATIONS:

• Telecommunications

RoHS

Compliant

11.3 x 4.8 x 3.5 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

MAXIMUM RATINGS

Item

Operation Temperature Range

Storage Temperature Range

DC Permissive Voltage

Maximum Input Power

ELECTRICAL CHARACTERISTICS

Item

Center Frequency (fo)

Pass Band Width

Insertion Loss

Ripple Deviation

Stop Band Suppression

Terminating Impedance

Frequency (MHz)

430.0

fo±2.0

Pass Band

fo-100 ~ fo-40.8

fo+40.8 ~ fo+100

Value

-40°C

to + 80°C

-40°C

to + 85°C

10V DC max.

+0 dBm

Specification

4.5 dB max

2.0 dB max.

55 dB min.

150

Ω/0pF

TEST CIRCUIT

Note:

Element values depend on PCB layout and equivalent circuit.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 11.20.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
