284492: DescriptionD Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal,; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

284492 Overview

D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal,

284492 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	YES
Manufacturer's serial number	284492
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

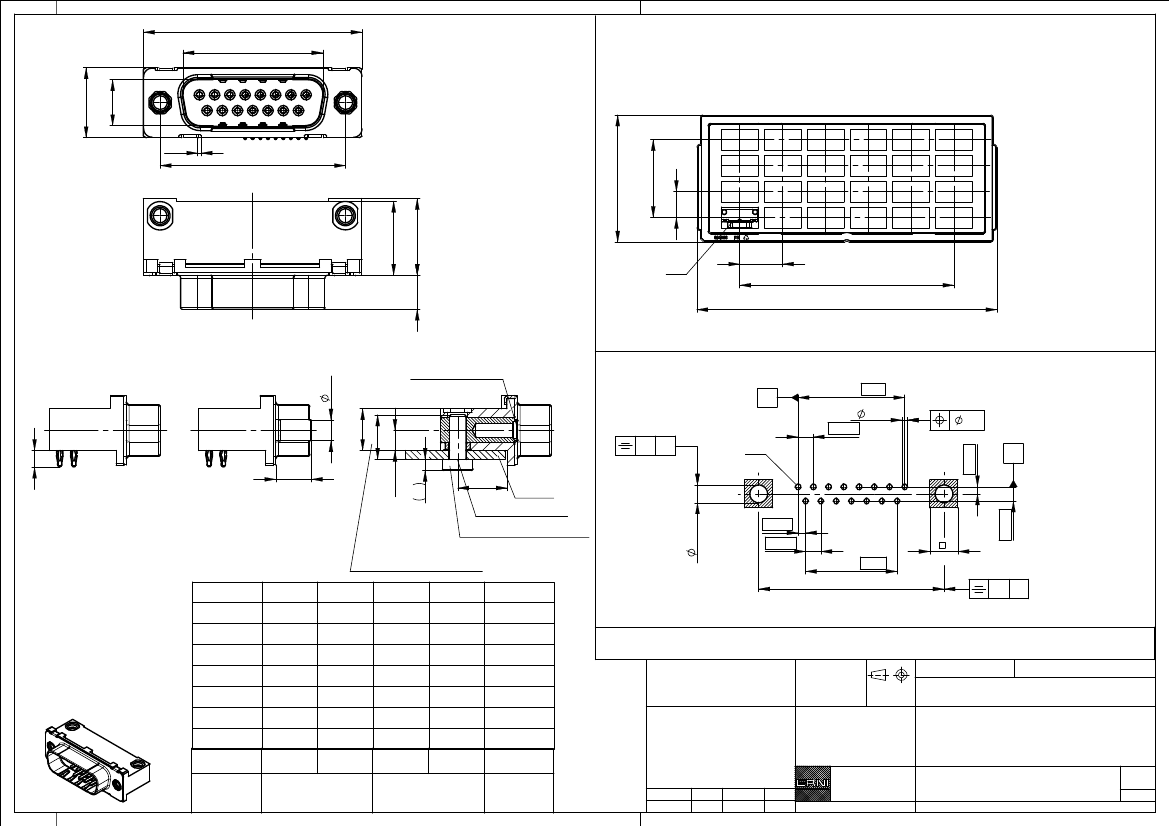

39,3

-0,4

25,1

+0,2

Verpackt in Tray

Verpackungseinheit 24 Stck

12,6

±0,3

8,25

+0,2

tray packaging

packaging unit 24 pcs

0,6

3 x 28 = 84

138

max.

33,3

±0,1

13,3

13,8

Pin 1

5,8

+0,3

46,2

5 x 46,2 = 231

325

max.

Mutter /

nut

Bolzen /

bolt

3,7

Anwendungsbeispiel /

example of use

Gewinde A /

thread A

Sonstige Angaben siehe Zeichnung 204630 /

Additional inications according to drawing 204630

Layoutvorschlag

recommended layout

7 x 2,74 = 19,18

-0,06

2,74

+0,09

7,5

±0,1

0,1

1,27

0,1

3,6

±0,1

8,9

Pin 1

6,4

LP /

PCB

3,2

±0,1

1,37

2,74

6 x 2,74 = 16,44

33,3

±0,05

sonstige Angaben siehe 164062 /

additional indications according to 164062

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

( Schraube /

Screw

DIN 7984 )

Beschriftung nach Bedruckungsvorschrift 174538

Part marking according to specification 174538

Anschlussbereich verzinnt

recommended thread length

#4-40

empfohlene Gewindelänge /

terminal area tin plating

Anforderungsstufe: 2

0,1

2,54

Tolerances

All Dimensions

in mm

Gewinde B /

thread B

class: 2

284493

#4-40

Information:

Scale

2:1

284492

284491

Ident-Nr.

Tray /

tray

#4-40

Gewinde A Gewinde B Gewinde A Gewinde B

thread A

thread B

thread A

thread B

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

22.02.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P-15-EE-SV-Euro-BA8-ZV

part-no.

Quermutter

nut

Querbolzen

bolt

Bemerkung

www.ERNI.com

Class

remark

224950

TMCP

284492 Related Products

	284492	284493	284491
Description	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal,	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal,	D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal,
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	YES	YES	YES
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3	e3	e3
MIL compliance	YES	YES	YES
Manufacturer's serial number	284492	284493	284491
Mixed contacts	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Housing size	2/A	2/A	2/A
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	15	15	15
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
