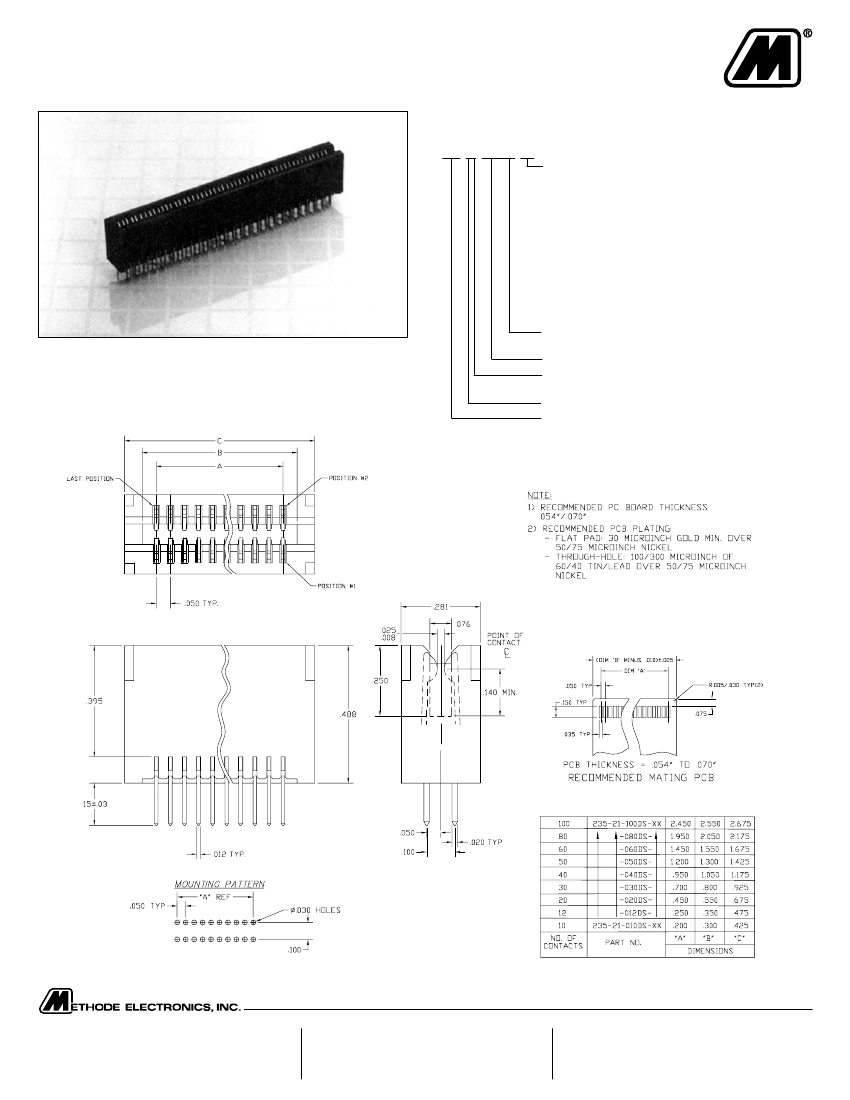

.050" (1.27mm) Series 235
Ultra Thin Card Edge Connector
DIP SOLDER TERMINALS WITHOUT MOUNTING EARS
PART NUMBER LEGEND
235-21-XXXDS-XX
PLATING OPTIONS
01 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
03 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
05 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
20 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
23 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
25 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
TAIL STYLES
DS = DIP SOLDER
TOTAL NUMBER OF CONTACTS
(SEE TABLE 1)
INSULATOR MATERIAL
1
= POLYESTER
NO. OF ROWS
SERIES NUMBER
TABLE 1
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html

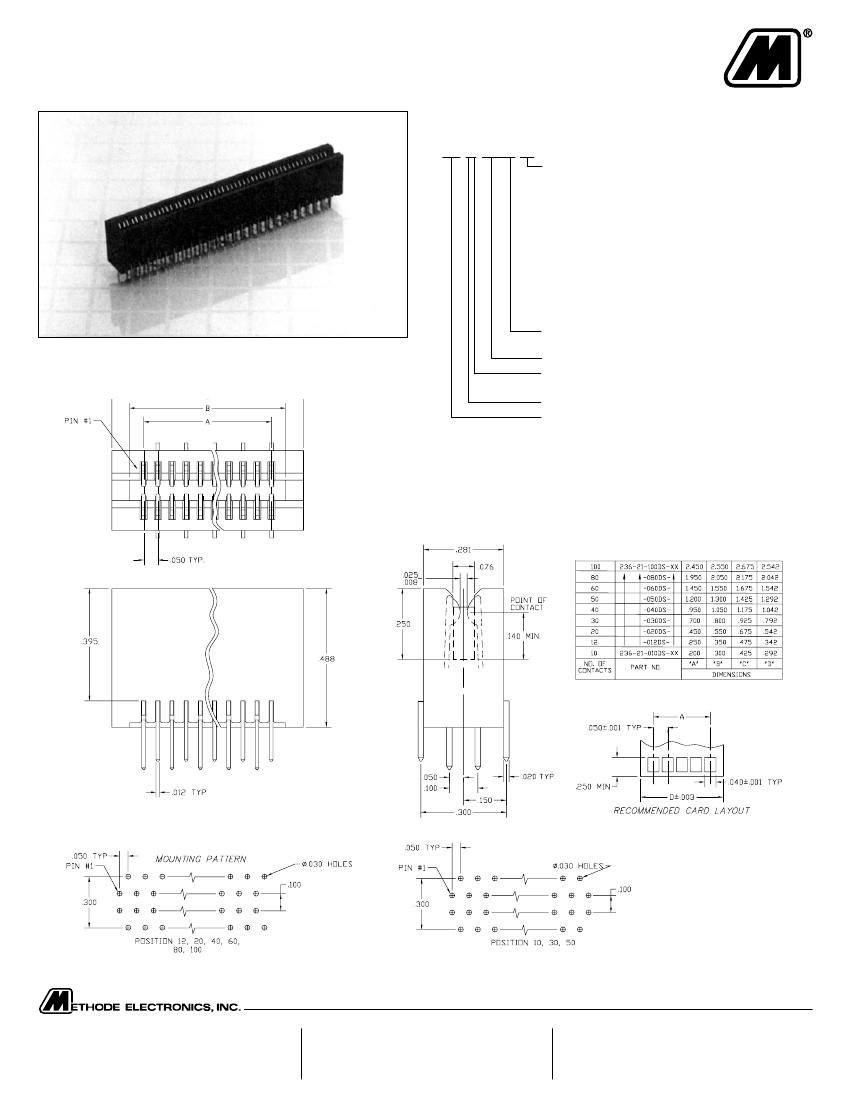

.050" (1.27mm) Series 236
Ultra Thin Card Edge Connector
DIP SOLDER TERMINALS WITHOUT MOUNTING EARS
PART NUMBER LEGEND
236-21-XXXDS-XX
PLATING OPTIONS
01 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
03 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
05 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
20 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
23 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
25 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
TAIL STYLES
DS = DIP SOLDER
TOTAL NUMBER OF CONTACTS
(SEE TABLE 1)
INSULATOR MATERIAL
1
= POLYESTER
NO. OF ROWS
SERIES NUMBER
TABLE 1
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html

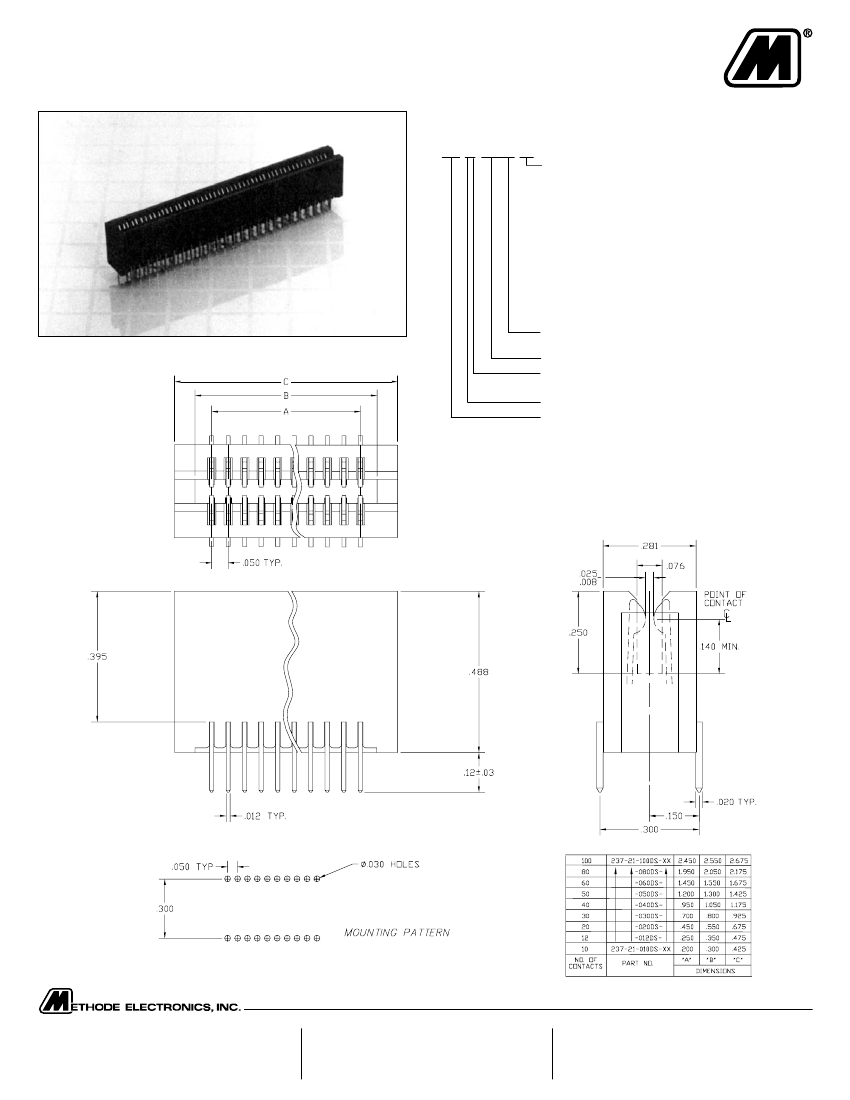

.050" (1.27mm) Series 237
Ultra Thin Card Edge Connector
DIP SOLDER TERMINALS WITHOUT MOUNTING EARS
PART NUMBER LEGEND
237-21-XXXDS-XX
PLATING OPTIONS
01 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
03 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
05 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH
GOLD FLASH TAILS.
20 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
23 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
25 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
TAIL STYLES
DS = DIP SOLDER
TOTAL NUMBER OF CONTACTS
(SEE TABLE 1)
INSULATOR MATERIAL
1
= POLYESTER
NO. OF ROWS
SERIES NUMBER
TABLE 1
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html

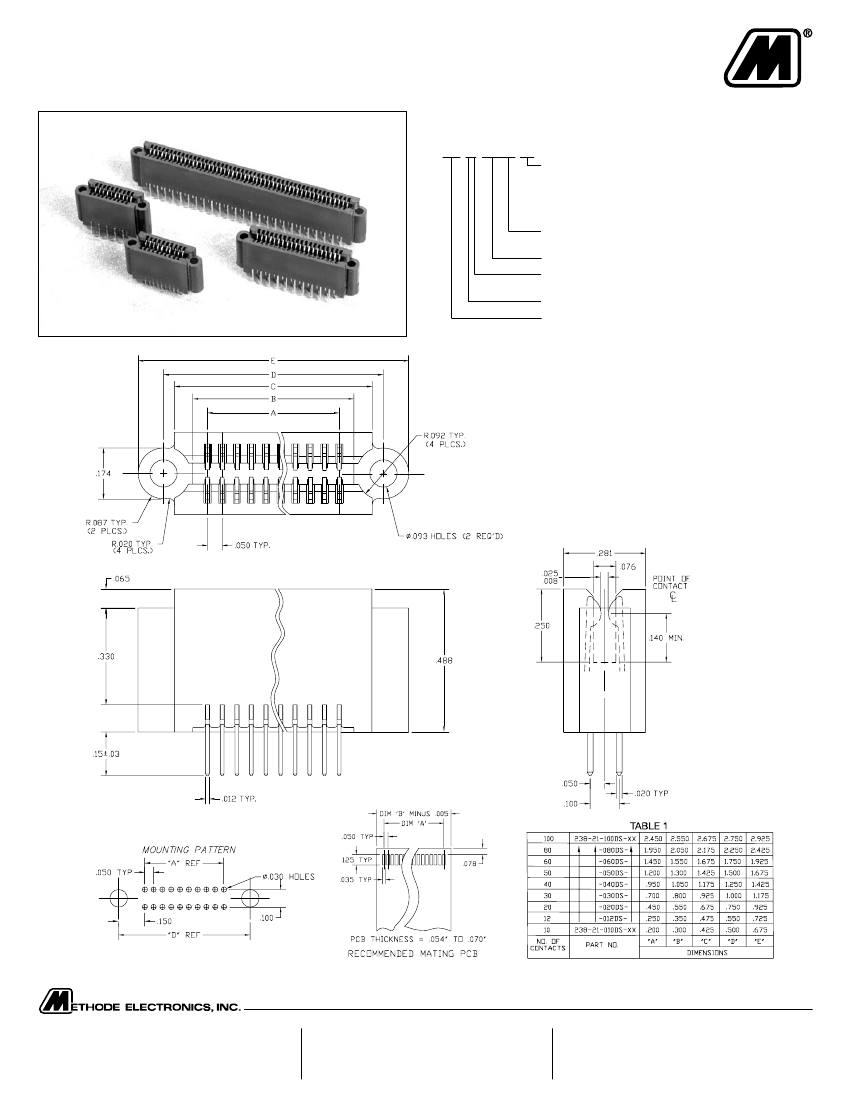

.050" (1.27mm) Series 238
Ultra Thin Card Edge Connector
DIP SOLDER TERMINALS WITH MOUNTING EARS
PART NUMBER LEGEND
238-21-XXXDS-XX
PLATING OPTIONS
20 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
23 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
TAIL STYLES
DS = DIP SOLDER
TOTAL NUMBER OF CONTACTS
(SEE TABLE 1)
INSULATOR MATERIAL
1
= POLYESTER
NO. OF ROWS
SERIES NUMBER
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html

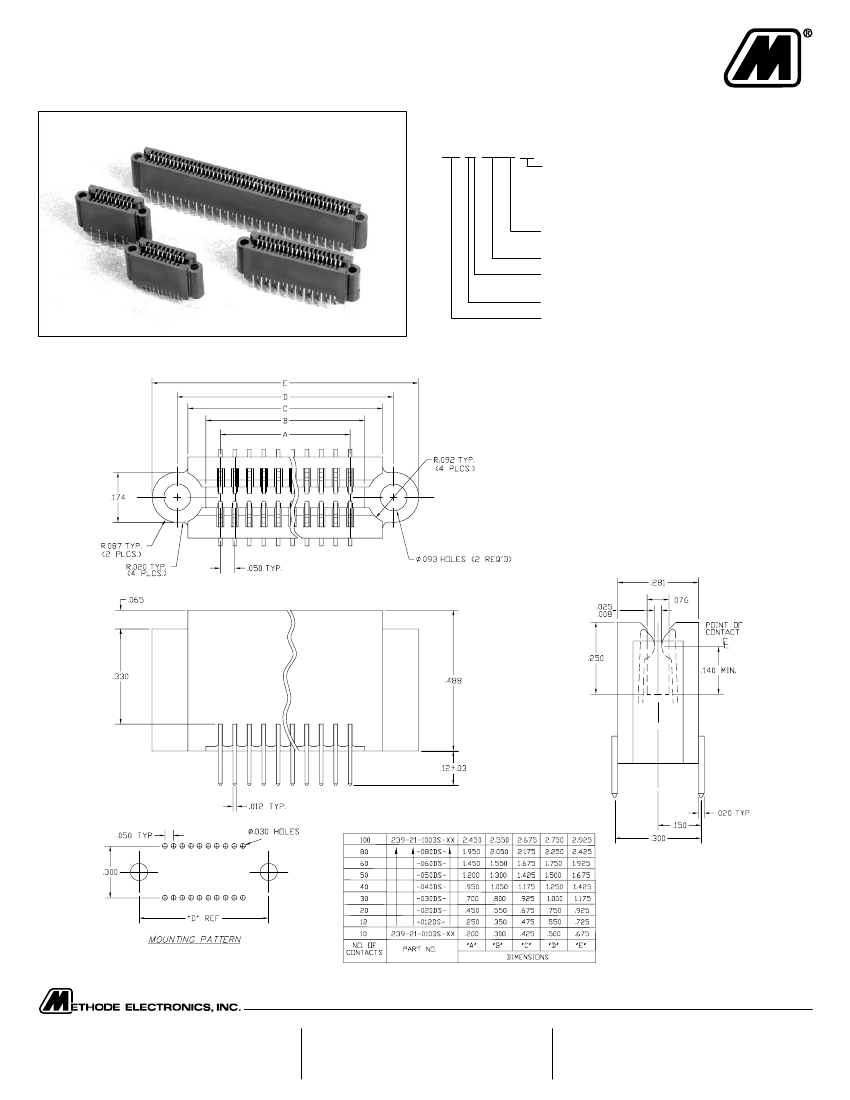

.050" (1.27mm) Series 239
Ultra Thin Card Edge Connector
DIP SOLDER TERMINALS WITH MOUNTING EARS
PART NUMBER LEGEND
239-21-XXXDS-XX
PLATING OPTIONS
20 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
23 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH
TIN LEAD PLATED TAILS.
TAIL STYLES
DS = DIP SOLDER
TOTAL NUMBER OF CONTACTS
(SEE TABLE 1)
INSULATOR MATERIAL
1
= POLYESTER
NO. OF ROWS
SERIES NUMBER
TABLE 1
North and South America:
Methode Electronics, Inc. Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404
Email: info@methode.com • Web: www.methode.com/connector/index.html
Europe:
Methode Electronics Ireland, Ltd.
Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland
+353 (0) 61 401222 • Fax: +353 (0) 61 401942
Email: info@methode.ie • Web: ireland.methode.com/main.html
Far East:
Methode Electronics Far East, Pte. Ltd.
1 Tuas Lane, Jurong Town • Singapore 638610
65-68615444 • Fax: 65-68614777
Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
