FOXLF240F-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> FOXLF240F-20

FOXLF240F-20: Descriptioncrystals 24mhz 20pf; CategoryPassive components; File Size57KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FOXLF240F-20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FOXLF240F-20	-	-	View	Buy Now

FOXLF240F-20 Overview

crystals 24mhz 20pf

FOXLF240F-20 Parametric

Parameter Name	Attribute value
Manufacture	Fox
Product Category	Crystals
RoHS	Yes
Frequency	24 MHz
Tolerance	30 PPM
Frequency Stability	50 PPM
Load Capacitance	20 pF
Termination Style	Radial
Package / Case	HC-49
Operating Temperature Range	- 20 C to + 70 C
Dimensions	4.65 mm W x 11.05 mm L x 13.46 mm H
ESR	20 Ohms
Mounting Style	Through Hole
Factory Pack Quantity	100
Type	Resistance Weld Thru-Hole Crystal

Preview

Download Datasheet

View All

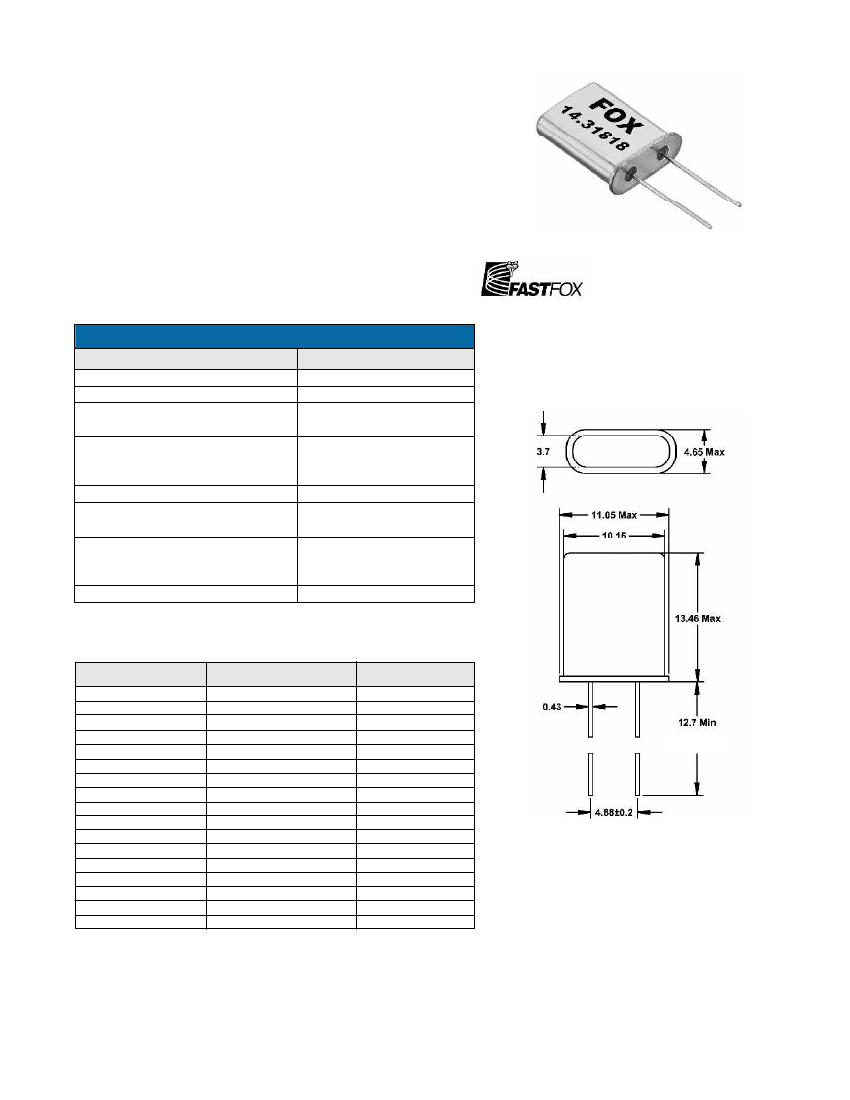

RESISTANCE WELD THRU-HOLE CRYSTAL

HC49U

FEATURES

•

Low Cost

Stocking Standard

High Frequency Range

Fundamental to 40 MHz

Resistance Weld

OPTIONS

•

Tolerances to < 5 PPM

Stabilities to < 3 PPM

Temperatures to -40ºC ~ -85ºC

Mylar Spacer

Vinyl Sleeve

Third Lead

SMD Gullwing (HC49UW)

DISCONTINUED

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (Co)

Load Capacitance

)

Drive Level

1.8432 ~ 3.000 MHz

3.000+ ~ 180.000 MHz

Aging per year

MAX

(unless otherwise noted)

1.8432 ~ 180.000 MHz

±30 PPM

±50 PPM

-20ºC ~ +70ºC

-40ºC ~ +85ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

2.0 mW

1.0 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer

Service for specific requirements.

All specifications subject to change without notice.

Rev.

02/10/03

Frequency Range

(MHz)

1.8432 ~ 2.000

2.000+ ~ 2.400

2.400+ ~ 3.000

3.000+ ~ 3.200

3.200+ ~ 3.700

3.700+ ~ 4.200

4.200+ ~ 4.900

4.900+ ~ 5.000

5.000+ ~ 6.000

6.000+ ~ 8.000

8.000+ ~ 10.000

10.000+ ~ 12.500

12.500+ ~ 16.000

16.000+ ~ 40.000

23.000+ ~ 75.000

60.000 ~ 110.000

110.000 ~ 180.000

Operating Mode

Fundamental

3rd OT

5th OT

7th OT

Max ESR

Ω

750

500

300

200

120

100

120

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +001(239)693-0099 FAX +001(239)693-1554

http://www.foxonline.com

FOXLF240F-20 Related Products

	FOXLF240F-20	FOXLF020S	FOXLF073-20
Description	crystals 24mhz 20pf	crystals 2mhz 20pf	crystals 7.3728mhz 20pf
Is it Rohs certified?	-	conform to	conform to
Maker	-	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	-	compliant	compliant
Crystal/Resonator Type	-	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
frequency stability	-	0.005%	0.005%
frequency tolerance	-	30 ppm	30 ppm
JESD-609 code	-	e1	e1
load capacitance	-	20 pF	20 pF
Installation features	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	-	2 MHz	7.3728 MHz
Maximum operating temperature	-	70 °C	70 °C
Minimum operating temperature	-	-20 °C	-20 °C
physical size	-	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)	L11.05XB4.65XH13.46 (mm)/L0.435XB0.183XH0.53 (inch)
Series resistance	-	500 Ω	40 Ω
surface mount	-	NO	NO
Terminal surface	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
