Data Sheet
Audio Generator
Model 3001
Specifications
Frequency Range
Accuracy
Output Control
Output impedance
Sinewave Characteristics
3001
x1 range 20 Hz to 1.5 kHz (23 steps),
x100 range 2 kHz to 150 kHz (23 steps)
20 Hz through 100 kHz (±3% or less),
120 kHz and 150 kHz (±5% or less)
0 dB/-20 dB attenuator switch and variable amplitude control
approx. 600
Ω
Output Voltage
Output Flatness
Distortion
Square wave Characteristics
>1.2 V rms at max. setting (no load)
(Short term) 20 Hz to 150 kHz ±0.5dB ( reference frequency 1 kHz)
200 Hz—15 kHz 0.5% (THD) or less, 50 Hz—28 kHz 0.1% (THD)
or less, 20 Hz—100 kHz 0.3% (THD) or less
Output Voltage
Rise and Fall Time
Sag
> 5V p-p at maximum setting
< 0.5 µs
< 5% at 20 Hz (DC coupled)
< 2% from maximum output, to 50 mV p-p
50% +5%
The model 3001 generates low-distortion sine waves at
46 discrete frequencies. Output impedance is 600
Ω
at
the dual banana jacks and the output voltage is
continuously adjustable up to 1.2 V (RMS) into an open
circuit. Output flatness is ±0.5 dB. A 5 Vpp square
wave is provided at separate banana jacks for
synchronization. Frequency accuracy is 3% from
20 Hz to 100 kHz. The unit is powered by a 9 V
battery.
I
I
I
I
I
I
I
Over Shoot
Duty Ratio
Sync Output Characterisitics
(Other specifications same as sinewave characteristics)
Output Voltage
Output Impedance
General
>1.2V rms (no load)
1 kΩ+5%
Operating Temperature
Storage Temperature
Power Requirements
0°C to +50°C; specifications apply from 10°C to 30°C, <80% R.H.
-20°C to +60°C, without battery
9V battery NEDA 1604A
35 hours typical with Alkaline
LED indicates low battery
6 x 3.3 x 0.9" (150 x 82 x 21mm)
7 oz. (200 g) including battery

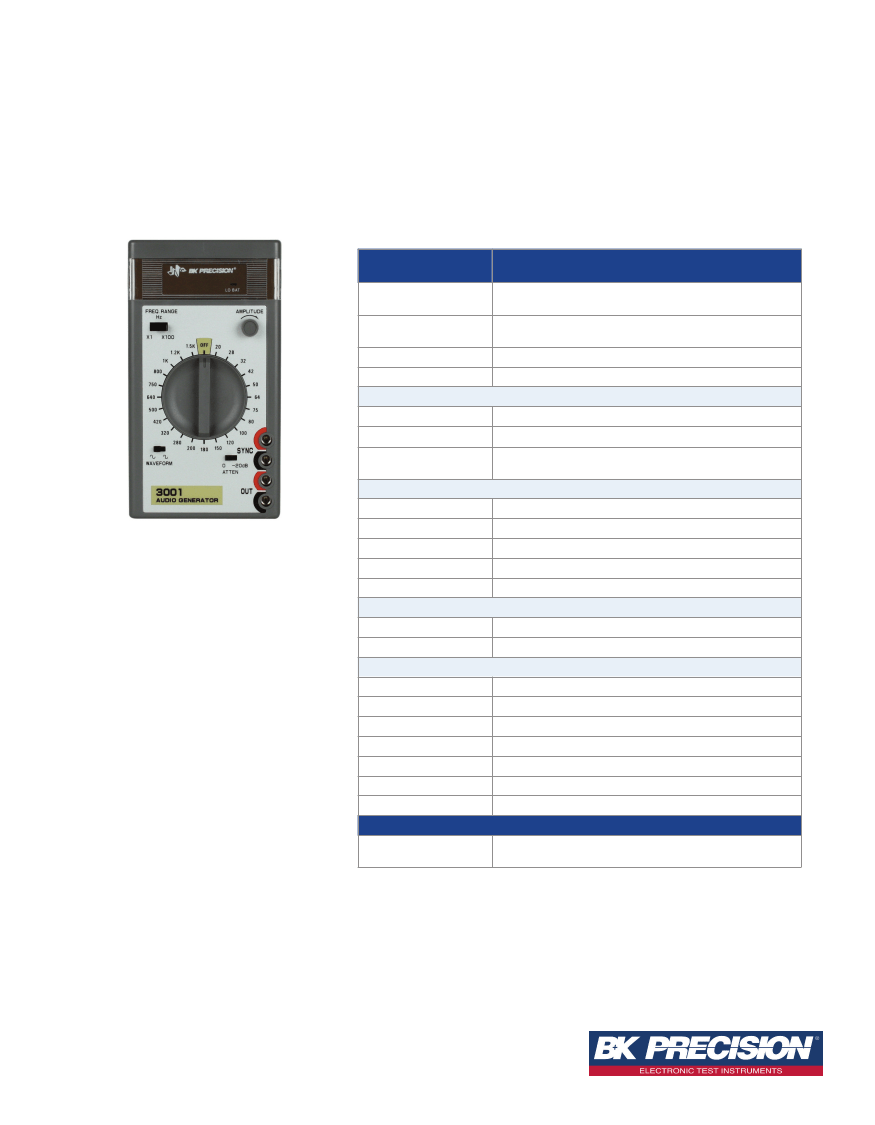

20 Hz to 150 kHz Sine/Square Wave Audio Generator
Sine and square wave generator
20 Hz to 150 kHz in 46 steps
Low distortion RC oscillator
Variable output control
Compact, fully portable, light weight
Low battery indicator
Battery Life
Battery Indicator
Dimensions (H x W x D)
Weight
One-Year Warranty
Included Accessories
Two standard banana plug to insulated clip test leads,
9V battery, instruction manual
Technical data subject to change
© B&K Precision Corp. 2014
v080514
www.bkprecision.com
