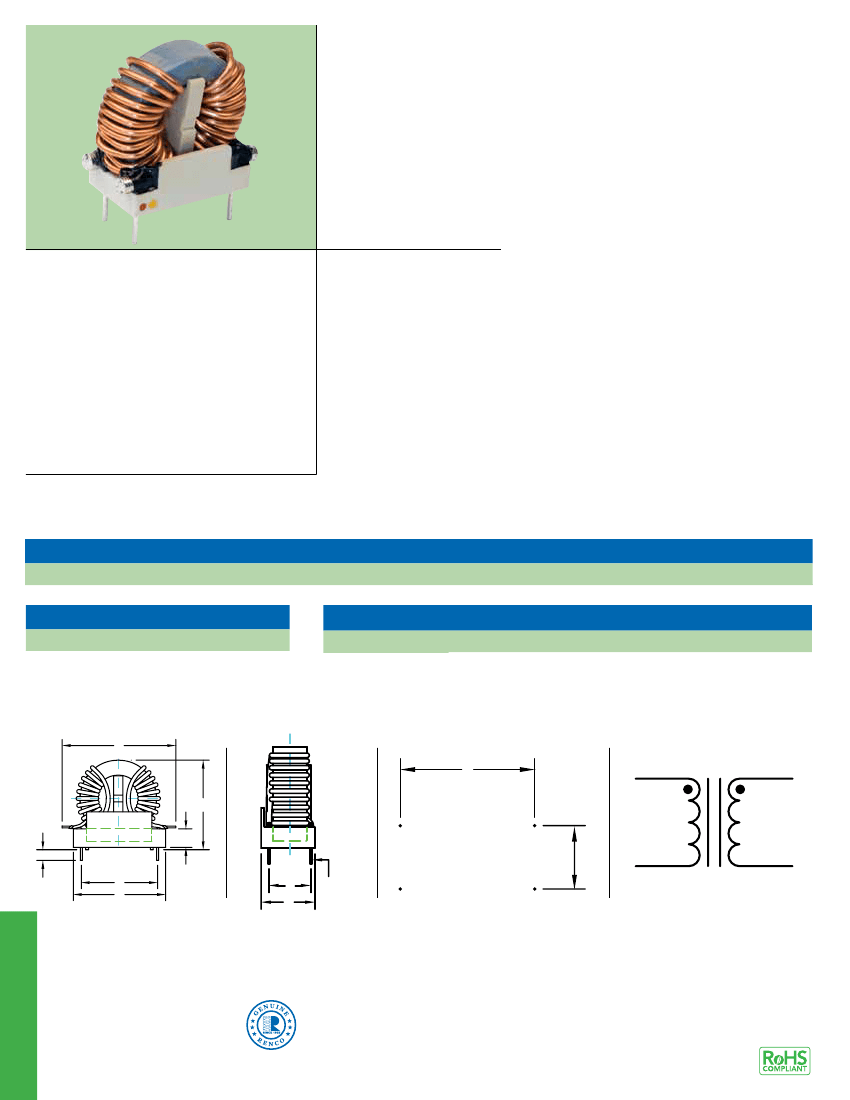

RL-5011
DESCRIPTION
• Vertical Mount Toroids
COMMON MODE TOROIDS
VERTICAL MOUNT
FEATURES & APPLICATIONS
• Effective in filtering supply lines having in-phase signals
of equal amplitude
• Allows equipment to meet FCC and electrical radiation
specifications
• Broad frequency ranges can be filtered
• Typical applications include: power line filter, suppress EMI in
switched-mode, and power supplies
• Dielectric withstanding voltage rated at 2000 VAC line to line
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
ENVIRONMENTAL DATA
• Storage temperature range:
-55°C to +130°C
• Operating temperature range:
Contact Engineering
PACKAGING INFORMATION
• Packaging information: pg. 510
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-5011
A (MIN.)
0.250 (6.35)
B
0.80 (20.32)
C (MAX.)
1.00 (25.40)
D (MAX.)
0.20 (5.08)
E (MAX.)
1.30 (33.02)
F (MAX.)
1.35 (34.29)
PART NUMBER
RL-5011
PART WEIGHT
25.0g (0.88oz)
G
0.40 (10.16)
H (MAX.)
0.70 (17.78)
I (REF.)
0.80 (20.32)
J (REF.)
0.40 (10.16)
FRONT VIEW
F
SIDE VIEW
RECOMMENDED LAND PATTERN
SCHEMATIC
I
E
1
4
4
D
A
1
B
C
1
J
4
4
G
H
3
2
3
0.038
SQ TYP.
(4PL)
3
2
COMMON MODE CHOKES
RENCO ELECTRONICS INC.
116
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RL-5011
Renco Part No.
RL-5011
RL-5011-5-1
RL-5011-8-1
RL-5011-15-1
RL-5011-2.5-2
RL-5011-4.0-2
RL-5011-7.5-2
RL-5011-1.3-4
RL-5011-2.1-4
RL-5011-3.7-4
RL-5011-1.0-6
RL-5011-1.7-6
RL-5011-3.0-6
RL-5011-0.6-9
RL-5011-1.1-9
RL-5011-1.9-9
RL-5011-3.0-9
RL-5011-0.5-12
RL-5011-0.8-12
RL-5011-1.4-12
RL-5011-0.3-15
RL-5011-0.6-15
RL-5011-1.1-15
Inductance
(mH)-0+60%
5.0
8.0
15.0
2.5
4.0
7.5
1.3
2.1
3.7
1.0
1.7
3.0
0.6
1.1
1.9
3.0
0.5
0.8
1.4
0.3
0.6
1.1
DCR Max.
(Ohms)
0.244
0.280
0.290
0.088
0.080
0.100
0.034
0.032
0.039
0.025
0.021
0.031
0.013
0.015
0.020
0.030
0.010
0.010
0.012
0.008
0.009
0.010
Leakage Inductance
(µH) Typ.
85.0
80.0
100.0
43.0
40.0
60.0
32.0
28.0
40.0
25.0
20.0
31.0
20.0
15.0
24.0
23.0
17.0
20.0
28.0
15.0
15.0
23.0
NOTES:
1. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
2. ALL TERMINALS 0.038 SQUARE (WILL FIT PRINTED BOARD HOLE = #16 AWG)
3. INDUCTANCE TESTED AT 10 kHz, 0.25 Vrms
PART NUMBER IDENTIFICATION
RL-50XX - X - XX
CURRENT RATING
INDUCTANCE mH
SERIES PART NUMBER
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
117
COMMON MODE CHOKES
