8.3 ms single half-sine wave or equivalent square wave. Duty cycle = 4 pulses per
2)
Mounted on 5.0 mm x 5.0 mm (0.03 mm thick) Copper Pads to each terminal

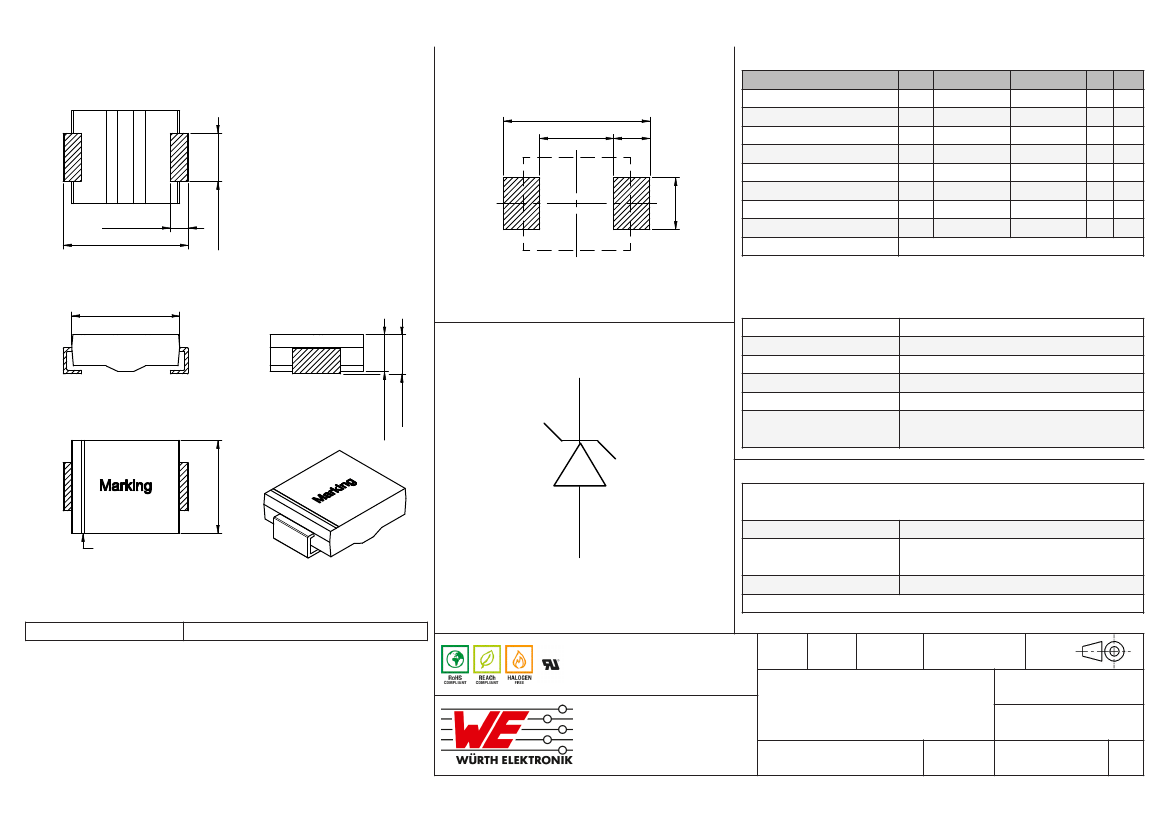

6,86 ± 0,25
Scale - 4:1
Certification:
RoHS Approval
REACh Approval
Halogen Free
Compliant [2011/65/EU&2015/863]
Conform or declared [(EC)1907/2006]
Conform[JEDEC JS709B]
Conform [IEC 61249-2-21]
UL497B: E478010, UL 1449: E332875
UL94 V-0
Schematic:
2,34 ± 0,28
2,5 ±0,3
Cathode
Halogen Free
UL Approval
Plastic Housing Flammability
Rating
5,9 ± 0,32
General Information:
It is recommended that the temperature of the component does not exceed +150°C under worst
case conditions
Operating Temperature
-65 up to +150 °C
< 40 °C ; < 75 % RH
1
Cathode Band
Anode
Scale - 4:1
Storage Conditions (in original
packaging)
Moisture Sensitivity Level (MSL)
Product Marking:
Marking
PEP
RoD
Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
001.001
2020-05-08
DIN ISO 2768-1m
DESCRIPTION
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824550161
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AB
eiSos
Valid
1/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

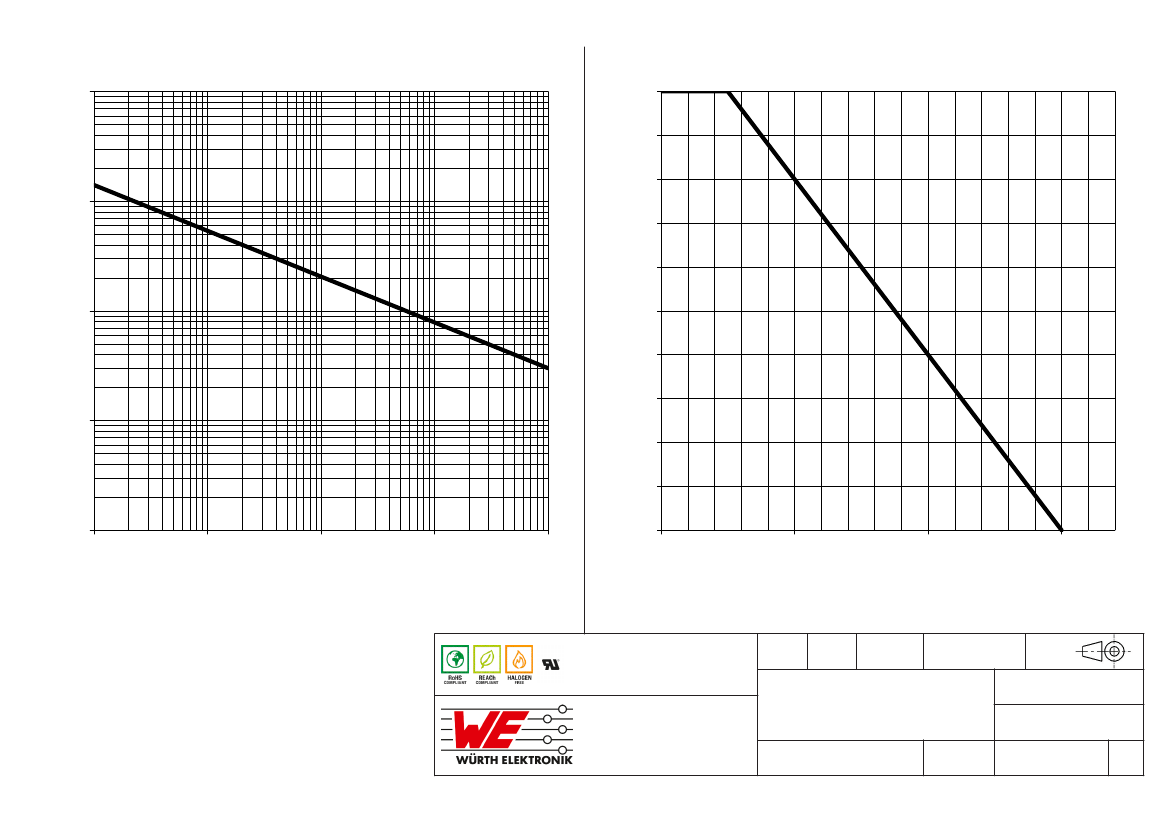

Maximum Peak Pulse Power Rating
1000
Peak Pulse Power and Current Derating
100
90
80
100
70
Power [kW]
Derating [%]
0,1
1
10
Pulse Width [µs]
100
1000
60
50
40
30
10
1
20
10
0,1
0
0
50
100
Ambient Temperature [°C]
150
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
DESCRIPTION
001.001
2020-05-08
DIN ISO 2768-1m
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824550161
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AB
eiSos
Valid
2/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Steady State Power Dissipation Derating
7
Maximum Non-Repetitive Forward Surge Current
350
6
300
5
250
Power [W]
4
Current [A]
0
50
100
Ambient Temperature [°C]
150
200
3
150
2
100
1
50
0
0
1
10
Number of Cycles at 60 Hz
100
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
DESCRIPTION
001.001
2020-05-08
DIN ISO 2768-1m
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824550161
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AB
eiSos
Valid
3/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

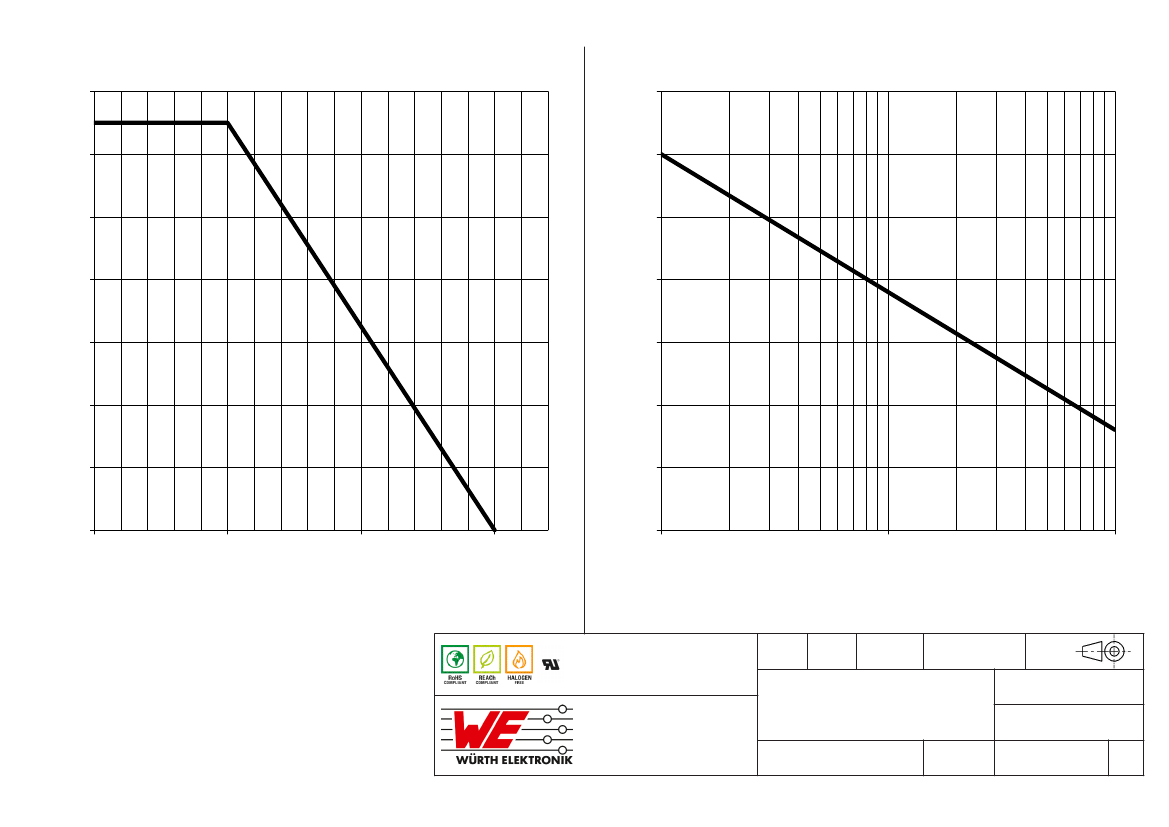

Typical Junction Capacitance
10.000
1.000
Capacitance [pF]
100
10
1
1
10
100
Reverse Breakdown Voltage [V]
V = 0V
V = VDC
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
1000
RoD
DESCRIPTION
001.001
2020-05-08
DIN ISO 2768-1m
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824550161
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AB
eiSos
Valid
4/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

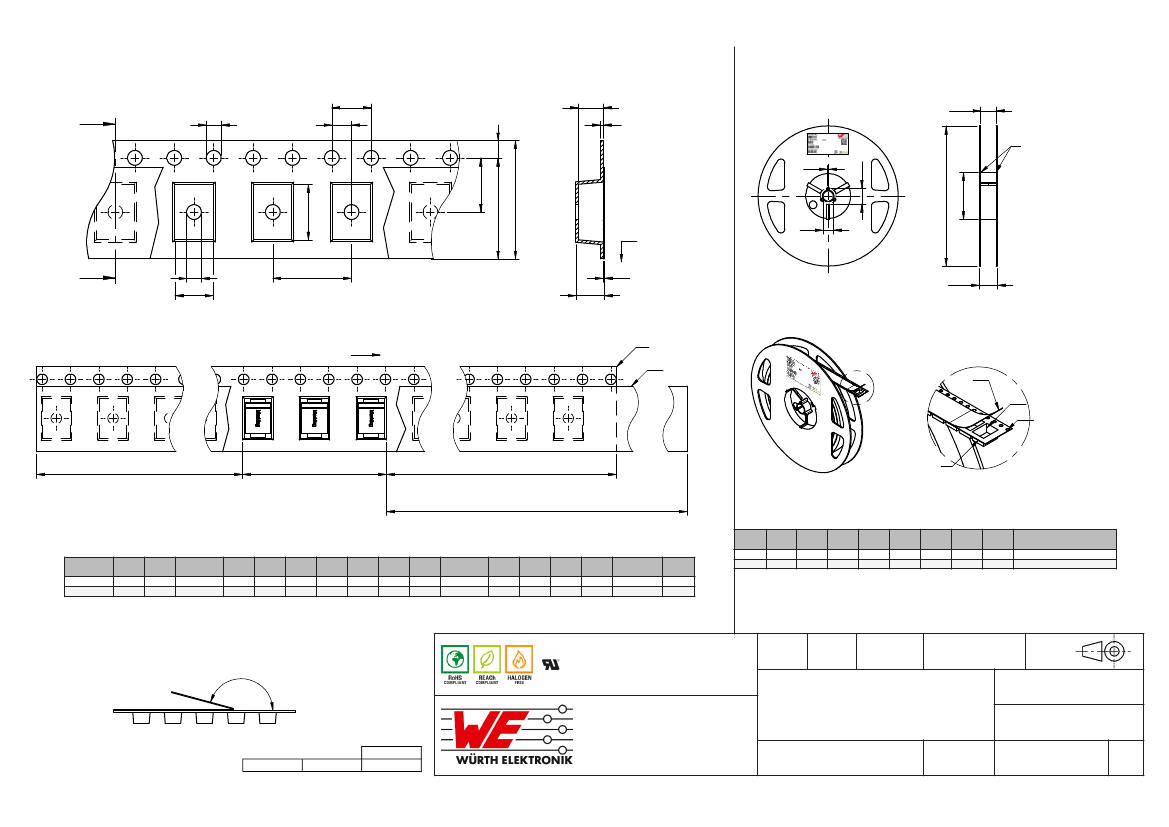

Packaging Specification - Tape and Reel: [mm]
P0
K0
T
W1
close to center
B
D
W3
A
D0
P2
E1
F
W
B0
E2
C
Top Cover
Tape
A
D1
A0
P1
T2
T1
W2
End
Feeding direction
Start
Carrier Tape
Cover Tape
B
detail B
Cover Tape
Chip Cavity
Sprocket Hole
No Component
min. 160mm
Components
No Component
min. 100mm
Cover Tape
min. 400mm
Embossment
Packaging is referred to the international standard IEC 60286-3:2019
Tape Type
2a
A0
(mm)
typ.
6,27
B0
(mm)
typ.
8,30
W
(mm)
+0,3/ -0,1
16,00
T
(mm)
ref.
0,30
T1
(mm)
max.
0,10
T2
(mm)
typ.
3,15
K0
(mm)
typ.
P0
(mm)
±0,1
4,00
P1
(mm)
±0,1
8,00
P2
(mm)
±0,1
2,00
D0
(mm)
+0,1/ -0,0
1,50
D1
(mm)
min.
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
14,25
F
(mm)
±0,1
7,50
Material
Polystyrene
Qty.
(pcs.)
500
A
(mm)
± 2,0
178,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
D
(mm)
min.
20,20
N
(mm)
min.
50,00
W1
(mm)
+ 2,0
16,40
W2
(mm)
max.
22,40
N
W3
(mm)
min.
15,90
W3
(mm)
max.
19,40
A
Material
Polystyrene/ Polyurethane
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
001.001
2020-05-08
DIN ISO 2768-1m
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WE-TVSP Power TVS Diode
ORDER CODE
824550161
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
Pull-of force
Tape width
16 mm
0,1 N - 1,3 N
DO-214AB
eiSos
Valid
5/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
