User’s Manual
R0E0100TNPFJ00
Converter Board for Connecting R0E001000FLX10 to 100-pin 0.65mm pitch QFP
REJ10J1735-0200
Rev.2.00
Apr 16, 2010
1. Outline
The R0E0100TNPFJ00 is a converter board for connecting the
flexible cable R0E001000FLX10 to a foot pattern for 100-pin
0.65mm pitch QFP.
2. Package Components
(See Figure 1)
Check to see if the R0E0100TNPFJ00 package has all the
following contents before using this product.
(1) R0E0100TNPFJ00 converter board ............................ 1 pc.
(2) YQPACK100RB
(made by Tokyo Eletech Corporation)
................ 1 pc.
(3) NQPACK100RB
(made by Tokyo Eletech Corporation)
.............. 1 pc.
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
......................4 pcs.
(5) R0E0100TNPFJ00 User's Manual (this manual)
R0E0100TNPFJ00
converter board
YQPACK100RB
3. Specifications
Table 1 Specifications
PRQP0100JB-A:
formerly 100P6S-A
PRQP0100JD-B:
formerly 100P6F-A
PLQP0100JA-A:
formerly 100P6A-A
(100-pin 0.65mm pitch QFP)
50 times guaranteed
YQ-GUIDE (×4)
NQPACK100RB

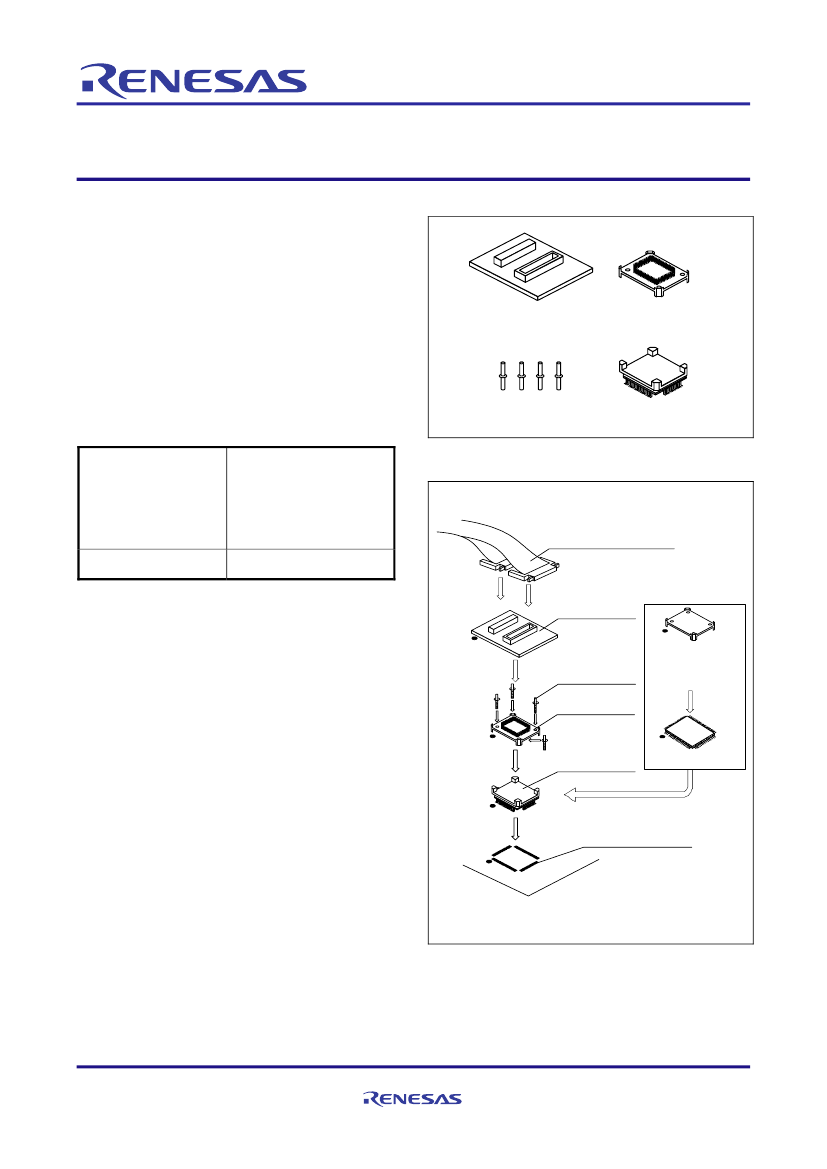

Figure 1 Package components of the R0E0100TNPFJ00
Applicable package
(1) For debugging
Flexible cable
R0E001000FLX10
Insertion/removal
iterations of connector

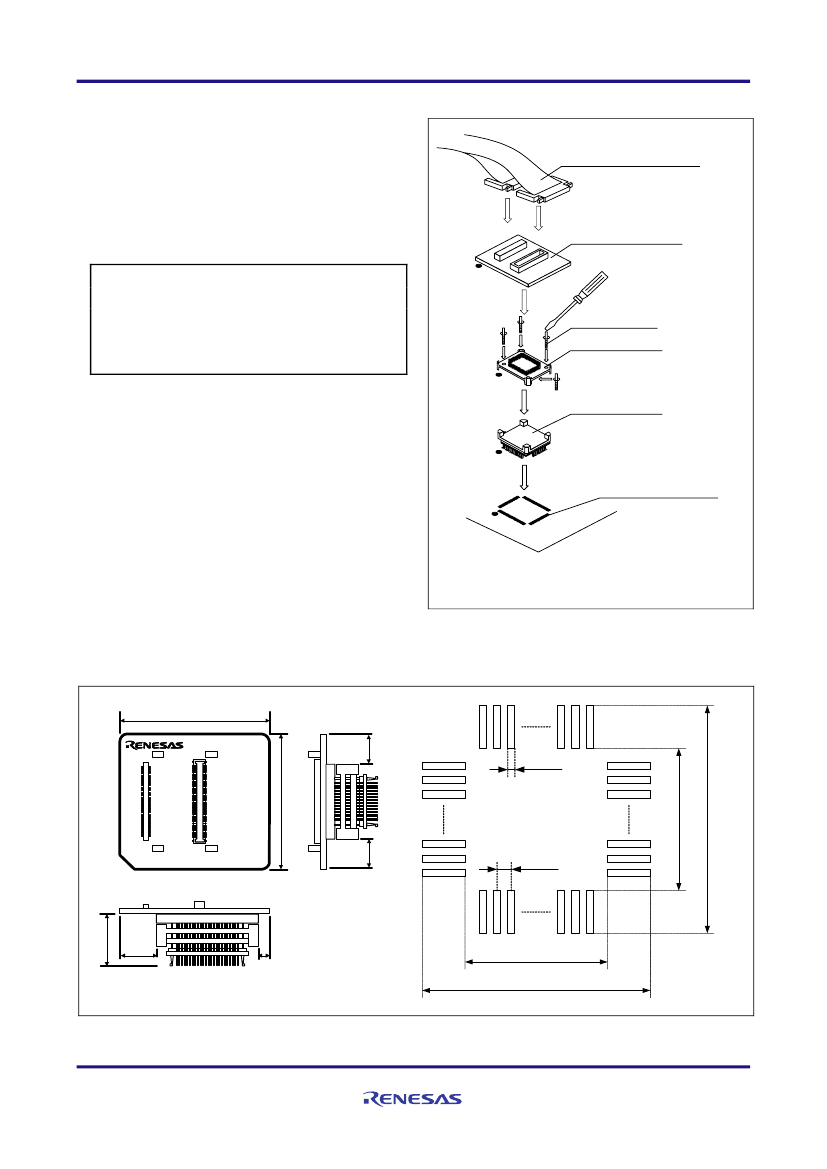

4. Usage
(See Figure 2)
The R0E0100TNPFJ00 can be used for debugging and
board-mounted evaluation in common by mounting the
NQPACK100RB on the user system.
(1) For debugging
Mount the NQPACK100RB on the foot pattern of the user
system and attach the YQPACK100RB on it. In addition,
connect the R0E0100TNPFJ00 to the YQPACK100RB,
and then connect the flexible cable R0E001000FLX10 of
the emulator to the upper connector of the
R0E0100TNPFJ00.
(2) For onboard evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK100RB168 (not included) or the
HQPACK100RB1622 (not included) in order on the
NQPACK100RB on the user system.
Use an applicable HQPACK for your package. Check
your HQPACK type number in the user’s manual of the
emulator.
- PRQP0100JB-A (formerly 100P6S-A) package:
HQPACK100RB168
- PRQP0100JD-B (formerly 100P6F-A) package:
HQPACK100RB168
- PLQP0100JA-A (formerly 100P6A-A) package:
HQPACK100RB1622
Before using the R0E0100TNPFJ00, be sure to read the
precautions on page 3.
(2) For on-board
evaluation
R0E0100TNPFJ00
YQ-GUIDE (×4)
YQPACK100RB
HQPACK100RB168
(not included)
or
HQPACK100RB1622
(not included)
NQPACK100RB
FLASH MCU, etc.
100-pin 0.65mm pitch
foot pattern
●:
No.1 pin
Be sure to align the pins.
Figure 2 Usage of the R0E0100TNPFJ00
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1735-0200 Rev.2.00
Apr 16, 2010
Page 1 of 4
