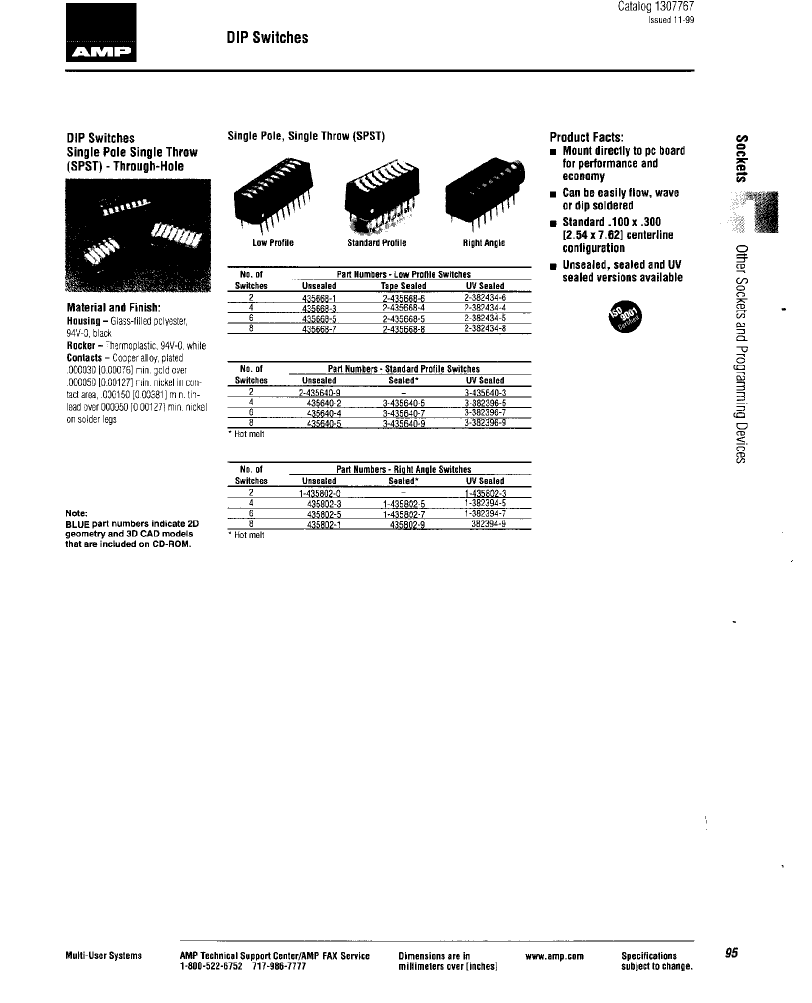

SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,THROUGH HOLE-STRAIGHT
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | LOW PROFILE |
| JESD-609 code | e0 |
| Manufacturer's serial number | 435668 |
| Installation features | THROUGH HOLE-STRAIGHT |
| Number of switching segments | 4 |
| seal | TAPE SEALED |
| surface mount | NO |
| Switch action | LATCHED |
| switch function | SPST |
| Switch type | SLIDE DIP SWITCH |
| Terminal surface | TIN LEAD |
| Termination type | SOLDER |
| Base Number Matches | 1 |
| 2-435668-4 | 2-382434-6 | 3-382396-5 | 1-382394-5 | 2-382434-4 | |
|---|---|---|---|---|---|
| Description | SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,THROUGH HOLE-STRAIGHT | ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,4 | ROCKER SWITCH,STRAIGHT,SPST,ON-OFF,PC TAIL TERMINAL,ROCKER,8 | PIANO SWITCH,RIGHT ANGLE,SPST,ON-OFF,4,PC TAIL TERMINAL,8 | SLIDE DIP SWITCH-4SWITCHES, SPST, LATCHED,THROUGH HOLE-STRAIGHT |
| Reach Compliance Code | unknow | unknow | unknown | compliant | unknown |
| Other features | LOW PROFILE | LOW PROFILE, UV SEALED | UV SEALED | LOW PROFILE, UV SEALED | LOW PROFILE |
| Manufacturer's serial number | 435668 | 7100 | 7100 | 7000 | 382434 |
| Installation features | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT | THROUGH HOLE-STRAIGHT | THROUGH HOLE-RIGHT ANGLE | THROUGH HOLE-STRAIGHT |
| surface mount | NO | NO | NO | NO | NO |
| Switch action | LATCHED | HORIZONTAL | HORIZONTAL | VERTICAL | LATCHED |
| switch function | SPST | SPST | SPST | SPST | SPST |
| Switch type | SLIDE DIP SWITCH | ROCKER SWITCH | ROCKER SWITCH | PIANO DIP SWITCH | SLIDE DIP SWITCH |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Number of switching segments | 4 | - | - | 4 | 4 |
| Terminal surface | TIN LEAD | TIN-LEAD/NICKEL | TIN-LEAD/NICKEL | - | TIN LEAD |
| Base Number Matches | 1 | 1 | 1 | 1 | - |
| Actuator color | - | WHITE | WHITE | WHITE | - |
| Actuator material | - | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | - |
| Actuator type | - | ROCKER | ROCKER | PIANO | - |
| body width | - | 9.652 mm | 9.652 mm | 7.366 mm | - |
| Body color | - | BLUE | BLUE | BLACK | - |
| body height | - | 7.366 mm | 7.366 mm | 9.652 mm | - |
| Body length or diameter | - | 7.112 mm | 12.192 mm | 12.192 mm | - |
| center contact material | - | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | - |
| Center contact plating | - | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | - |
| Maximum contact current (DC) | - | 0.015 A | 0.015 A | 0.025 A | - |
| Contact (DC) maximum rated R load | - | 0.015A@24VDC | 0.015A@24VDC | 0.025A@24VDC | - |
| Contact function | - | ON-OFF | ON-OFF | ON-OFF | - |
| Contact resistance | - | 0.1 mΩ | 0.1 mΩ | 0.1 mΩ | - |
| contact time | - | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | - |
| Maximum contact voltage (DC) | - | 24 V | 24 V | 24 V | - |
| Dielectric withstand voltage | - | 500VDC V | 500VDC V | 500VDC V | - |
| Electrical life | - | 2000 Cycle(s) | 2000 Cycle(s) | 7000 Cycle(s) | - |
| End contact material | - | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | - |
| End contact plating | - | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL | - |
| Insulation resistance | - | 1000000000 Ω | 1000000000 Ω | 100000000000 Ω | - |
| insulator material | - | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - |
| Maximum operating temperature | - | 105 °C | 105 °C | 105 °C | - |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | - |
| PCB hole count | - | 4 | 8 | 8 | - |
| Terminal length | - | 0.14 inch | 0.14 inch | 0.14 inch | - |
| Terminal material | - | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | - |
