Document 438NR-1
Shielded Power Inductors – LPS3008
n
re
d
par ts a d by new lea
t and fu
These
form, fi
cfm.
e
c
8.
ntical in
re repla
They a which are ide
ft.com/lps300
ra
ns
w.coilc
versio
See
ww
s
n free
ded for
ed ver
mprov
not recommen free and haloge ction.
I
lable
.
w avai
ew designs.
ion no
n
• Very low DCR; excellent current handling
• Only 0.8 mm tall; 3.0 × 3.0 mm footprint
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
22 – 25 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3500/13″ reel; Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth
(Refer to dimensional drawing for part orientation in tape.)
Recommended pick and place nozzle
OD: 3 mm; ID:
≤
1.5 mm
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
5
Part number
1
Isat
(A)
DCR SRF
Inductance
2
max
3
typ
4
10% 20% 30%
±20% (µH) (Ohms) (MHz) drop drop drop
0.56
0.80
1.0
1.5
2.2
3.3
4.7
5.6
6.8
8.2
10
12
18
22
33
47
68
100
120
150
180
220
330
0.072
0.092
0.125
0.134
0.175
0.285
0.350
0.450
0.500
0.600
0.650
0.790
1.25
1.50
2.30
3.00
4.75
6.85
7.00
8.00
9.00
11.5
18.0
330
255
220
170
150
114
87
78
75
61
56
49
38
35
23
21
18
14
13
11
10
9
7
1.8
1.6
1.3
1.1
1.0
0.81
0.68
0.62
0.58
0.52
0.46
0.45
0.35
0.29
0.27
0.22
0.18
0.15
0.084
0.080
2.0
1.7
1.4
1.3
1.1
0.86
0.73
0.67
0.61
0.56
0.51
0.48
0.38
0.33
0.30
0.23
0.19
0.16
0.094
0.088
2.1
1.8
1.5
1.3
1.1
0.88
0.74
0.70
0.63
0.58
0.52
0.50
0.40
0.34
0.31
0.24
0.20
0.16
0.10
0.092
Irms
(A)
6
20°C 40°C
rise rise
1.4
1.1
0.90
0.87
0.85
0.74
0.68
0.58
0.50
0.45
0.42
0.38
0.33
0.29
0.25
0.21
0.175
0.160
0.140
0.130
2.0
1.6
1.3
1.2
1.1
0.95
0.80
0.73
0.67
0.60
0.56
0.50
0.44
0.38
0.32
0.27
0.23
0.21
0.190
0.175
1. Please specify
termination
and
packaging
codes:
LPS3008-104MLC
Termination: L
= RoHS compliant silver-palladium-
platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481
embossed plastic tape (1000 parts
per full reel).
B
= Less than full reel. In tape, but not
machine ready. To have a leader
and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481
embossed plastic tape. Factory
order only, not stocked (3500 parts
per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms using an
Agilent/HP 4192A. Inductance at 1 MHz is the same
for parts with SRF
≥10
MHz.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753ES or
equivalent.
5. DC current that causes the specified inductance drop
from its value without current.
6. Current that causes the specified temperature rise
from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
LPS3008-561ML_
LPS3008-801ML_
LPS3008-102ML_
LPS3008-152ML_
LPS3008-222ML_
LPS3008-332ML_
LPS3008-472ML_
LPS3008-562ML_
LPS3008-682ML_
LPS3008-822ML_
LPS3008-103ML_
LPS3008-123ML_
LPS3008-183ML_
LPS3008-223ML_
LPS3008-333ML_
LPS3008-473ML_
LPS3008-683ML_
LPS3008-104ML_
LPS3008-124ML_
LPS3008-154ML_
LPS3008-184ML_
LPS3008-224ML_
LPS3008-334ML_
0.070 0.078 0.082 0.120 0.160
0.067 0.073 0.076 0.100 0.145
0.059 0.064 0.066 0.090 0.130
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 438NR-1 Revised 09/16/13
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

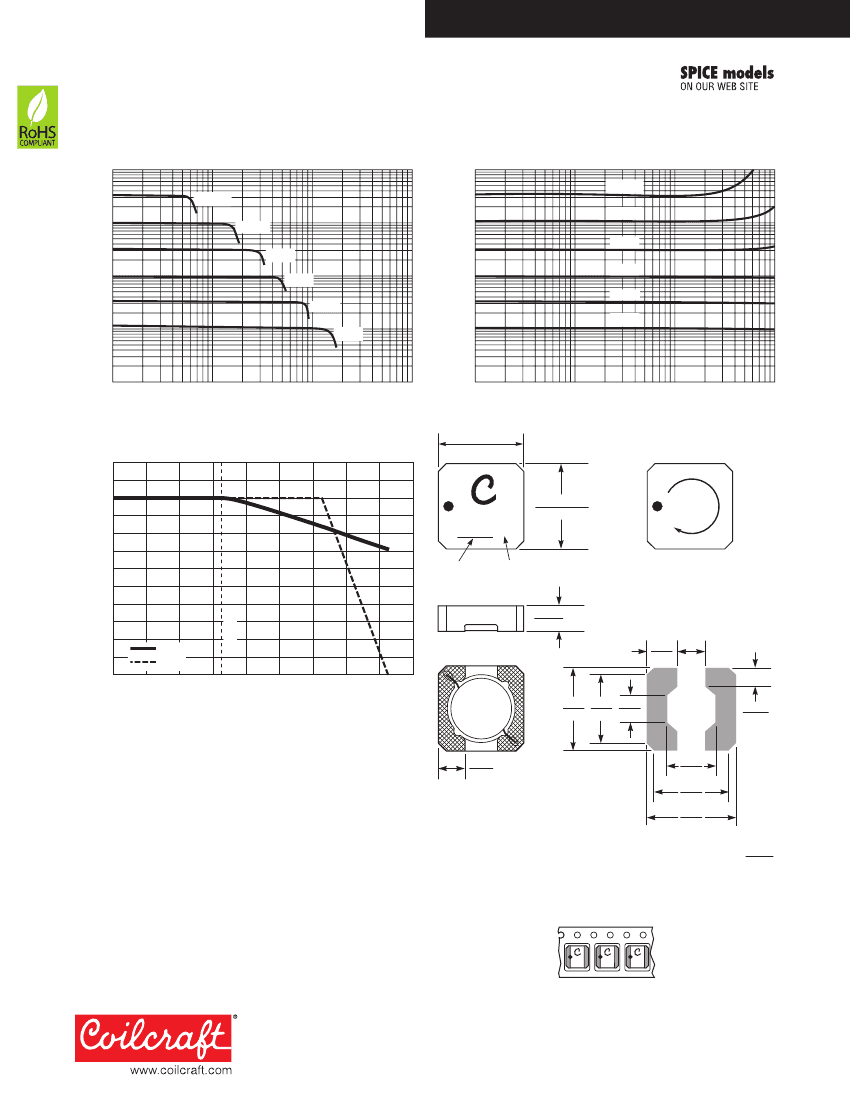

Document 438NR-2
Shielded Power Inductors – LPS3008 Series
Typical L vs Current
1000
330 µH
Typical L vs Frequency
1000
330 µH
100 µH
33 µH
Inductance (µH)
33 µH
Inductance (µH)
100
100 µH
100
10
10 µH
3.3 µH
10
10 µH
3.3 µH
1
1.0 µH
1
1.0 µH
0.1
0.01
0.1
1
10
0.1
0.01
0.1
1
10
Current (A)
Frequency (MHz)
0.116 ±0.003
*
2,95 ±0,076
Current Derating
120
110
100
90
80
70
60
50
40
20
10
0
-40
-20
30
Percent of rated Current
XXX X
Dash
number
Internal
code
0.116 ±0.003
*
2,95 ±0,076
Winding
direction
25°C
0.0315 max
*
0,8
Recommended
Land Pattern
0.045 0.040
1,14 1,02
Isat
Irms
0
20
40
60
80
100
120 140
0.120 0.100 0.040
3,05 2,54 1,02
0.0275
0,70
Ambient temperature (°C)
0.035
0,89
of
including
*
Dimensions are Forthe case notoverall
the termination.
maximum
dimensions including the termination, add
0.005 in / 0,13 mm.
For optional tin-lead and tin-silver-copper
terminations, dimensions are for the
mounted part. Dimensions before mounting
can be an additional 0.005 inch / 0,13 mm).
0.070
1,78
0.110
2,79
0.130
3,30
Dimensions are in
inches
mm
Packaging
1000/7″ reel; 3500/13″ reel; Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth
Orientation of parts in packaging tape
123
123
123
