EURO
QUARTZ
LVCMOS SMD 11.4 x 9.6 x 2.5mm, 4 pad
Frequency range 50.01MHz to 200MHz
LVCMOS Output
Supply Voltage 3.3 VDC
High Q fundamental mode crystal
Low jitter multiplier circuit
Low unit cost

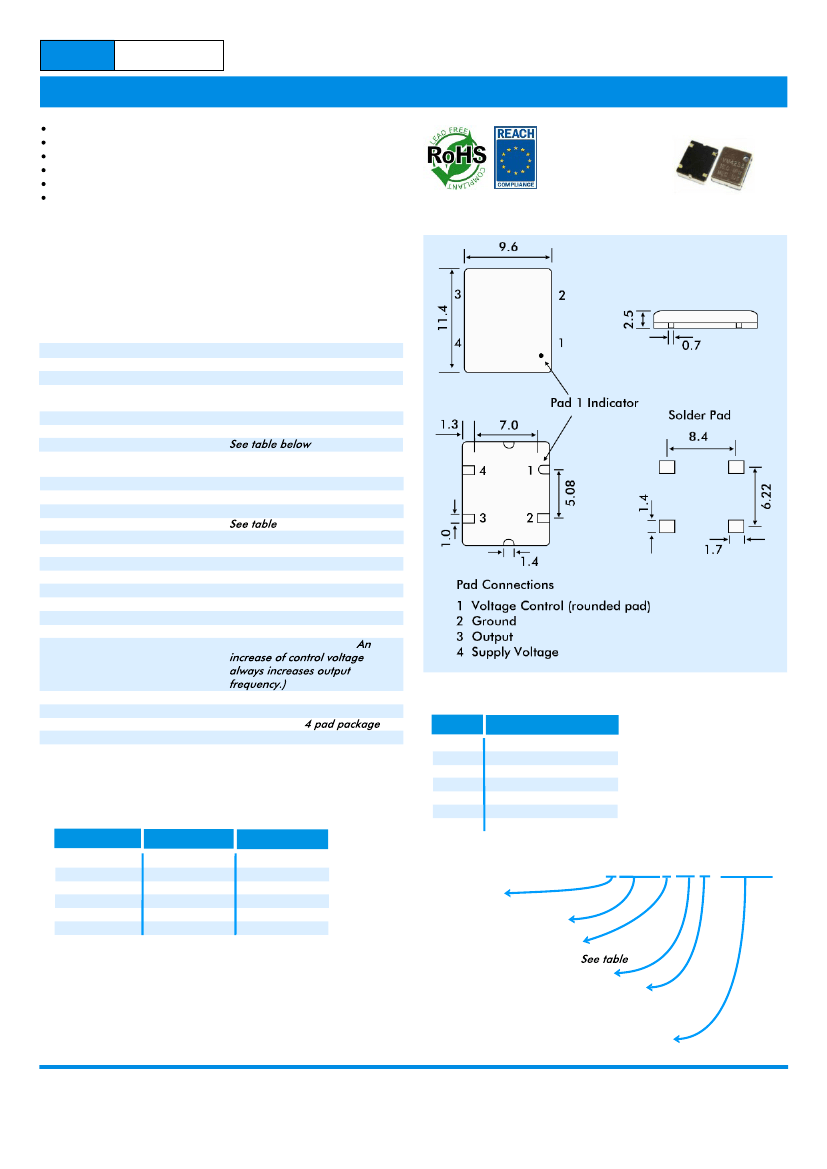

OUTLINE & DIMENSIONS
DESCRIPTION
GV42 VCXOs, are packaged in an industry-standard, 4 pad, 11.4mm
x 9.6mm x 2.5mm SMD package. The VCXO incorporates a high Q
fundamental mode crystal and a low jitter multiplier circuit.
SPECIFICATION
Frequency Range:
Supply Voltage:
Output Logic:
Integrated Phase Jitter:
Period Jitter RMS:
Period Jitter Peak to peak:
Phase Noise:
Initial Frequency Accuracy:
Output Voltage HIGH (1):
Output Voltage LOW (0):
Pulling Range:
Temperature Stability:
Output Load:
Start-up Time:
Duty Cycle:
Rise/Fall Times:
Current Consumption:
Linearity:
Modulation Bandwidth:
Input Impedance:
Slope Polarity:
(Transfer function)
GV42 VCXO
50.01MHz ~ 200.0MHz
50.01MHz to 200.0MHz
3.3 VDC ±5%
LVCMOS
2.3ps typical, 4.0ps maximum
(for 155.250MHz)
4.0ps typical (for 155.250MHz)
27.0ps typical (for 155.250MHz)
Tune to the nominal frequency
with Vc= 1.65 ±0.2VDC
90% Vdd minimum
10% Vdd maximum
From ±30ppm to ±150ppm
15pF
10ms maximum, 5ms typical
50% ±5% measured at 50% Vdd
1.2ns typical (15pF load)
25mA maximum (15pF load)
10% maximum, 6% typical
25kHz minimum
2 MW minimum
Monotonic and Positive. (
Storage Temperature:
Ageing:
Enable/Disable (Tristate):
RoHS Status:
-50° to +100°C
±5ppm per year maximum
Not available (
Fully compliant
PHASE NOISE
)
Offset
10Hz
100Hz
1kHz
10kHz
100kHz
1MHz
10MHz
Frequency 155.25MHz
-65dBc/Hz
-95dBc/Hz
-120dBc/Hz
-128dBc/Hz
-122dBc/Hz
-120dBc/Hz
-140dBc/Hz
FREQUENCY STABILITY
Stability Code Stability ±ppm Temp. Range
A
25
0°~+70°C
B
50
0°~+70°C
C
100
0°~+70°C
D
25
-40°~+85°C
E
50
-40°~+85°C
F
100
-40°~+85°C
If non-standard frequency stability is required
Use ‘I’ followed by stability, i.e. I20 for ±20ppm
PART NUMBER SCHEDULE
Example:
3GV42B-80N-155.25
Supply Voltage
3 = +3.3V
Series Designator
GV426
Stability over temperature range
(
)
Pullability in ±ppm
Pullability determinator
N = minimum
M = maximum
T = Typical
Frequency in MHz
