Ceramic SMD Glass Seal Crystal
Page 1 of 2
Model:
C5AG & C5CG
Formerly FX532_G Series
RoHS Compliant / Pb Free
Rev.
07/10/2018
http://www.foxonline.com/need_a_sample.htm
5.0±0.2
3.2±0 .2
1 .4 M ax

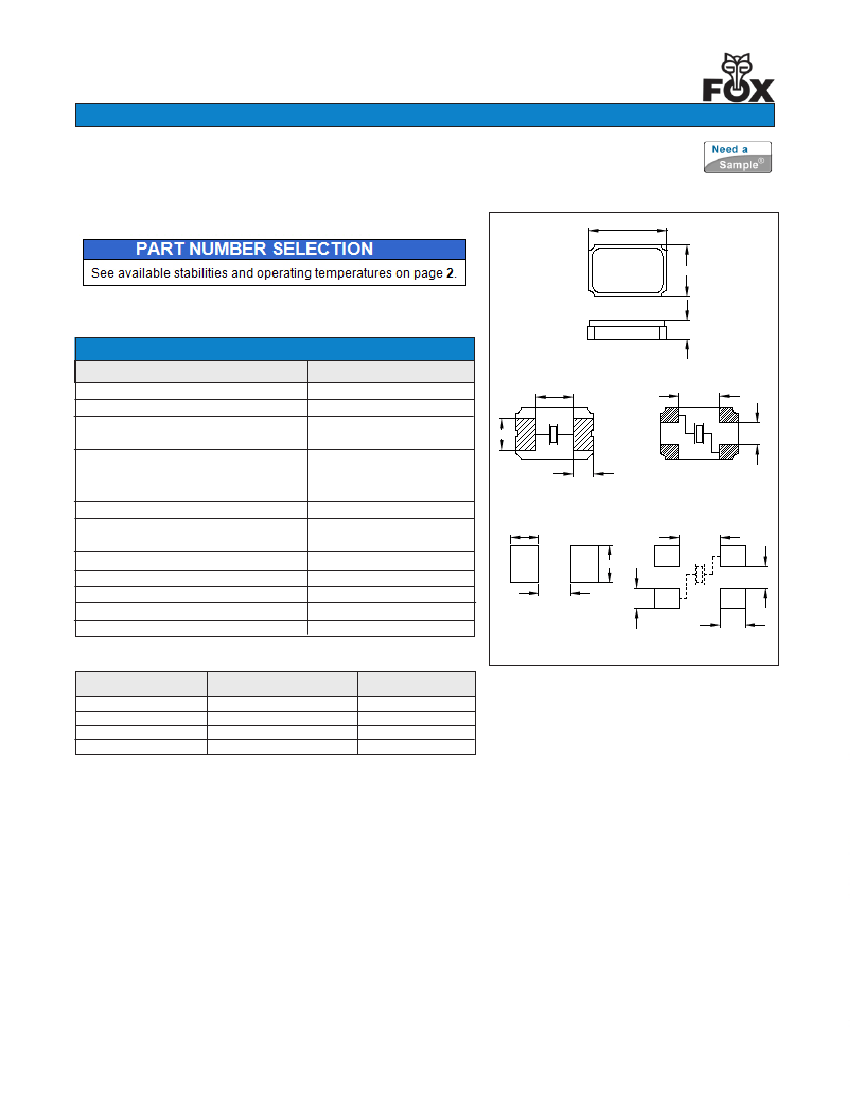

• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
(Fo)
Frequency Tolerance @ 25ºC
Frequency Stability, ref. @ 25ºC
Over Operating Temp. Range
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance
(Co)
Load Capacitance
(C
L
)
Drive Level
Aging per year
Maximum Soldering Temp/Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
MAX
(unless otherwise noted)
10.000 ~ 67.000 MHz
See options on page 2
See options on page 2
See options on page 2
-40ºC ~ +85ºC
7 pF
See options on page 2
(Customer Specified)
0.1 mW
±5 PPM
260ºC / 10 Seconds
1
Au
2 .0
C5
AG
2.4
#1
C5
CG
2 .6
#2
1 .4
1.3
#4
B o tto m V iew
#3
Recommended
Solder Pad Layout
Recommended
Solder Pad Layout
1.8
2.4
2.0
2 .6
1 .4
1 .3
1 .6
All dimensions are in millimeters.
Other tolerances, stabilities & operating temperature ranges available.
Frequency Range
(MHz)
10.000 ~ 19.999
20.000 ~ 29.999
30.000 ~ 54.000
45.000 ~ 67.000
Operating Mode
Fundamental
Fundamental
Fundamental
3
RD
OT
Max ESR
Ω
120
70
50
90
Note: Dimensional drawing is for reference to critical specifications defined by size measure-
ments. Certain non-critical visual attributes, such as side castellations, etc. may vary.
The above specifications, having been carefully prepared and checked, is believed to be ac-
curate at the time of publication; however, no responsibility is assumed by Fox Electronics for
inaccuracies
.
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
Ceramic SMD Glass Seal Crystal
Page 2 of 2
Model:
C5AG & C5CG
Formerly FX532_G Series
RoHS Compliant / Pb Free
Rev.
07/10/2018
http://www.foxonline.com/need_a_sample.htm

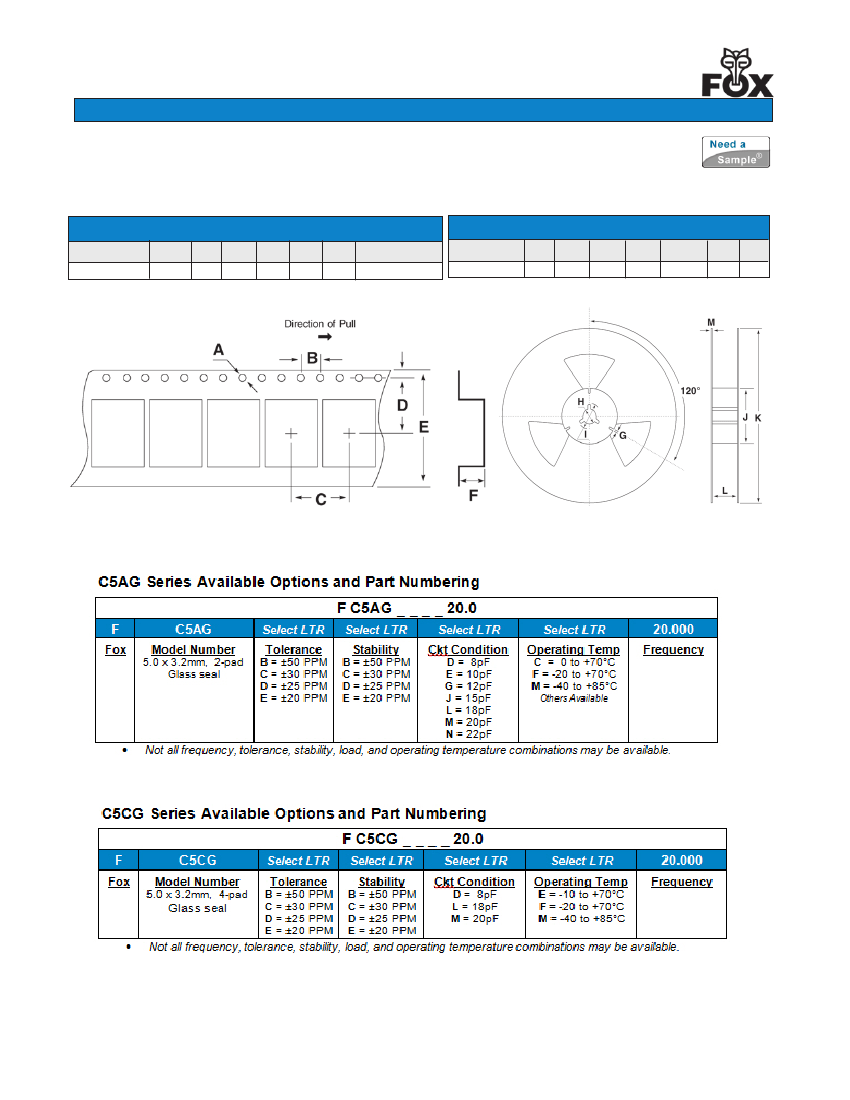

• TAPE SPECIFICATIONS
(millimeters)
B
C
MODEL
A
C5AG/C5CG
∅1.5
4.0 8.0
• REEL SPECIFICATIONS
(millimeters)
H
∅
I
J
21.6 60
K
178
L
M
13.5 1.6
G
D
E
F
STD Reel QTY
MODEL
C5AG/C5CG
2.5
5.5 12.0 1.5
1,000
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
