MABACT0063
1.5:1 Auto Transformer
5-1000MHz
Features
Surface Mount
1.5:1 Impedance
260°C Reflow Compatible
RoHS* Compliant
Available on Tape and Reel.
Rev. V3

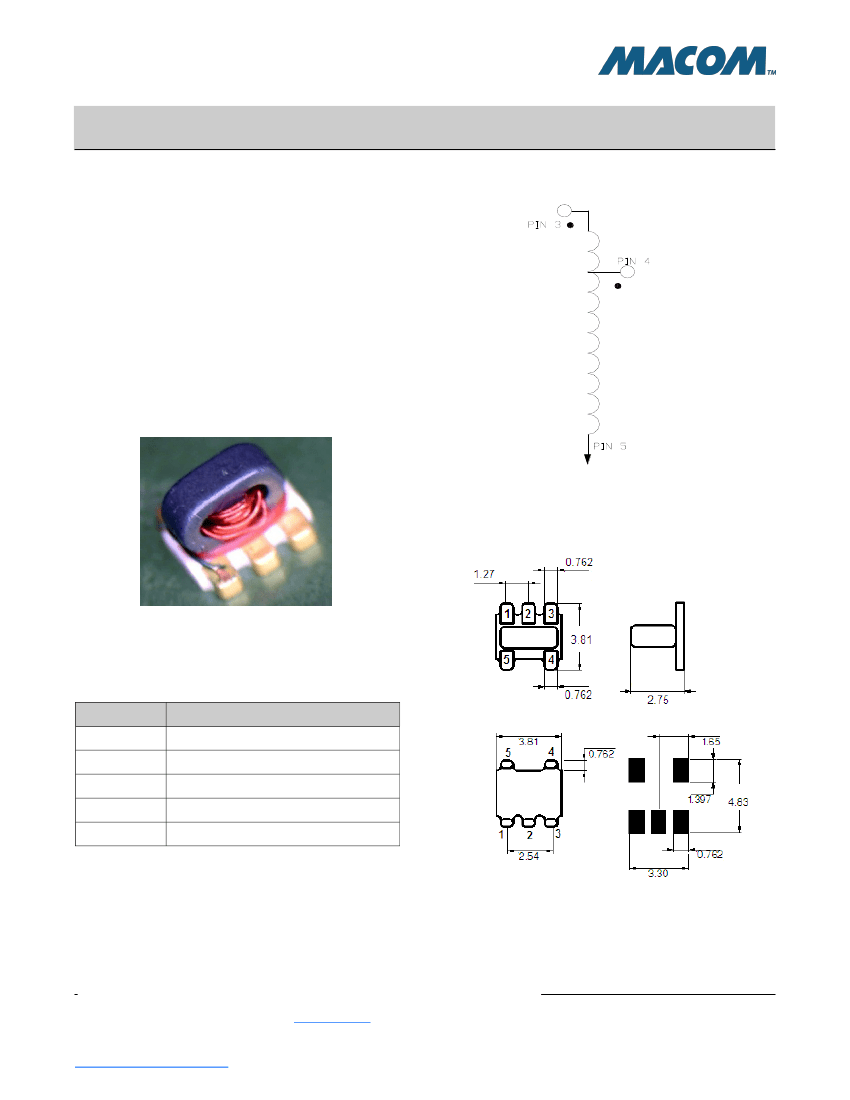

Schematic
Description
M/A-COM Technology Solutions MABACT0063 is a
1.5:1 Auto Transformer in a low cost, surface mount
package. Ideally suited for high volume CATV/
Broadband applications.
Component Dimensions:
Pin Configuration
Pin No.
1
2
3
4
5
Function
Not Connected
Not Connected
Primary Dot (e.g. 75 Ohms)
Secondary Dot (e.g. 50 Ohms)
Primary and Secondary (Ground)
Dimensions in mm, Tolerance: .xx ± .2, .xxx ± .1
Drawing not to scale
1
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MABACT0063
1.5:1 Auto Transformer
5-1000MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50
1
Parameter
Insertion Loss
Input Return Loss
Input Return Loss
Test
Conditions
-
-
-
Frequency
5 - 1000 MHz
5 - 500 MHz
500 - 1000 MHz
Units
dB
dB
dB
Min
-
24
16
Typ
0.5
30
26
Max
1.0
-
-
Rev. V3
Recommended Maximum Ratings
1,2
Parameter
Max Input Power
DC current
Operating Temperature
Storage Temperature
Value
250mW
100mA
-40°C to +85°C
-55°C to +100°C
Recommended PCB Configuration
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. M/A-COM Technology Solutions does not recommend sus-
tained operation near these survivability limits.
Dimensions in mm, Tolerance: .xx ± .2, .xxx ± .1
Drawing not to scale
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MABACT0063
1.5:1 Auto Transformer
5-1000MHz
Rev. V3
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
