Model 82
Low Pressure
•
•
•
•
•
316L SS Pressure Sensor
19mm Diameter Package
0 - 100mV Output
Absolute and Gage Low Pressure
Temperature Compensated

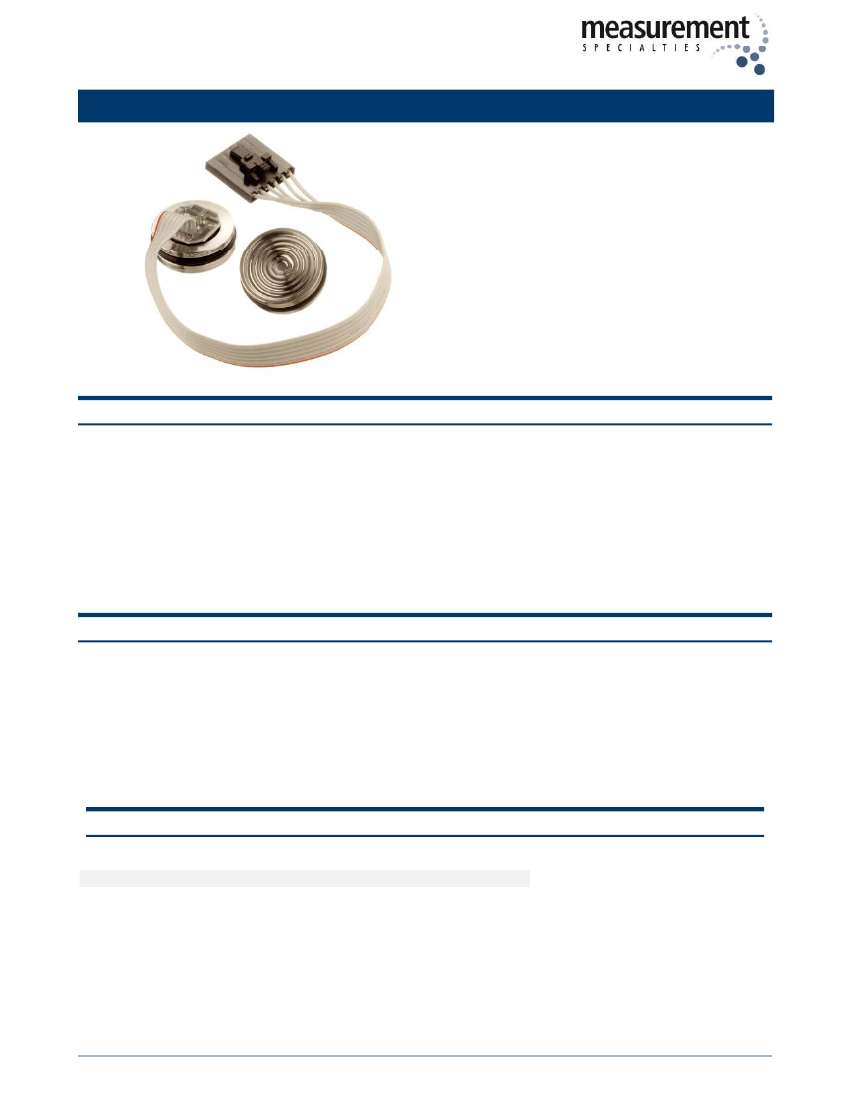

DESCRIPTION
The Model 82 Low Pressure is a 19 mm small profile, media compatible, piezoresistive silicon pressure
sensor packaged in a 316L stainless steel housing. The Model 82 Low Pressure is designed for o-ring mounting
and OEM applications where compatibility with corrosive media is required.
The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to
the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for
temperature compensation and offset correction. An additional laser-trimmed resistor is included which can be
used to adjust an external differential amplifier and provide span interchangeability to within
±1%.
Please refer to the Model 82 UltraStable™ datasheet for information on products with operating
pressures greater than 5 psi.
FEATURES
•
•
•
•
•
O-Ring Mount
-20ºC to +70ºC Operating
Temperature Range
±0.2%
Pressure Non Linearity
1.0% Interchangeable Span
(provided by gain set resistor)
Solid State Reliability
APPLICATIONS
•
•
•
•
•
•
Medical Instruments
Process Control
Fresh & Waste Water Measurements
Partial Vacuum Gas Measurement
Pressure Transmitters
Tank Level Systems (RV & Industrial)
STANDARD RANGES
Range
0 to 1
0 to 5
psia
•
psig
•
•
82LP
www.meas-spec.com
1/4
1008
Model 82
Low Pressure
PERFORMANCE SPECIFICATIONS
Supply Current: 1.5mA
Ambient Temperature: 25°C (unless otherwise specified)
Parameters are specified for the compensated versions only
PARAMETERS
Span
Zero Pressure Output
Pressure Non Linearity
Pressure Hysteresis
Repeatability
Input Resistance
Output Resistance
Temperature Error – Span
Temperature Error – Offset
Thermal Hysteresis – Span
Thermal Hysteresis – Offset
Long Term Stability – Span
Long Term Stability – Offset
Supply Current
Insulation Resistance (50Vdc)
Pressure Overload
Compensated Temperature (1 psi)
Compensated Temperature (5 psi)
Operating Temperature
Storage Temperature
Weight
Media – Pressure Port
Media – Reference Port
0
0
-20
-50
0.5
50
20
50
70
+70
+125
12
2500
3000
-1.0
-1.0
-0.25
-0.25
±0.05
±0.05
±0.1
±0.25
1.5
2.0
MIN
50
-2
-0.2
-0.10
±0.02
±0.02
5000
6500
30k
1.0
1.0
0.25
0.25
%Span
%Span
%Span
%Span
%Span
%Span
mA
M
psi
ºC
ºC
ºC
ºC
grams
8
7
5
6
3
3
3
3
4
4
TYP
100
MAX
150
2
0.2
0.10
UNITS
mV
mV
%Span
%Span
%Span
2
NOTES
1
Liquids and Gases compatible with 316L Stainless Steel and Buna-N
Compatible with Silicon, Pyrex, Gold, Fluorosilicone RTV and 316L
Stainless Steel
Notes
1. Ratiometric to supply current.
2. Best fit straight line.
3. Maximum temperature error within the compensated temperature range with respect to 25°C.
4. Long term stability over a one year period with constant current and temperature.
5. Minimum resistance between case and pins.
6. 10 psi maximum for 1 psi devices.
7. Maximum temperature range for product with standard cable and connector is -20°C to +105°C.
8. Gage units not recommended for high vacuum applications. For high vacuum applications consult factory.
82LP
www.meas-spec.com
2/4
1008
Model 82
Low Pressure

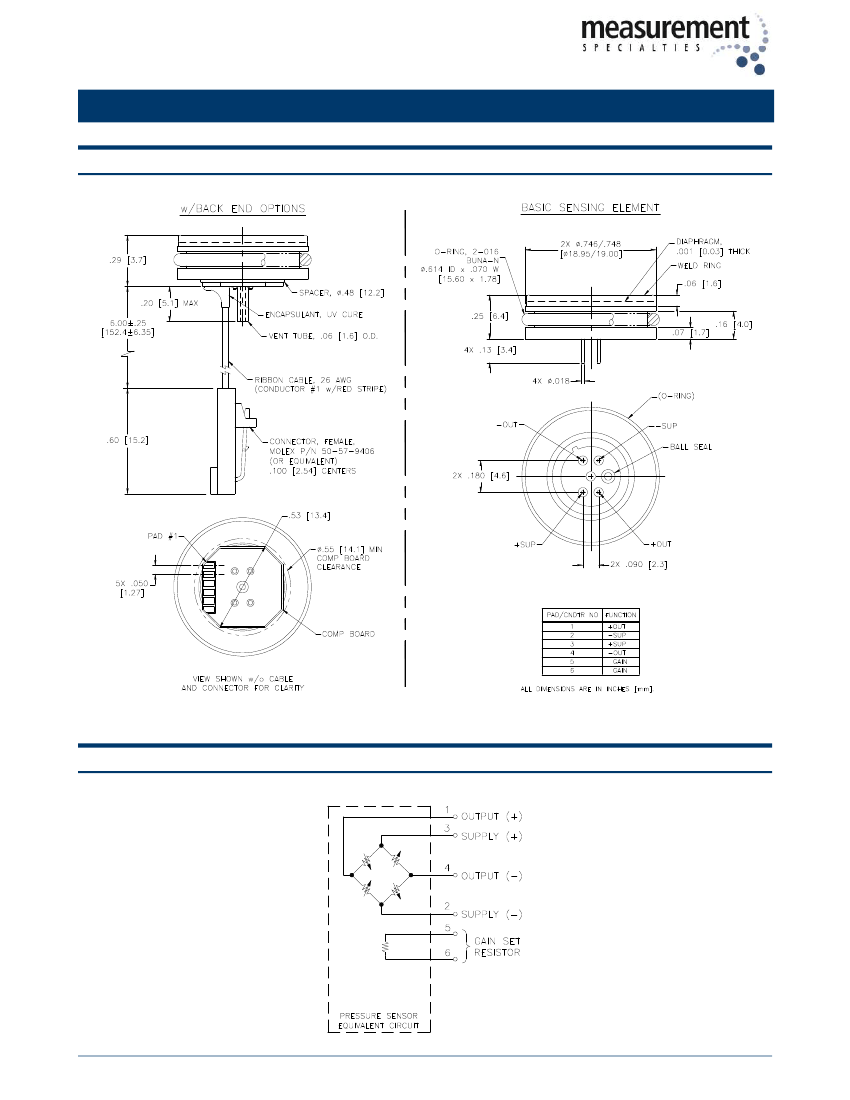

DIMENSIONS
CONNECTIONS
82LP
www.meas-spec.com
3/4
1008
Model 82
Low Pressure

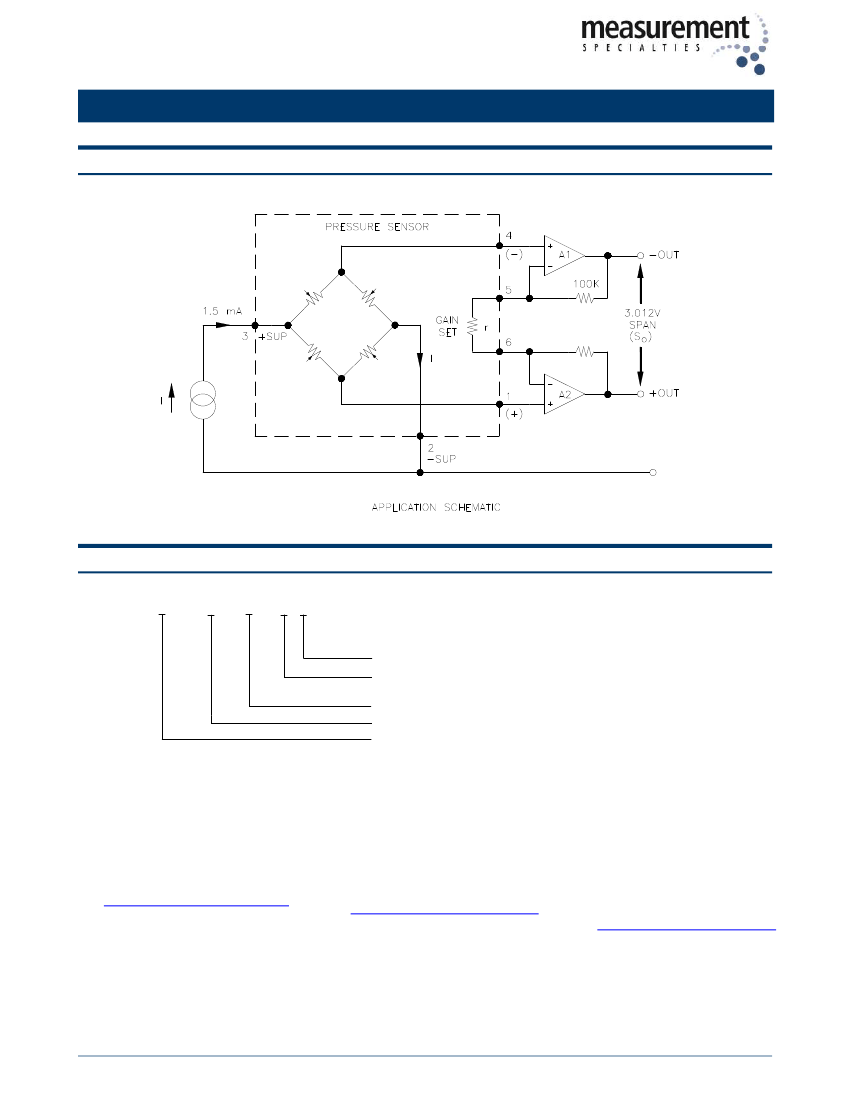

APPLICATION SCHEMATIC
ORDERING INFORMATION
82 - 005 G - C T
Vent (T = Tube, Blank = No Tube)
Electrical (C = Ribbon Cable with Connector, R = Ribbon Cable,
P = Solder Pads, L = Leads, Uncompensated)
Type (A = Absolute, G = Gage)
Pressure Range
Model
NORTH AMERICA
Measurement Specialties
45738 Northport Loop West
Fremont, CA 94538
Tel: 1-800-767-1888
Fax: 1-510-498-1578
Sales:
pfg.cs.amer@meas-spec.com
EUROPE
Measurement Specialties
(Europe), Ltd.
26 Rue des Dames
78340 Les Clayes-sous-Bois, France
Tel: +33 (0) 130 79 33 00
Fax: +33 (0) 134 81 03 59
Sales:
pfg.cs.emea@meas-spec.com
ASIA
Measurement Specialties
(China), Ltd.
No. 26 Langshan Road
Shenzhen High-Tech Park (North)
Nanshan District, Shenzhen 518107
China
Tel: +86 755 3330 5088
Fax: +86 755 3330 5099
Sales:
pfg.cs.asia@meas-spec.com
The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for
inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the
manufacturer. Measurement Specialties, Inc. reserves the right to make changes without further notice to any product herein. Measurement
Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does
Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims
any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different
applications. All operating parameters must be validated for each customer application by customer’s technical experts. Measurement
Specialties, Inc. does not convey any license under its patent rights nor the rights of others.
82LP
www.meas-spec.com
4/4
1008
