SocketModem iCell
®
Universal Socket Benefits
• Interchangeable
communications
device
s
• Intelligent Universal IP stack
• Quick-to-market
• Easy migration to future networks
Intelligent GPRS Cellular Modem

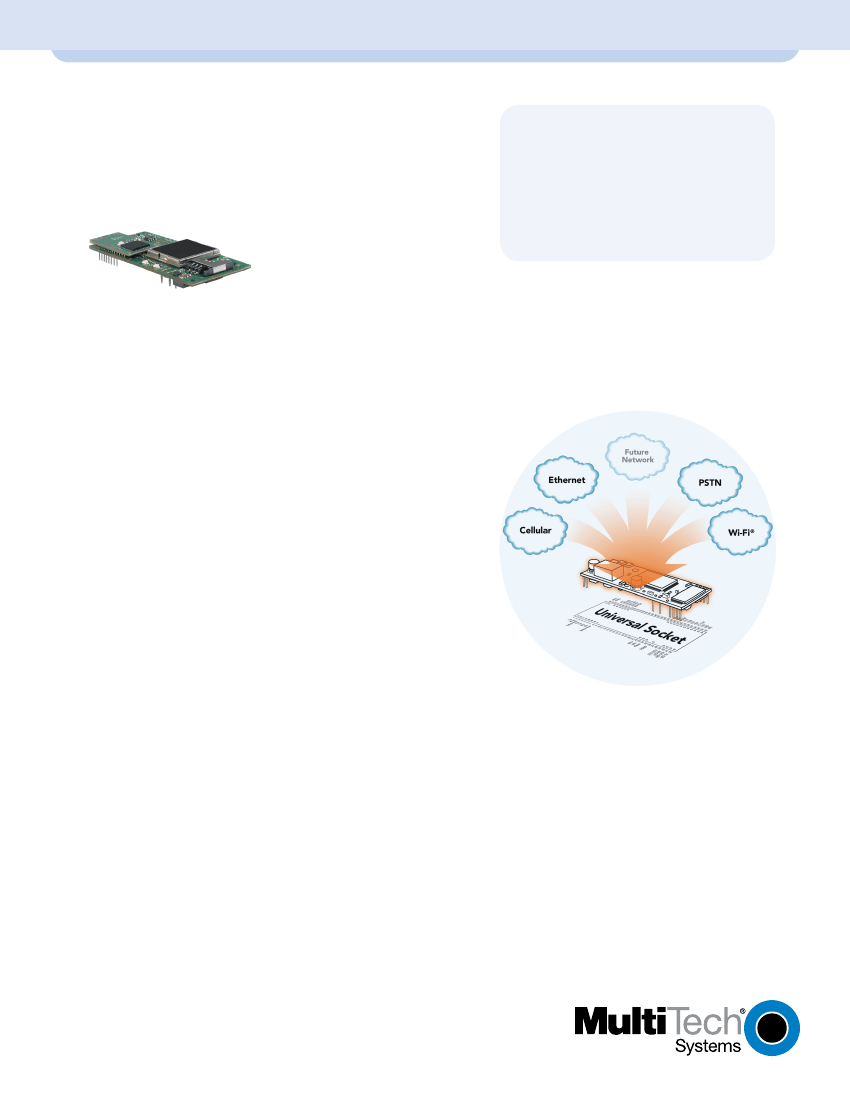

The SocketModem
®
iCell intelligent cellular modem is a complete, ready-to-integrate communications device that
offers standards-based quad-band GSM/GPRS Class 10 performance. This quick-to-market communications device
allows developers to add wireless communication and GPS tracking to products with a minimum of development
time and expense. The intelligence of the embedded Universal IP
™
stack allows for automatic/persistent
connectivity for mission critical applications and enhanced M2M functionality. The SocketModem iCell intelligent
cellular modem is based on industry-standard open interfaces and utilizes Multi-Tech's Universal Socket design.
Features
• GPRS Class 10
• Quad-band GSM 850/900/1800/1900 MHz
• Universal Socket connectivity
• Intelligent Universal IP stack for enhanced M2M functionality
• M2M applications include automatic connect/reconnect, device
monitor, modem
emulation, Ping and TCP keep alive, wake-up on
Caller ID, and wake-up on ring
• Models with GPS tracking capability
• NMEA-0183 V3.01 compliant GPS messages
• Packet data up to 85.6K bps
• Circuit-switched data up to 14,400 bps transparent and
non-transparent
• Short Message Services (SMS)
• UFL antenna connector and SIM socket
• Serial interface supports DTE speeds to 115.2K bps
• AT command compatible
• MNP 2 error correction, V.42bis compression
• PTCRB and carrier certified
• Two-year warranty
Highlights
Applications. The SocketModem iCell intelligent cellular
modem is targeted at applications that periodically need to
send or receive data over a wireless network. It is ideal for
asset tracking, fleet management, energy monitoring, mobile
and home healthcare, ATM terminals, point-of-sale, security
systems and remote monitoring applications.
Universal Socket Connectivity. Multi-Tech’s Universal Socket
is a flexible, comm-port architecture that provides cellular,
Ethernet, PSTN or Wi-Fi network access with interchangeable
communications devices. This means you can utilize one
system design and populate it with your connectivity
device of choice accommodating multiple connectivity
requirements. In addition, you are assured a seamless
migration to future technologies.
Universal IP. Multi-Tech’s Universal IP consists of a common
set of TCP/IP networking protocols and M2M (machine-to-
machine) applications implemented using a standard AT
command interface. Universal IP allows developers to write
their host application one time while having the freedom
to select from a growing number of Universal Socket
communication devices.
Reduces Development Time. The SocketModem iCell intelligent
cellular modem enhances your product while you focus on
developing its core features. It actually provides faster time-
to-market because it relieves the burden and expense of
obtaining PTCRB and RF approvals.

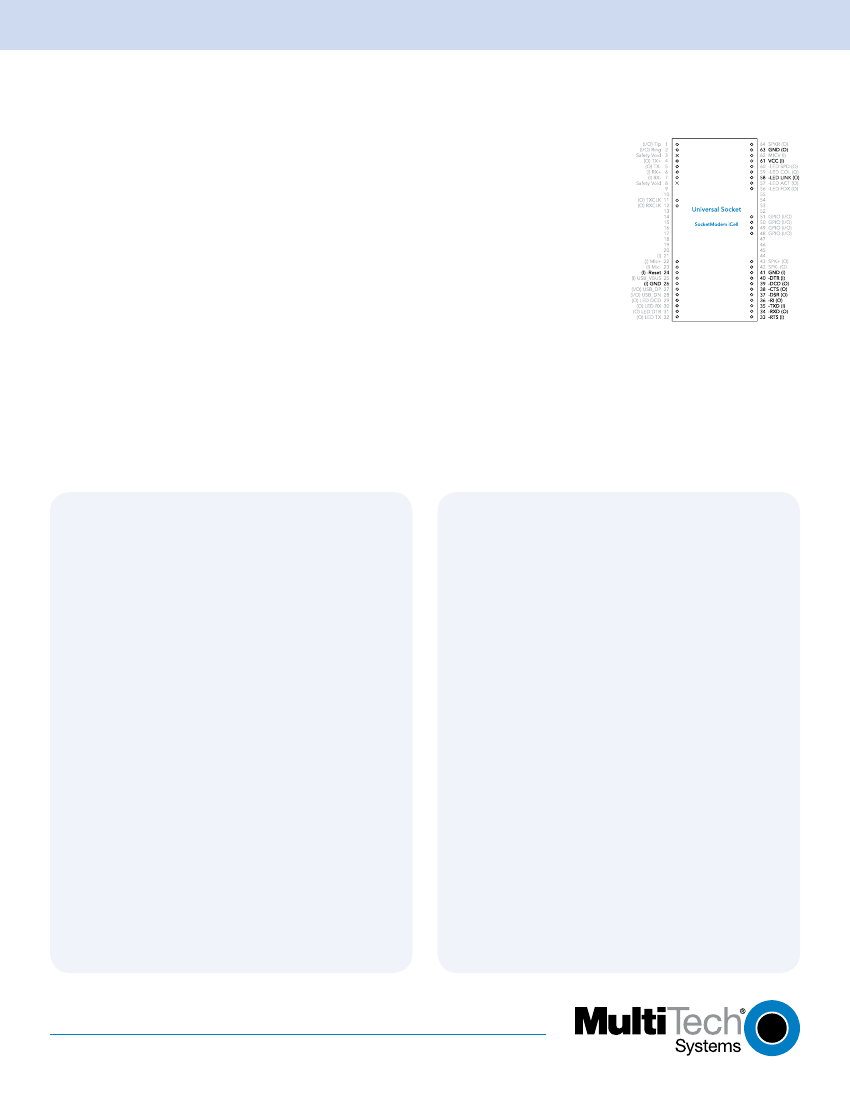

SocketModem iCell Pin-Out. The
SocketModem iCell intelligent
cellular modem interfaces
easily with existing products
through a standard serial
communication channel.
The serial DTE channel is
capable of transfer speeds
to 115.2K bps and can be
interfaced directly to a
UART or microcontroller.
The complete on-board RF
transceiver interfaces with
an antenna for direct connection to wireless SMS, circuit-
switched dial-up, or packet data networks. It also includes an
onboard LED to display network status.
Developer's Kit. The Developer's Kit allows you to plug in the
communications device and use it for testing, programming
and evaluation. The kit includes one development board with
RS-232 DB-25 connector, universal power supply, antenna
and RS-232 cable.
Specifications
Packet Data Features
GPRS Class 10, PBCCH support
Coding Schemes: CS1 to CS4
GP Models: Sleep: 132mA (.65W @ 5VDC); Typical:
212mA (1W @ 5VDC); Maximum: 355mA (1.7W @
5VDC); Peak: 1.5A
Physical Description
3.1" L x 1.4" W x 0.5" H; 1 oz.
(7.8 cm x 3.5 cm x 1.2 cm; 28 g)
Circuit Switched Data Features
Asynchronous, transparent & non-transparent up to
14.4K bps, MNP2 & V.42 bis
Operating Environment
-40° to +85° C
SMS Features
Text & PDU, Point-to-Point, cell broadcast
Certifications
CE Mark, R&TTE
EMC: FCC Part 15, 22, 24, EN 301 489-1, EN 301 489-7,
RSS 132, 133
Safety: cUL 60950-1, EN 60950-1, UL 60950-1,
AS/NZS 60950-1
Network: PTCRB / RoHS Compliant
Connectors
Antenna: UFL (one each, cellular & GPS)
SIM: Standard 3V SIM receptacle
IP Protocols Supported
DNS resolve, FTP client, Ping, POP3 client, PPP (dial-out),
SMTP client, TCP RAW client & server, UDP RAW client
& server, PAP, CHAP authentication
Ordering Information
Product
MTSMC-G2-IP*
MTSMC-G2-IP-ED
†
MTSMC-G2-GP*
MTSMC-G2-GP-ED
†
Description
Intelligent GSM/GPRS Modem
Intelligent GSM/GPRS Modem
Intelligent GSM/GPRS Modem (GPS)
Intelligent GSM/GPRS Modem (GPS)
Region
Global
Global
Global
Global
GPS
Position: 2.5 meters
Aquisition: Hot start 1 second; cold start 29 seconds avg.
Sensitivity: Tracking -161 dBm
Protocol: NMEA-0183 V3.01, GGA, GLL, GSA, GSV, RMC,
VTG
* Quad-band Modem, 850/1900 MHz default
† Quad-band Modem, 900/1800 MHz default
Produced in the US of US and non-US components.
Features and specifications are subject to change without notice.
Trademarks / Registered Trademarks: SocketModem, Universal IP, Multi-Tech,
and the Multi-Tech logo: Multi-Tech Systems, Inc. / All other products and
technologies are the trademarks or registered trademarks of their respective
holders.
Power Requirements
IP Models: Sleep: 80mA (.38W @ 5VDC); Typical: 135mA
(.66W @ 5VDC); Maximum: 280mA (1.36W @ 5VDC);
Peak: 1.25A
World Headquarters
Tel: (763) 785-3500
(800) 328-9717
www.multitech.com
11/10 86002108
EMEA Headquarters
Multi-Tech Systems (EMEA)
United Kingdom
Tel: +(44) 118-959 7774
Copyright © 2010 by Multi-Tech Systems, Inc. All rights reserved.
