PRODUCT BRIEF
PhlatLight
®
LED
Development Kit Product
Brief
DK-409N-1
Overview

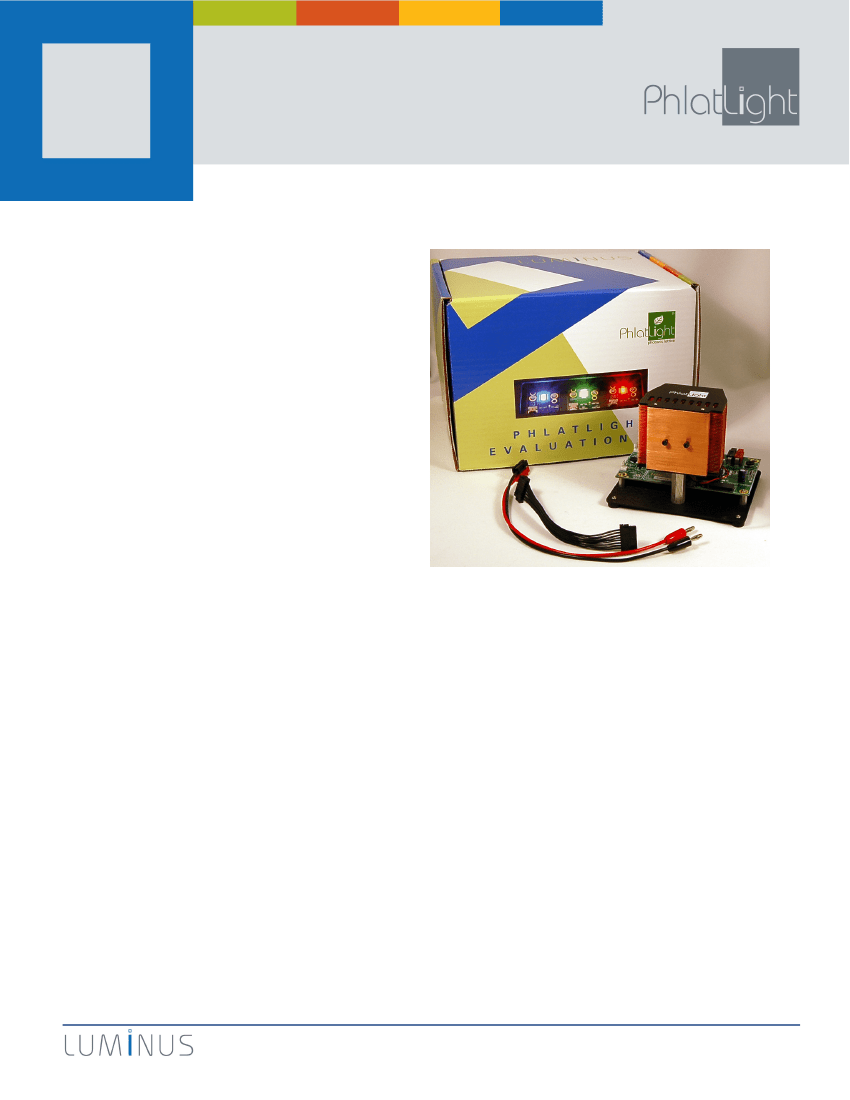

PhlatLight DK-409N-1 development kit is a comprehensive solu-
tion designed specifically to support development of PhlatLight
CBM-360 based solutions. The kit includes highly versatile driv-
ers and control circuitry, efficient thermal management solu-
tions, clean interfaces, and cabling for use with standard
laboratory equipment. The inclusion of these components en-
sures the PhlatLight CBM-360 LED module can be operated opti-
mally at any drive condition. Whether this is low power for
maximum efficiency, high power for maximum brightness or
anywhere in between, the PhlatLight DK-409N Development Kit
ensures the right performance.
This plug and play solution can easily be connected to standard
laboratory equipment through standard connectors and allows
system designers to save weeks in their development cycles.
Main Features
•
•
•
•
•
•
•
Can be operated either in pulsed or continuous waveform
(CW) modes
Static current control via on board dial knob
On board pulse width modulation controller supports pulsed
mode operation with duty cycles ranging from 0% - 100%
0-10V input for variation in PWM duty cycle
Triggered mode for timed pulses - set times range from 50
microseconds to 1 second
Typical thermal resistance of 0.3ºC/W from heat sink to
ambient
Driver circuitry based off of National LM3421 IC
Key Features
•
Compatibile with CBM-360 PhlatLight LEDs
•
Driver board supply currents of 9A
•
On board control for PWM dimming for lighting applications
or triggered pulses for vision applications
www.luminus.com
© 2008 Luminus Devices, Inc. - All Rights Reserved
PDB-001289 Rev 01
PhlatLight Development Kit
PhlatLight Evaluation Kit Contents
•
1 comprehensive driver and control board capable of providing
9A to the LED
User Equipment Required
•
Standard 24V/150W power supply.
•
Standard laboratory instrumentation - volt meter, oscillo-
scope, photodetector.
•
1 compact, high performance, air-cooled heat sink
•
Electrical wiring between all components and devices
•
Thermal interface materials and mounting hardware
•
User manual including step-by-step instructions for set-up and
operation of the kit.
•
0-5V power supply for triggered mode operation
Note: PhlatLight LED products are not included in the develop-
ment kits and must be purchased separately.
Product Compatibility
Development Kit Part Number
DK-409N-1
Compatible PhlatLight LEDs
CBM-360-W
Ordering Information
Ordering Part Number
DK-409N-1
Product
DK-409N PhlatLight Development Kit
Description
Single channel development kit, with 9A driver/control board,
heat sink, cable assemblies and user manual
The products, their specifications and other information appearing in this document are subject to change by Luminus Devices without notice. Luminus
Devices assumes no liability for errors that may appear in this document, and no liability otherwise arising from the application or use of the product
or information contained herein. None of the information provided herein should be considered to be a representation of the fitness or suitability of
the product for any particular application or as any other form of warranty. Luminus Devices’ product warranties are limited to only such warranties as
accompany a purchase contract or purchase order for such products. Nothing herein is to be construed as constituting an additional warranty. No infor-
mation contained in this publication may be considered as a waiver by Luminus Devices of any intellectual property rights that Luminus Devices may
have in such information. PhlatLight
®
is a registered trademark of Luminus Devices, Inc., all rights reserved.
Luminus Devices
1100 Technology Park Drive
Billerica, MA 01821
E-mail: sales@luminus.com
978-528-8000 (T)
978-528-8001 (F)
www.luminus.com
www.luminus.com
© 2008 Luminus Devices, Inc. - All Rights Reserved
Page 2
