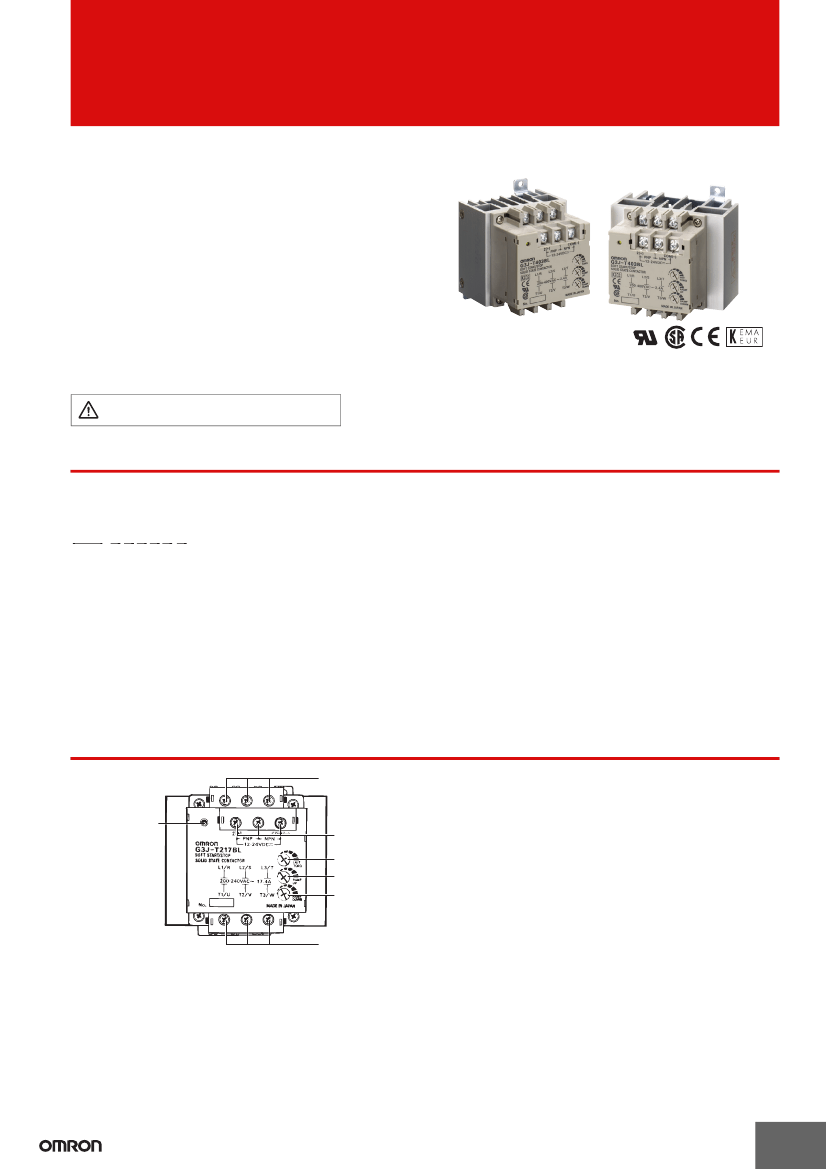

Soft-start/stop Solid State Contactors
G3J-T
CSM_G3J-T_DS_E_2_1
Soft-start/stop Function Starts and Stops
Three-phase Motors Smoothly and
Economically
• Function like an inverter by holding down the starting current.
• Harmonized protection with thermal overload relays complying
with IEC 947-4-1 (Class 10A/10); can be used like a standard
contactor.
• Comply with UL, CSA, IEC (400-V models only), and JEM
requirements.
• Mount with screws or to DIN tracks.
• Compact monoblock construction for the G3J-T217BL
(W: 100
×
H: 100
×
D: 110 mm) with a heat sink.
• Snubber circuit and varistor are built-in.
• Operation indicator.
Refer to
Safety Precautions for All Solid State
Relays.
Model Number Structure
■
Model Number Legend
G3J-@@@@@@
1
2 3 4 5 6 7
5. Rated Load Current
17:
17.4 A (200-V models)
11:
11.1 A (200-V models)
05:
4.8 A (200-V models), 5.5 A (400-V models)
03:
2.4 A (400-V) models
6. Terminal Type
B:
Screw terminals
7. Zero Cross Function
L:
Not equipped with zero cross function
1. Basic Model Name
G3J:
Solid State Contactor
2. Load Power Supply
Blank:
AC output
3. Functions
T:
Soft-start/stop function
4. Rated Load Power Supply Voltage
2:
200 VAC
4:
400 VAC
Appearance
Output terminals (power supply)
Operation indicator
Input terminals
Initial torque setting adjuster (default setting: 200%)
Ramp-up time setting adjuster (default setting: 1 s)
Ramp-down time setting adjuster (default setting: 1 s)
Output terminals (load)
1
G3J-T
Ordering Information
■
List of Models
Number of
elements
3
Insulation method
Phototriac
Rated supply
voltage
12 to 24 VDC
Input method
No-voltage input
(open and short-
circuit input)
Applicable motor
2.2 kW (5.5 A)
0.75 kW (2.4 A)
3.7 kW (17.4 A)
2.2 kW (11.1 A)
0.75 kW (4.8 A)
Note:
When ordering, specify the rated supply voltage.
200 to 220 VAC
380 to 400 VAC
Model
G3J-T405BL
G3J-T403BL
G3J-T217BL
G3J-T211BL
G3J-T205BL
■
Accessories (Order Separately)
Mounting Bracket
Model
R99-14 FOR G3J (See note.)
Note:
Use this Bracket when mounting Thermal Relay to a G3J-series SSR.
Specifications
■
Ratings (at an Ambient Temperature of 25°C)
Power Supply
Rated supply voltage
Operating voltage range
Current consumption
12 to 24 VDC
10.2 to 26.4 VDC
50 mA max. (at 12 to 24 VDC)
Operation Circuit
Input current
Input method
No-voltage input (short-circuiting and
opening inputs) (See note.)
10 mA max. (at 12 to 24 VDC)
Short-circuiting or opening terminals 1 and COM or 2 (+) and 1
SSR input turned ON:A maximum residual voltage of 2 V between short-circuited terminals
SSR input turned OFF:A maximum leakage current of 0.15 mA
Relay input: For minute signals
Note:
Refer to
Safety Precautions for the G3J-T, G3J-S, and G3J.
Main Circuit
Item
Rated load voltage
Load voltage range
Rated carry current (See note 1.)
Min. load current
Peak-value current resistivity
Overload resistance
Closed current
(effective value)
Breaking cur-
rent
(effective value)
Applicable load
AC3
AC4
AC3
AC4
3-phase inductive
motor (AC3 AC4
AC53-a)
G3J-T405BL
G3J-T403BL
G3J-T217BL
G3J-T211BL
G3J-T205BL
200 to 400 VAC (50/60 Hz)
180 to 440 VAC (50/60 Hz)
5.5 A
(Ta = 40°C)
0.5 A
220 A, 60 Hz,
1 cycle
55 A
66 A
44 A
55 A
380 to 400 VAC,
2.2 kW, 5.5 A
96 A, 60 Hz,
1 cycle
24 A
28.8 A
19.2 A
24 A
380 to 400 VAC,
0.75 kW, 2.4 A
500 A, 60 Hz,
1 cycle
174 A
208.8 A
139.2 A
174 A
200 to 220 VAC,
3.7 kW, 17.4 A
350 A, 60 Hz,
1 cycle
111 A
133.2 A
88.8 A
111 A
200 to 220 VAC,
2.2 kW, 11.1 A
150 A, 60 Hz,
1 cycle
48 A
57.6 A
38.4 A
48 A
200 to 220 VAC,
0.75 kW, 4.8 A
2.4 A
(Ta = 40°C)
200 to 240 VAC (50/60 Hz)
180 to 264 VAC (50/60 Hz)
17.4 A
(Ta = 40°C)
11.1 A
(Ta = 40°C)
4.8 A
(Ta = 40°C)
Refer to
Information Common to the G3J, G3J-T, and G3J-S.
Motors passing the AC3-class, AC4-class, and AC53-a-class switching frequency test
(Ta = 40°C) under conditions specified by OMRON. Refer to
Information Common to the G3J,
G3J-T, and G3J-S.
200 to 400 VAC,
2.4 A
200 to 240 VAC,
17.4 A
200 to 240 VAC,
11.1 A
200 to 240 VAC,
4.8 A
Resistive load
200 to 400 VAC,
(AC1) (See note 2.)
5.5 A
Note: 1.
The rated carry current varies depending on the ambient temperature. Refer to
Load Current vs. Ambient Temperature
under
Engineering
Data
in the
Information Common to the G3J-T, G3J-S, and G3J
for details.
2.
No single-phase load can be connected.
2
G3J-T
■
Characteristics
Item
Ramp-up time
Ramp-down time
Starting torque
Output ON-voltage drop
Leakage current
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Weight
Standards
G3J-T405BL
G3J-T403BL
G3J-T217BL
G3J-T211BL
G3J-T205BL
Set within a range from 1 to 25 s.
Set within a range from 1 to 25 s.
Set within a range from 200% to 450% In.
1.8 V
RMS
max.
20 mA max. (at 400 VAC)
100 MΩ min. (at 500 VDC)
2,500 VAC, 50/60 Hz for 1 min
Destruction: 10 to 55 to 10 Hz, 0.75–mm single amplitude
Destruction: 294 m/s
2
Operating: –20°C to 60°C (with no icing or condensation)
Storage: –30°C to 70°C (with no icing or condensation)
Operating: 45% to 85%
730 g max.
UL508 File No. E64562
CSA22.2 No. 14 File No. LR35535
800 g max.
730 g max.
1.6 V
RMS
max.
10 mA max. (at 200 VAC)
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
