CIRCULAR DIN JACKS
Adam Technologies, Inc.
INTRODUCTION:

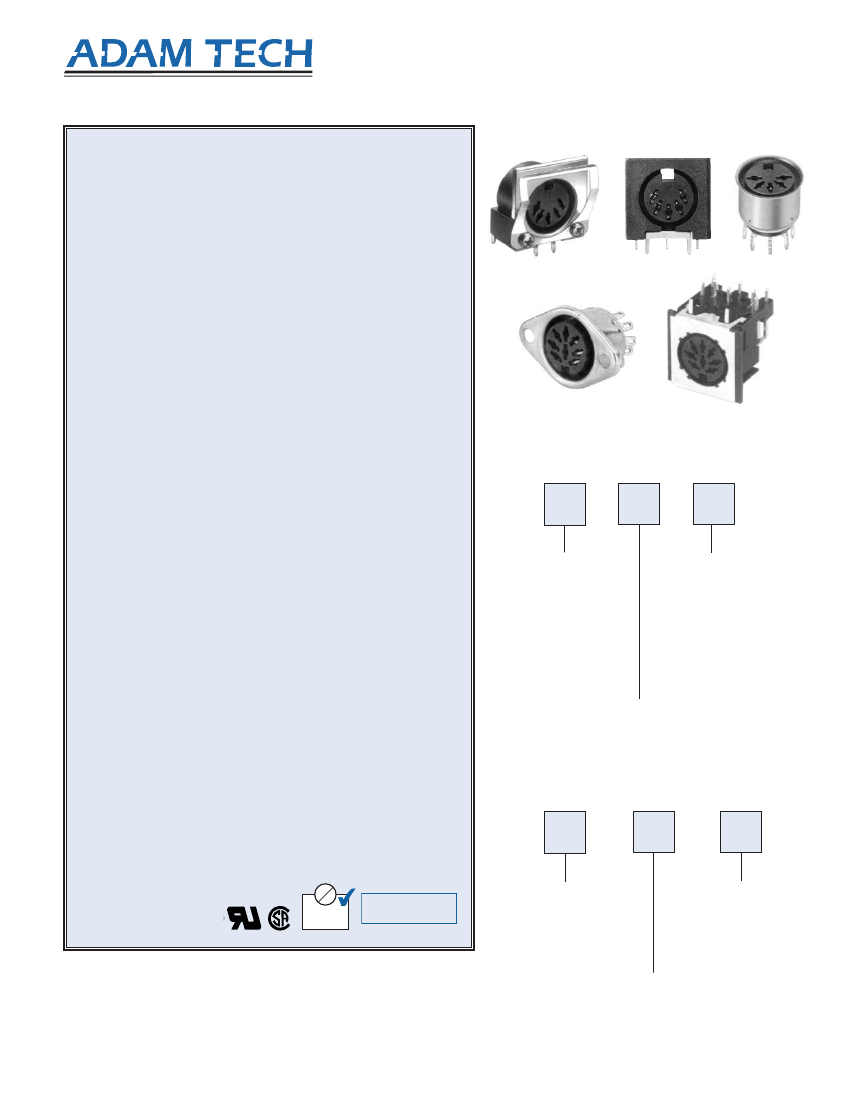

Adam Tech DJ Series Circular DIN Jacks continue to be a popular
interface for many applications. They are especially suitable for
applications that require reliable transfer of low level signals.
Available in a wide selection of positions they feature a choice of an
all plastic body or a plastic body with metal face shield. Mounting
selections include Right Angle or Vertical PCB mount and Panel
Mount with or without mounting flange. Adam Tech DJ series jacks
features an exclusive high reliability contact design which utilizes a
dual wipe, extended fork contact. The jacks overall contact area is
increased primarily in the mating area which helps maintain a
constant contact pressure for superior electrical performance.
FEATURES:
Wide range of styles
Offered in 3 thru 13 positions
Standard and shielded versions available
Excellent for Low Level signal applications
MATING PLUGS:
All industry standard circular DIN plugs.
SPECIFICATIONS:
Material:
Standard insulator: PBT glass filled, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black
Contacts: Brass
Shield: Copper Alloy, Bright Nickel plated
Contact Plating:
Tin over Copper underplate overall
Electrical:
Operating voltage: 20V DC max.
Current rating: 2 Amps max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 15 lb max.
Withdrawal force: 0.8 lb min
Mating durability: 5000 cycles min.
Temperature Rating:
Operating temperature: -25°C to +100°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
PC BOARD AND PANEL MOUNT
DJ SERIES
ORDERING INFORMATION
RIGHT ANGLE PC BOARD MOUNT
DJ
005
S
SERIES INDICATOR
DJ
= Right Angle,
PC board mount
DIN Jack
FOOTPRINT/
SHIELDING
Blank
= Non-shielded,
10mm centerline
front pins
.5
= Non shielded
5mm centerline
front pins
S
= Metal shield,
10mm centerline
front pins
S.5
= Metal shield,
POSITIONS
5mm centerline
003 thru 013
front pins
STRAIGHT PC BOARD MOUNT
AND PANEL MOUNT VERSIONS
DJN
005
A
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
OPTIONS:
Add designator(s) to end of part number
RoHS
COMPLIANT
HT
= Hi-Temp insulator for Hi-Temp soldering processes up to 260°C
SERIES INDICATOR
DJP
= Panel mount
w/ Mounting
Flange
DJN
= Barrel type
straight PCB
mount
TERMINATION
A
= Solder eyelet
B
= PCB pin
POSITIONS
003 thru 013
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
213
CIRCULAR DIN JACKS
Adam Technologies, Inc.

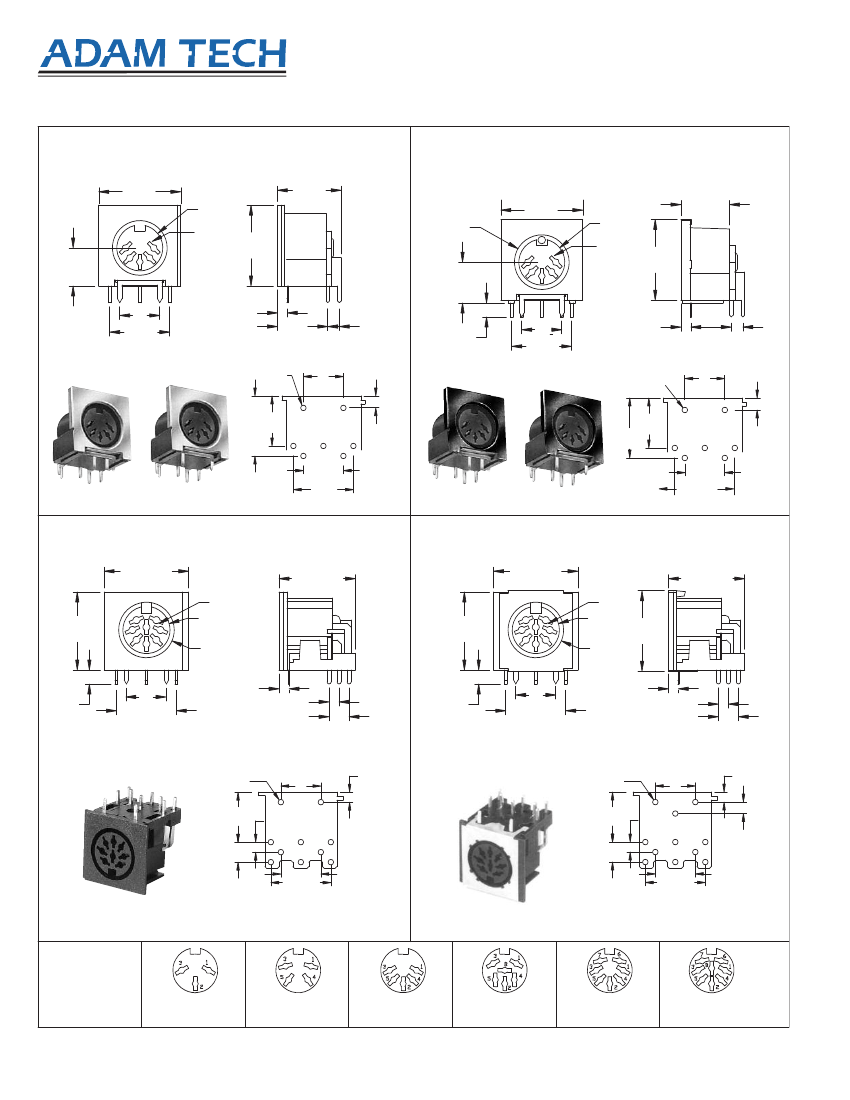

5 POSITION
DIN JACK
5
DIN JACK
POSITION
RIGHT ANGLE PCB MOUNT
DJ SERIES
SHIELDED 5 POSITION
.807
[20.50]
.610
[15.50]
NON-SHIELDED 5 POSITION
ø.453
[ø11.50]
ø.275
[ø7.0]
ø.540
[ø13.70]
.770
[19.50]
.401
[10.20]
.807
[20.50]
ø.453
[ø11.50]
ø.275
[ø7.0]
.472
[12.0]
.394
[10.00]
.098
[2.50]
.496
[12.60]
.795
[20.20]
X
.591
[15.00]
X = PITCH .197 [5.00] OR .394 [10.00]
.098
[2.50]
.126 [3.20]
X
.591
[15.00]
.118
[3.00]
.098 [2.50]
7-ø.055
[ø1.40]
X = PITCH .197 [5.00] OR .394 [10.00]
X
7-ø.055
[ø1.40]
X
.492
[12.50]
3
5
.394
[10.00]
.590
[15.00]
2
4
.118
1 [3.00]
.492
[12.50]
.590
[15.00]
3
5
2
4
.394
[10.00]
.098
1 [2.50]
DJ-005-S.5
3 THRU 8 POSITION
DIN JACKS
DJ-005-S
.590
[15.00]
DJ-005-.5
3 THRU 8 POSITION
DIN JACK
SHIELDED
DJ-005
.590
[15.00]
NON-SHIELDED, POSITIONS: 3P, 4P, 6P,7P, 8P
.831 [21.10]
ø0.2800
ø0.4720
.770
[19.50]
ø0.5560
.098
[2.50]
X
.590 [15.00]
X = PITCH .197 [5.00] OR .394 [10.00]
.098
[2.50]
.197
[5.00]
.752 [19.10]
SHIELDED, POSITIONS: 3P, 4P, 6P,7P, 8P
.831 [21.10]
.756 [19.20]
ø0.2800
.770
[19.50]
ø0.4720
.787
[20.0]
ø0.5560
.150
[3.80]
.150
[3.80]
X
.590 [15.00]
.098
[2.50]
.098
[2.50]
.197
[5.00]
X = PITCH .197 [5.00] OR .394 [10.00]
ø.055
[ø1.4]
.098
[2.5]
X
ø.055
[ø1.4]
.098
[2.5]
X
.216 [5.5]
.098 [2.5]
3
2
5
7
8
1
4
6
.492
[12.5]
.197
[5.0]
.098 [2.5]
3
5
7
8
.394 [10.0]
.590 [15.0]
2
4
6
1
.492
[12.5]
.197
[5.0]
.394 [10.0]
.590 [15.0]
DJ-008
Recommended PCB Layout
DJ-008-S
Recommended PCB Layout
CONFIGURATIONS
MATING
ARRANGEMENT
OF
FACE
CONTACTS
3
3 Position
POSITION
4
4 Position
POSITION
5
5 Position
POSITION
6
6 Position
POSITION
7
7 Position
POSITION
8
8 Position
POSITION
214
