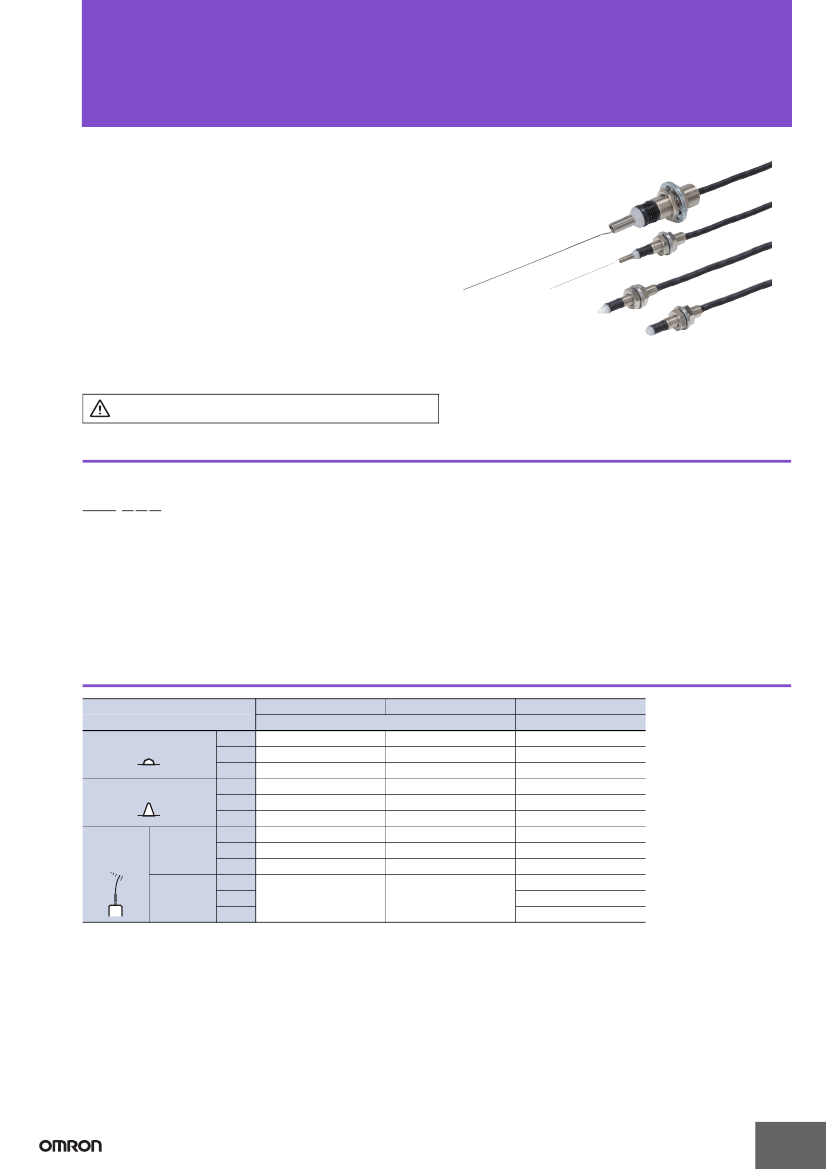

*1. Durability values are calculated at an operating
temperature of +5°C to +35°C, and an operating
humidity of 40% to 70%RH.
Contact your OMRON sales representative for more
detailed information on other operating environments.
*2. 16.7 Hz, 1-mm double amplitude for wobble stick models.
*3. 50 m/s
2
min. for wobble stick models.
*4. Excluding the wobble stick models.

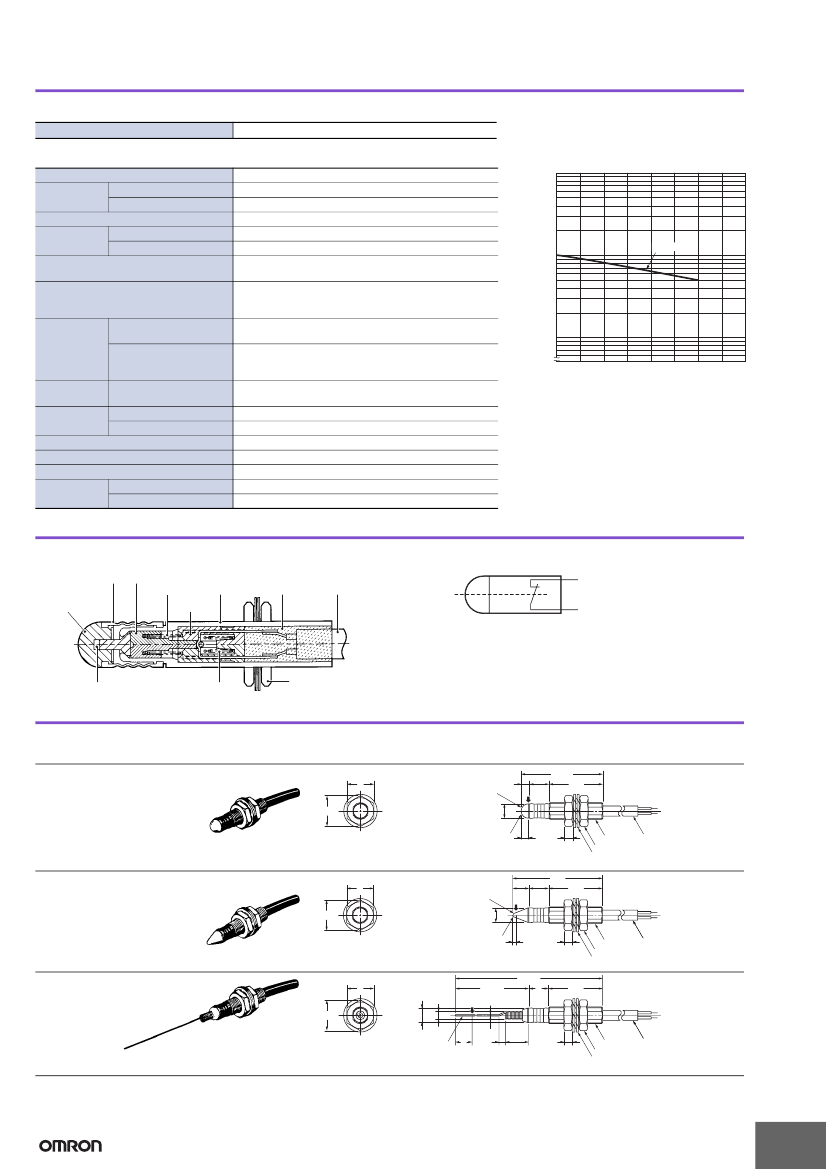

Structure and Nomenclature
Structure
Rubber boot Plunger
(NBR)
(POM)
Reset spring
Actuator
(POM)
Base
Resin
Cable
(V-HKCVV)
Contact Form
Brown
Case (PBT)
Blue
(Normally closed contact)
Note: Specifications for normally open (N.O.) contacts are not available.
Axis
Reset spring
Mounting nut

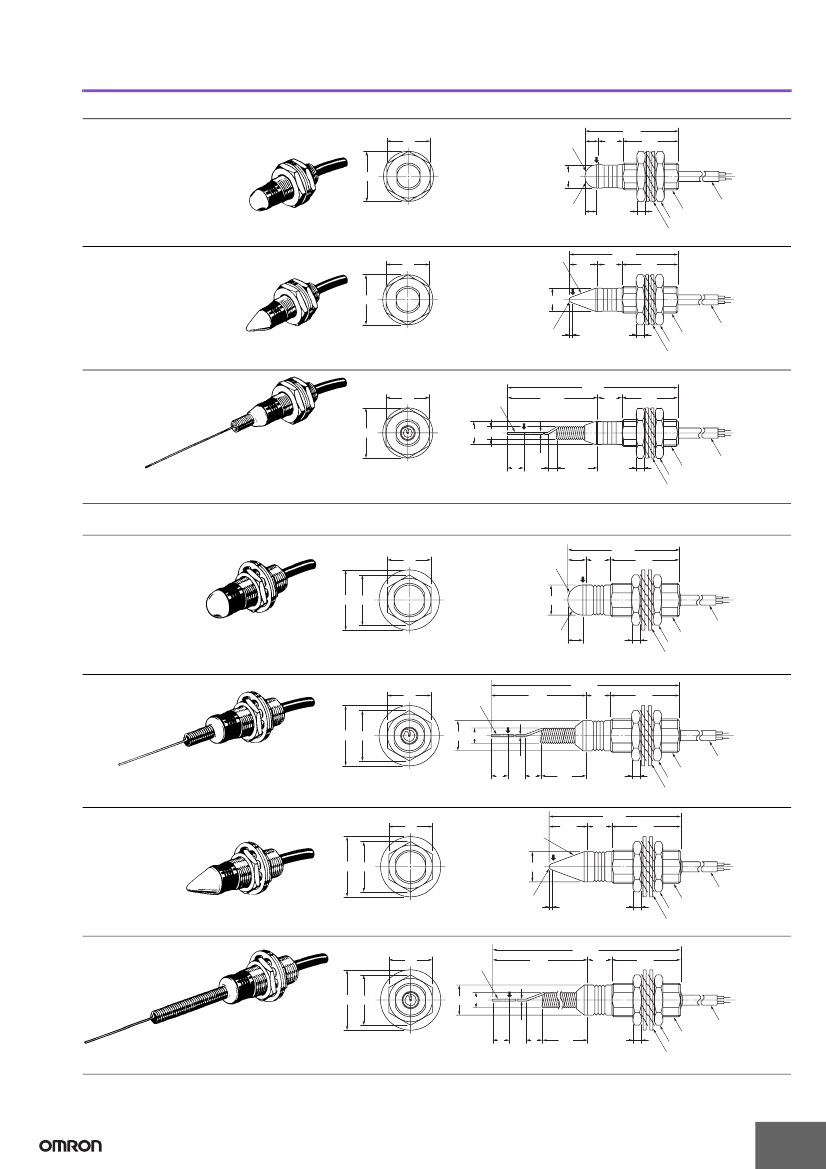

Dimensions and Operating Characteristics
Dimensions
M5 Type
(The square
@
in the models represents the cable length. Refer to Ordering Information.)
D5B-501@
(9.2)
8
Resin plunger
4.3 dia.
2.4
*
5.9
(24.5)
16.2
(Unit: mm)
(Ball 2.15R)
(see note 2)
M5
×
0.5
S-FLEX V-HKCVV
Clamping nut equal level, 3 dia.
Toothed lock washer 0.08 mm
2
Two conductors
* Operating characteristics (X, Y) measuring position
2.15
(Rising part of the ball)
2.5
(27)
16.2
D5B-502@
(9.2)
8
Resin plunger
4.9
*
4.3 dia.
5.9
(see note 2)
S-FLEX V-HKCVV
M5
×
0.5
Clamping nut equal level, 3 dia.
Toothed lock washer 0.08 mm
2
Two conductors
* Operating characteristics (X, Y) measuring position
0.5R
1
2.5
D5B-551@
(9.2)
8
*
41.9
±
2
(64.1)
6
16.2
4.3 2.3
dia. dia.
Stainless steel wire
0.4
dia.
5
2 6.9
±
2
2.5
* Operating characteristics (X, Y) measuring position
(see note 2)
S-FLEX V-HKCVV
M5
×
0.5
Clamping nut equal level, 3 dia.
Toothed lock washer 0.08 mm
2
Two conductors
Note: 1. Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
2. The threads of the case are not standard; 0.5-mm pitch. Therefore standard tapping to the case is not possible for mounting.
2
D5B
M8 Type
D5B-801@
13
Resin plunger
*
(15)
7 dia.
4
(28)
7.3
16.7
(see note 2) S-FLEX V-HKCVV
M8
×
0.5 equal level, 3 dia.
2.5
Clamping nut 0.08 mm
2
Two conductors
Toothed lock washer
* Operating characteristics (X, Y) measuring position
(Ball 3.5R)
3.5
(Rising part of the ball)
D5B-802@
Resin plunger
13
8.5
7.3
(32.5)
16.7
*
(15)
7 dia.
(see note 2) S-FLEX V-HKCVV
M8
×
0.5 equal level, 3 dia.
2.5
Clamping nut 0.08 mm
2
Two conductors
Toothed lock washer
* Operating characteristics (X, Y) measuring position
0.8R
1
D5B-851@
13
Stainless
steel wire
*
(15)
7 dia. 3.9 dia.
0.6
dia.
5
3
68.8
±
2
(92.8)
7.3
16.7
11.8
±
2
2.5
* Operating characteristics (X, Y) measuring position
S-FLEX V-HKCVV
equal level, 3 dia.
0.08 mm
2
Two conductors
Toothed lock washer
(see note 2)
M8
×
0.5
Clamping nut
M10 Type
D5B-101@
13
Resin plunger
*
5.5
(33.3)
7.3
20.5
18 dia. 15
9 dia.
(see note 2) S-FLEX V-HKCVV
M10
×
0.5 equal level, 3 dia.
Clamping nut 0.08 mm
2
Two conductors
4.5
2.5
(Rising part of the ball)
Toothed lock washer
* Operating characteristics (X, Y) measuring position
Ball 4.5R
D5B-151@
13
Stainless
steel wire
*
18 dia. 15
9 dia. 4.6 dia.
0.6
dia.
5
5
13.3
83.3
(111.1)
7.3
20.5
2.5
* Operating characteristics (X, Y) measuring position
(see note 2)
M10
×
0.5
Clamping nut
S-FLEX V-HKCVV
equal level, 3 dia.
0.08 mm
2
Two conductors
Toothed lock washer
D5B-102@
(39.3)
13
Resin plunger
*
18 dia. 15
9 dia.
11.5
7.3
20.5
0.9R
(see note 2) S-FLEX V-HKCVV
M10
×
0.5 equal level, 3 dia.
Clamping nut 0.08 mm
2
Two conductors
1
2.5
Toothed lock washer
* Operating characteristics (X, Y) measuring position
D5B-153@
13
Stainless
steel wire
*
18 dia. 15
9 dia. 4.6 dia.
0.6
dia.
5
5
33.3
83.3
(111.1)
7.3
20.5
2.5
* Operating characteristics (X, Y) measuring position
(see note 2) S-FLEX V-HKCVV
M10
×
0.5 equal level, 3 dia.
2
Clamping nut 0.08 mm Two conductors
Toothed lock washer
Note: 1. Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
2. The threads of the case are not standard; 0.5-mm pitch. Therefore standard tapping to the case is not possible for mounting.
3
D5B
Operating Characteristics
Actuator
Hemispheric Plunger
Cone-shaped Plunger
Wobble Stick
Operating direction
Operating
characteristics
Total travel
TT
*
Type
X, Y
Z
X, Y
Z
M5
1.0 mm
0.8 mm
0.49 N
0.74 N
M8
1.2 mm
0.9 mm
0.74 N
0.98 N
1.96 N
M10
1.3 mm
1.0 mm
0.98 mm
1.47 mm
M5
2.2 mm
0.8 mm
0.20 N
0.74 N
M8
3.0 mm
0.9 mm
0.20 N
0.98 N
1.96 N
M10
4.0 mm
1.0 mm
0.39 N
1.47 N
M5
22 mm
M8
23 mm
---
0.05 N
---
0.49 N
M10
30 mm
Operating force
OF (max.)
Permissive operating
X, Y, Z
force (max.)
X, Y
Pretravel PT
*
Z
* Reference value
0.6 mm
0.3 mm
0.6 mm
0.3 mm
0.7 mm
0.3 mm
0.6 mm
0.3 mm
1.4 mm
0.3 mm
2.0 mm
0.3 mm
11 mm
---
11 mm
---
14 mm
---
Safety Precautions
Refer to
Safety Precautions for All Limit Switches.
Precautions for Correct Use
Handling
Do not impose a load exceeding 29.42 N on the cable, otherwise the
cable may break. If the cord is to be bent repeatedly, make sure that
the bending radius is at least R20 mm.
Operation
•
Do not impose excessive force on the actuator. Even though the
actuator withstands a maximum force of 14.7 N, if the D5B is
repeatedly actuated, make sure that the maximum force imposed
on the actuator is 1.96 N. If the actuator is, however, a wire spring
type, the maximum force imposed must be 0.49 N instead.
•
The operating characteristics of the D5B vary with the direction (i.e.,
X, Y, or Z) in which force is imposed. Refer to above.
•
The wobble stick model is actuated when force is imposed on the
tip of the wobble stick and the built-in switch unit is closed or
opened. This is different from the NL Limit Touch Switch or D5C
Column Touch Switch in terms of the main mechanism. The NL or
D5C is actuated when the actuator comes into contact with an
actuating object.
•
The wobble stick model may break if the stroke is excessive. Make
sure that the total travel (TT) is within the reference value provided
in the datasheet.
•
Attach an appropriate cover for protecting the D5B from direct
exposure to sprayed oil or water. No protective cover is, however,
provided together with the D5B.
•
The D5B may be damaged by ozone and failures may result if the
D5B is used outdoors. Consult your OMRON representative before
attempting to use the D5B outdoors.
Outdoor environmental conditions may have a bad influence on the
service life of the D5B. Refer to the general precautions of Limit
Switches for details.
Mounting
•
Do not tighten the nuts with excessive torque. Refer to the following
for the appropriate tightening torque and mounting dimensions of
each nut.
•
The base incorporates special threads that cannot be mounted to
plates with standard tap holes.
Type
M5
M8
M10
Size
Type
5
Appropriate Tightening Torque
(max.)
0.98 N·m
2.94 N·m
3.92 N·m
M5
mm
dia.
3 to 7 mm
dia.
9.2 mm
dia.
+0.3
0
M8
8
+0.3
0
M10
+0.3
0
A (Mounting
hole size)
B (Panel
thickness)
C (Toothed
lock washer
diameter)
mm
mm 10
dia.
dia.
4 to 6 mm 6 to 10 mm
dia.
dia.
15 mm
dia.
18 mm dia.
•
The base may be deformed if it is subjected to an excessive load.
Be careful when mounting the Switch.
4
Read and Understand This Catalog
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or
comments.
Warranty and Limitations of Liability
WARRANTY
OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified)
from date of sale by OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR
FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS
IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY.
In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS
OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT
SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
Application Considerations
SUITABILITY FOR USE
OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's
application or use of the products.
At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the
products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product,
machine, system, or other application or use.
The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible
uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:
•
Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this catalog.
•
Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles,
safety equipment, and installations subject to separate industry or government regulations.
•
Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE
SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PROGRAMMABLE PRODUCTS
OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.
Disclaimers
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on improvements and other reasons.
It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made.
However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or
establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual
specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.
PERFORMANCE DATA
Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the
result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON
Warranty and Limitations of Liability.
ERRORS AND OMISSIONS
The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical,
typographical, or proofreading errors, or omissions.
2008.11
In the interest of product improvement, specifications are subject to change without notice.
Industrial Automation Company
http://www.ia.omron.com/
OMRON Corporation
(c)Copyright OMRON Corporation 2008 All Right Reserved.
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 20:00[/i] In 2005, IPTV business received the most attention, but the news from all sides was not all positive. First, the radio and telev...
Remote data collection is widely used in many industrial sites such as metallurgy and chemical industry, but some commonly used remote data collection systems have certain shortcomings and deficiencie...
Assume that data is read from 8-bit AD (if it is a higher-bit AD, the data type can be defined as int), the subroutine is get_ad();
1. Limited secondary filtering
/* A value can be adjust...[Details]
In early 2002, I started to write a working program for an IC card prepaid electricity meter. The meter used Philips' 8-bit 51-expanded single-chip microcomputer
87LPC764
, and wa...[Details]
Floating-point digital signal processing has become a constant requirement for precision technology, often in applications requiring high accuracy in areas such as aviation, industrial machinery, a...[Details]
1 Introduction
Solar street lights are mainly composed of four parts: solar photovoltaic cell components, batteries, charge and discharge controllers, and lighting fixtures. The bo...[Details]
To differentiate their products in a crowded and competitive market, manufacturers of handheld devices often consider battery life and power management as key selling points for cell phones, PDAs, ...[Details]
July 11, 2012, Beijing - Altera Corporation (NASDAQ: ALTR) today announced the launch of 40-Gbps Ethernet (40GbE) and 100-Gbps Ethernet (100GbE) intellectual property (IP) core products. These core...[Details]
1 Introduction
There have been many studies on the detection and protection of power grid short circuit and line fault. The short circuit, overload and overvoltage protectors on the market have ...[Details]
In the single-chip microcomputer system, in addition to display devices, sound devices are often used, and the most common sound device is the buzzer. Buzzers are generally used for some low-demand...[Details]
Overview
In spectral measurement, photomultiplier tubes (PMT) and charge-coupled devices (CCD) are often used as photoelectric converters. PMT is used in slow-changing, high-precision spectral...[Details]
Single-chip microcomputers are widely used because of their small size, powerful functions and low price. This article introduces the method of designing a micro electronic piano using the AT89C51 sin...[Details]
With the rapid development of the national economy, lifting and hoisting operations are used more and more frequently and widely in various fields of economic construction. China has continuously expl...[Details]
1 What is an LED floodlight?
LED downlights are also called spotlights, projection lamps, and spotlights. They are mainly used for architectural decorative lighting and commercial space lighti...[Details]
1 Development of LED Film and Television Lighting
1.1 The significance of developing film and television lighting
Lighting power consumption accounts for a large proportion of the total p...[Details]
Mobile phones, MP3s, tablet computers, laptops, digital cameras, handheld game consoles, navigation devices, etc., all these mobile devices are powered by mobile batteries, and the battery life is ...[Details]
IntroductionLED
billboards are a kind of information display terminal for the public, which has a wide range of civil and commercial values. However, the information displayed on most LED bil...[Details]
Mobile and portable
京公网安备 11010802033920号
EEWORLD
