50752-8000

Description
端子 2.5 W/B crimp rec TE 5 W/B crimp rec term
CategoryThe connector    Connector bracket
File Size27KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

50752-8000 Online Shopping

Suppliers Part Number Price MOQ In stock
50752-8000 - - View Buy Now

50752-8000 Overview

端子 2.5 W/B crimp rec TE 5 W/B crimp rec term

50752-8000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Samacsys DescriptiHeaders & Wire Housings 2.5 W/B CRIMP REC TE 5 W/B CRIMP REC TERM
Other featuresCONTACT FINISH: TIN
Assembly nameCONTACT
Maximum number of cable entries0.0708 inch
Minimum cable entry0.0452 inch
Connector bracket typeCONNECTOR ACCESSORY
Contactor designLOOSE
Contact point genderFEMALE
Contact styleSQUARE SOCKET
DIN complianceNO
IEC complianceNO
MIL complianceNO
MaterialPHOSPHOR BRONZE
Installation methodSTRAIGHT
Terminal length0.1259 inch
Terminal typeCRIMP
used for51103, 51163 SERIES
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG

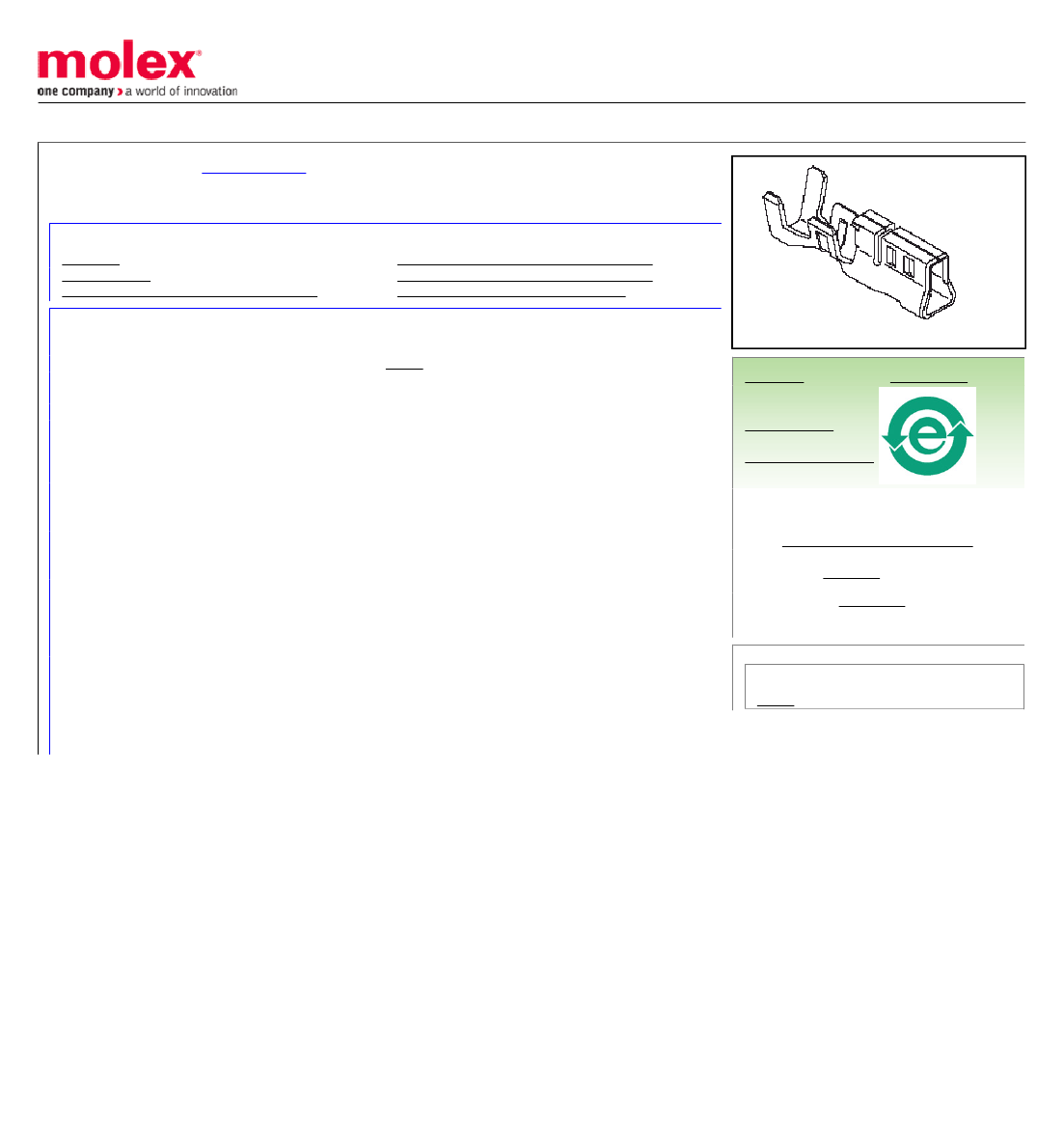

This document was generated on 11/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0507528000
Active
Crimp Terminal 50752, 22-28 AWG, Reel
Documents:
3D Model
Drawing (PDF)
Product Specification PS-51103-007 (PDF)
Product Specification PS-51103-024 (PDF)
Product Specification PS-51163-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Crimp Terminals
50752
Signal
Yes
N/A
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Crimp Quality Equipment
Product Name
Physical
Gender
Material - Metal
Material - Plating Mating
Packaging Type
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Phosphor Bronze
Tin
Reel
Crimp or Compression
1.15-1.80mm (.045-.071")
22, 24, 26, 28
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Country of Origin
HK, JP, US
Reference - Drawing Numbers
Product Specification
PS-51103-007, PS-51103-024, PS-51163-001,
RPS-500292-001, RPS-51103-028, RPS-51103-030,
RPS-51103-031, RPS-51103-035, RPS-51103-045,
RPS-51103-049, RPS-51103-057, RPS-51163-001,
RPS-51163-003
SD-50752-8*00
Search Parts in this Series
50752Series
Sales Drawing
This document was generated on 11/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
