39901-1221

Description
pluggable terminal blocks SR hdr 3.81ce 21 asy R 3.81ce 21 asy RT A
CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39901-1221 Overview

pluggable terminal blocks SR hdr 3.81ce 21 asy R 3.81ce 21 asy RT A

39901-1221 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Other featuresPOLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number39901
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch3.81 mm
Termination typeSOLDER
Total number of contacts21
UL Flammability Code94V-0
Base Number Matches1

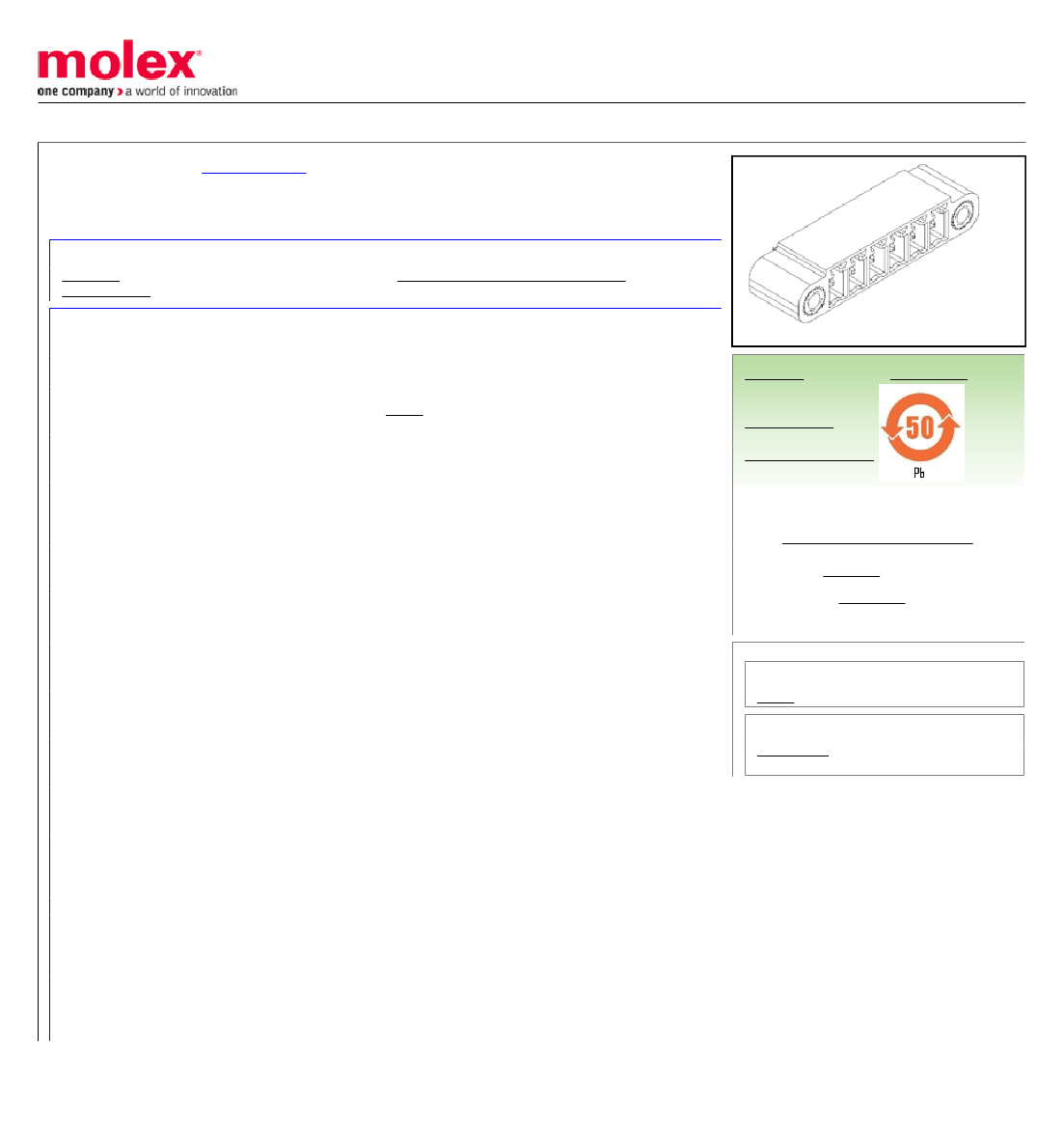

This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0399011221
Planned for Obsolescence
3.81mm (.150") Pitch Beau™ Eurostyle™ Horizontal PCB Header, with Threaded
Retention Inserts, Gold (Au) Plated, 21 Circuits
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
E48521
image - Reference only
EU RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Agency Certification
UL
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39901
Wire-to-Board
PCB Header
Eurostyle™Pluggable
Euro Block
Physical
Circuits (Loaded)
Entry Angle
Flammability
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length
PCB Retention
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
21
N/A
94V-0
Yes
Gold
Gold
1
Horizontal
3.45mm (.136")
N/A
2.50mm (.098")
No
3.81mm (.150")
3.81mm (.150")
0.762µm (30µ")
0.762µm (30µ")
Yes
Fully
No
130°C
Through Hole
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39901Series
Mates With
39901-1721 Vertical Plug, with Retention
Screws, Rear Wire Entry
Electrical
Current - Maximum per Contact
Voltage - Maximum
12A
300V
Material Info
Country of Origin
Old Part Number
MX, US
905921-G30
Reference - Drawing Numbers
Sales Drawing
SD-39900-010
