SP2-060-H160/15-55A datasheet, PDF

Datasheet> All Categories > The connector> The connector> SP2-060-H160/15-55A

SP2-060-H160/15-55A: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size223KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SP2-060-H160/15-55A Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

SP2-060-H160/15-55A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1162335189
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.492 inch
body length	3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	SP2
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.461 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	60

Preview

Download Datasheet

View All

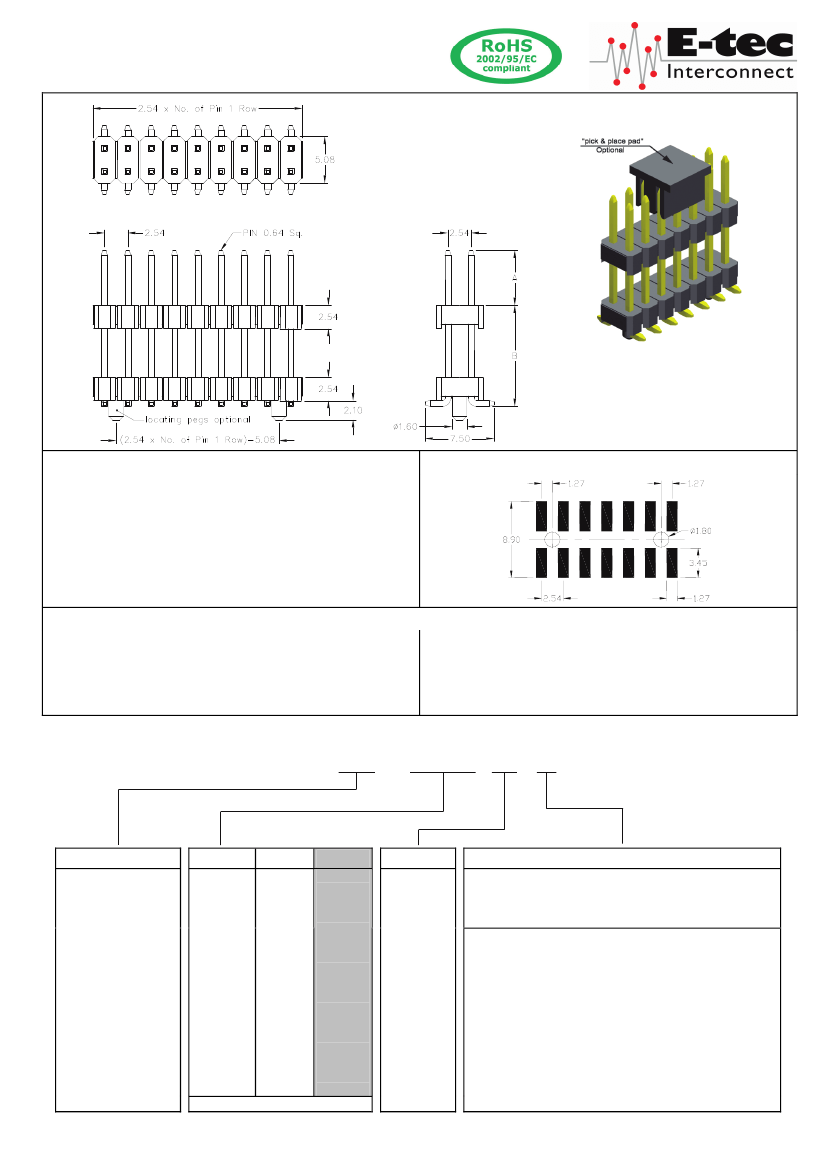

2.54mm pitch

- SMT -

Board Spacer

APPLICATION

AND

FEATURES

PCB

Surface Mount Layout

Standard: tube packing, without

“locating pegs” and “pick & place pad”

Designed for “board to board” spacing

Variable terminal length available

Mate with female header 2.54mm x 2.54mm pitch

SPECIFICATIONS

Current rating

Insulator resistance

Withstanding voltage

1000 MΩ min.

500 V AC

Operating temperature

Processing temperature

Contact material

Insulator material

(RoHS compliant)

- 40°C to +105°C

+250°C

+0/-5°C

for 5sec.

Copper alloy

Nylon UL 94 V-0

How to order

SP2 - xxx - H xxx/xx -

Nbr of pins

004

080

Pin code

DIM “A”

160/16

160/03

160/12

160/04

160/07

160/09

160/01

160/15

160/14

160/06

160/17

160/05

160/13

160/02

160/08

160/10

160/11

3.50 mm

5.50 mm

7.50 mm

5.90 mm

3.70 mm

6.00 mm

6.90 mm

8.80 mm

5.50 mm

7.00 mm

6.00 mm

8.80 mm

4.50 mm

6.00 mm

2.70 mm

4.00 mm

DIM “B”

5.30 mm

6.40 mm

7.50 mm

9.40 mm

10.60 mm

10.70 mm

11.40 mm

12.50 mm

13.60 mm

14.00 mm

14.50 mm

15.50 mm

16.10 mm

17.00 mm

28.00 mm

28.30 mm

34.30 mm

Plating

Packing and “pick & place pad” Option

without “locating pegs”

gold

Other platings

on request

tube packing; with pick & place pad

reel packing; with pick & place pad

tube packing; without pick & place pad

tube packing; with pick & place pad

reelpacking; with pick & place pad

with “locating pegs”

Other dimensions on request
