SCO-221850AER-1.000M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SCO-221850AER-1.000M

SCO-221850AER-1.000M: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size200KB，3 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr

Download Datasheet Parametric View All

SCO-221850AER-1.000M Overview

CMOS Output Clock Oscillator,

SCO-221850AER-1.000M Parametric

Parameter Name	Attribute value
Objectid	7014771089
Reach Compliance Code	unknown
Other features	TR, 7 INCH
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 1.0mm
longest rise time	10 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

CRYSTAL OSCILLATORS

CERAMIC SMD TYPE

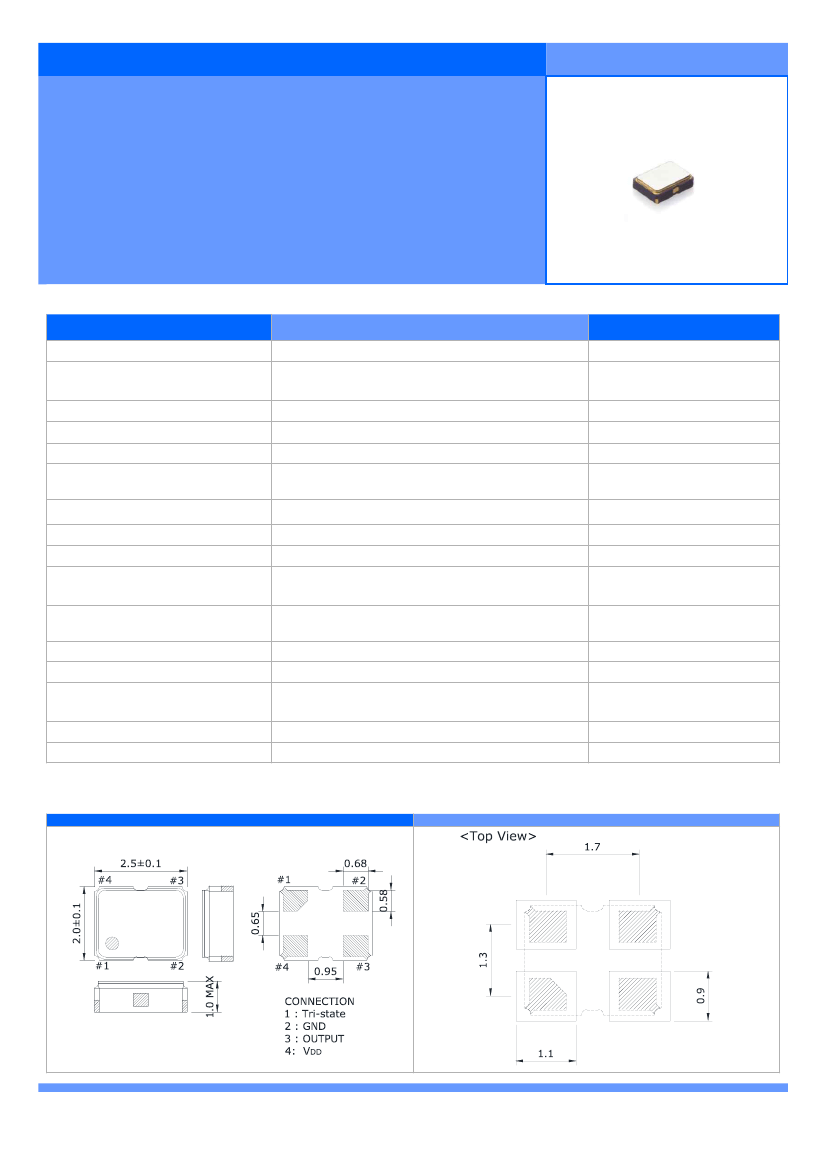

SCO-22

External Dimensions : 2.5 × 2.0 mm

0.9 V to 5.0 V Operating Supply Voltage Range

High Stability with AT-Cut crystal

CMOS Output

Tri-state Function Available

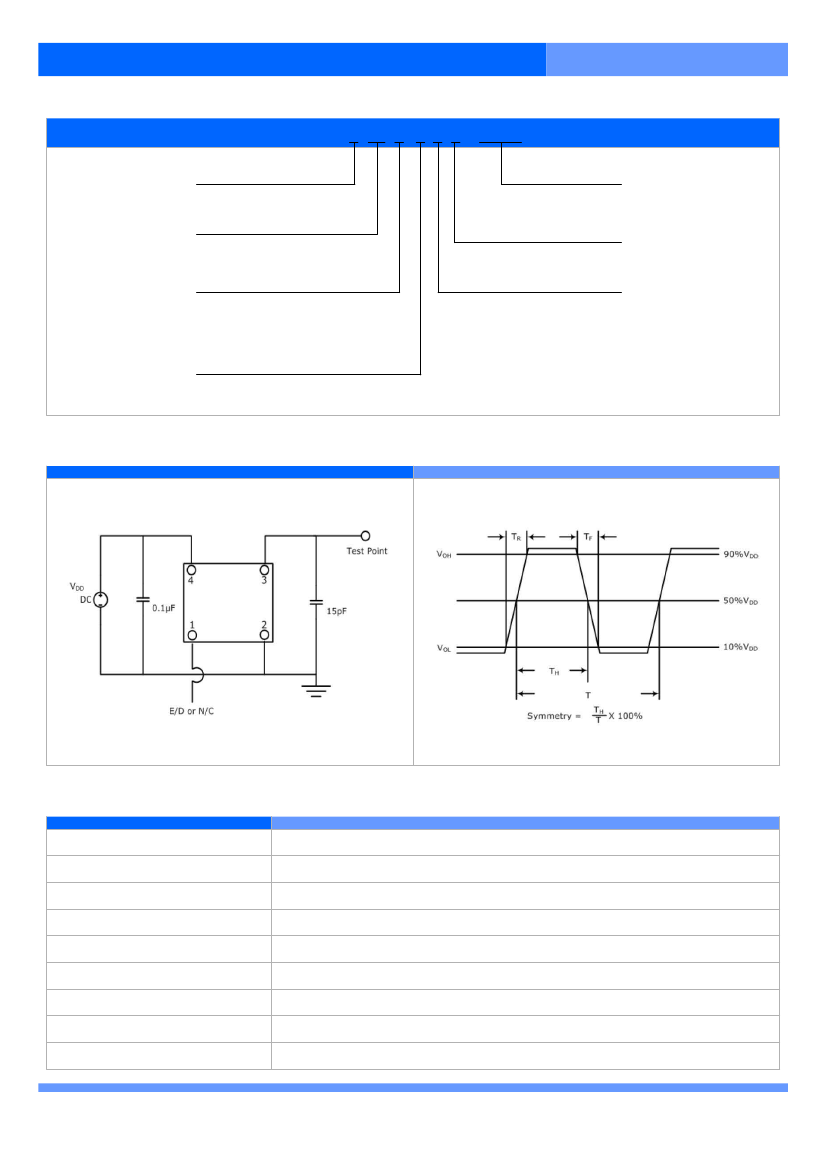

■ ELECTRICAL SPECIFICATIONS

ITEM

Output Logic Type

Frequency Range*

Supply Voltage(V

)

Operating Temperature Range

Storage Temperature Range

Frequency Stability

Input Current

Output Voltage Logic High(V

)

Output Voltage Logic Low(V

)

Rise / Fall Time

Duty Cycle

Start-up Time

Output Load Condition(CMOS)

Output Enable Function

and V

)

RMS Phase Jitter

Frequency Aging

CMOS

1.000 ~ 50 MHz (0.9 V

~ 1.5 V

)

1.000 ~ 60 MHz (1.8 V

~ 5.0 V

)

0.9, 1.2, 1.5, 1.8, 2.5, 3.3 & 5.0 V

±5 %

0 to +70 ℃, -20 to +70 ℃, -40 to +85 ℃

-55 to +125 ℃

±20 ppm, ±25 ppm, ±50 ppm, ±100 ppm Max.

10(0.9~1.8V), 15(2.5V), 25(3.3V, 5.0V)

90 % of V

Min.

10 % of V

Max.

10 ns Max.

45 to 55 %, 40 to 60 %

10 ms Max.

15 pF Max.

70 % of V

Min. to Enable Output

30 % of V

Max. to Disable Output

1 ps Max.

±3 ppm Max.

High Impedance

BW : 12 kHz to 20 MHz

25℃, First year

Measured over

10 % to 90 % of waveform

Measured at 50 % of

waveform

Over operating temperature

range

mA Max.

Value

CMOS XO

Remarks

* Please contact us about developed standard frequencies

■ MECHANICAL DIMENSIONS

(mm)

■ LAND PATTERN

(mm)

http://www.sunny.co.kr

SUNNY ELECTRONICS CORP
