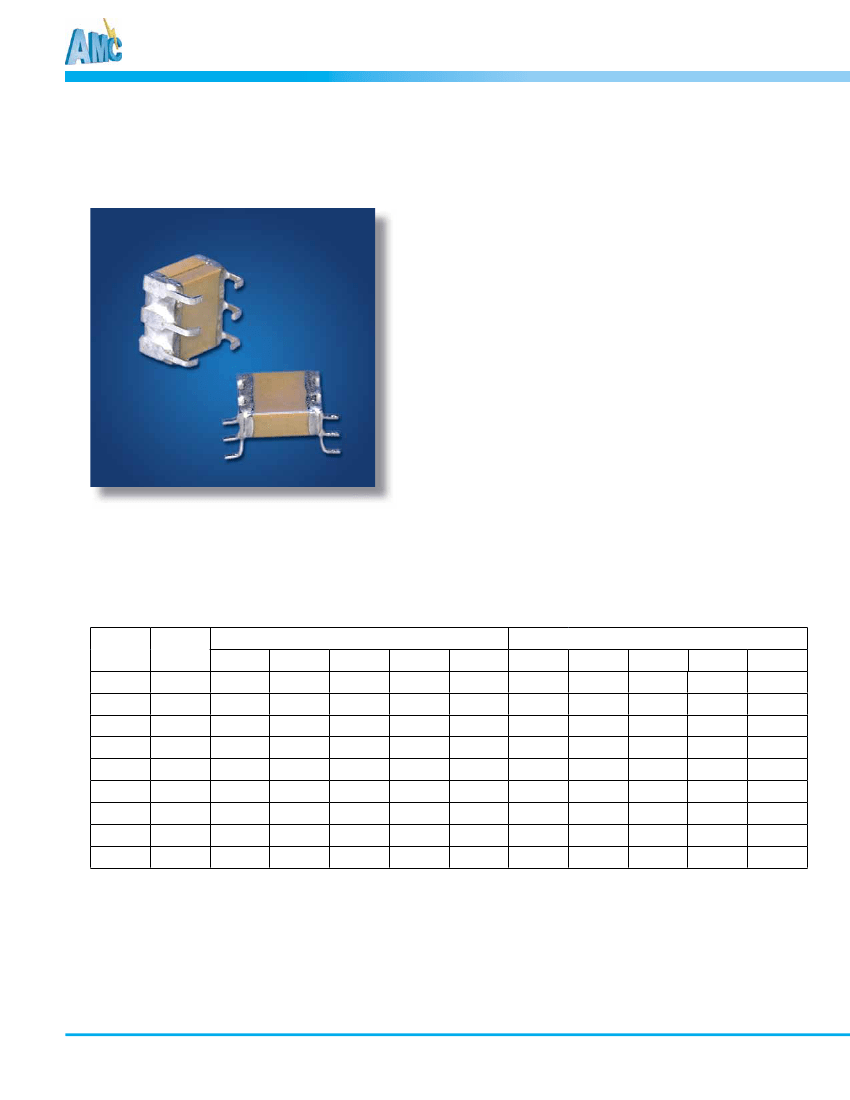

AMC’s Mini-Switch Mode® ceramic capacitors combine the
advantages of high capacitance found in tantalum capacitors
with very low ESR performance of ceramic capacitors. The “J”
and “L” lead configurations replace 1825 and 2225 SMT chips to
provide stress relief and prevent cracking due to thermal cycling
or mechanical board flexing. Another plus of the J-lead style is
that this configuration allows use of the same solder lands as
the SMT chips. See the Switch-Mode section for larger values.
See also the Technical Notes on soldering and handling and
suggested solder lands.
K
EY
F
EATURES
• Stress Relief from Cracking due to Thermal Cycling,
TCE Mismatches or Board Flexing
• 25 to 500 VDC Ratings
• Custom Sizes, Voltages, and Values Available
• Ideal for DC-DC Power Supply Applications
C
APACITANCE
S
ELECTION
SIZE
CODE
P09
P29
P39
P49
P08
P28
P38
P48
EIA CHIP
SIZE
1825
1825
1825
1825
2225
2225
2225
2225
NPO Max Capacitance (uF)
25V
0.056
0.11
0.16
0.22
0.068
0.13
0.20
0.27
50V
0.047
0.094
0.14
0.18
0.056
0.11
0.16
0.22
100V
0.039
0.078
0.11
0.15
0.047
0.094
0.14
0.18
200V
0.027
0.054
0.081
0.10
0.033
0.066
0.10
0.13
500V
0.018
0.036
0.054
0.07
0.027
0.054
0.081
0.10
25V
1.5
3.0
4.5
6.0
2.7
5.4
8.1
10
X7R Max Capacitance (uF)
50V
1.2
2.4
3.6
4.8
2.2
4.4
6.6
8.8
100V
0.75
1.5
2.2
3.0
1.5
3.0
4.5
6.0
200V
0.56
1.1
1.6
2.2
1.2
2.4
3.6
4.8
500V
0.27
0.54
0.81
1.0
0.39
0.78
1.1
1.5
Dielectric specifications may be found on page 16.
Contact the factory for RoHS products.
If you don’t see it here, just ask.
MADE in the USA
12
Advanced Monolythic Ceramics, Inc., A Johanson Company 3101 Constitution Avenue, Olean, New York 14760 • (716) 372-5225 • Fax (716) 372-5467
www.amccaps.com

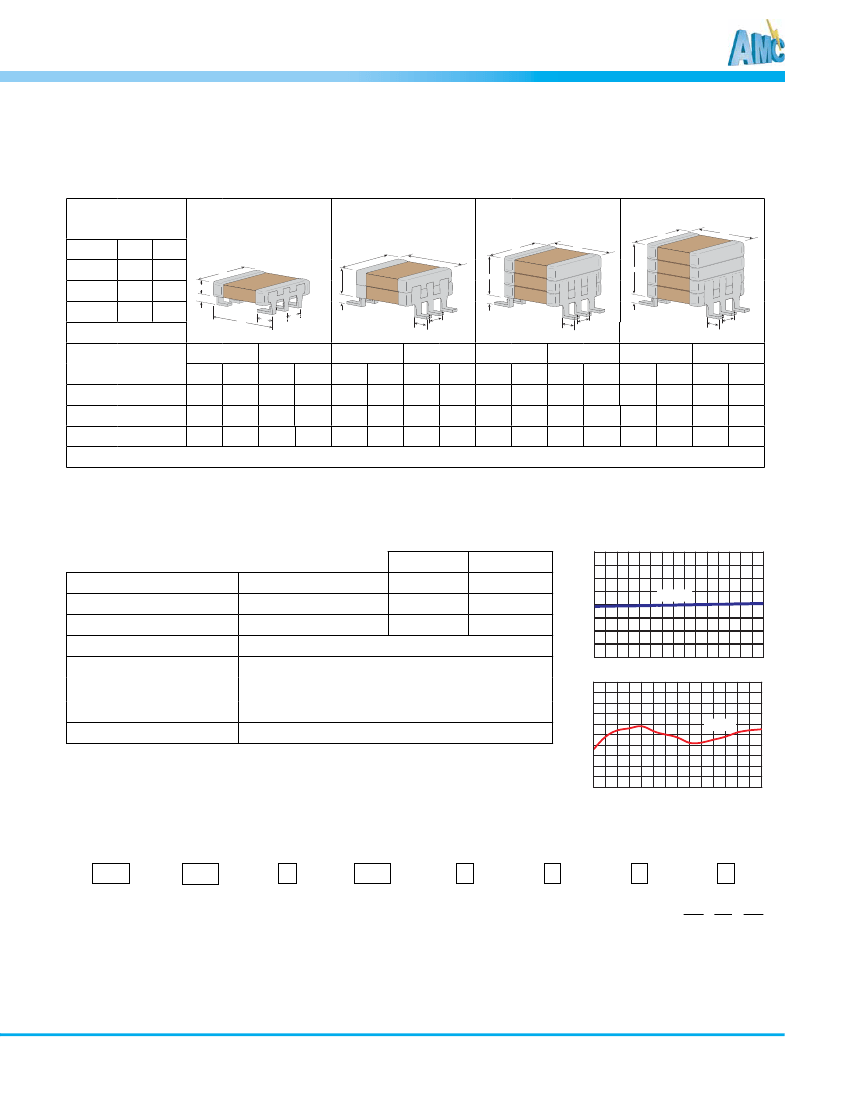

M
ECHANICAL
C
HARACTERISTICS
Dimensions Applicable
to all sizes:
In.
h ± .010 .070
c Typ.
.100
p ± .015 .065
mm
1.78
2.54
1.65
L
T
h
h
h
h
W
T
W
W
L
T
T
L
W
L
c
p
p
c
p
c
p
c
Dimensions Applicable
to specific sizes:
L max
W max
T max
P08
In.
.280
.270
.095
mm
7.11
6.86
In.
P09
mm
6.1
6.86
In.
0.24
0.27
P28
mm
7.11
6.86
4.83
In.
0.28
0.27
0.19
P29
mm
6.1
6.86
In.
0.24
0.27
0.19
P38
mm
7.11
6.86
In.
0.28
0.27
P39
mm
6.1
6.86
In.
0.24
0.27
P48
mm
7.11
6.86
9.65
In.
0.28
0.27
380
P49
mm
6.1
6.86
9.65
0.24
0.27
380
2.41 0.095 2.41
4.83 0.285 7.24 0.285 7.24
Note: J-Lead and L-Lead options are available on all sizes above
E
LECTRICAL
C
HARACTERISTICS
2.0%
X7R
TEMPERATURE COEFFICIENT
DISSIPATION FACTOR
AGING
INSULATION RESISTANCE
DIELECTRIC STRENGTH
-55 TO 125ºC
1kHz, 25ºC
% per decade hour
FOR 500V RATINGS
FOR 200V RATINGS
FOR 25-100V RATINGS
CAP & D.F. MEASUREMENTS
0 ± 15%
2.5% max
2.5%
NPO
0 ± 30ppm/ºC
0.1% max
None
1.5%
1.0%
0.5%
0.0%
-0.5%
-1.0%
-1.5%
-2.0%
-55°C
25%
20%
15%
NPO
1000 F or 100G , whichever is less at rated WVDC, 25ºC
750VDC, 25ºC, 50mA max
2xWVDC, 25ºC, 50mA max
2.5xWVDC, 25ºC, 50mA max
1kHz ± 50Hz, 1.0±0.2Vrms, 25ºC
-25°C
0°C
25°C
50°C
75°C
100°C
125°C
10%
5%
0%
-5%
-10%
-15%
-20%
-25%
-55°C
-25°C
0°C
25°C
50°C
75°C
100°C
125°C
X7R
H
OW TO
O
RDER
- M
INI
-S
WITCH
M
ODE
®
500
VOLTAGE
Standard Voltages:
250 = 25 V
500 = 50 V
101 = 100 V
201 = 200 V
501 = 500 V
P28
CASE SIZE
See Table
W
DIELECTRIC
N = NPO
W = X7R
395
CAPACITANCE
1st two digits are
significant; third digit
denotes number of
zeros.
103 = 0.01 µF
105 = 1.0 µF
106 = 10 uF
K
TOLERANCE
J = ± 5%
K = ± 10%
M = ± 20%
Z = +80% -20%
J
LEAD STYLE
J = “J” Leads
(formed in)
L = “L” Leads
(formed out)
4
MARKING
4 = Unmarked
3 = Specified
4 = Unmarked
U
SPECIAL CODE
Code Type Reel
U
Embossed 13”
16mm tape
None Bulk Packaged
AMC tape specifica-
tions conform to
EIA-481.
Part number written: 500P28W395KJ4U
