700660216 Overview

2.54mm (.100") pitch SL crimp housing, single row, version H, polarized friction lock, 7 circuits

Preview

Download Datasheet

View All

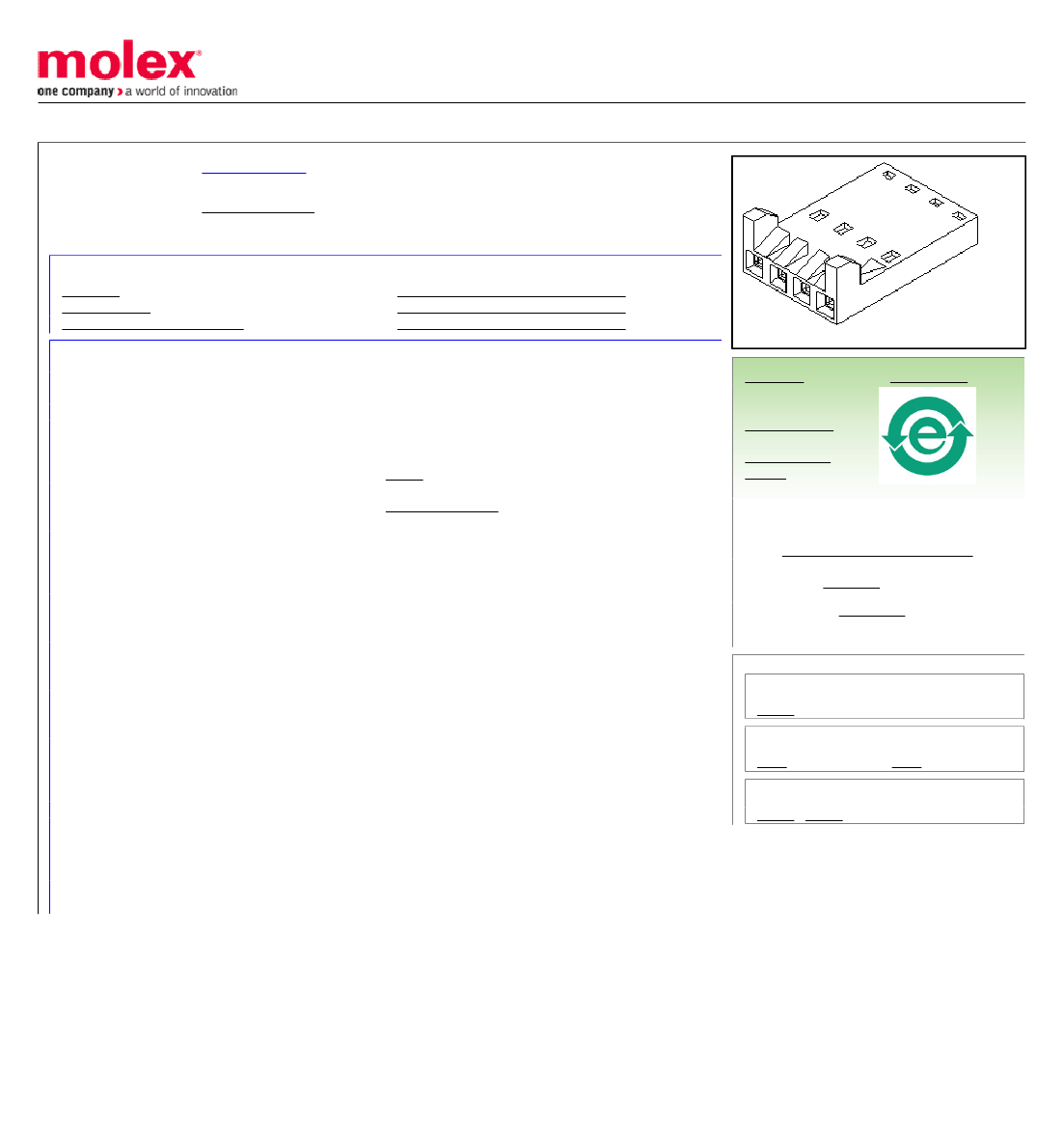

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0050579505

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Crimp Housing, Single Row, Version H, Polarized Friction

Lock, 5 Circuits

Documents:

3D Model

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-70058 (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

TUV

UL

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

70066

Version H

cgrid__sl_products

SL™

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

5

Black

94V-0

Female

No

Polyester Alloy

1

Bag

No

0.100 In

2.54 mm

Yes

-40°C to +105°C

Search Parts in this Series

70066Series

Mates With

6373 Straight Header, 7478

Use With

70058 , 71851

Material Info

Old Part Number

700660214

Reference - Drawing Numbers

Packaging Specification

Product Specification

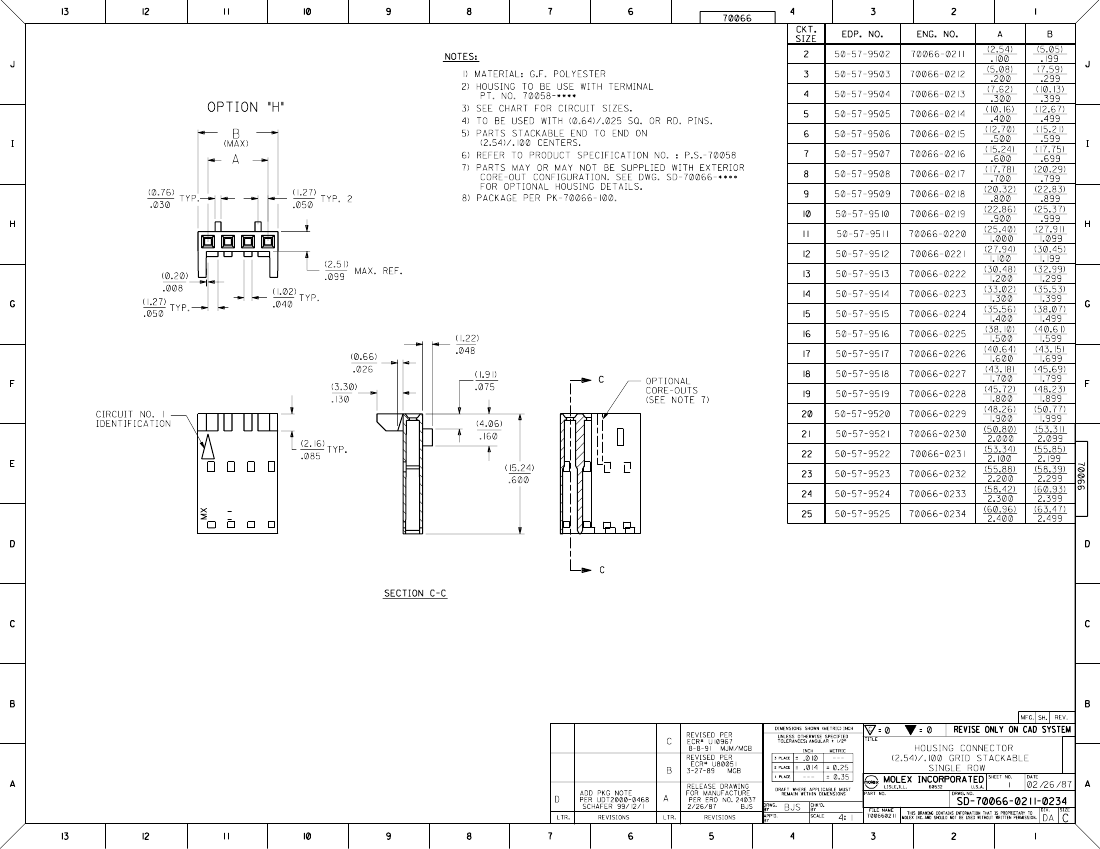

Sales Drawing

Test Summary

PK-70066-100

PS-70058, PS-70400

SD-70066-0211-0234

TS-70058-001

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
