5962R9661701VXC datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 5962R9661701VXC

Preview

5962R9661701VXC: Description4000/14000/40000 SERIES, 5-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP14; Categorylogic logic; File Size195KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9661701VXC Overview

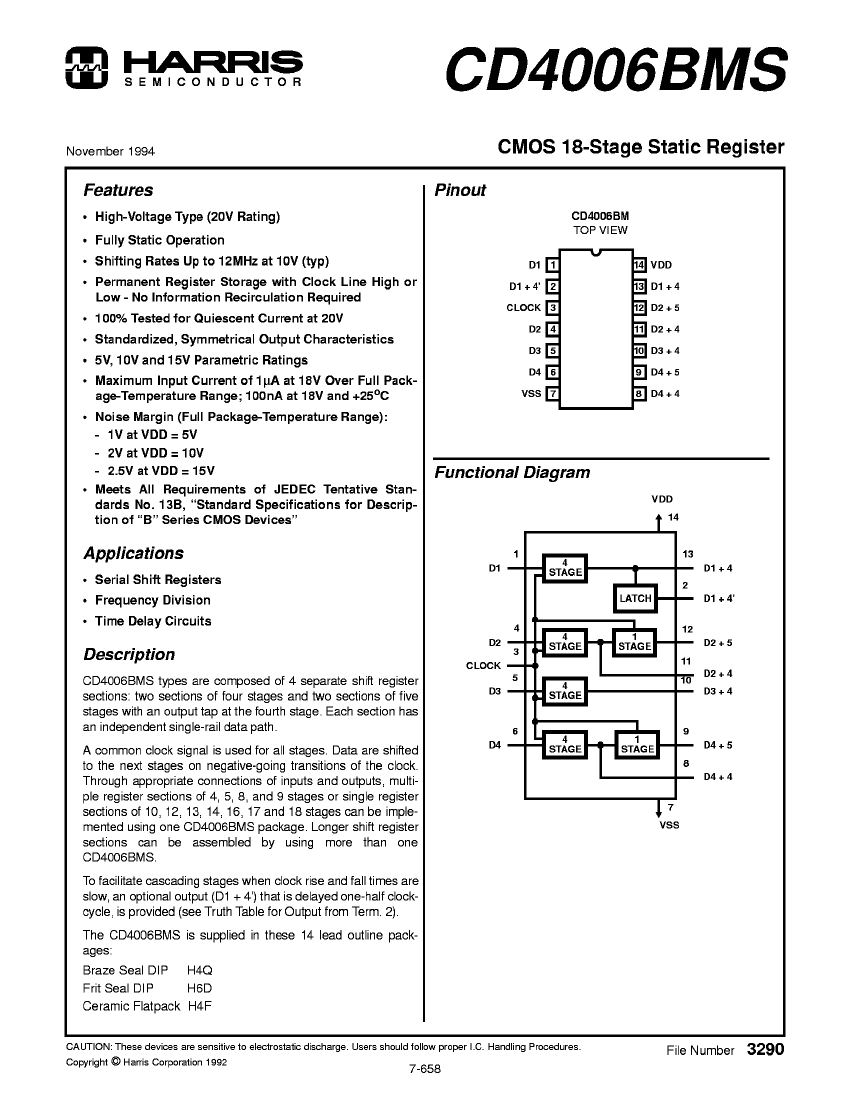

4000/14000/40000 SERIES, 5-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP14

5962R9661701VXC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknow
Counting direction	RIGHT
series	4000/14000/40000
JESD-30 code	R-CDFP-F14
JESD-609 code	e4
Logic integrated circuit type	SERIAL IN SERIAL OUT
Maximum Frequency@Nom-Su	1850000 Hz
Number of digits	5
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5/15 V
propagation delay (tpd)	540 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	NEGATIVE EDGE
width	6.285 mm
minfmax	7 MHz
Base Number Matches	1

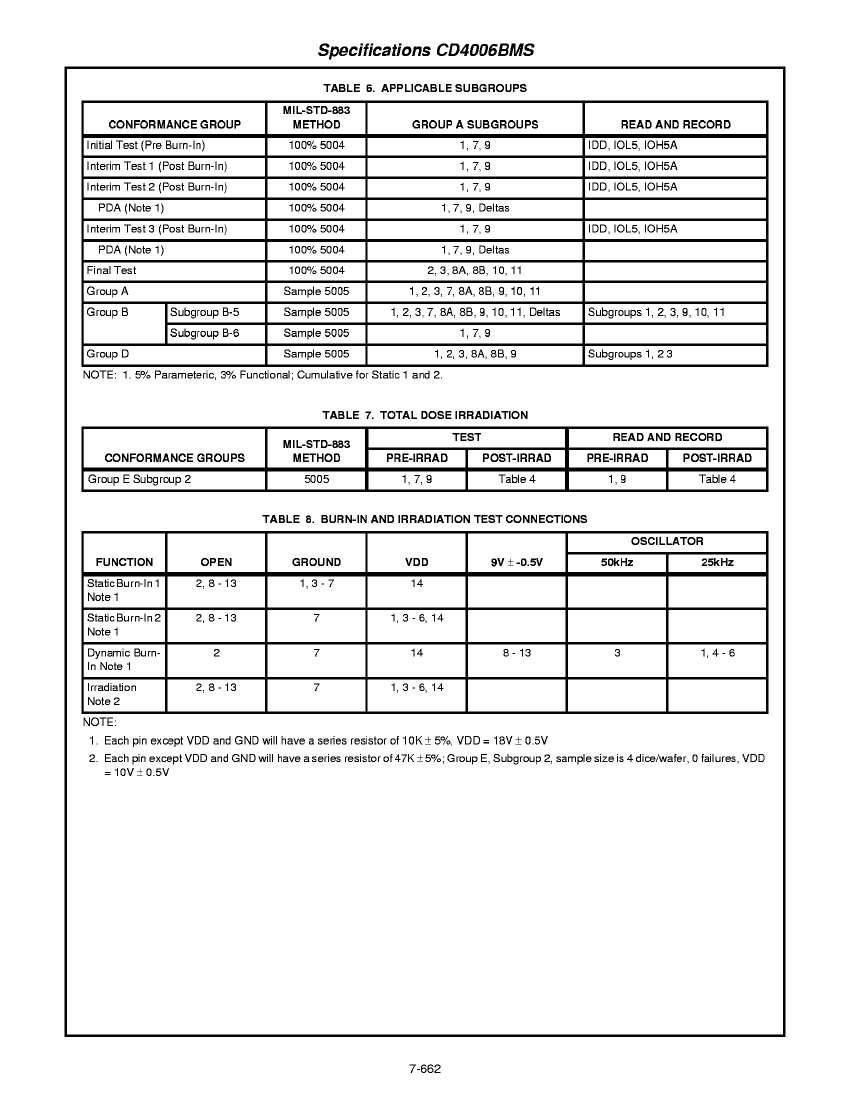

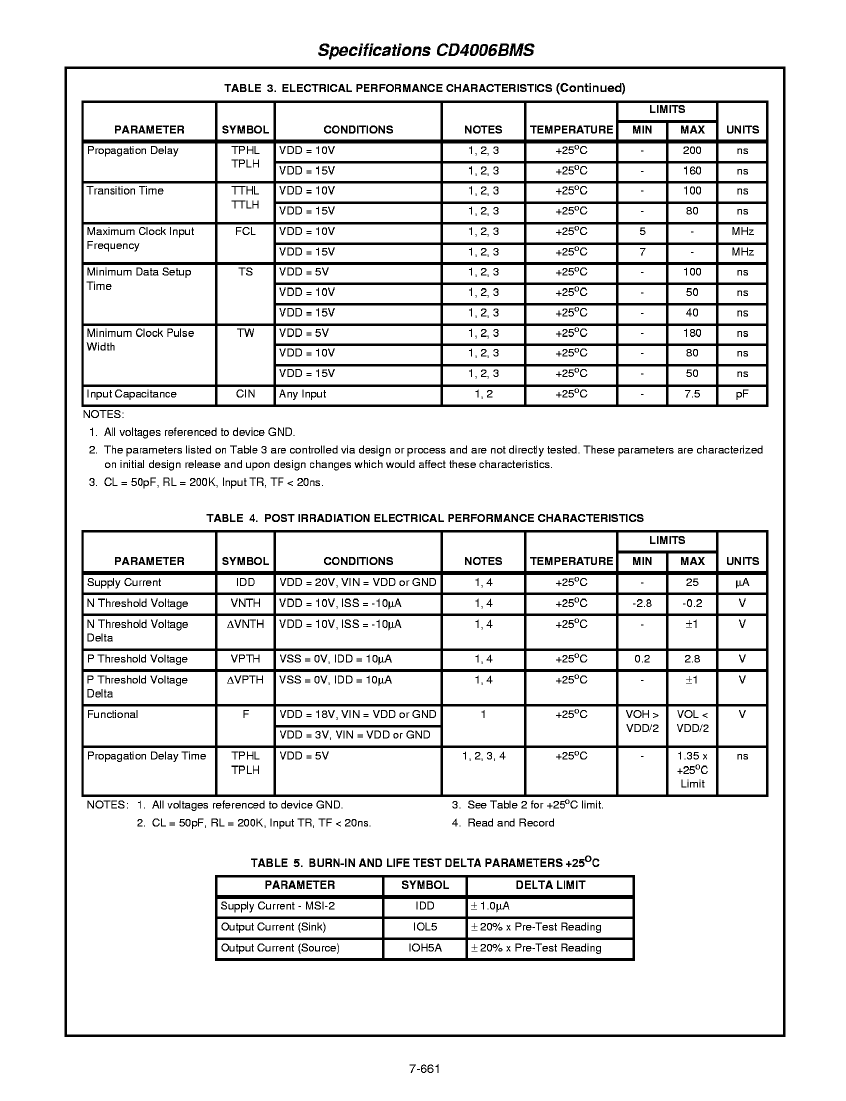

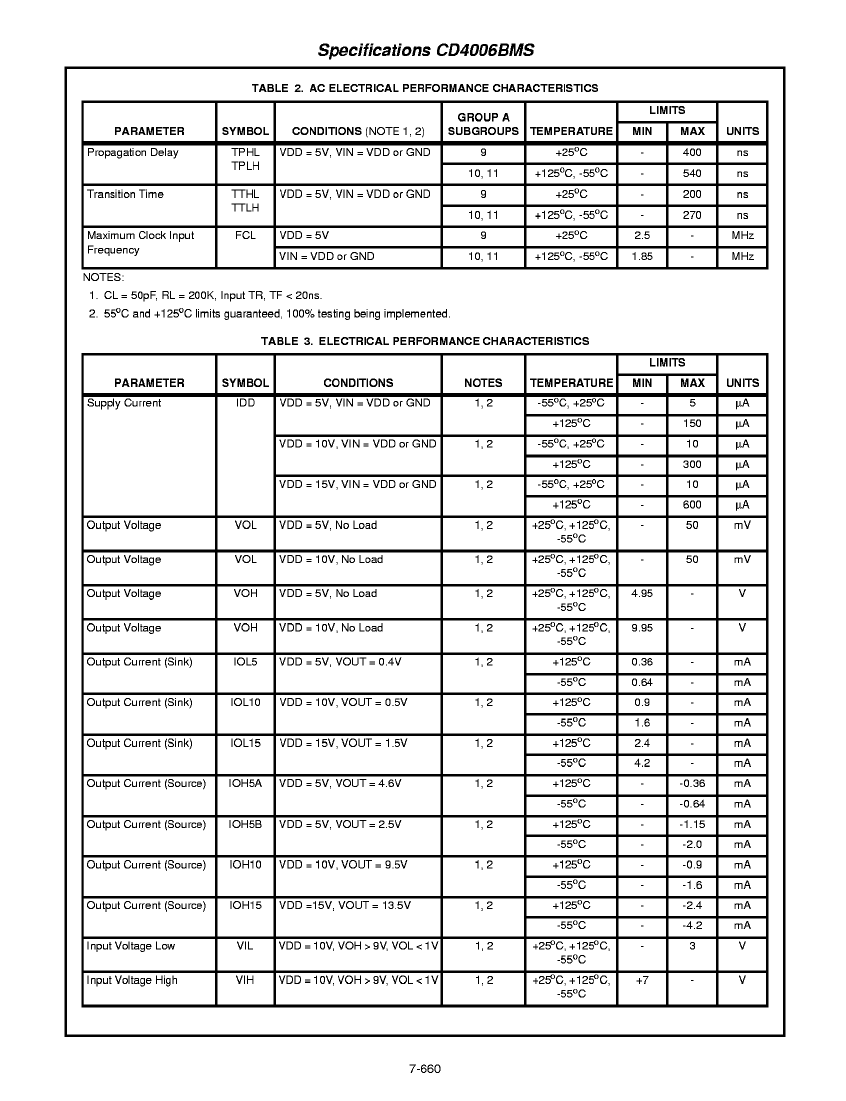

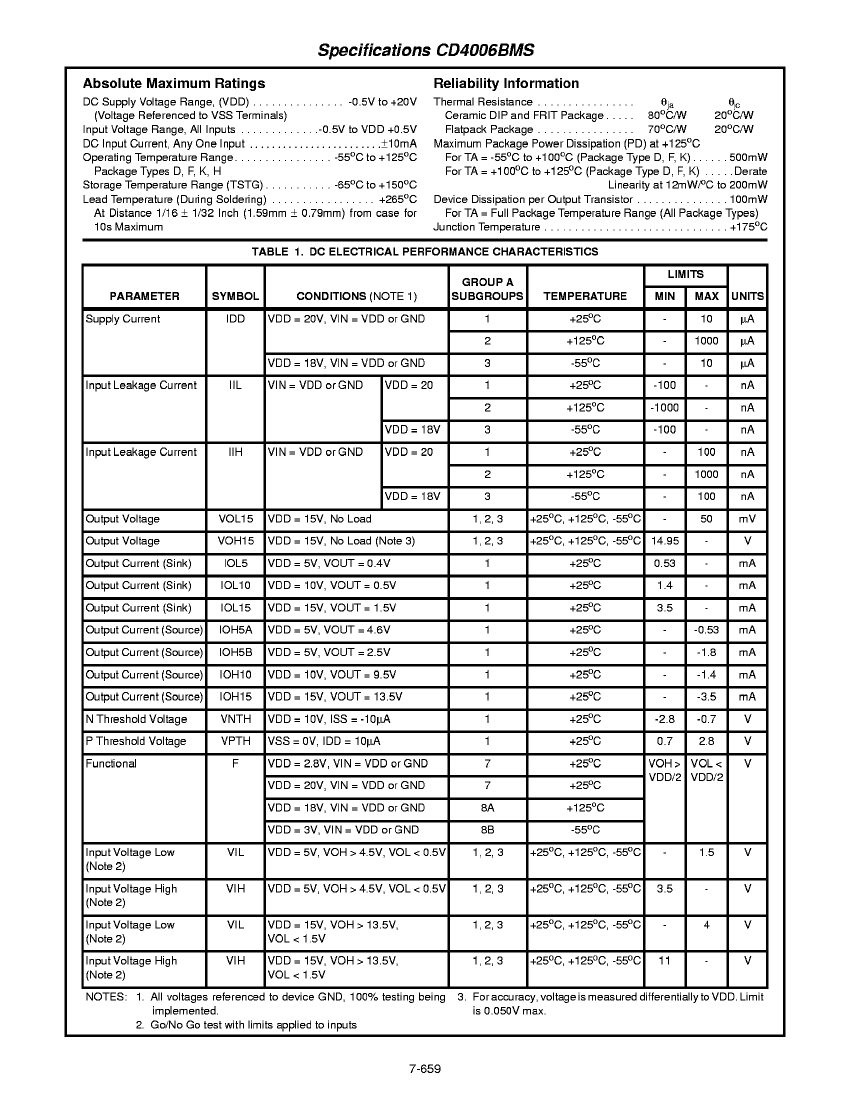

Preview

Download Datasheet

View All

5962R9661701VXC Related Products

	5962R9661701VXC	5962R9661701VCC	CD4006BHMSR
Description	4000/14000/40000 SERIES, 5-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP14	4000/14000/40000 SERIES, 5-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP14, CERAMIC, DIP-14	4000/14000/40000 SERIES, 5-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, UUC14
package instruction	DFP, FL14,.3	DIP, DIP14,.3	DIE,
Reach Compliance Code	unknow	unknown	unknown
Counting direction	RIGHT	RIGHT	RIGHT
series	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-CDFP-F14	R-CDIP-T14	X-XUUC-N14
Logic integrated circuit type	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT
Number of digits	5	5	5
Number of functions	4	4	4
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DFP	DIP	DIE
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	FLATPACK	IN-LINE	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	UPPER
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
minfmax	7 MHz	7 MHz	12 MHz
Parts packaging code	DFP	DIP	-
Contacts	14	14	-
JESD-609 code	e4	e4	-
Encapsulate equivalent code	FL14,.3	DIP14,.3	-
power supply	5/15 V	5/15 V	-
propagation delay (tpd)	540 ns	540 ns	-
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	-
Maximum seat height	2.92 mm	5.08 mm	-
Maximum supply voltage (Vsup)	18 V	18 V	-
Minimum supply voltage (Vsup)	3 V	3 V	-
Nominal supply voltage (Vsup)	5 V	5 V	-
Terminal surface	GOLD	GOLD	-
Terminal pitch	1.27 mm	2.54 mm	-
total dose	100k Rad(Si) V	100k Rad(Si) V	-
width	6.285 mm	7.62 mm	-
Base Number Matches	1	1	-
