M20-078051F0745 datasheet, PDF

M20-078051F0745: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

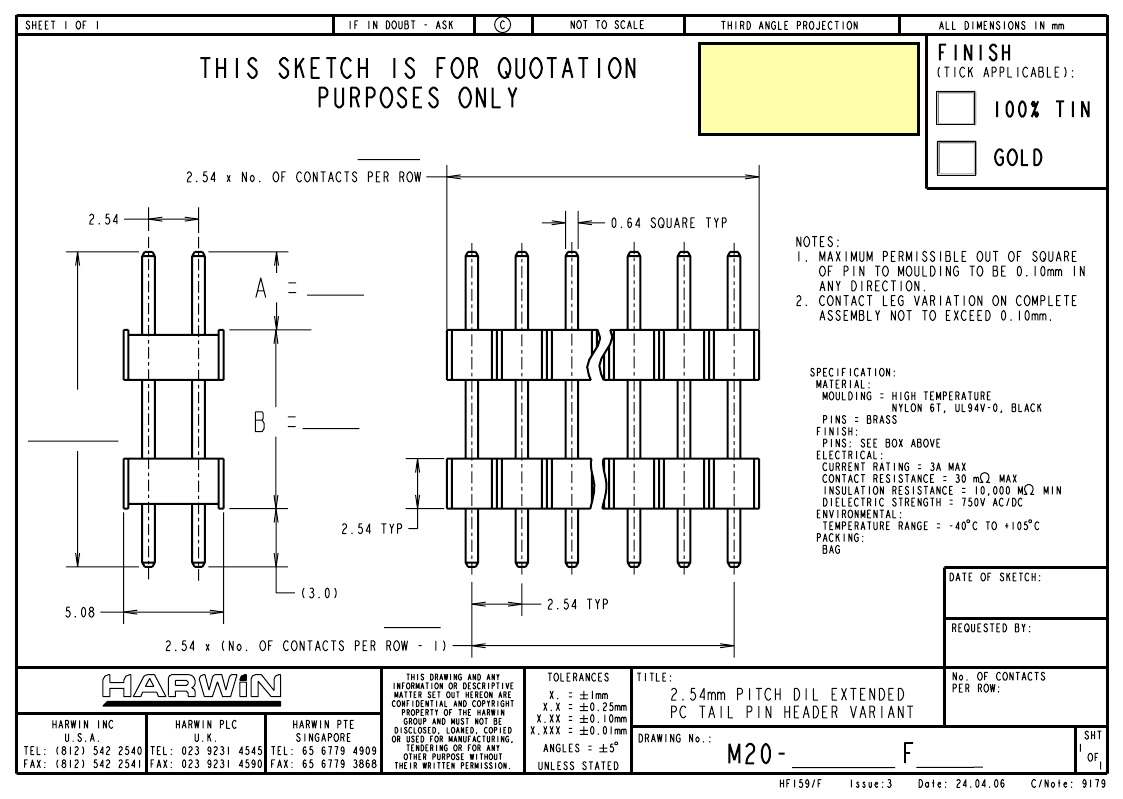

Download Datasheet Parametric View All

M20-078051F0745 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Objectid	1177556233
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.201 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	300 Cycles
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	M20
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14

Press <TAB> to advance

through the fields - the part

number will update

automatically.

0.00

0.0

8.1

5.1

-2.54

00

051

0

45
