IC HEX 1-BIT DRIVER, INVERTED OUTPUT, PDSO16, PLASTIC, SOT-109-1, SO-16, Bus Driver/Transceiver

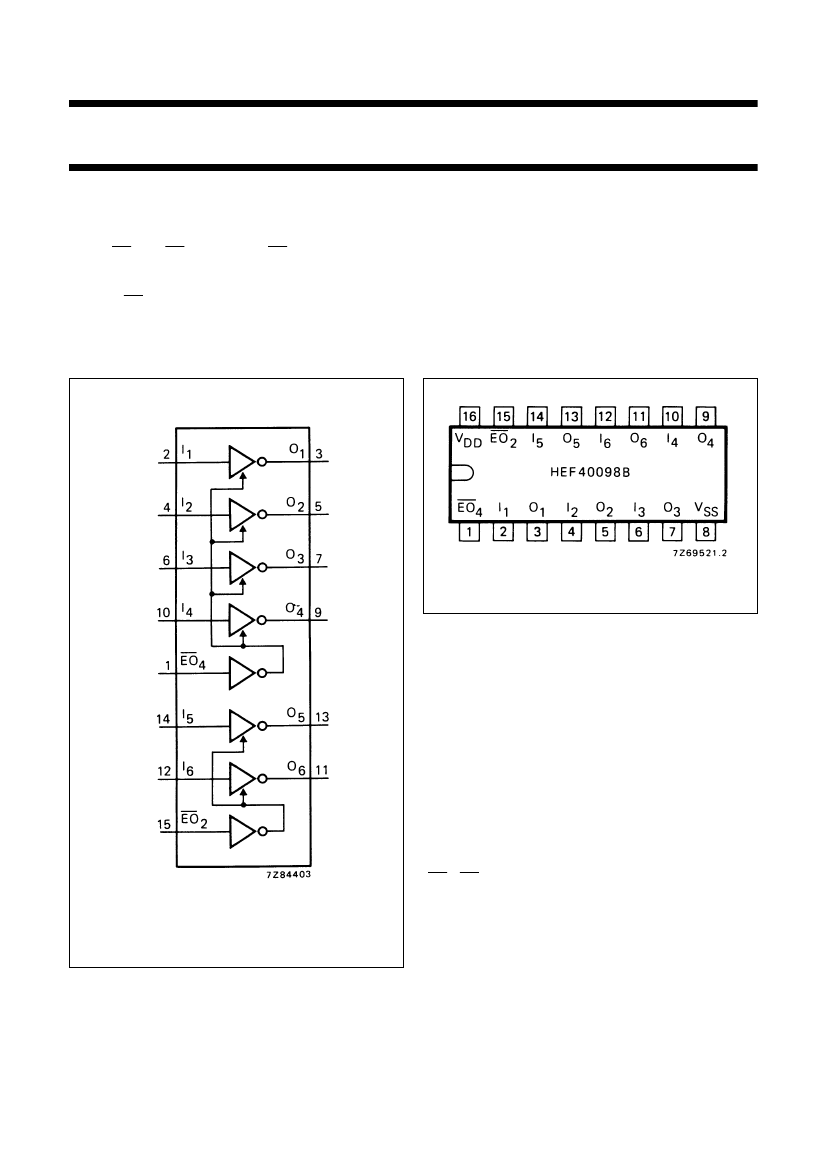

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | NXP |
| Parts packaging code | SOIC |
| package instruction | PLASTIC, SOT-109-1, SO-16 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e4 |
| length | 9.9 mm |
| Logic integrated circuit type | BUS DRIVER |
| Humidity sensitivity level | 1 |
| Number of digits | 1 |
| Number of functions | 6 |
| Number of ports | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| propagation delay (tpd) | 160 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | NICKEL PALLADIUM GOLD |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| width | 3.9 mm |
| Base Number Matches | 1 |
| 933373410653 | 933282590652 | 933373410652 | HEF40098BU | 933378970005 | |
|---|---|---|---|---|---|
| Description | IC HEX 1-BIT DRIVER, INVERTED OUTPUT, PDSO16, PLASTIC, SOT-109-1, SO-16, Bus Driver/Transceiver | HEX 1-BIT DRIVER, INVERTED OUTPUT, PDIP16, PLASTIC, SOT-38-1, DIP-16 | IC HEX 1-BIT DRIVER, INVERTED OUTPUT, PDSO16, PLASTIC, SOT-109-1, SO-16, Bus Driver/Transceiver | IC 6-BIT DRIVER, INVERTED OUTPUT, UUC, DIE, Bus Driver/Transceiver | IC HEX 1-BIT DRIVER, INVERTED OUTPUT, UUC, DIE, Bus Driver/Transceiver |
| Parts packaging code | SOIC | DIP | SOIC | DIE | DIE |
| package instruction | PLASTIC, SOT-109-1, SO-16 | DIP, | PLASTIC, SOT-109-1, SO-16 | , | , |
| Reach Compliance Code | unknown | unknow | unknown | unknown | unknown |
| JESD-30 code | R-PDSO-G16 | R-PDIP-T16 | R-PDSO-G16 | X-XUUC-N | X-XUUC-N |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 1 | 1 | 1 | 6 | 1 |
| Number of functions | 6 | 6 | 6 | 1 | 6 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | UNSPECIFIED | UNSPECIFIED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | UNSPECIFIED | UNSPECIFIED |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | UNCASED CHIP | UNCASED CHIP |
| propagation delay (tpd) | 160 ns | 160 ns | 160 ns | 160 ns | 160 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | NO LEAD | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | UPPER | UPPER |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Is it lead-free? | Lead free | Lead free | Lead free | - | - |
| Is it Rohs certified? | conform to | conform to | conform to | - | - |
| Maker | NXP | - | NXP | NXP | NXP |
| Contacts | 16 | 16 | 16 | - | - |
| JESD-609 code | e4 | e4 | e4 | - | - |
| length | 9.9 mm | 21.6 mm | 9.9 mm | - | - |
| Number of terminals | 16 | 16 | 16 | - | - |
| encapsulated code | SOP | DIP | SOP | - | - |
| Peak Reflow Temperature (Celsius) | 260 | NOT APPLICABLE | 260 | - | - |
| Maximum seat height | 1.75 mm | 4.7 mm | 1.75 mm | - | - |
| Terminal surface | NICKEL PALLADIUM GOLD | NICKEL PALLADIUM GOLD | NICKEL PALLADIUM GOLD | - | - |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | - | - |
| Maximum time at peak reflow temperature | 30 | NOT APPLICABLE | 30 | - | - |
| width | 3.9 mm | 7.62 mm | 3.9 mm | - | - |
