70216-0404 datasheet, PDF - EEWORLD Datasheet

70216-0404: Description2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle, 30 circuits, 6.10mm (.240") mating pin length; File Size121KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

70216-0404 Overview

2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle, 30 circuits, 6.10mm (.240") mating pin length

Preview

Download Datasheet

View All

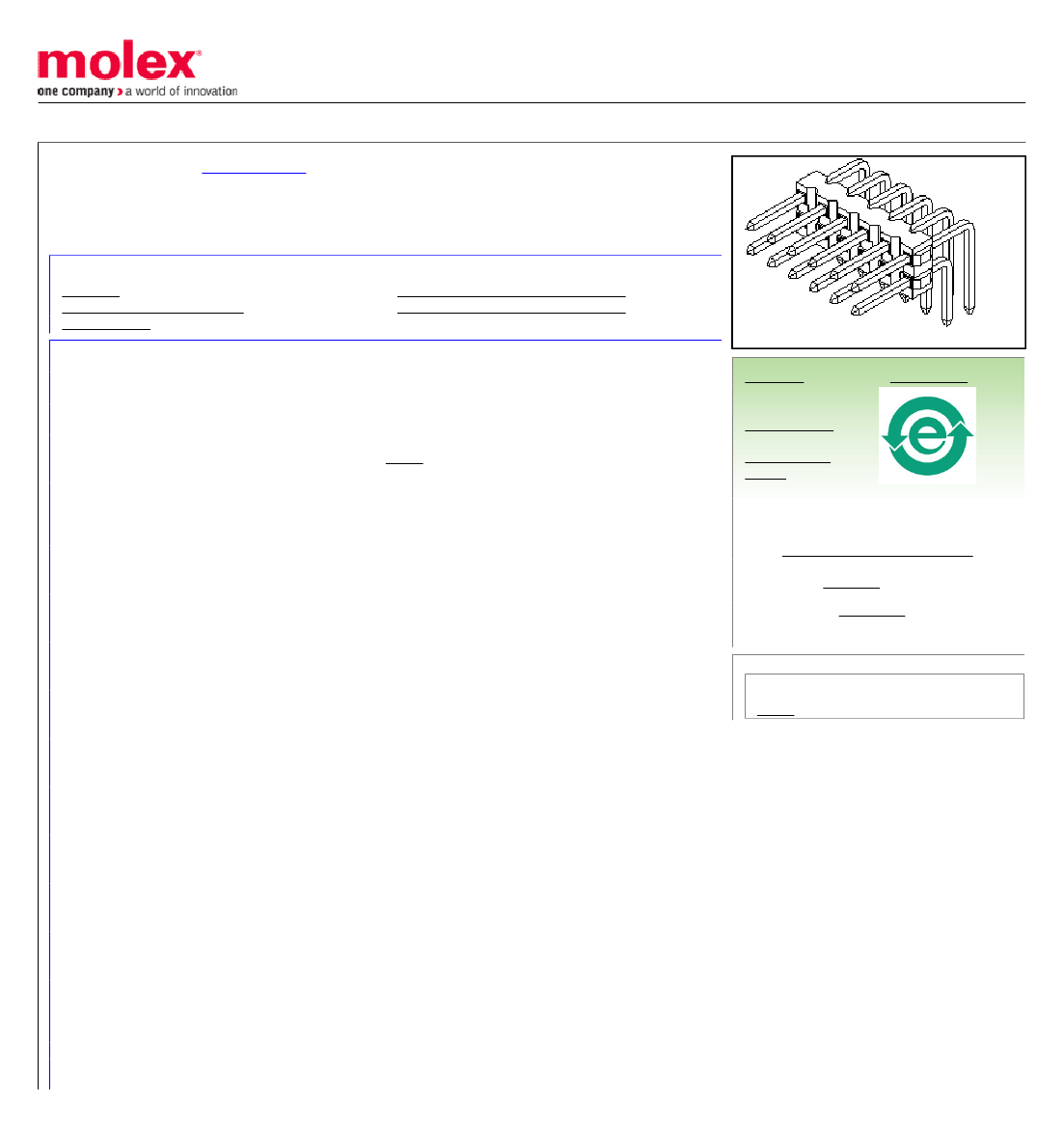

This document was generated on 03/29/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0010894046

Active

2.54mm (.100") Pitch C-Grid® Breakaway Header, High Profile, Dual Row, Right Angle,

4 Circuits, 6.10mm (.240") Mating Pin Length, 0.76µm (30µ") Gold (Au) Selective

Plating

Documents:

3D Model

Packaging Specification (PDF)

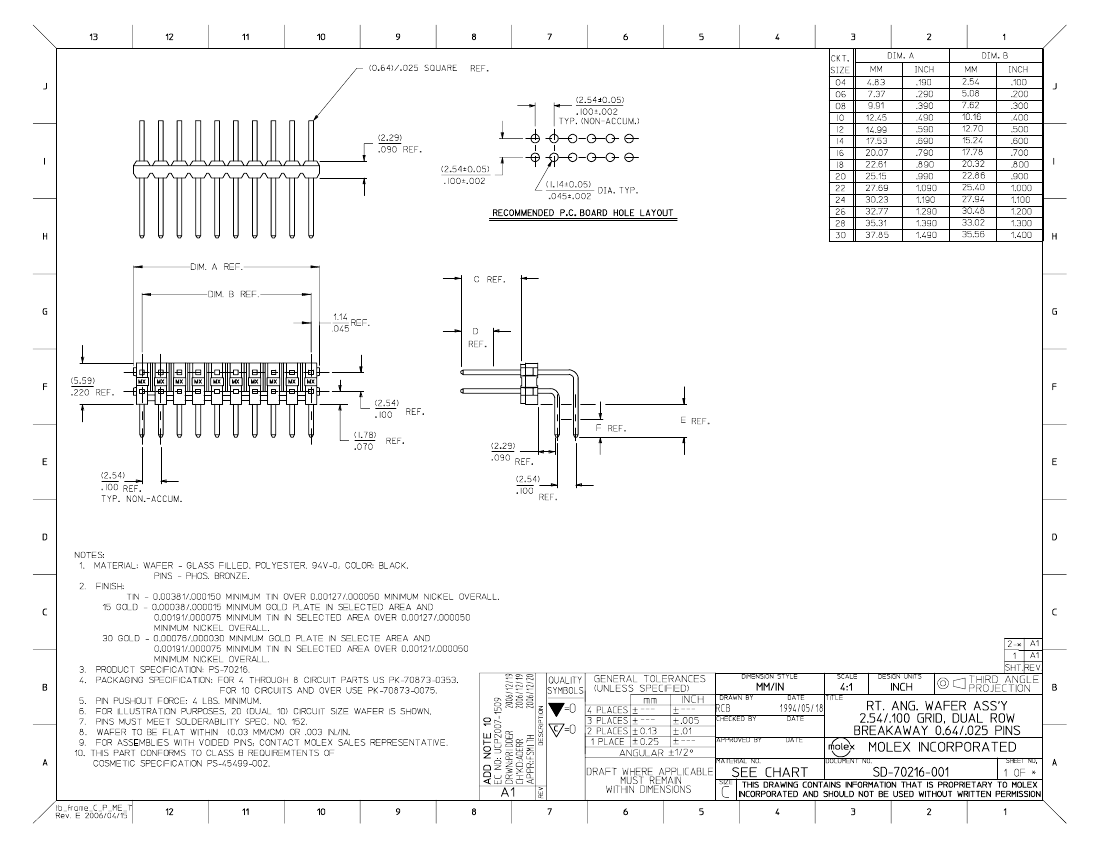

Drawing (PDF)

Product Specification PS-70216 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

PCB Headers

70216

Board-to-Board, Wire-to-Board

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

94V-0

None

Brass, Phosphor Bronze

Gold

Tin

Right Angle

0.110 In

2.79 mm

None

Tube

0.100 In

2.54 mm

0.75

1.875

Yes

-40°C to +105°C

Through Hole

Search Parts in this Series

70216Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

70216-0404 Related Products

	70216-0404	0010894046	70216-0391	0010894226	199D337(1)003E(2)(3)	70216-0400
Description	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle, 30 circuits, 6.10mm (.240") mating pin length	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle, 4 circuits, 6.10mm (.240") mating pin length	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle, 4 circuits, 6.10mm (.240") mating pin length	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle,22 circuits, 6.10mm (.240") mating pin length, 0.76??m (30??") gold (Au) selective plating	Solid-Electrolyte TANTALEX Capacitors, Resin-Coated, Radial-Lead	2.54mm (.100") pitch C-grid? breakaway header, high profile, dual row, right angle,22 circuits, 6.10mm (.240") mating pin length, 0.76??m (30??") gold (Au) selective plating
