XS170 is a 350V, 100mA, 50Ω 1-Form-A relay with an
optocoupler in a single package. It provides an economi-
cal solution for cost sensitive applications.
Features
•
Small 8 Pin DIP Package
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
3750V
RMS
Input/Output Isolation
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Surface Mount and Tape & Reel Versions Available
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Ordering Information
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Part #
XS170
XS170S
XS170STR
Description
8 Pin DIP (50/Tube)
8 Pin Surface Mount (50/Tube)
8 Pin Surface Mount (1000/Reel)
Pin Configuration
XS170 Pinout
+ LED - Relay
– LED - Relay
Collector - Phototransistor
Emitter - Phototransistor
1
2
3
4
8
7
6
5
Load - Relay (MOSFET Output)
Load - Relay (MOSFET Output)
LED - Phototransistor –/+
LED - Phototransistor +/–
DS-XS170-R1
www.clare.com
1
XS170
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Flatpack/Surface Mount
Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
- 150
1
mW
-
50
mA
-
1
A
-
5
V
- 800
2
mW
-
-
-
-
-
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Relay Portion (Pins 7, 8)
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
Peak Load Current
On-Resistance
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Load Current Limit
Relay Portion (Pins 1, 2)
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Conditions
Symbol
Min
Typ
Max
Units
-
-
10ms
I
L
=120mA
V
L
=350V
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
V
L
I
L
I
LPK
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
CL
-
-
-
-
-
-
-
-
-
-
-
-
33
-
-
-
25
-
350
100
350
50
1
5
5
-
-
V
mA
mA
Ω
µA
ms
ms
pF
mA
I
L
=120mA
-
I
F
=5mA
-
V
R
=5V
I
F
I
F
V
F
V
R
I
R
2
0.4
0.9
-
-
-
0.7
1.2
-
-
50
-
1.4
5
10
mA
mA
V
V
µA
2
www.clare.com
Rev. 1
XS170
Electrical Characteristics (Continued)
Parameter
Detector Portion (Pins 3, 4)
Output Characteristics @ 25°C
Phototransistor Blocking Voltage
Phototransistor Output Current
Saturation Voltage
Current Transfer Ratio
Detector Portion (Pins 5, 6)
Input Characteristics @ 25°C
Input Control Current
Input Voltage Drop
Input Current
(Detector must be off)
Input to Output Capacitance
(Relay Only)
Capacitance Input to Output
Input to Output Isolation
Conditions
Symbol
Min
Typ
Max
Units
I
C
=10µA
V
CE
=5V, I
F
=0mA
I
C
=2mA, I
F
=16mA
I
F
=6mA, V
CE
=0.5V
BV
CEO
I
CEO
V
SAT
CTR
20
-
-
33
50
50
0.3
100
-
500
0.5
-
V
nA
V
%
I
C
=2mA, V
CE
=0.5V
I
F
=5mA
I
C
=1µA, V
CE
=5V
I
F
V
F
I
F
6
0.9
5
2
1.2
25
100
1.4
-
mA
V
µA
-
-
-
C
I/O
-
V
I/O
-
-
3750
3
3
-
-
-
-
pF
pF
V
RMS
Rev. 1
www.clare.com
3

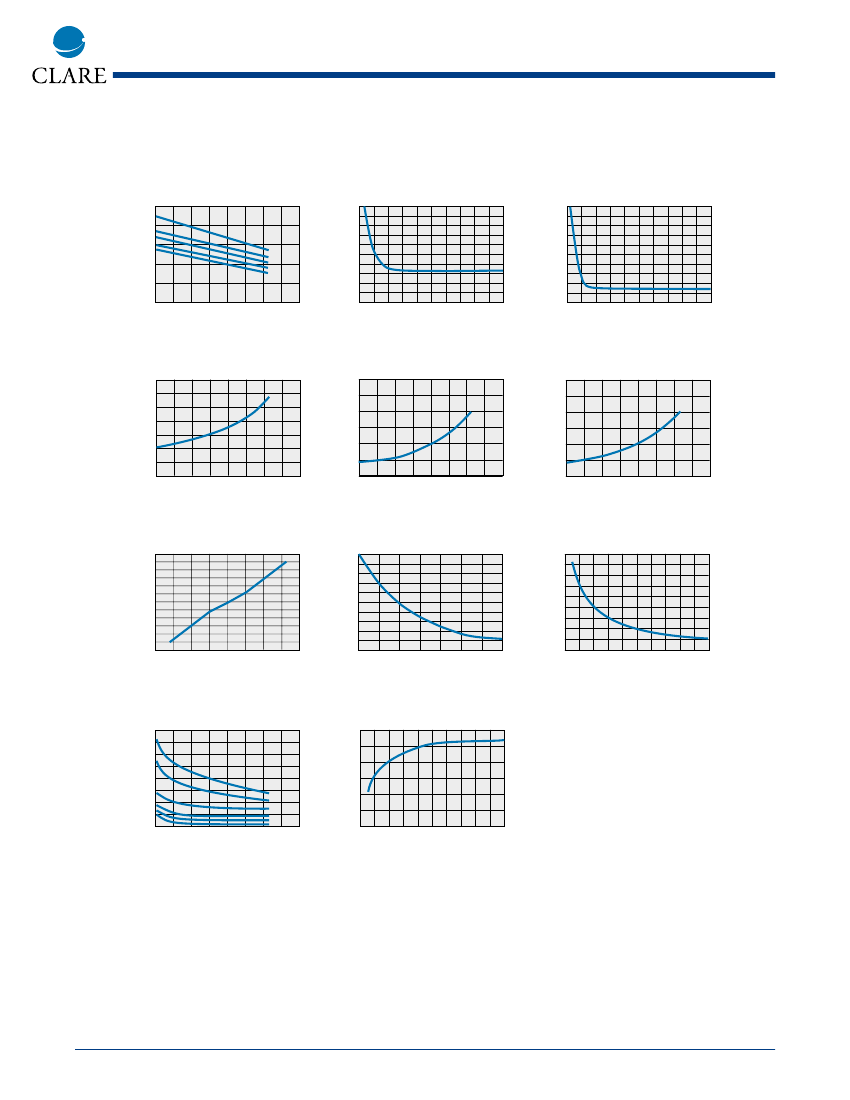

XS170
PERFORMANCE DATA*
35
30
Device Count (N)
25
20
15
10
5
0
XS170
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 5mADC
XS170
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 100mADC)
25
20
15
10
5
0
25
20
15
10
5
0
29.09 29.86 30.63 31.40 32.16 32.93 33.70
On-Resistance (Ω)
XS170
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
Device Count (N)
Device Count (N)
1.17
1.19
1.21
1.23
1.25
424.0 429.3 434.5 439.7 444.9 450.1 455.4
Blocking Voltage (V)
LED Forward Voltage Drop (V)
XS170
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 100mADC)
25
20
15
10
5
0
0.44
0.50
0.56
0.62
0.69
0.75
0.81
LED Current (mA)
25
20
15
10
5
0
XS170
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 100mADC)
25
20
15
10
5
0
0.44
0.50
0.56
0.62
0.69
0.75
0.81
XS170
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 100mADC)
Device Count (N)
Device Count (N)
Device Count (N)
0.67
0.75
0.83
0.91
0.99
1.06
1.14
LED Current (mA)
Turn-On (ms)
XS170
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 100mADC)
25
Load Current (mA)
20
15
10
5
0
0.11
0.14
0.17
0.19
0.22
0.25
0.28
Turn-Off (ms)
160
140
Device Count (N)
120
100
80
60
40
20
0
XS170
Typical Load Current vs. Temperature
0.016
0.014
Leakage (µA)
0.012
0.010
0.008
0.006
0.004
0.002
0
-40
-20
0
20
40
60
80
100
120
-40
XS170
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
10mA
5mA
2mA
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
XS170
Typical Blocking Voltage
vs. Temperature
455
Blocking Voltage (V
RMS
)
450
Turn-On (ms)
445
440
435
430
425
420
-40
-20
0
20
40
60
80
100
Temperature (°C)
XS170
Typical Turn-On vs. Temperature
(Load Current = 100mADC)
1.80
1.60
1.40
1.20
1.00
0.80
0.60
0.40
0.20
0
-40
-20
0
20
40
60
80
100 120
Temperature (°C)
10mA
20mA
Turn-Off (ms)
5mA
0.50
0.45
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
-40
XS170
Typical Turn-Off vs. Temperature
(Load Current = 120mADC)
-20
0
20
40
60
80
100
120
Temperature (°C)
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
Rev. 1
XS170
PERFORMANCE DATA*
XS170
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
Turn-On (ms)
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
XS170
Typical Turn-On vs. LED Forward Current
(Load Current = 100mADC)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
XS170
Typical Turn-Off vs. LED Forward Current
(Load Current = 120mADC)
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
50mA
30mA
20mA
10mA
5mA
70
60
On-Resistance (Ω)
XS170
Typical On-Resistance vs. Temperature
(Load Current = 100mADC; I
F
= 5mADC)
XS170
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 100mADC)
6.0
5.0
LED Current (mA)
4.0
3.0
2.0
1.0
0
-40
-20
0
20
40
60
80
100 120
LED Current (mA)
6.0
5.0
4.0
3.0
2.0
1.0
0
-40
Turn-Off (ms)
XS170
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = 100mADC)
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100 120
Temperature (°C)
-20
0
20
40
60
80
100 120
Temperature (°C)
Temperature (°C)
120
100
80
60
40
20
0
-20
-40
-60
-80
-100
-120
XS170
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
I
F
= 5mADC
XS170
Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10µs 100µs 1ms 10ms 100ms
Time
Normalized CTR (%)
XS170
Typical Normalized CTR vs. Forward Current
(V
CE
= 0.5V)
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
Load Current (mA)
Load Current (A)
-4
-3
-2
-1
0
1
2
3
4
1s
10s 100s
0
2
4
6
8
10
12
14
16
18
20
Load Voltage (V)
I
F
(mA)
XS170
Typical Normalized CTR vs. Temperature
(V
CE
= 0.5V)
8
Normalized CTR (%)
7
6
I
C
(mA)
5
4
3
2
1
0
-40
-20
0
20
40
60
XS170
Typical Collector Current vs. Forward Current
(V
CE
= 0.5V)
12
10
8
6
4
2
0
0
2
4
6
8
10
12
14
16
18
20
1mA
2mA
5mA
10mA
15mA
20mA
80 100 120
Temperature (°C)
I
F
(mA)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
Git, the version control software specially created by Linus Torvalds, the father of Linux, for the development of the Linux kernel, has attracted widespread attention in the industry. Yesterday, a ma...
1. Google's 3D chat room, where you can design your own image and room [url=http://www.lively.com/]http://www.lively.com/[/url] 2. You can listen to and download for free the latest audio versions of ...
[font=微软雅黑][size=4][color=#ff0000]The second free sample application activity is in full swing!!![/color][/size][/font]{:1_138:} [size=3]Click here to apply>>> [/size][url=https://bbs.eeworld.com.cn/h...
This program is written to simulate the serial port hardware mechanism. When used, a timed interrupt can be set with a time interval of 1/4 baud rate. The receiving function is called once for ea...[Details]
In this article, the high-performance DSP developed by TI can be used as an effective confidentiality method if it is applied to PC encryption cards.
As an effective network security solution,...[Details]
DSP (digital signal processor) is used more and more frequently in today's engineering applications. There are three main reasons for this: first, it has powerful computing power and is capable of ...[Details]
Contact resistance
is the resistance to current flow through a closed pair of contacts. This type of measurement is performed on devices such as connectors,
relays
, and switches. The...[Details]
1 Introduction to HART Protocol
HART (Highway Addressable Remote Transducer), an open communication protocol for addressable remote sensor high-speed channels, was launched by Rosemen in the U...[Details]
Continuity test
A variety of devices need to be checked for continuity, including cable assemblies, printed circuit boards, and connectors to ensure that these components have the expected contin...[Details]
Printed circuit boards ( PCBs
)
are used in most electrical products
. If a PCB has low
insulation resistance
(IR), the performance of the circuits on the PCB will be greatly reduced...[Details]
According to the Industrial Technology Research Institute of Taiwan, due to factors such as the oil crisis and global warming, the issues of energy conservation and environmental protection have at...[Details]
With the rapid development of cities and the improvement of citizens' living standards, the number of various vehicles in cities is growing, and the demand for parking spaces in major commercial an...[Details]
1 Introduction
Ultrasound refers to elastic vibration with a frequency higher than the audible frequency limit (i.e., in the frequency band above 20 kHz). The propagation process of this vib...[Details]
Our flight had just begun to descend when a gentleman sitting next to me turned to talk to me about engineering—he had seen me reading an engineering journal. The gentleman next to me said that he ...[Details]
A few days ago, I bought an 8LED flashlight in the market (the flashlight uses No. 5 batteries). Because I had other things to do, I didn't pay attention when purchasing it. When I got home and use...[Details]
Electric bicycles have long been a means of transportation for lower-income groups due to their affordability. The largest concentrated expense in the use of electric vehicles is the cost of replac...[Details]
The production process of lithium batteries does not mention the previous processes such as material preparation, winding, liquid injection, and packaging, but only talks about the final formation ...[Details]
1. The composition and structure of mobile phone lithium battery
Mobile phone lithium batteries are mainly composed of plastic shell upper and lower covers, lithium battery cells, protection c...[Details]
Linux and Android
京公网安备 11010802033920号
EEWORLD
