35284-1617 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35284-1617

35284-1617: Description2.28mm (.090") tab wire-to-wire uniconn housing, female, 16 circuits; CategoryThe connector The connector; File Size107KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

35284-1617 Overview

2.28mm (.090") tab wire-to-wire uniconn housing, female, 16 circuits

35284-1617 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Objectid	1478637445
Reach Compliance Code	compli
compound_id	57418454
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYESTER
Total number of contacts	16
UL Flammability Code	94-HB

Preview

Download Datasheet

View All

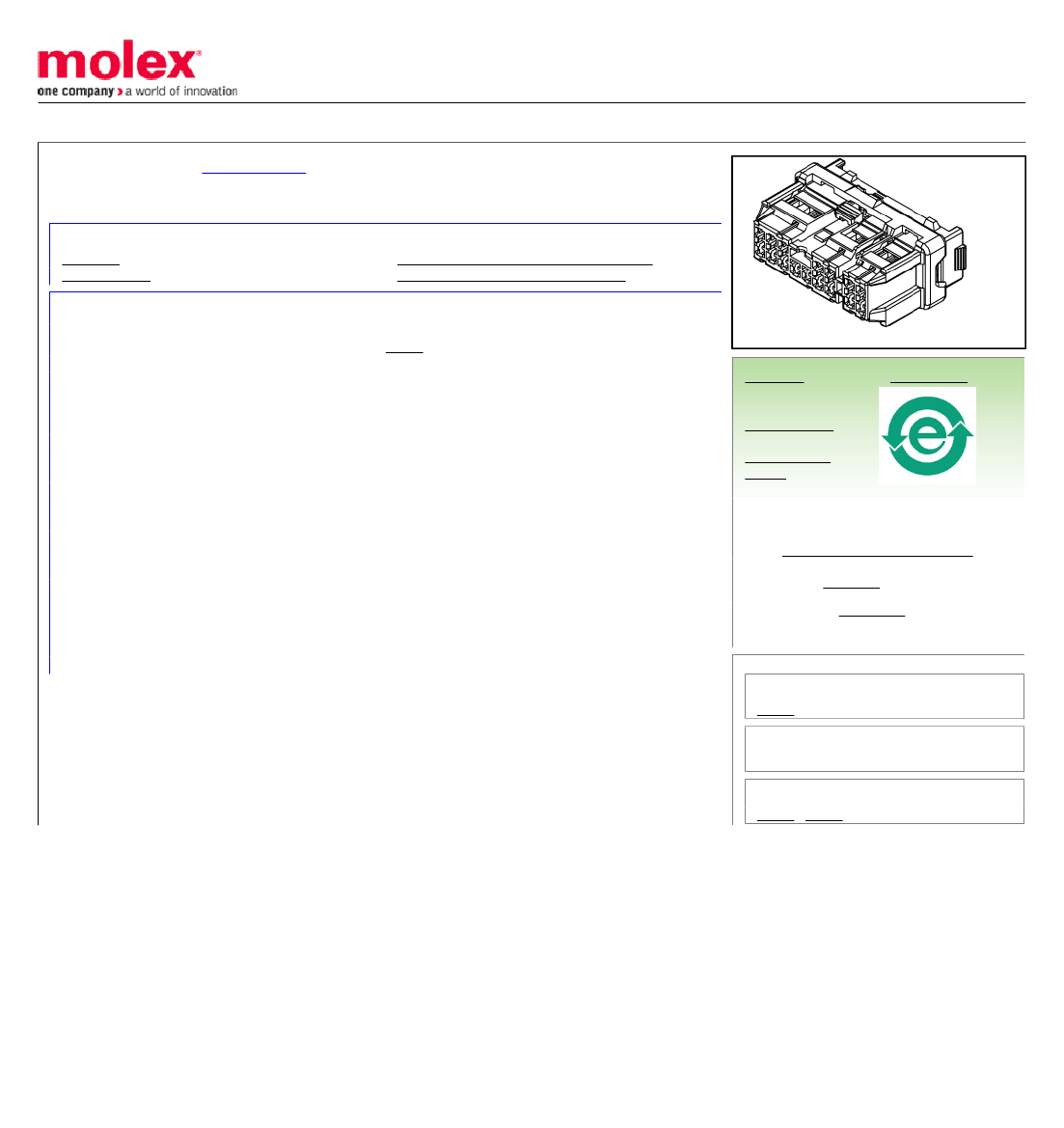

This document was generated on 04/06/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0352841617

Active

2.28mm (.090") Tab Wire-to-Wire Uniconn Housing, Female, 16 Circuits

Product Specification PS-35282-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Product Name

Crimp Housings

35284

Uniconn

image - Reference only

Series

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Temperature Range - Operating

Black, Brown

Female

Polyester

Bag

0.150 In

3.80 mm

-40°C to +80°C

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-35282-001

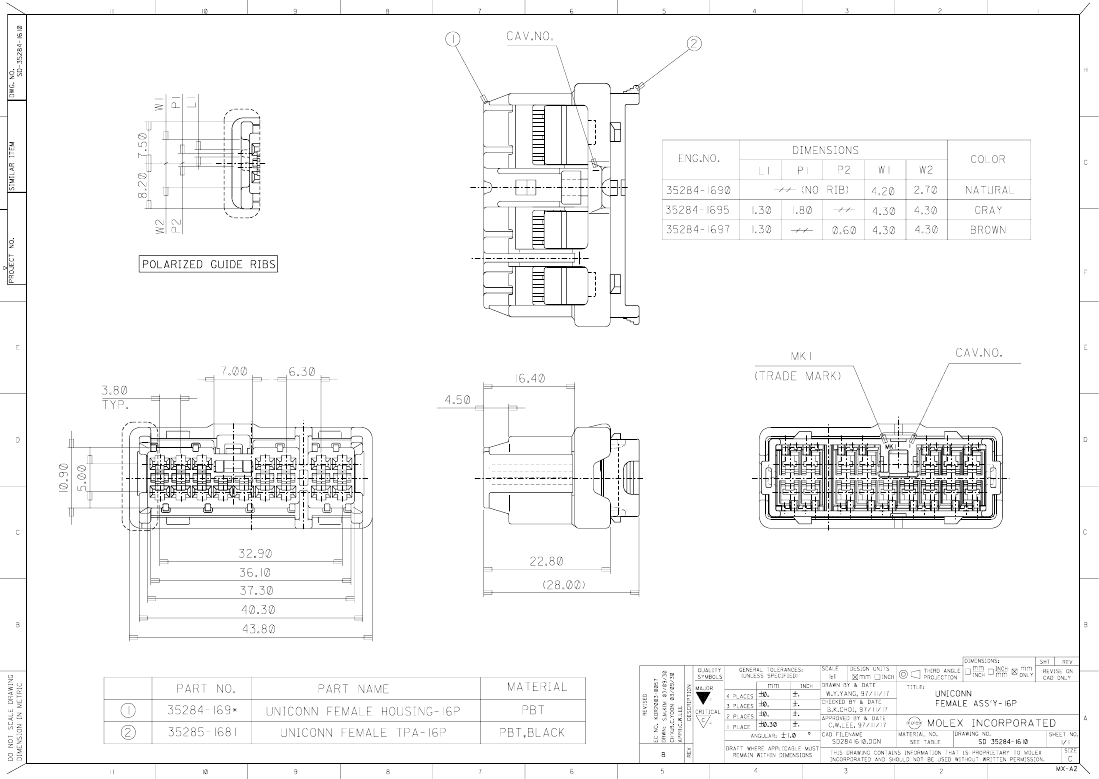

SD-35284-161*

Search Parts in this Series

35284Series

Mates With

35282

Use With

35420 , 35421

This document was generated on 04/06/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

35284-1617 Related Products

	35284-1617	LB3218T331MV	35284-1615
Description	2.28mm (.090") tab wire-to-wire uniconn housing, female, 16 circuits	Wire-wound Chip Inductors for Automotive	2.28mm (.090") tab wire-to-wire uniconn housing, female, 16 circuits
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Molex	-	Molex
Reach Compliance Code	compli	-	compliant
Other features	POLARIZED	-	POLARIZED
Body/casing type	RECEPTACLE	-	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	-	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
DIN compliance	NO	-	NO
empty shell	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation type	CABLE	-	CABLE
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell material	POLYESTER	-	POLYESTER
Total number of contacts	16	-	16
UL Flammability Code	94-HB	-	94-HB
