Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0432236028
Active
modular_plugs_jacks

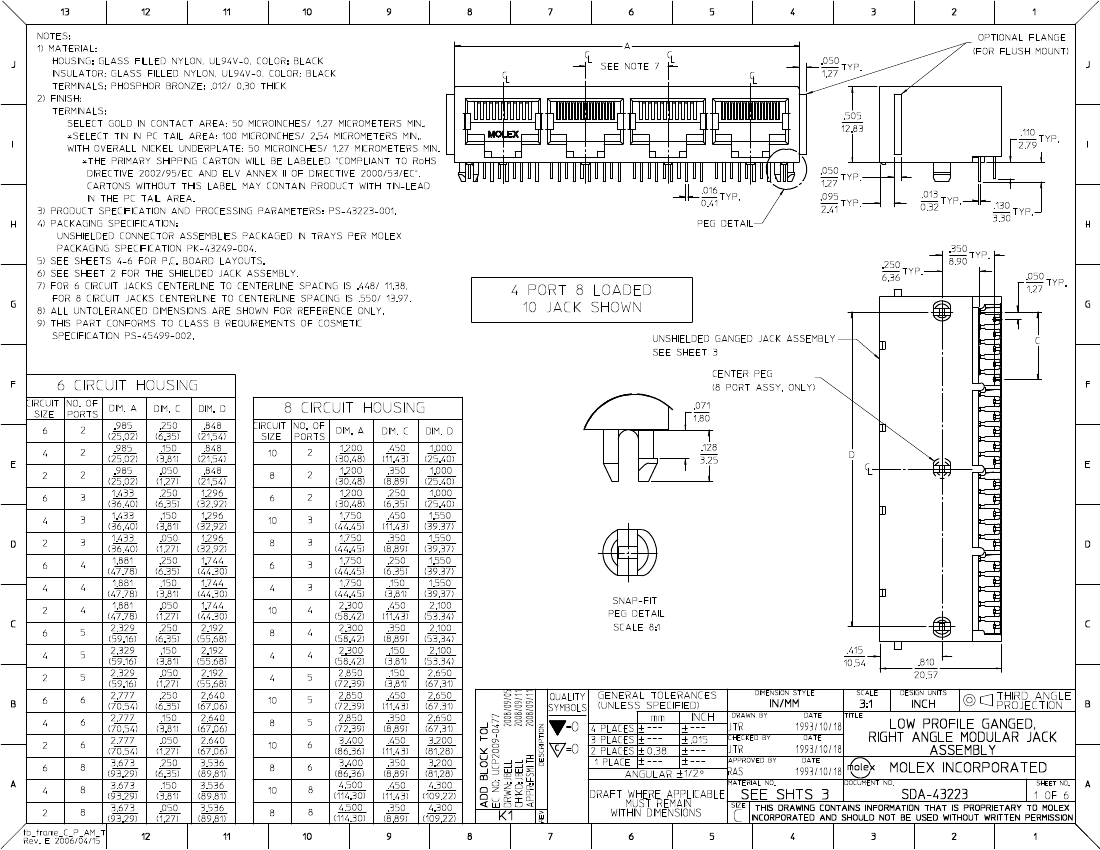

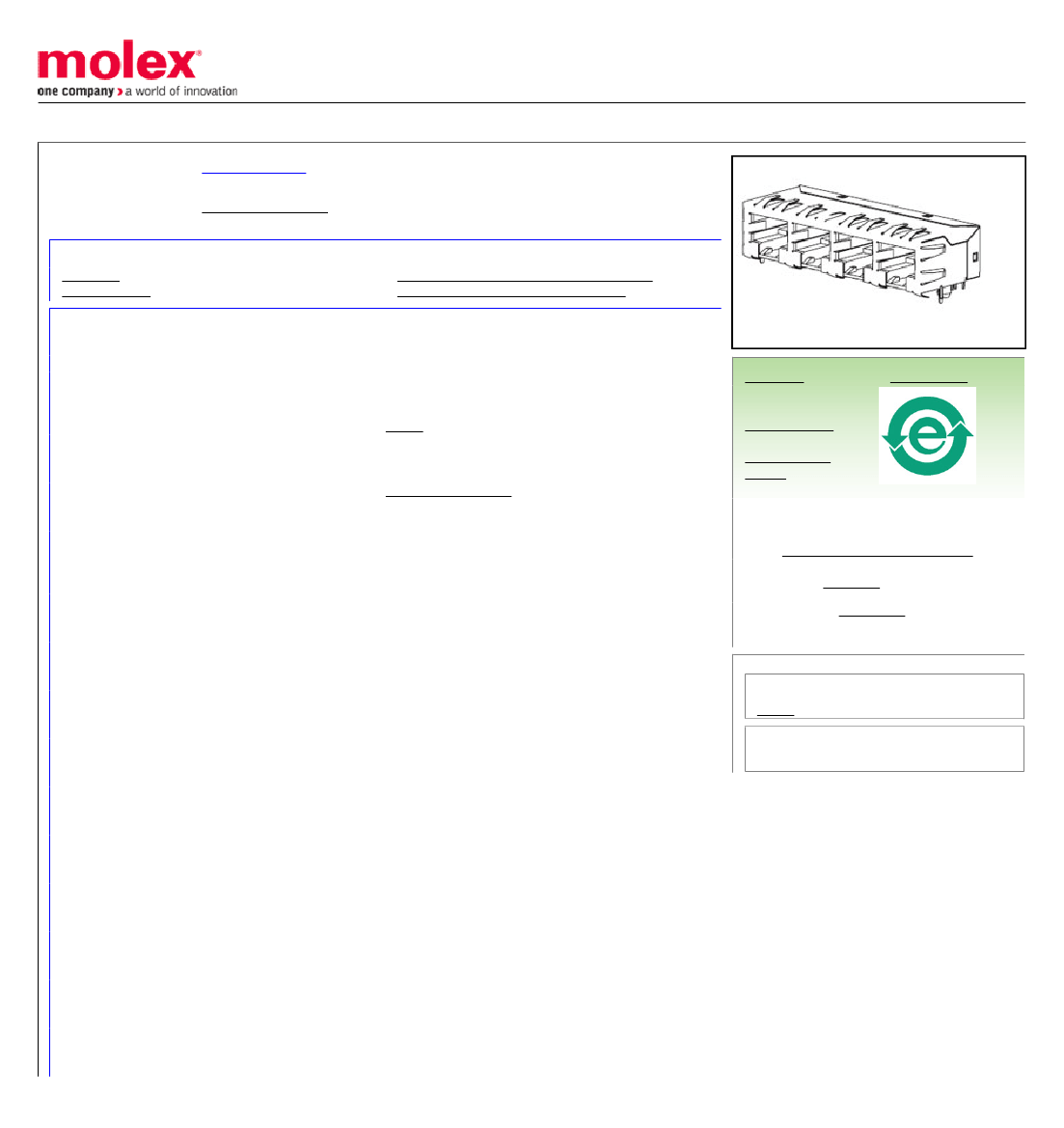

Modular Jack, Right Angle, Low Profile, 6/4, 4 Ports
Product Specification PS-43223-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E107635
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Comments
Component Type
Magnetic
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
Modular Jacks/Plugs
43223
Flush Mount|Flangeless|External Shield
PCB Jack
No
modular_plugs_jacks
3, 4
N/A
RJ11
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Flammability
Inverted / Top Latch
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
N/A
Black
500
94V-0
No
None
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
Right Angle (Side Entry)
Yes
Yes
0.062 In
1.57 mm
Tray
0.040 In
1.02 mm
0.050 In
1.27 mm
50
1.25
100
2.5
4
6/4
No
-40°C to +85°C
Through Hole
No
N/A
Search Parts in this Series
43223Series
Mates With
FCC 68 Plugs
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
1.5A
No
150V AC (RMS)
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
260
Material Info
Old Part Number
A432236028
Reference - Drawing Numbers
Packaging Specification
Product Specification

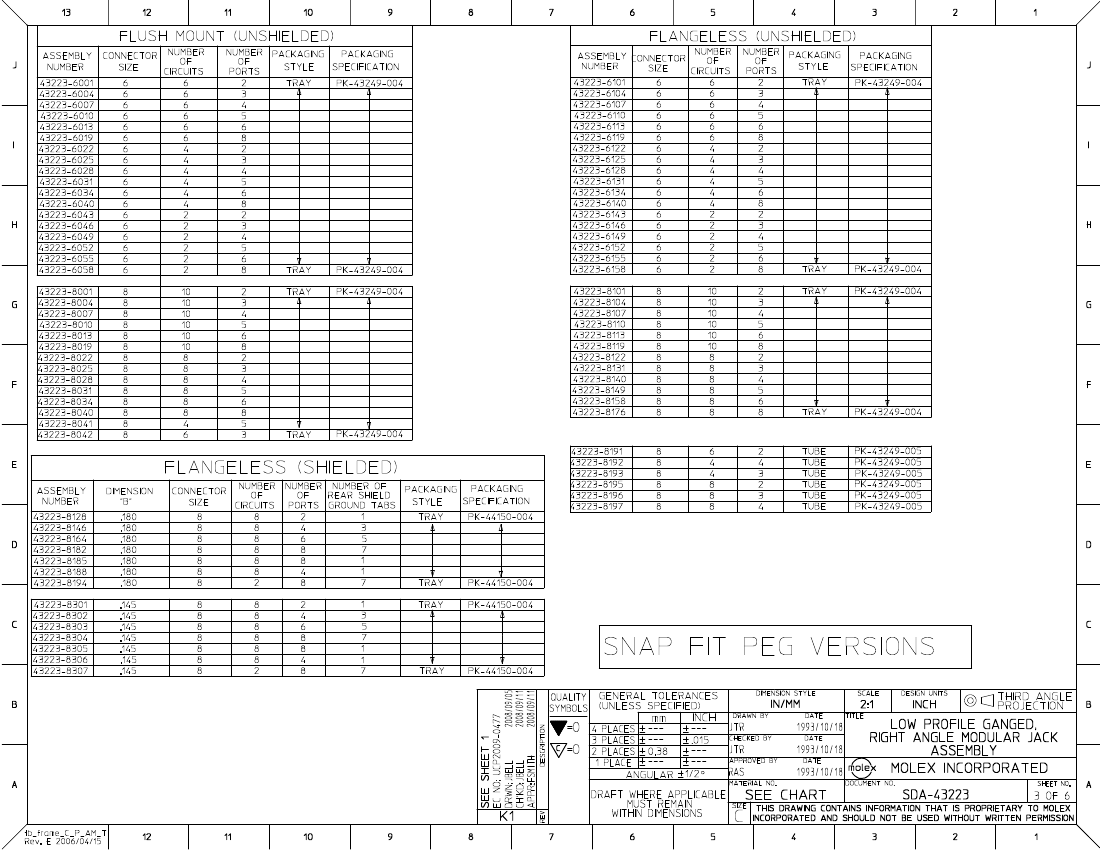

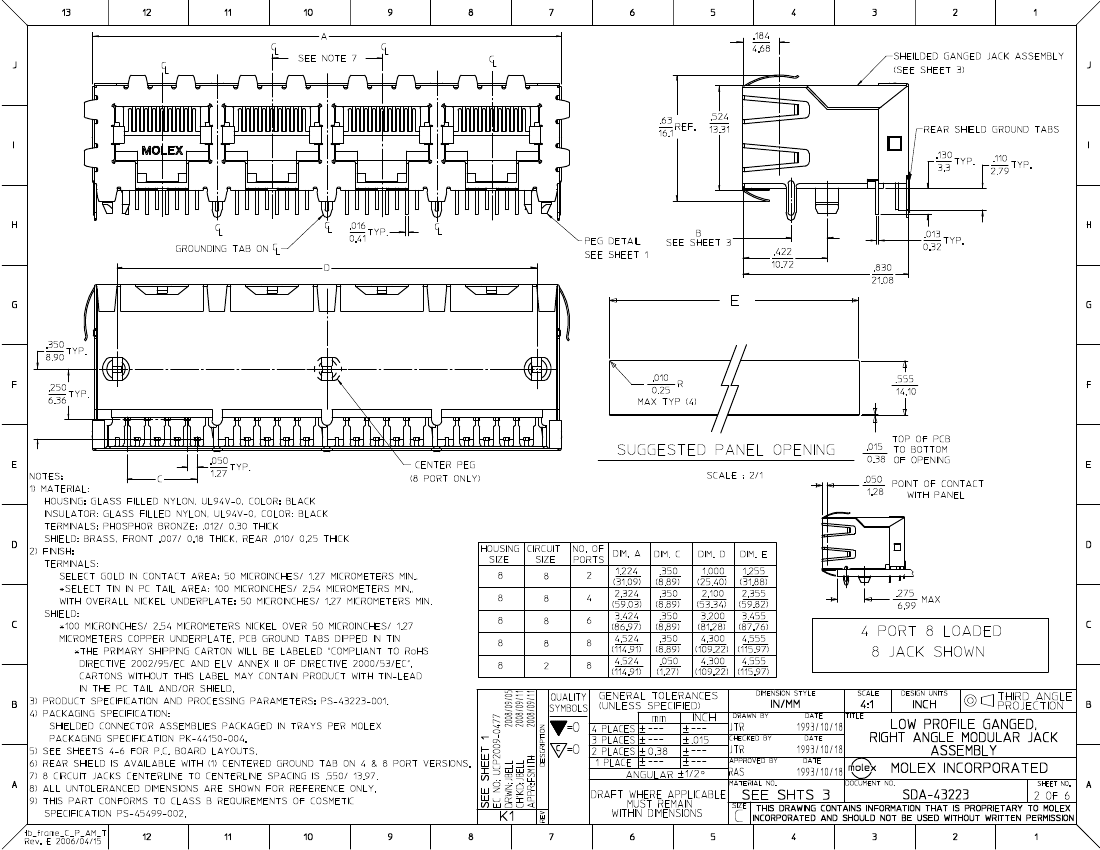

Sales Drawing
Test Summary
PK-43249-004
PS-43223-001
SDA-43223
TS-43223-001
