52018-4435: DescriptionTelecom and Ethernet connectors RA 4/4 inverted standard profile; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52018-4435 Overview

Telecom and Ethernet connectors RA 4/4 inverted standard profile

52018-4435 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	STAGGERED CONFIGURATION, STANDARD PROFILE
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	52018
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

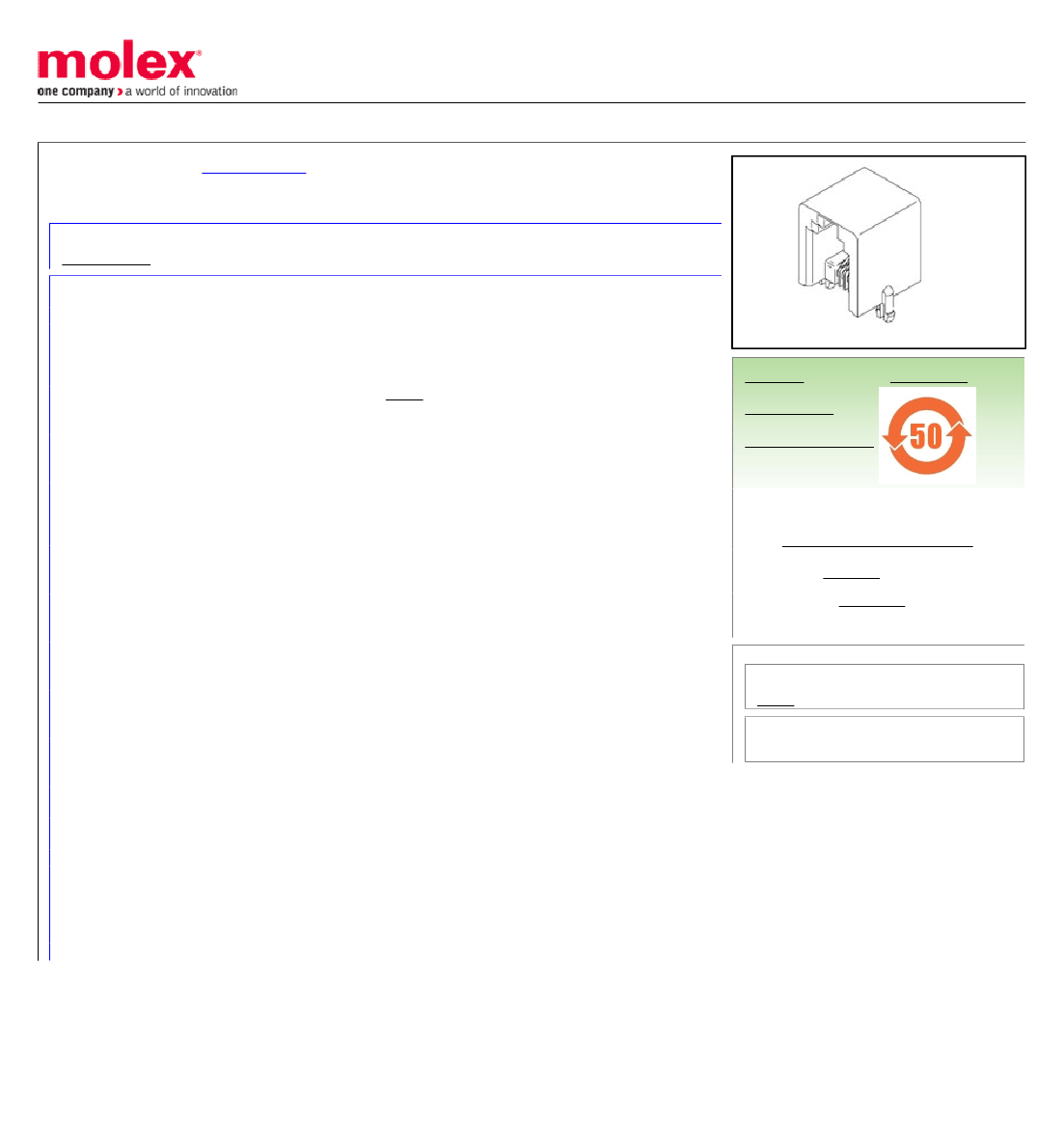

Preview

Download Datasheet

View All

This document was generated on 11/16/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

Drawing (PDF)

0520184435

Obsolete

Modular Jack, Right Angle, Inverted, 4/4

Agency Certification

CSA

UL

LR19980

E107635

Series

image - Reference only

EU RoHS

Not RoHS Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

General

Product Family

Series

Comments

Component Type

Magnetic

Performance Category

Power over Ethernet (PoE)

Product Name

Modular Jacks/Plugs

52018

Inverted

PCB Jack

No

3

N/A

Physical

Color - Resin

Flammability

Inverted / Top Latch

Lightpipes/LEDs

Material - Metal

Material - Resin

Orientation

PCB Retention

PCB Thickness - Recommended

Packaging Type

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Gray

94V-0

Yes

None

Phosphor Bronze

Polyester

Right Angle (Side Entry)

Yes

1.60mm (.063")

Tray

1

4/4

No

-40°C to +80°C

Through Hole

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

52018Series

Mates With

FCC 68 Plugs

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

1.2A

No

N/A

Material Info

Reference - Drawing Numbers

Packaging Specification

Sales Drawing

SPK-52018-001

SD-52018-4**5

This document was generated on 11/16/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
