87876-3001 datasheet, PDF - EEWORLD Datasheet

87876-3001: Description5.08mm (.200) pitch, power, 2.54mm (.100) pitch, signal, extreme powerPlus? PS-P receptacle, press-fit, vertical, 36 circuits, power beta 4, signal 28; File Size204KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

87876-3001 Overview

5.08mm (.200) pitch, power, 2.54mm (.100) pitch, signal, extreme powerPlus? PS-P receptacle, press-fit, vertical, 36 circuits, power beta 4, signal 28

Preview

Download Datasheet

View All

This document was generated on 05/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878763001

Active

extreme_powerplus_ssi

5.08mm (.200") Pitch, Power, 2.54mm (.100") Pitch, Signal, EXTreme PowerPlus™ P-

S-P Receptacle, Press-fit, Vertical, 36 Circuits, Power Beta 4, Signal 28, Power Alpha

4, No Recessed Power Circuit, with Guide Post, Leadfree

Documents:

3D Model

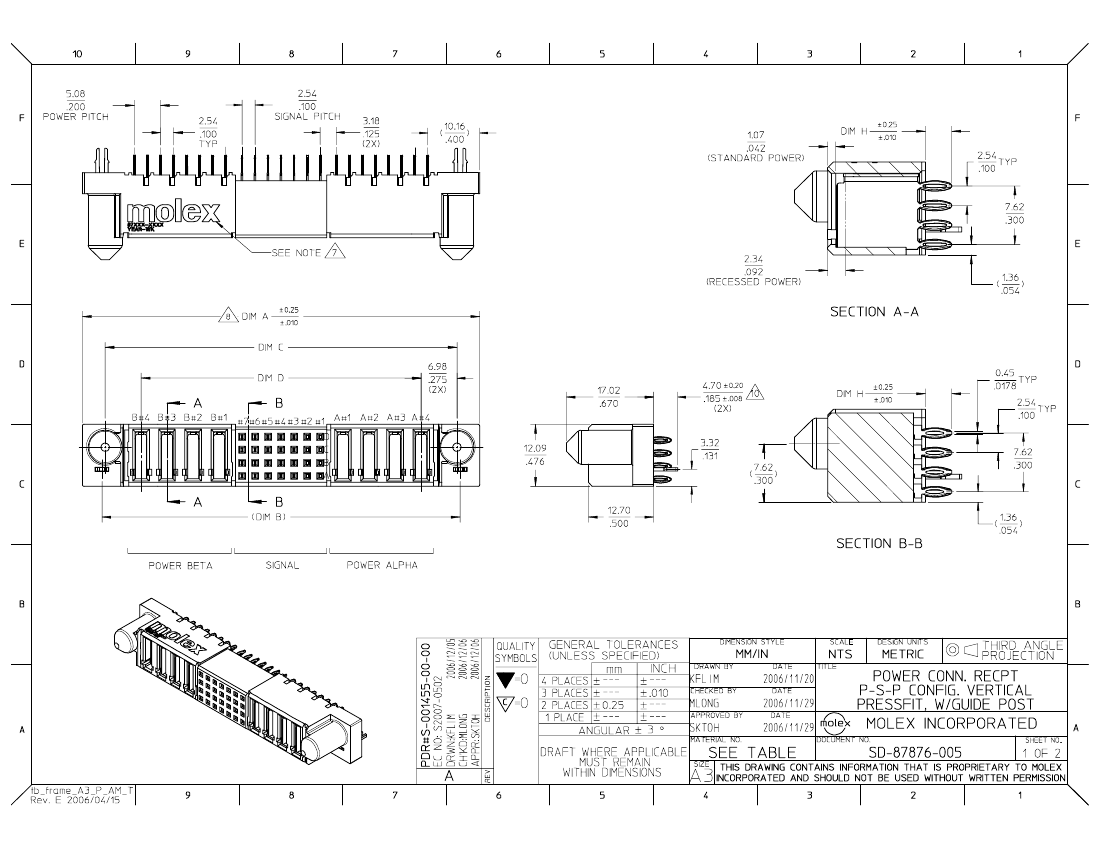

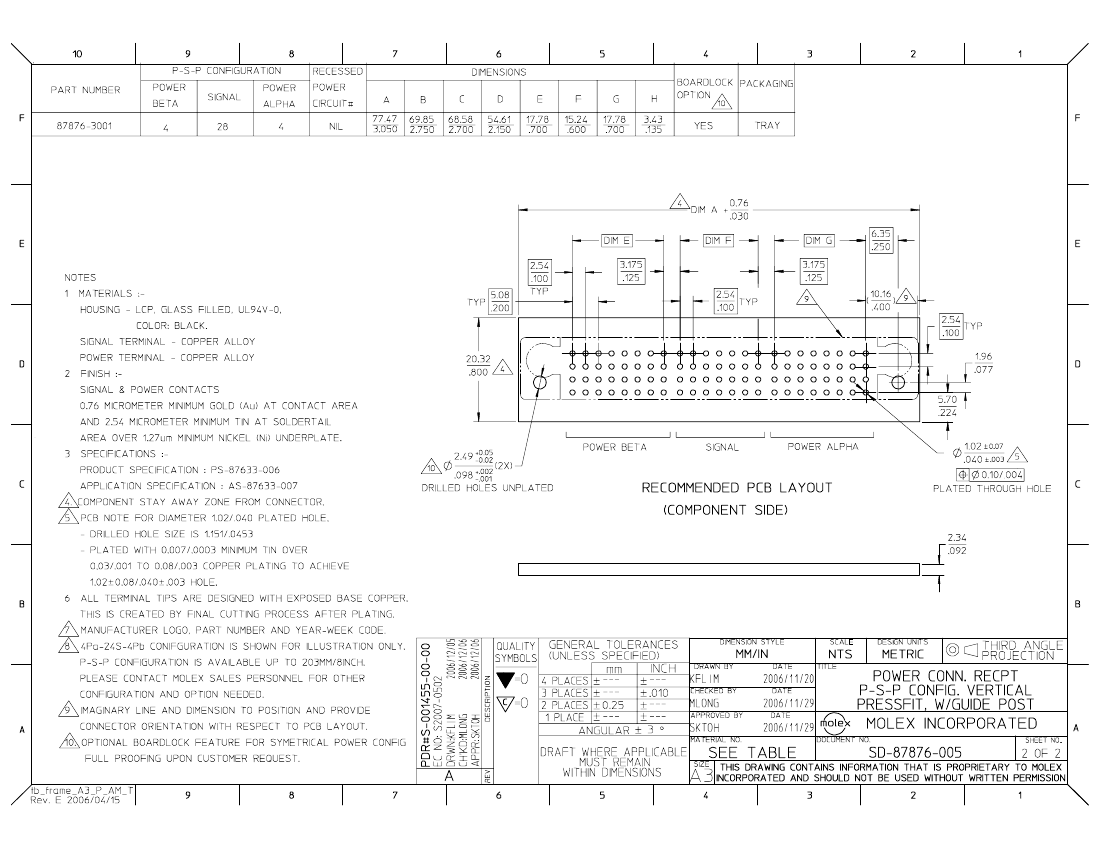

Drawing (PDF)

Product Specification PS-87633-006 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Receptacles

87876

Board-to-Board

No Recessed Power Circuit

extreme_powerplus_ssi

EXTreme PowerPlus™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits Detail

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Power Alpha 4, Signal 28, Power Beta 4

Black

100

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Vertical

0.135 In

3.43 mm

Yes

0.092 In

2.34 mm

Tray

0.100 In, 0.175 In, 0.200 In

2.54 mm, 4.44 mm, 5.08 mm

0.76

100

2.54

Yes

-20°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

87876Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

2.5A, 50A

250V DC

Material Info
