PO6-TMLP-025 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PO6-TMLP-025

PO6-TMLP-025: DescriptionNon-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6); CategoryWireless rf/communication Radio frequency and microwave; File Size163KB，3 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

PO6-TMLP-025 Overview

Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)

PO6-TMLP-025 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknow
Other features	PO6
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	23.98 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.1

Preview

Download Datasheet

View All

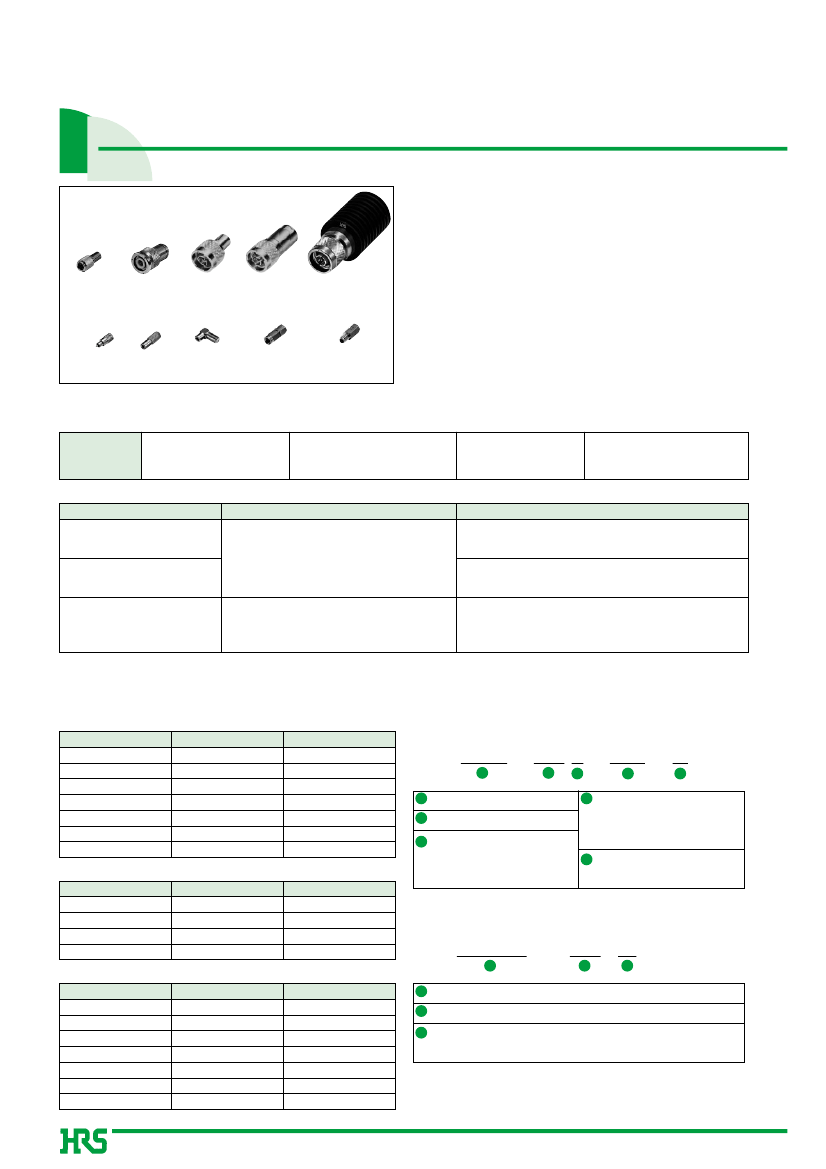

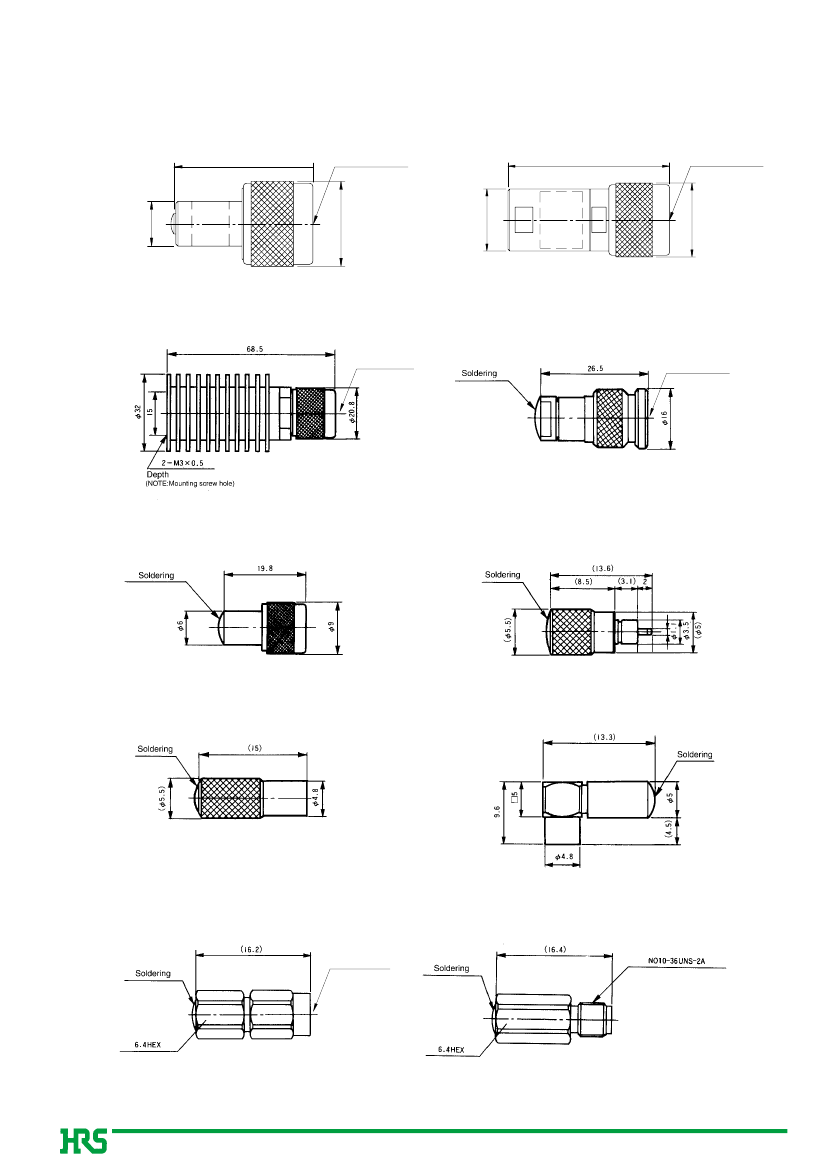

Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)

N, TNC, POB, FL, PO6, and HRMM-TM Series

Features

1.High Performance

These super wide bandwidth/ultra high matching non-

reflective termination use Hirose Electric original high

frequency matching technology.

POB-TMP-025

TNC-TMP-1

N-TMP-1-1

N-TMP-3-2

N-TMP-5

2.Full Compliment of Connector Forms

are Available

A wide variety of types are available in addition to the

BNC and SMA (Hirose Electric HRM Series) types.

These include the world standard N, TNC, and SSMA

(Hirose Electric HRMM Series) types, our miniaturized

FL Series, and the PO6 Series with apertures.

FL-TMP-025-1 PO6-TMP-025-1 PO6-TMLP-025

HRMM-601A

HRMM-602A

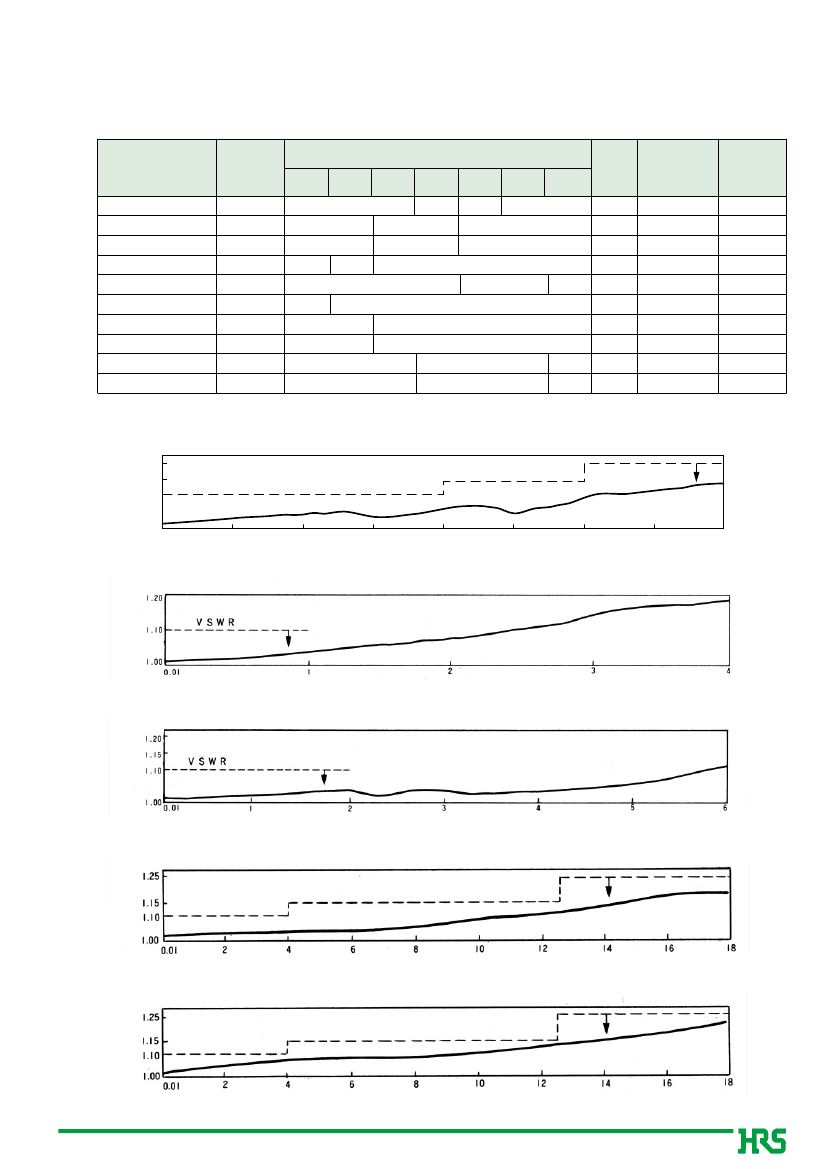

Product Specifications

Ratings

Frequency range (Note)

Characteristic impedance

Maximum usable power (Note)

DC to 18.0 GHz

50 ohms

0.25 to 5 W

Operating temperature range

Operating relative humidity

-10

to +65

95% Max.

Note: The frequency range and the maximum input power will differ depending on the products.

Item

1.Vibration

Standard

Conditions

Frequency of 10 to 2000 Hz, overall amplitude of 1.52 mm,

acceleration of 98 m/s

for 2 hours in each of 3 directions

Acceleration of 490 m/s

, sine half-wave waveform,

3 cycles in each of the 3 axis

Temperature: -55

to +35

+85

to +35

Time: 30

15 max.

15 max. (Minutes)

200 cycles

No electrical discontinuity of 1

µs

or more

No damage, cracks, or parts dislocation

2.Shock

3.Temperature cycle

No electrical discontinuity of 1

µs

or more

The test method conforms to MIL-STD-202.

Materials

N Type

Part

Connector Body

Insulator

Male contacts

External contacts

Coupling

Radiator

Resistor

Part

Connector Body

Insulator

Male contacts

Resistor

Material

Brass

PTFE

Brass

Phosphor bronze

Brass

Aluminum

Metal film

Material

Brass

PTFE

Brass

Metal film

Material

Stainless steel

PTFE

Brass

Beryllium copper

Brass

Stainless steel

Metal film

Finish

Nickel plating

----------

Ordering Information

N, TNC, POB, FL, and PO6 Types

P06 - TM P - 025 - 1

Series name

TM:Indicates a non-reflective termination

Connector type

P: Plug type

J: Jack type

Power

Gold plating

Silver plating

Nickel plating

Black alumite

----------

(Example) 025: 0.25 W

1:1W

TNC, POB, FL, and PO6 Types

Finish

Nickel plating

----------

Suffix

HRMM Type

Gold plating

----------

HRMM - 601 A

Series Name: HRMM Series

600 to 699: Indicates a non-reflective termination

Coupling Finish

A: Passivated (without cap)

HRMM Type

Part

Connector Body

Insulator

Male contacts

Female contacts

Outer conductor

Coupling

Resistor

Finish

Nickel plating

----------

Gold plating

Nickel plating

Passivated

----------

PO6-TMLP-025 Related Products

	PO6-TMLP-025	TNC-TMP-1	PO6-TMP-025-1	N-TMP-5	N-TMP-1-1	N-TMP-3-2	FL-TMP-025-1
Description	Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)	Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)	Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)	Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)	Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)	Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)	Non-reflective Terminations (N, TNC, SSMA, POB, FL, and PO6)
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknow	-	unknow	unknow
Other features	PO6	TNC	PO6-M	N	-	N	FL
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	-	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	-	COAXIAL	COAXIAL
Maximum input power (CW)	23.98 dBm	30 dBm	23.98 dBm	36.99 dBm	-	34.77 dBm	23.98 dBm
Maximum operating frequency	18000 MHz	18000 MHz	2000 MHz	18000 MHz	-	18000 MHz	18000 MHz
Maximum operating temperature	65 °C	65 °C	65 °C	65 °C	-	65 °C	65 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-	-10 °C	-10 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION	-	RF/MICROWAVE TERMINATION	RF/MICROWAVE TERMINATION
Maximum voltage standing wave ratio	1.1	1.2	1.1	1.2	-	1.2	1.1
Base Number Matches	-	1	1	-	-	1	1
