Product Brief
PMB 8876
S-GOLD2™-Multimedia Engine with
Advanced EDGE Modem Functionality
S - G O L D 2
T M
i s t h e l a t e s t m e m b e r
of Infineon’s
successful S-GOLD
®
baseband family. It combines advanced EDGE
modem technology with the latest multimedia functions required for
tomorrow’s mobile phones. Its unique architecture makes S-GOLD2
TM
the ideal fit for feature-enhanced terminals, allowing for minimum cost
system solutions at minimum space requirements.
Centered around the powerful ARM
®
926 CPU, S-GOLD2
TM
provides
the horsepower needed for power-greedy software applications.
Additionally it hosts on-chip hardware for the latest multimedia
features, such as high-resolution display interface, dedicated camera
interface, hardware support for MPEG4 encoding, Java hardware
accelerator, and a large number of connectivity peripherals. MMS for
still picture and video, 3D gaming, Java applications, 3GPP compliant
video streaming are just a few of the latest applications that are easily
supported with S-GOLD2
TM
.
S-GOLD2
TM
’s high integration level of the key feature set keeps system
size and cost at a minimum. To accommodate for more demanding
feature requirements S-GOLD2
TM
can easily be upgraded with multime-
dia ICs via its standardized multimedia interface. Its architecture
provides the scalability needed to enable cost-efficient as well as
top-of-the-line phones with a single baseband IC.
Combined with Infineon’s SMARTi
TM
RF devices and S/M POWER
TM
power
management ICs, S-GOLD2
TM
allows for a true 3-chip quad-band EDGE
solution.
Key Application Features
■
■
■
■
■
■
■
■
■
■
■
ARM
®
926 based single modem and
application processor with cache support
and fast tightly-coupled memories
Parallel/serial display interface supporting
high resolution color displays
ITU-R BT.656 compliant camera interface
supporting camera applications of up to
2 MPixel
MPEG4/H.263 encoder hardware
(MOVE
®
coprocessor)
MMC/SD interface, SD IO capable
USB 2.0 on-the-go, full speed
Fast IrDA
Dedicated NAND flash controller supporting
burst mode and error detection
Standardized multimedia extension interface
(MMIC-IF) supporting external hardware
accelerator ICs such as complex display/
camera modules or graphic accelerators
3 bi-directional digital audio interfaces (I
2
S)
to connect audio companion ICs and
Bluetooth modules
Support for video streaming
Applications
■
■
GSM/E-GPRS/GPRS multimedia phones with tomorrow’s
multimedia requirements
Minimum space E-GPRS/GPRS data modules supporting up to
multislot class 12
High integration level of key multimedia features allowing for
minimum cost system solutions with the right feature set
Proven leading-edge modem technology with second generation
E-GPRS evolvement
Feature flexibility through upgrade options with multimedia chips
via standardized interface
Connectivity to Bluetooth, FM Radio, WLAN, A-GPS and other modules
Software compatibility to other members of the S-GOLD
®
family
Complete software suite available from Layer1 up to application
software based on APOXI
TM
API
3G upgradeable with WCDMA coprocessor
Key Modem Features
■
■
■
■
■
■
Key Benefits
■
■
■
■
■
■
GSM/E-GPRS/GPRS modem supporting up to
multislot class 12
FR, HR, EFR, AMR
HSCSD class 10
SAIC
DTM class 9
Polyphonic ringer support for up to 40 voices
at up to 48 kHz sampling rate
MP3 decoder
Echo cancellation/noise reduction
GTT/TTY
■
■
■
■
www.infineon.com/mobilesolutions
Mobile Solutions
N e v e r
s t o p
t h i n k i n g .
Product Brief

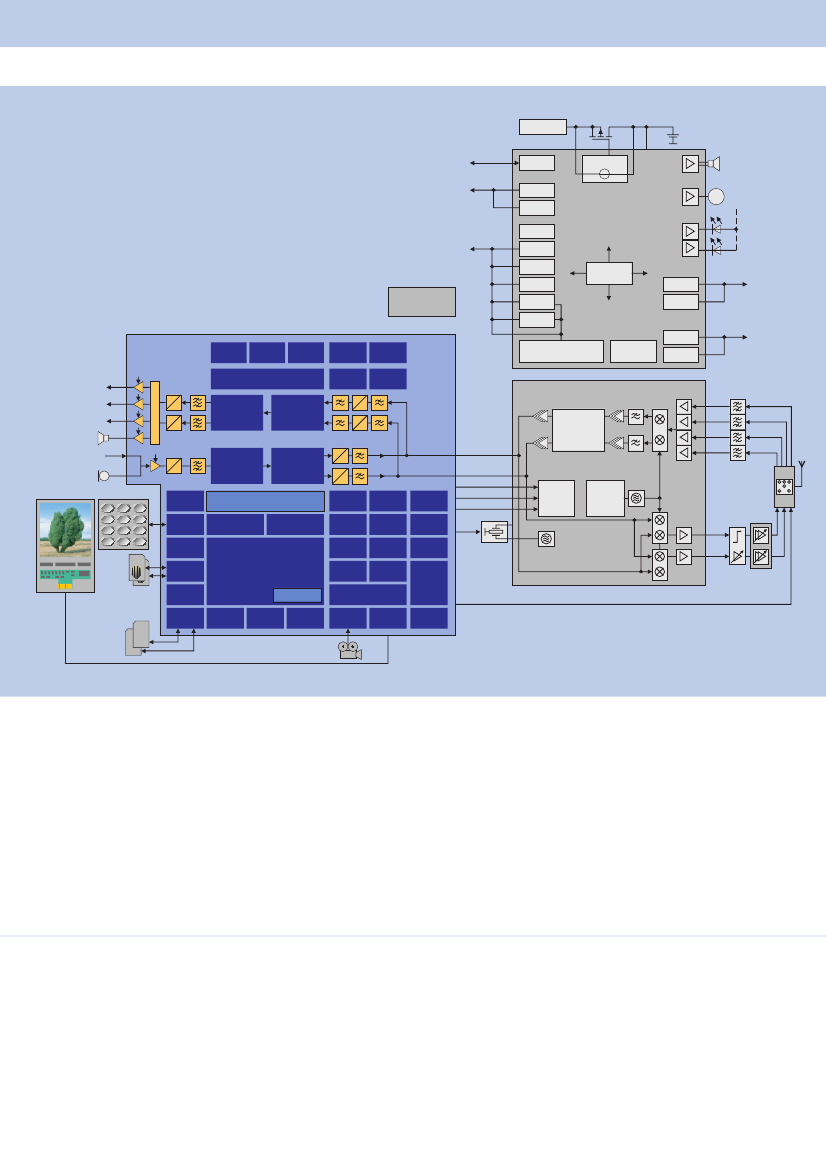

Example for Quad-Band E-GPRS Solution
AC-Adaptor
IC
Interface
Power Bus
Peripherals
2
NiMH/LiIon
Battery
Charger
I
2
C
V
DD
Amp
Pre-Charge
V
USB Host
V
Memory
Motor
Driver
M
S/M POWER
(PMB 6811)
LED
Driver
Power Bus
Bluetooth
Power Bus
Baseband
V
BB I/O Hi
V
BB USB
V
BB Analog
V
RTC
Control
V
BT BB
V
RF3 (BT)
FLASH/SDRAM
V
BB1
V
BB2
S-GOLD2
(PMB 8876)
V
RF Main
I
2
S
I
2
S / DAI
TEAKLite
®
SSC
GPTU
GSM
Cipher Unit
Power Bus
RF
IR-Memory
RF
Control
BB (LR)/Mem/Copro
Step down 600 mA
On-chip
Reference
V
RF VCXO
Headset
MUX
Ringer
Earpiece
D
D
A
A
Speech
and Channel
Decoding
Equalizer
A
A
SMARTi DC+
(PMB 6258)
Atomatic
Offset
Compensation
I
GSM 850/1900
GSM 900/1800
850
900
1800
1900
D
D
Car Kit
A
D
USB FS
OTG
Keypad
GPIOs
USIM
Fast
IrDA
Speech
and Channel
Encoding
D
8 PSK/GMSK
Modulator
D
A
A
AFC
AUX
ADC
CGU
GSM
Timer
SCCU
Q
CLK
DAT
ENA
26 MHz
AFC
1
4
7
*
2
5
8
0
3
6
9
#
SRAM
DMAC
ICU
GEA-1/2/3
CAPCOM
GPTU
Control
Logic
SAM
Fast PLL
850
900
Rx/Tx
I
2
C
JTAG
ARM
®
926 EJ-S
MOVE Copro
USIF
SSC
USARTs
RTC
1800
1900
EBU
RF Control
FCDP
Multimedia IC IF
Camera
IF
Display
IF
Multi
Mode
PA
MMC/SD
IF
MMC
SDC
Note: TEAKLite
®
is a registered trademark of ParthusCeva, Ltd.
ARM
®
is a registered trademark of ARM, Ltd.
How to reach us:
http://www.infineon.com
Published by
Infineon Technologies AG,
St.-Martin-Strasse 53,
D-81669 München
© Infineon Technologies AG 2004.
All Rights Reserved.
Attention please!
The information herein is given to describe certain components
and shall not be considered as a guarantee of characteristics.
Terms of delivery and rights to technical change reserved.
We hereby disclaim any and all warranties, including but not
limited to warranties of non-infringement, regarding circuits,
descriptions and charts stated herein.
Information
For further information on technology, delivery terms
and conditions and prices please contact your nearest
Infineon Technologies Office.
Warnings
Due to technical requirements components may contain dangerous
substances. For information on the types in question please contact
your nearest Infineon Technologies Office.
Infineon Technologies Components may only be used in life-
support devices or systems with the express written approval of
Infineon Technologies, if a failure of such components can reason-
ably be expected to cause the failure of that life-support device or
system, or to affect the safety or effectiveness of that device or sys-
tem. Life support devices or systems are intended to be implanted
in the human body, or to support and/or maintain and sustain
and/or protect human life. If they fail, it is reasonable to assume
that the health of the user or other persons may be endangered.
Template: pb_tmplt.fm/4/2004-01-01
Published by Infineon Technologies AG
Ordering No. B134-H8392-x-x-7600
Printed in Germany
PS 02042. NB
