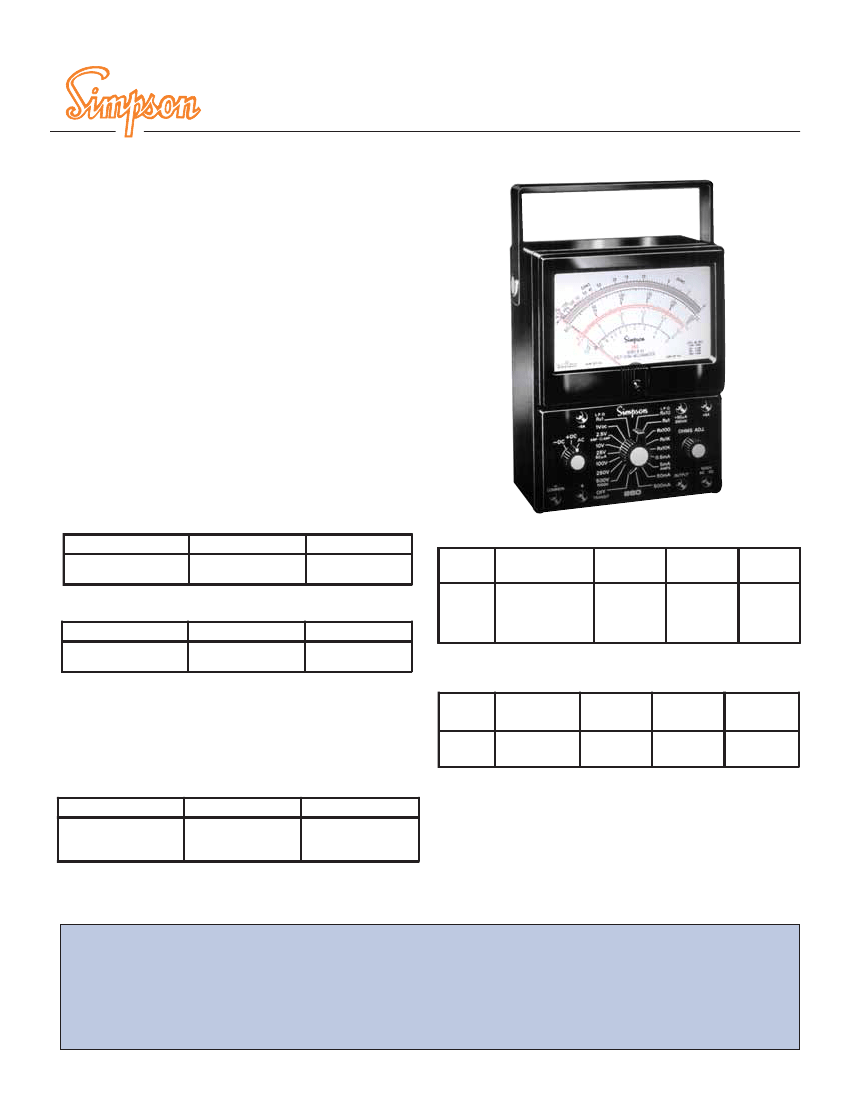

260-6XLM & 260-6XLPM Low Power VOM
Low Power Ohms Range
Based on the famous 260, the 260-6XLPM has extra features and extra ranges. The
large viewing area with color-coded scales minimizes measurement mistakes and
visual confusion. The 260-6XLPM allows accurate in-circuit tests without risk to
components or without causing digital circuits to switch states. The durable ABS
plastic case provides high-impact resistance and increased drop protection in the
toughest environments.
•
Instant Trend Information for Quick Positive "Yes/No" Checks
•
2 Extra “Low Power” Ohms Ranges (Rx1 and Rx10)
•
Mirrored Scale for Parallax Reduction
•
Resettable Overload Circuit Protection Relay
•
Includes 9 V and 1.5 V Batteries and Probe Test Leads With Alligator Clips
®
®
Specifications
DC VOLTAGE
Ranges
250mV, 1V, 2.5V, 10V, 25V,
100V, 250V, 500V, 1000V
Accuracy
2% of full scale
Sensitivity
20K
per volt
STANDARD POWER RESISTANCE
Ranges
Rx1
Rx100
Rx1K
Rx10K
Accuracy
Maximum
Indication
0-2K
0-200K
0-2M
0-20M
Open Circuit
Voltage
1.5V
1.5V
1.5V
9.0V
Short Circuit
Current
250mA
2.5mA
250 A
125 A
AC VOLTAGE
Ranges
2.5V, 10V, 25V, 100V, 250V,
500V, 1000V
Accuracy
3% of full scale
Sensitivity
5K
per volt
2.5° of arc on Rx1
2.0° of arc on all others
DECIBEL
5 Ranges: -20 to +49dB
Reference: 0dB= 1mW into 600
LOW POWER RESISTANCE
Ranges
Rx1
Rx10
Accuracy
2.5° of arc on Rx1
2.0° of arc onRx10
Maximum
Indication
0-1K
0-10K
Open Circuit
Voltage
100mV
100mV
Short Circuit
Current
4.9mA
490 A
AC CURRENT
Up to 250 AC amperes with AC Amp-Clamp Adapter Accessory 00541.
DC CURRENT
Ranges
50 A, 0.5mA, 5mA, 50mA,
500mA, 5A,
Accuracy
1% of Full Scale 50 A
2.0% full scale, all other
Voltage Drop: (Nominal)
250mV on 50 A/0.5mA/5A;
252mV on 5mA/50mA;
400mV on 500mA
BATTERIES:
1.5V D, 9V (NEDA No. 13F, 1604A)
FUSE:
F1 1A, 250V, type 3AG, quick acting Littelfuse
®
Type 312001, F2 2A, 600V
Littelfuse
®
Type BLS or 2A 600V, Bussman
®
Type BBS.
SIZE:
5 1/4" x 7" x 3 1/8" (13.34 x 17.78 x 7.94 cm)
WEIGHT:
2 1/4 lbs. (1.02 Kg)
RATED CIRCUIT-TO-GROUND VOLTAGE:
1000V AC/DC Max
Specifications subject to change without notice.
Ordering Information
VOM
260-6XLM
260-6XLPM
Catalog No.
12206
12211
ACCESSORIES
Catalog No.
Probe Leads w/Screw-on Alligator Clip
00125
Probe Set, Replaceable Tip, Banana
07538
Lead Set, Alligator, Banana
07500
Clip Set, Alligator, Screw-On
00425
150-2 Amp Clamp Adapter, AC
00541
6
ACCESSORIES
Padded Polyester Case (Yellow)
Padded Polyester Case (Black)
Case, Hard Leatherette Front Load
Case, Molded Plastic
Catalog No.
00832
00834
00805
45028
Additional accessories are on pages 22-24.
