DEI1085-QMS-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DEI1085-QMS-G

DEI1085-QMS-G: DescriptionSerial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, PQFP52, MQFP-52; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，15 Pages; ManufacturerDevice Engineering Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

DEI1085-QMS-G Overview

Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, PQFP52, MQFP-52

DEI1085-QMS-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Device Engineering Incorporated
Parts packaging code	QFP
package instruction	MQFP-52
Contacts	52
Reach Compliance Code	compliant
Other features	CAN ALSO OPERATE AT 5 V SUPPLY
Address bus width
boundary scan	NO
maximum clock frequency	1.01 MHz
letter of agreement	ASYNC, BIT
Maximum data transfer rate	0.01220703125 MBps
External data bus width	16
JESD-30 code	S-PQFP-G52
JESD-609 code	e3
length	10 mm
low power mode	NO
Humidity sensitivity level	3
Number of serial I/Os	1
Number of terminals	52
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.44 mm
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	10 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

Preview

Download Datasheet

View All

Device

Engineering

Incorporated

385 East Alamo Drive

Chandler, AZ 85225

Phone: (480) 303-0822

Fax: (480) 303-0824

E-mail:

admin@deiaz.com

DEI1084/1085

ARINC 429 ENHANCED

TRANSCEIVER

GENERAL DESCRIPTION

The DEI1084 is a CMOS ARINC 429 Transceiver IC. It

is pin compatible with the Holt HI-3584 and HI-8584

products.

The DEI2084 and DEI2085 are alternate package pin-out

version of 64L MLPQ package, which include TXSEL pin.

The enhancements relative to the DEI1016 transceiver

include: 32x32 bit FIFO for transmitter, 32x32 bit FIFO

for each receiver, a status register, label recognition

capability, bit timing feature and choice of scrambled or

unscrambled ARINC data output.

The DEI1085 version requires external serial 10KOhm

resistors on the receiver inputs. This simplifies the

implementation of external lightning protection networks.

The DEI1084 version has on-chip 10KOhm resistors and

do not require external resistors on the inputs.

FEATURES

•

ARINC specification 429 compatible

3.3V/5.5V supply operation

Dual receiver and single transmitter interface

32nd transmit bit can be data or parity

Self test mode

Pin compatible with HI3584 & HI8584

Programmable label recognition

On-chip 16 label memory for each receiver

32 x 32 FIFO for transmitter and each receiver

Independent data rate selection for transmitter and

each receiver

Status register

Data scramble control

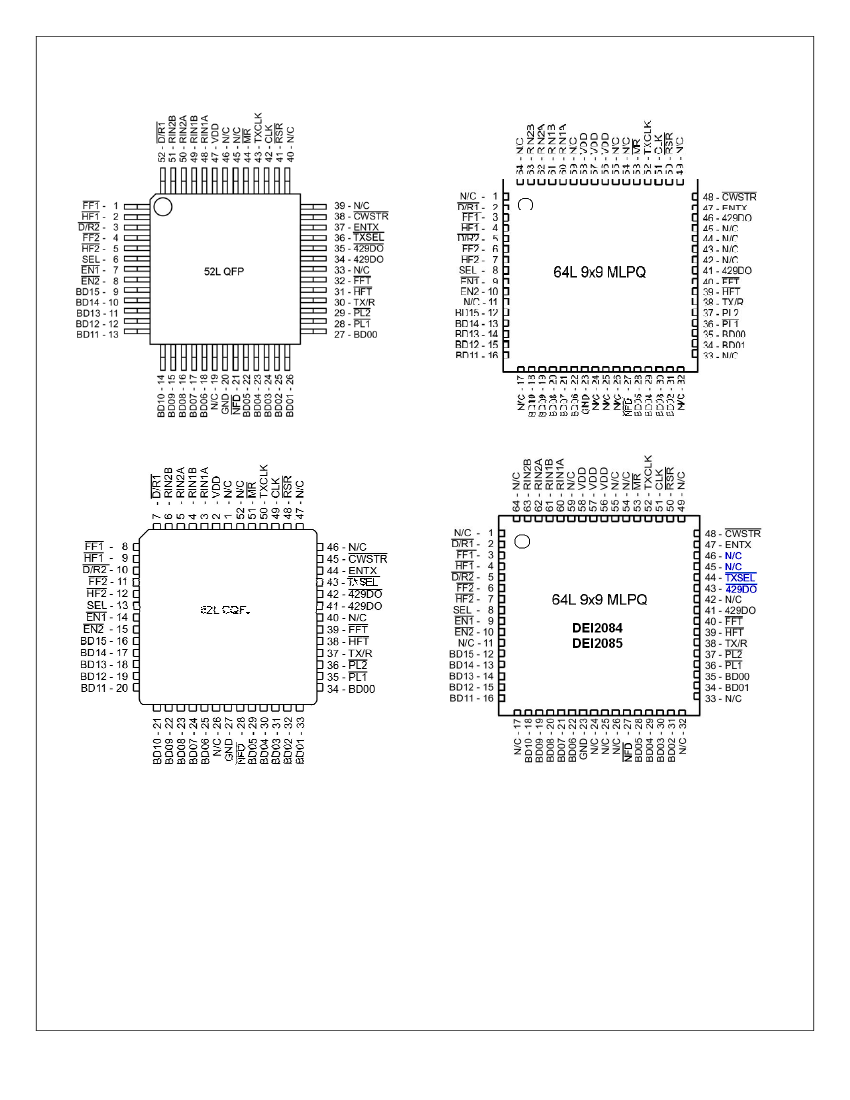

Package Options: 52L QFP, 52L CQFJ, & 64L

MLPQ

ORDERING INFORMATION

Part Number

DEI1084-QES-G

DEI1084-QMS-G

DEI1084-MES-G

DEI1084-UMS

DEI1085-QES-G

DEI1085-QMS-G

DEI1085-MES-G

DEI1085-UMS

DEI2084-MES-G

DEI2085-MES-G

DEI2084-MMS-G

DEI2085-MMS-G

Marking

DEI1084-QES

DEI1084-QMS

DEI1084-MES

DEI1084-UMS

DEI1085-QES

DEI1085-QMS

DEI1085-MES

DEI1085-UMS

DEI2084-MES

DEI2085-MES

DEI2084-MMS

DEI2085-MMS

Package

52L MQFP G

64L MLPQ G

52L CQFJ

52L MQFP G

64L MLPQ G

52L CQFJ

64L MLPQ G

Burn In

10K Resistors

internal

external

internal

external

internal

external

Temperature

-55 / +85 ºC

-55 / +125 ºC

-55 / +85 ºC

-55 / +125 ºC

-55 / +85 ºC

-55 / +125 ºC

-55 / +85 ºC

-55 / +125 ºC

-55 / +85 ºC

-55 / +125 ºC

DEI reserves the right to make changes to any products or specifications herein. DEI makes no warranty, representation, or

guarantee regarding suitability of its products for any particular purpose.

1 of 15

DS-MW-01084-02 Rev. F

9/29/11

DEI1085-QMS-G Related Products

	DEI1085-QMS-G	DEI1085-QES-G	DEI1084-UMS	DEI1085-UMS	DEI1085-MES-G	DEI1084-MES-G	DEI1084-QES-G	DEI1084-QMS-G
Description	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, PQFP52, MQFP-52	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, PQFP52, MQFP-52	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, CQCC52, QFJ-52	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, CQCC52, QFJ-52	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, MLPQ-64	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, MLPQ-64	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, PQFP52, MQFP-52	Serial I/O Controller, 1 Channel(s), 0.01220703125MBps, CMOS, PQFP52, MQFP-52
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	QFP	QFP	QFJ	QFJ	QFN	QFN	QFP	QFP
package instruction	MQFP-52	QFP,	QCCJ,	QFJ-52	HVQCCN,	HVQCCN,	QFP,	QFP,
Contacts	52	52	52	52	64	64	52	52
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	CAN ALSO OPERATE AT 5 V SUPPLY	CAN ALSO OPERATE AT 5 V SUPPLY	CAN ALSO OPERATE AT 5 V SUPPLY	CAN ALSO OPERATE AT 5 V SUPPLY	CAN ALSO OPERATE AT 5 V SUPPLY	CAN ALSO OPERATE AT 5 V SUPPLY	CAN ALSO OPERATE AT 5 V SUPPLY	CAN ALSO OPERATE AT 5 V SUPPLY
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	1.01 MHz	1.01 MHz	1.01 MHz	1.01 MHz	1.01 MHz	1.01 MHz	1.01 MHz	1.01 MHz
letter of agreement	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT
Maximum data transfer rate	0.01220703125 MBps	0.01220703125 MBps	0.01220703125 MBps	0.01220703125 MBps	0.01220703125 MBps	0.01220703125 MBps	0.01220703125 MBps	0.01220703125 MBps
External data bus width	16	16	16	16	16	16	16	16
JESD-30 code	S-PQFP-G52	S-PQFP-G52	S-CQCC-J52	S-CQCC-J52	S-XQCC-N64	S-XQCC-N64	S-PQFP-G52	S-PQFP-G52
JESD-609 code	e3	e3	e4	e4	e3	e3	e3	e3
length	10 mm	10 mm	19.05 mm	19.05 mm	9 mm	9 mm	10 mm	10 mm
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of serial I/Os	1	1	1	1	1	1	1	1
Number of terminals	52	52	52	52	64	64	52	52
Maximum operating temperature	125 °C	85 °C	125 °C	125 °C	85 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP	QCCJ	QCCJ	HVQCCN	HVQCCN	QFP	QFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	NOT SPECIFIED	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.44 mm	2.44 mm	2.61 mm	2.61 mm	1 mm	1 mm	2.44 mm	2.44 mm
Maximum supply voltage	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	OTHER	MILITARY	MILITARY	OTHER	OTHER	OTHER	MILITARY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Gold (Au)	Gold (Au)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	J BEND	J BEND	NO LEAD	NO LEAD	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm	1.27 mm	0.5 mm	0.5 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	40	40	NOT SPECIFIED	NOT SPECIFIED	40	40	40	40
width	10 mm	10 mm	19.05 mm	19.05 mm	9 mm	9 mm	10 mm	10 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Maker	Device Engineering Incorporated	Device Engineering Incorporated	-	Device Engineering Incorporated	Device Engineering Incorporated	Device Engineering Incorporated	Device Engineering Incorporated	Device Engineering Incorporated
Humidity sensitivity level	3	3	-	-	3	3	3	3
