DG506ACJ: DescriptionSingle-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PDIP28, PLASTIC, DIP-28; CategoryAnalog mixed-signal IC The signal circuit; File Size301KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG506ACJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG506ACJ	-	-	View	Buy Now

DG506ACJ Overview

Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PDIP28, PLASTIC, DIP-28

DG506ACJ Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDIP-T28
length	37.4 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Nominal off-state isolation	68 dB
On-state resistance matching specifications	14.4 Ω
Maximum on-state resistance (Ron)	450 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	2.4 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

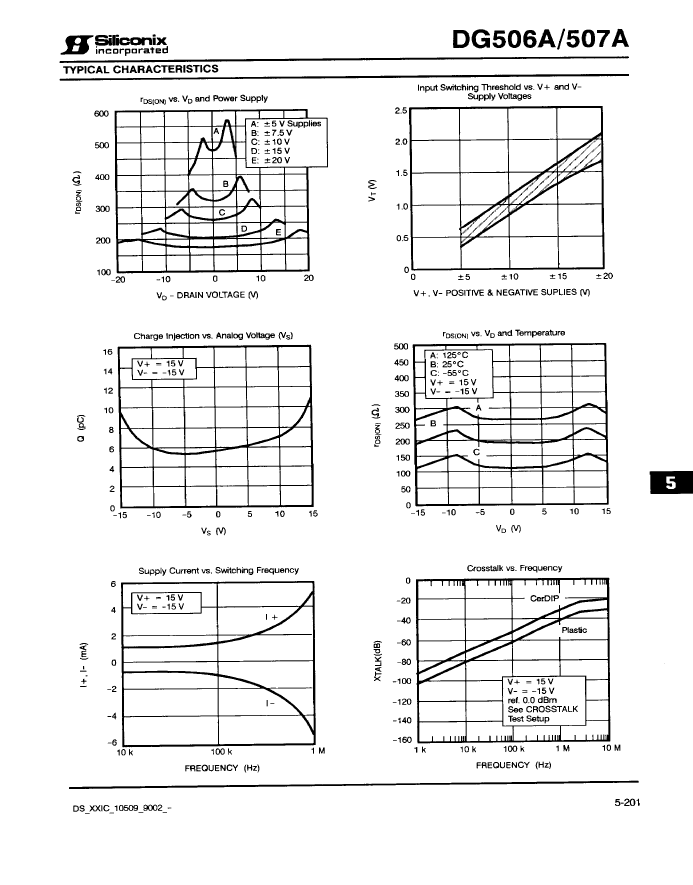

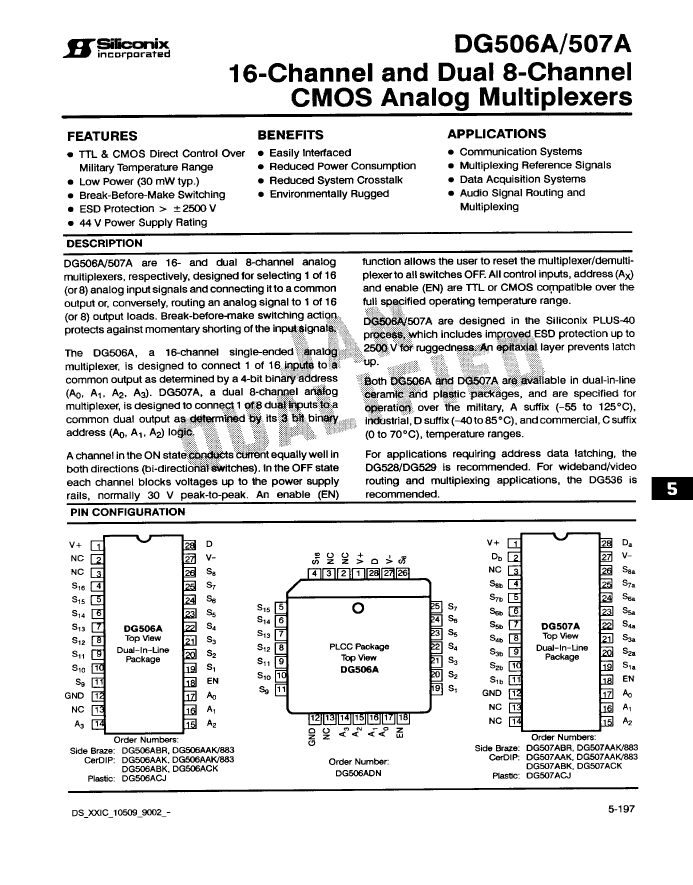

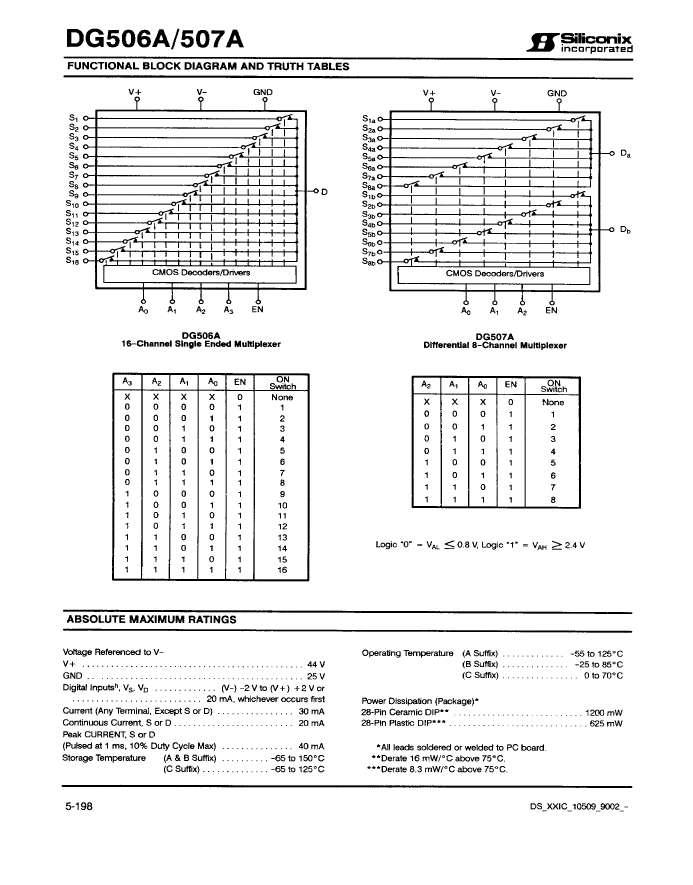

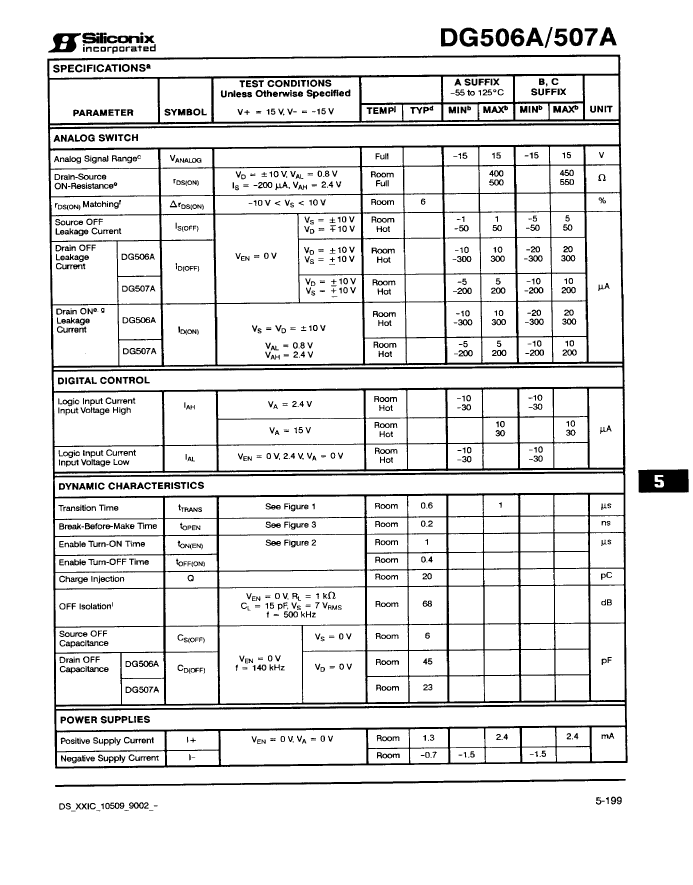

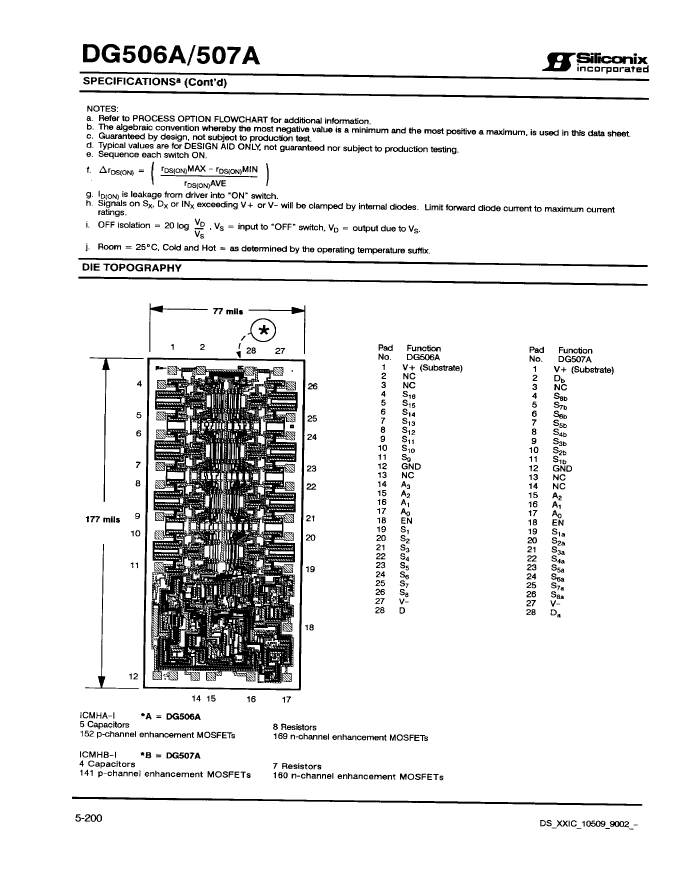

Preview

Download Datasheet

View All

Printed from www.freetradezone.com, a service of Partminer, Inc.

This Material Copyrighted By Its Respective Manufacturer

DG506ACJ Related Products

	DG506ACJ	DG506ACK	DG506ADN	DG506ABK	DG507ACJ	DG507ABR
Description	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PDIP28, PLASTIC, DIP-28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERDIP-28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CQCC28	Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, CDIP28, CERDIP-28	Differential Multiplexer, 1 Func, 8 Channel, CMOS, PDIP28,	Differential Multiplexer, 1 Func, 8 Channel, CMOS, CDIP28
package instruction	DIP,	DIP,	QCCJ,	DIP,	DIP, DIP28,.6	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDIP-T28	R-GDIP-T28	S-PQCC-J28	R-GDIP-T28	R-PDIP-T28	R-XDIP-T28
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	16	16	16	16	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
Maximum on-state resistance (Ron)	450 Ω	450 Ω	450 Ω	450 Ω	550 Ω	550 Ω
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	QCCJ	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	2.4 mA	2.4 mA	2.4 mA	2.4 mA	3.9 mA	3.9 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	OTHER	COMMERCIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
Maker	Vishay	-	Vishay	Vishay	-	Vishay
Parts packaging code	DIP	DIP	QLCC	DIP	DIP	-
Contacts	28	28	28	28	28	-
length	37.4 mm	36.83 mm	11.5062 mm	36.83 mm	-	-
Nominal off-state isolation	68 dB	68 dB	68 dB	68 dB	-	-
On-state resistance matching specifications	14.4 Ω	14.4 Ω	14.4 Ω	14.4 Ω	-	-
Maximum seat height	5.08 mm	5.92 mm	4.57 mm	5.92 mm	-	-
width	15.24 mm	15.24 mm	11.5062 mm	15.24 mm	-	-
Base Number Matches	1	1	1	1	1	-
