Very low Jitter and Phase Noise (30-70ps Pk-Pk typical)
Up to 2 programmable outputs
Output frequency up to 75MHz CMOS
Programmable Output Enable (OE) pin
Accepts Crystal clock input
o
Fundamental crystal: 10MHz-30MHz
o
Reference input: Up to 100MHz
•
Single 2.5V or 3.3V ± 10% power supply
•
Operating temperature range from -40°C to 85°C
•
Available in 6-pin SOT Green/RoHS compliant Pkg.
•
•
•
•
•
•

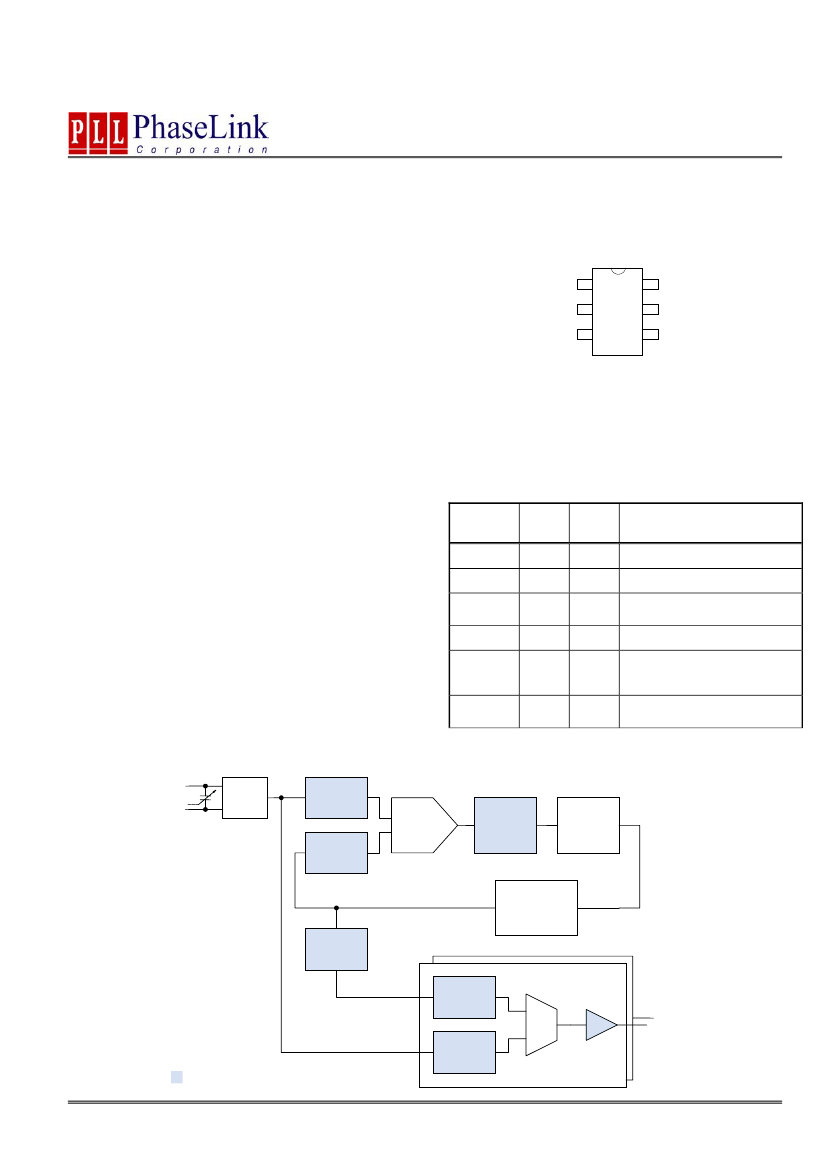

PIN CONFIGURATION
CLK1
GND
XIN/FIN
1
2
3
6
5
4
VDD
CLK2, OE
XOUT
SOT- 23
PL611-07
DESCRIPTION
The PL611-07 is a low-cost general purpose
frequency synthesizer and a member of PhaseLink’s
Programmable ‘Quick Turn Clock (QTC)’ family.
PhaseLink’s PL611-07 offers generating two system
clock frequencies of up to 75MHz form a 10-30MHz
fundamental crystal or a Reference clock source.
One clock output can be programmed to operate as
OE or be used as a Reference output. Cascading of
the ICs to produce additional clock frequencies is
also supported.
PIN DESCRIPTION
Name
CLK1
GND
XIN/FIN
XOUT
CLK2,
OE
VDD
Pin
#
1
2
3
4
5
6
Type
O
P
I
O
B
P
Description
Programmable Clock Output
GND connection
Crystal or Reference input
pin
Crystal output pin
Programmable Clock or
Reference Output, or OE
VDD connection
(2.25~3.63V)
BLOCK DIAGRAM
XIN/FIN
XOUT
Xtal
OSC
FRef
R-counter
(8-bit)
Phase
Detector
M -counter
(10 -bit)
Charge
Pump
Loop
Filter
F
VCO
= F
Ref.
* (2 * M /R)
P-counter
(5-bit)
Selectable
/1,/2,/4,/8
VCO
F
out
= F
VCO
/ (2 * P)
CLK[1:2]
Selectable
/1,/2
Programmable Function
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 08/17/05 Page 1
PL611-07
Programmable Quick Turn Clock
T M
ELECTRICAL SPECIFICATIONS
ABSOLUTE MAXIMUM RATINGS
PARAMETERS
Supply Voltage Range
Input Voltage Range
Output Voltage Range
Soldering Temperature (Green package)
Data Retention @ 85°C
Storage Temperature
Ambient Operating Temperature
T
S
10
-65
-40
150
85
SYMBOL
V
DD
V
I
V
O
MIN.
MAX.
4.6
V
DD
+
0.5
V
DD
+
0.5
260
UNITS
V
V
V
°C
Year
°C
°C
-
0.5
-
0.5
-
0.5
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device
and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above
the operational limits noted in this specification is not implied.
AC SPECIFICATIONS
PARAMETERS
Crystal Input Frequency(XIN)
Input (FIN) Frequency
Input (FIN) Signal Amplitude
Settling Time
Output Rise Time
Internally AC coupled
At power-up (after VDD increases over 1.62V)
15pF Load, 10/90%VDD, Standard drive
15pF Load, 10/90%VDD, High drive
15pF Load, 90/10%VDD, Standard drive
15pF Load, 90/10%VDD, High drive
At VDD/2
With capacitive decoupling between VDD and
GND. Operating only one output.
45
2.5
1.0
2.5
1.0
50
70
0.9
CONDITIONS
Fundamental Crystal
MIN.
10
TYP.
MAX.
30
100
VDD
10
3.5
1.5
3.5
1.5
55
UNITS
MHz
MHz
Vpp
ms
ns
ns
ns
ns
%
ps
Output Fall Time
Duty Cycle
Period Jitter, peak-to-peak*
(measured from 10,000 samples)
* Note: Jitter performance depends on the programming parameters.
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 08/17/05 Page 2
PL611-07
Programmable Quick Turn Clock
T M
DC SPECIFICATIONS
PARAMETERS
Supply Current, Dynamic, with
Loaded Outputs
Operating Voltage
Output Low Voltage
Output High Voltage
Output Current, Standard drive
Output Current, High drive
Short-circuit Current
SYMBOL
I
DD
V
DD
V
OL
V
OH
I
OSD
I
OHD
I
S
CONDITIONS
At 10MHz, load=15pF
At 50MHz, load=15pF
MIN.
TYP.
MAX.
15
30
UNITS
mA
mA
V
V
V
2.25
I
OL
= +4mA
Standard drive
I
OH
= -4mA
Standard drive
V
OL
= 0.4V, V
OH
= 2.4V
V
OL
= 0.4V, V
OH
= 2.4V
±50
V
DD
–
0.4
3.63
0.4
10.7
24
mA
mA
mA
CRYSTAL SPECIFICATIONS
PARAMETERS
Fundamental Crystal Resonator Frequency
Crystal Loading Rating
(The IC can be programmed for any value in this range.)
Maximum Sustainable Drive Level
Operating Drive Level
Crystal Shunt Capacitance
Effective Series Resistance, Fundamental, 10-30MHz
C0
ESR
100
6
30
SYMBOL
F
XIN
C
L (xtal)
MIN.
10
5
TYP.
MAX.
30
UNITS
MHz
pF
µW
µW
pF
Ω
16*
20
500
Note:
C
L
= 16pF is used when not specified. A detailed crystal specification document is also available for this part.
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 08/17/05 Page 3
PL611-07
Programmable Quick Turn Clock
T M

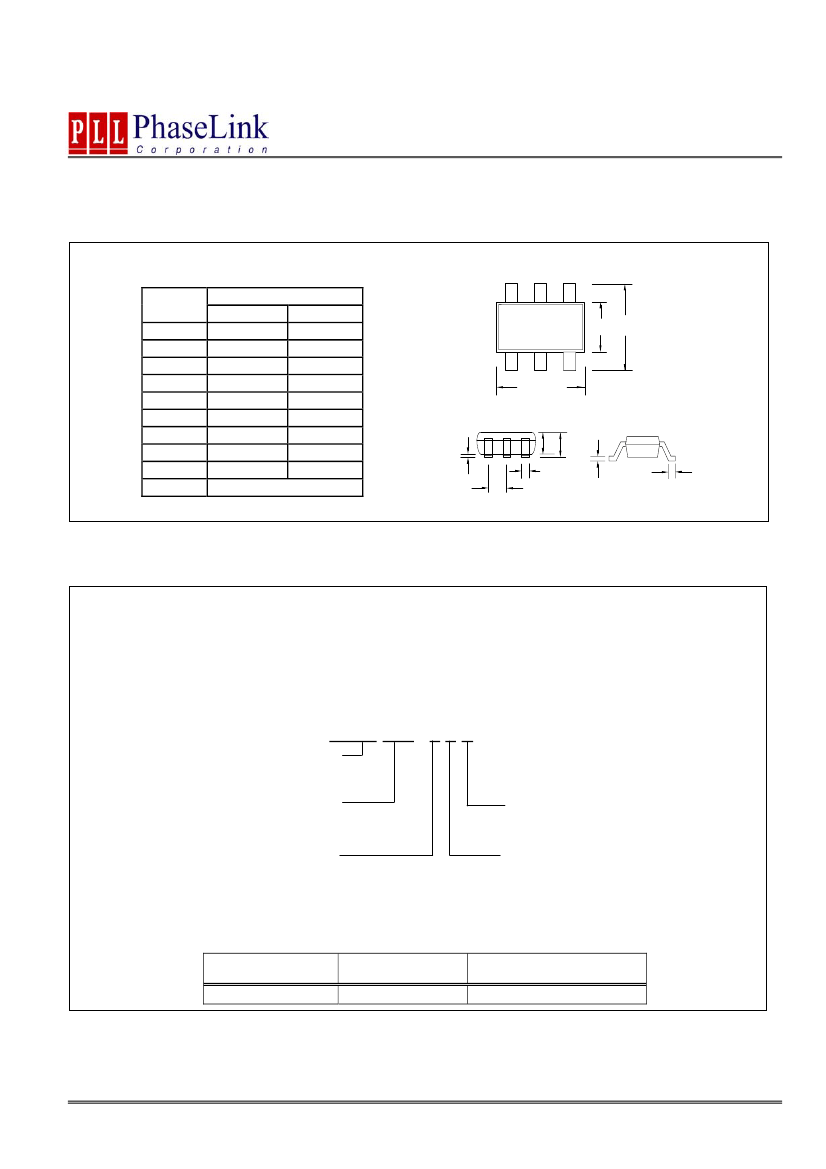

PACKAGE DRAWINGS (GREEN PACKAGE COMPLIANT)
SOT-23 6L
Symbol
A
A1
A2
B
C
D
E
H
L
e
Dimension in MM
Min.
Max.
1.05
1.35
0.05
0.15
1.00
1.20
0.30
0.50
0.08
0.20
2.80
3.00
1.50
1.70
2.60
3.0
0.35
0.55
0.95 BSC
E
H
D
A2 A
A1
e
b
C
L
ORDERING INFORMATION
For part ordering, please contact our Sales Department:
47745 Fremont Blvd., Fremont, CA 94538, USA
Tel: (510) 492-0990 Fax: (510) 492-0991
PART NUMBER
The order number for this device is a combination of the following:
Device number, Package type and Operating temperature range
PL611-XXX
PART NUMBER
3 DIGIT ID Code *
X X-R
NONE= TUBE
R=TAPE and REEL
TEMPERATURE
C=COMMERCIAL
I = INDUSTRIAL
PACKAGE TYPE
T=SOT
* PhaseLink will assign a unique 3-digit ID code for each approved programmed part number.
* PhaseLink offers Green Package Only for this product family.
Part / Order Number*
PL611-07-XXXTC-R
Marking
C7XXX
Package Option
6-Pin SOT-23 (Tape and Reel)
PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information
furnished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said
information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.
LIFE SUPPORT POLICY:
PhaseLink’s products are not authorized for use as critical components in life support devices or systems without the
express written approval of the President of PhaseLink Corporation.
