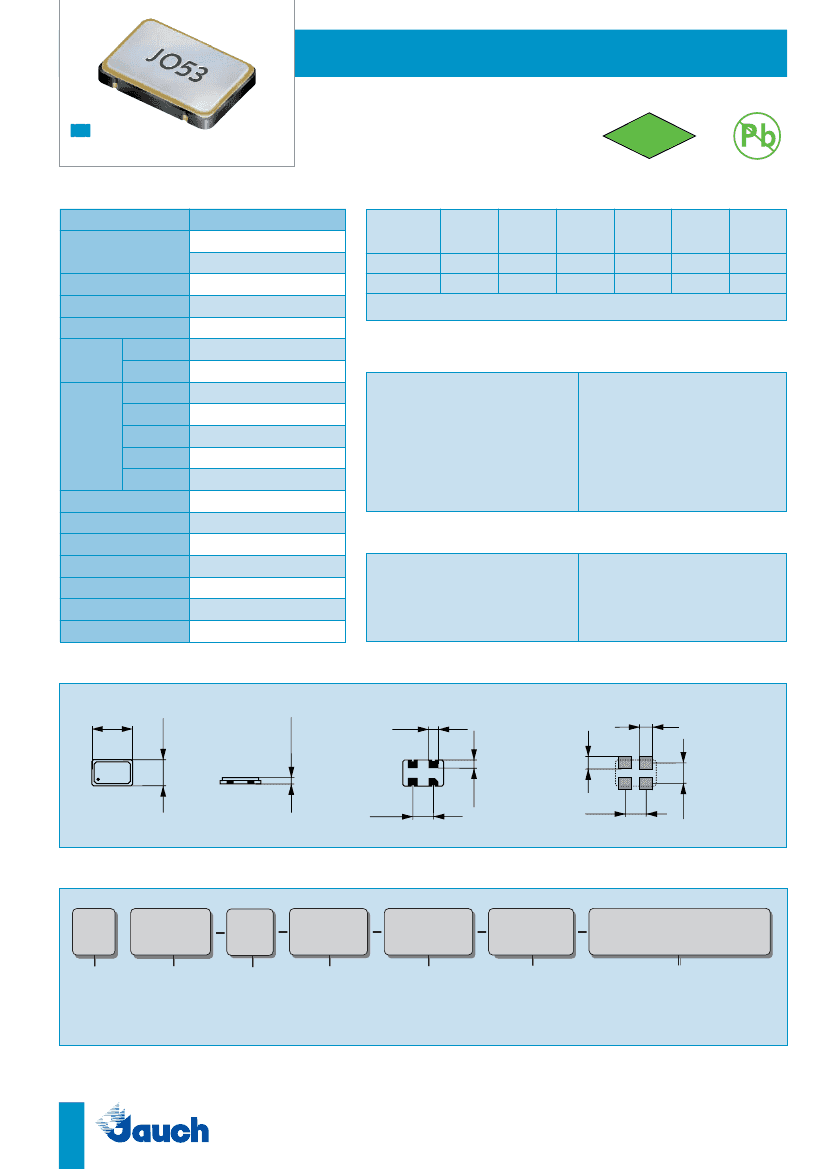

Oscillator · JO53 · 3.3 V
SMD Oscillator with Stop Function · 5.0 x 3.2 mm
actual size
■
reflow soldering temperature: 260
°C max.
■
ceramic/metal package
2002/95/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
JO53 3.3 V
0.50 ~ 125.0 MHz (15pF max.)
0.50 ~ 50.0 MHz (30pF max.)
frequency stability over all*
current consumption
supply voltage V
DC
temperature
operating
storage
output
rise & fall time
load max
current max.
low level max.
high level min.
output enable time max.
output disable time max.
start-up time max.
standby function
standby current max.
phase jitter 12 kHz ~ 20.0 MHz
symmetry at 0.5 x V
DC
± 20 ppm ~ ± 100 ppm (table 1)
see table 2
3.3 V ± 5%
-10 °C ~ +70 °C / -40 °C ~ +85 °C
-55 °C ~ +125 °C
see table 3
15pF / 30pF
5mA
0.1 x V
DC
0.9 x V
DC
10ms
150ns
10ms
stop
5µA
< 1.0ps RMS
45% ~ 55% typ. (40% ~ 60% max.)
Table 1: Frequency Stability Code
stability code
A
± 100 ppm
-10 °C ~ +70 °C
-40 °C ~ +85 °C
B
± 50 ppm
G
± 30 ppm
O
O
C
± 25 ppm
O
O
D
± 20 ppm
Δ
•
standard
•
O
available
•
•
Δ
excludes aging
* includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
Table 2: Current Consumption max.
Current at 15pF load
0.5 ~ 29.9 MHz
30.0 ~ 49.9 MHz
50.0 ~ 79.9 MHz
80.0 ~ 125.0 MHz
15 mA
25 mA
40 mA
50 mA
Current at 30pF load
0.5 ~ 29.9 MHz
30.0 ~ 50.0 MHz
15 mA
30 mA
Table 3: Rise & Fall Time max.
6 ns: 0.5 ~ 1.79 MHz
5 ns: 1.80 ~ 49.00 MHz
4 ns: 50.0 ~ 125.00 MHz
note:
- specific data on request
- rise time: 0.1 V
DC
~ 0.9 V
DC
- fall time: 0.9 V
DC
~ 0.1 V
DC
Dimensions
5.0
±0.2
#4 #3
#1
#2
side view
1.4 max.
3.2
±0.2
1.2
±0.1
1.5
±0.1
#3
#2
#4
#1
1.0
±0.1
1.6
±0.1
pin connection
# 1: e/d
# 2: ground
# 3: output
# 4: V
DC
in mm
2.54
±0.1
2.54
±0.1
pad layout
top view
bottom view
Order Information
O
Oscillator
frequency
type
frequency stability
code
see table 1
supply voltage
code
3.3 = 3.3 V
output load
code
1 = 15 pF
2 = 30 pF
option
0.5 ~ 125.0 MHz
JO53
blank = -10 °C ~ +70 °C
T1 = -40 °C ~ +85 °C
Example: O 20.0-JO53-B-3.3-1
(LF = RoHS compliant / Pb free pins or pads)
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
2.5
±0.1
Oscillator · JO53 · 3.3 V · Stop Function
Taping Specification
1.75
4.0
2.0
ø 1.5
±0.1
0.3
±0.05
13.4
120°
9.25
12.0
±0.3
5.3
±0.1
ø 13
ø 80
ø 255
2.0
ø 21
8.0
±0.1
3.5
±0.1
ø 1.5
±0.1
Direction of feed
1.7
±0.1
500 pcs per reel
in mm
Enable / Disable Function
pin #1 (e/d control)
open
high ”1” (V
IH
≥
0.8 V
DC
)
low ”0” (V
IL
≤
0.2 V
DC
)
stop function:
• oscillator stops
• output high impedance
pin #3 (output)
active
active
high impedance
Marking
frequency
type / date code
date code:
A ~ M: Jan.- Dec.
5: 2005
6: 2006
7: 2007
Jan.
A
July
G
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
Reflow Soldering Profile
temperature (°C)
260
200
150
100
50
60 ~180 s
60 s max.
10 s max.
260
°C
max.
220
±5 °C
180
±5 °C
Packing Note
–
–
standard packing units are 500 pieces per reel
non-multiple packing units are only supplied taped / bulk
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
