MKP 422
Vishay BCcomponents
Metallized Polypropylene Filter Film Capacitors
MKP Radial Potted Type
for Surge Voltage Applications
FEATURES
168x12(halfpage)
l
w
7.5 and 10 mm lead pitch. Supplied loose in box
and ammopack. Withstand surge voltages up to
1.5 kV.
Lead (Pb)-free product
RoHS-compliant product
e3
RoHS
COMPLIANT
h
CAPACITANCE TOLERANCE
±
5 %;
±
2 %
lt
RATED (DC) VOLTAGE
P±0.3
Ødt
630 V
Dimensions in mm
RATED (AC) VOLTAGE
160 V
APPLICATIONS
Low losses due to low contact resistance and low loss
dielectric result in applications where high frequency occur or
high stability is preferred. Their small dimensions make them
suitable for circuits with high packaging density.
RATED PEAK-TO-PEAK VOLTAGE
450 V
MARKING
C-value; rated voltage; tolerance; code for manufacturer;
year and week of manufacture; manufacturers type
designation
CLIMATIC CATEGORY
55/085/56
RATED TEMPERATURE (DC)
85
°C
DIELECTRIC
Polypropylene film
RATED TEMPERATURE (AC)
85
°C
ELECTRODES
Vacuum deposited aluminum
MAXIMUM APPLICATION TEMPERATURE
85
°C
ENCAPSULATION
Flame retardant plastic case and epoxy resin
(UL-class 94 V-0)
REFERENCE SPECIFICATIONS
IEC 60384-16
CONSTRUCTION
Wound mono construction
PERFORMANCE GRADE
Grade 1 (long life)
LEADS
Tinned wire
STABILITY GRADE
Grade 1
CAPACITANCE RANGE (E24 SERIES)
0.001 to 0.047 µF
DETAIL SPECIFICATION
For more detailed data and test requirements contact:
filmcaps.roeselare@vishay.com
www.vishay.com
286
For technical questions contact: filmcaps.roeselare@vishay.com
Document Number: 28151
Revision: 21-Nov-05
MKP 422
Metallized Polypropylene Filter Film Capacitors
Vishay BCcomponents
MKP Radial Potted Type
for Surge Voltage Applications
COMPOSITION OF CATALOG NUMBER
TYPE AND PITCHES
422
7.5 mm
10.0 mm
CAPACITANCE
(numerically)
MULTIPLIER
(nF)
0.01
0.1
2
3
Example:
103
=
100 x 1
=
100 nF
2222 422
BFC2* 422
XX XX X
XX XX X
* Use this partnumber for those with access to the
Vishay’s SAP system and Partners website within
the Americas
PREFERRED TYPES
TYPE
422
PACKAGING
Ammopack
LEAD CONFIGURATION
C-TOL
H
=
18.5 mm; P
0
=
12.7 mm
H
=
18.5 mm; P
0
=
12.7 mm
lead length 4.0
+1.0/−0.5
mm
±
2%
±
5%
±
5%
±
2%
630 V
1
ON REQUEST
Ammopack
422
Loose in box
0
3
4
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C
≤
0.0047 µF
Rated voltage pulse slope (dU/dt)
R
at 630 V (DC)
R between leads at 500 V; 1 minute
R between interconnected leads and case at 500 V; 1 minute
Withstanding (DC) voltage (cut off current 10 mA); rise time 100 V/s
Withstanding (DC) voltage between leads and case
at 10 kHz
≤
5
×
10
−4
50 V/µs
>
100000 MΩ
>
100000 MΩ
1000 V; 1 minute
2840 V; 1 minute
VALUE
at 100 kHz
≤
15
×
10
−4

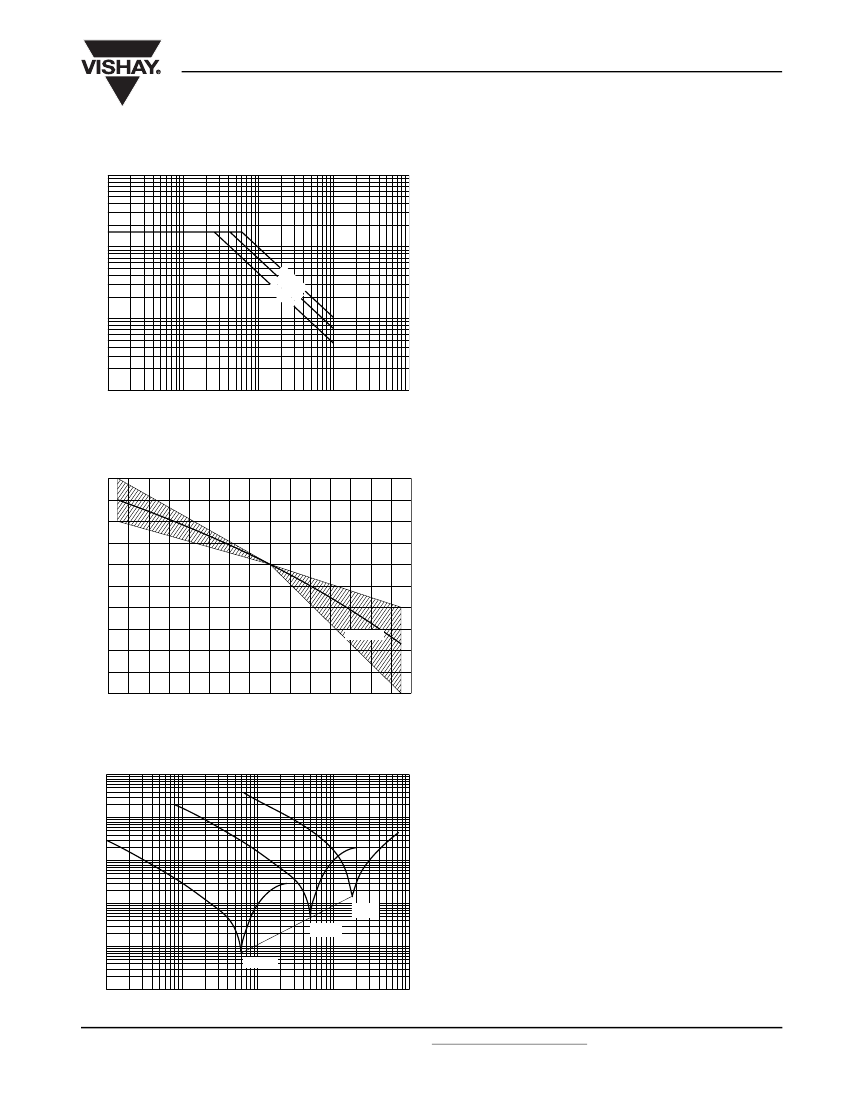

Document Number: 28151
Revision: 21-Nov-05
For technical questions contact: filmcaps.roeselare@vishay.com
www.vishay.com
287
